| Baud:: | 10 / 100 Mbps : 2 x LAN Port, 10 / 100 Mbps : 4 x LAN & PoE Ports |
|---|---|
| Certificates:: | CE |
| Dimensions:: | 220 x 141 x 41 mm |
| Lan ports:: | 6 x RJ45 ( 4 x IEEE 802.3af ) |
| Leds:: | LAN, WAN, PoE |
| Mac address table:: | 2k |
| Manufacturer / brand:: | APTI |
| Maximum output power:: | 15.4 W/PoE port |
| Maximum total power:: | 60 watts |
| Operating temperature:: | 0 °C ... 55 °C |
| Power:: | 230 VAC |
| Scales:: | 0.65 kg |
| Selected features:: | 2 x Uplink Port PoE Range: 200m - EXTEND Mode On |
| Warranty:: | 2 years |

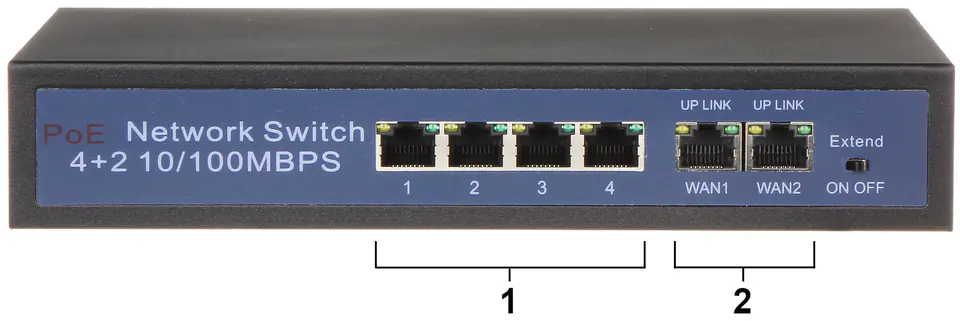

With reliability and high transmission quality, the APTI-POE0402-60W 4-port PoE switch is the ideal solution for IP CCTV applications
Remark! Enabling the Extend function increases the PoE range up to 200m and reduces the transmission speed to 10 Mb/sGreen LED at the WAN1 socket indicates that the device is connected to the power supply
