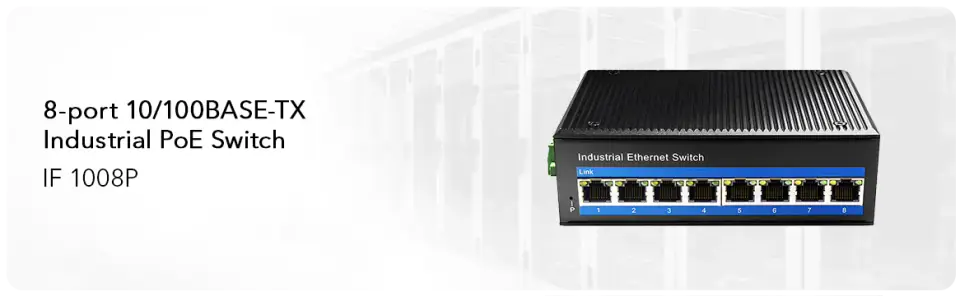

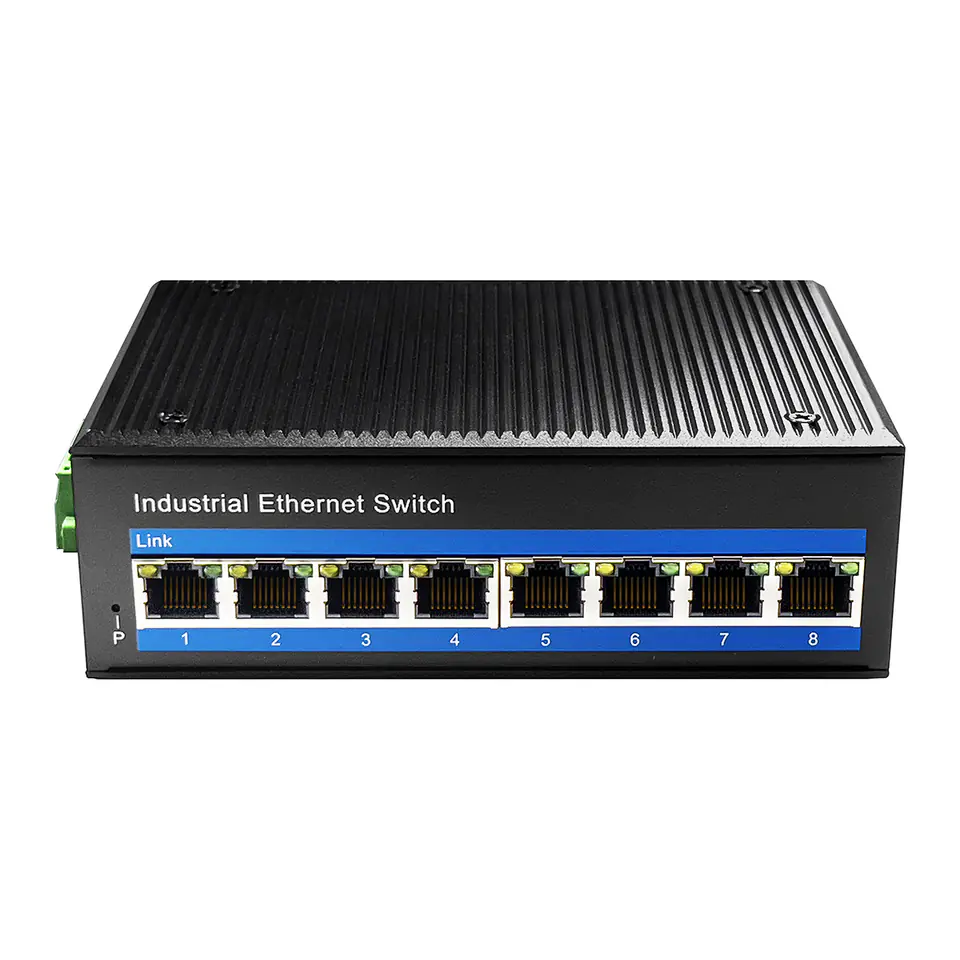

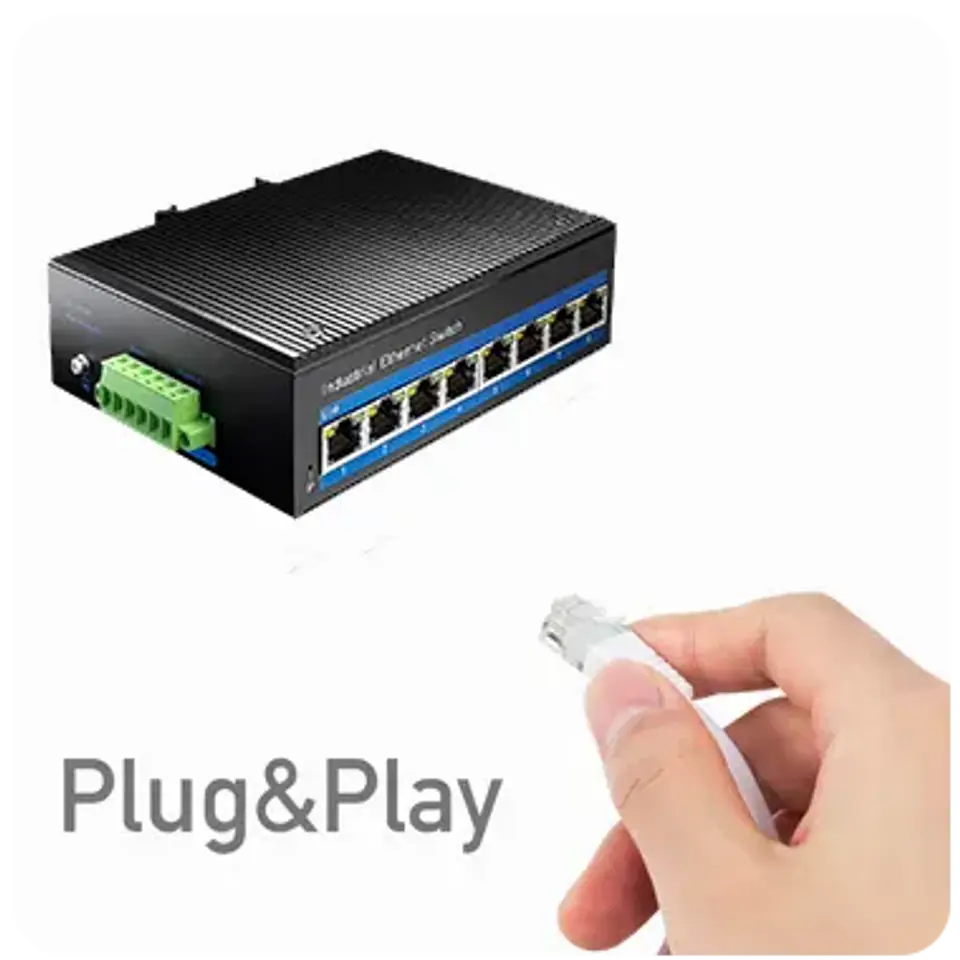

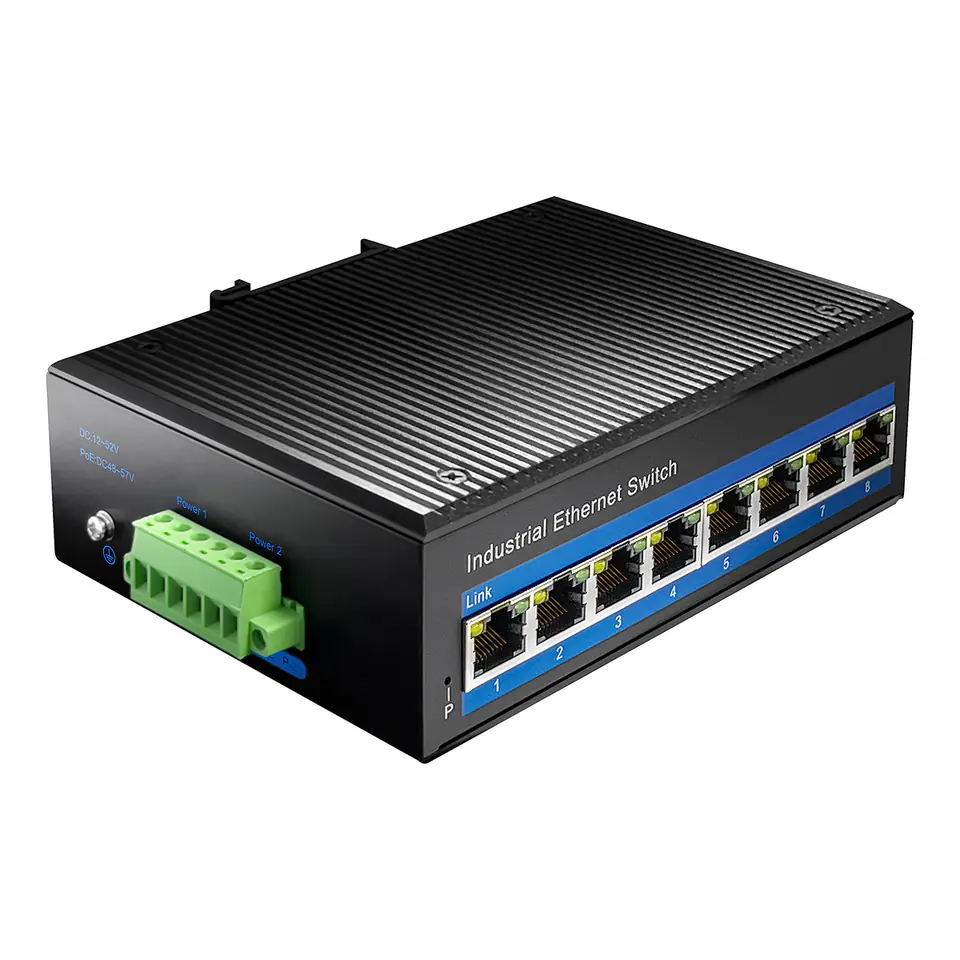

8-port CUDY industrial SWITCH 8x POE port IF1008P 10/100 Mbps

• 8-port RJ-45 10/100Base-Tx auto-negotiation auto-MDI/MDI-X

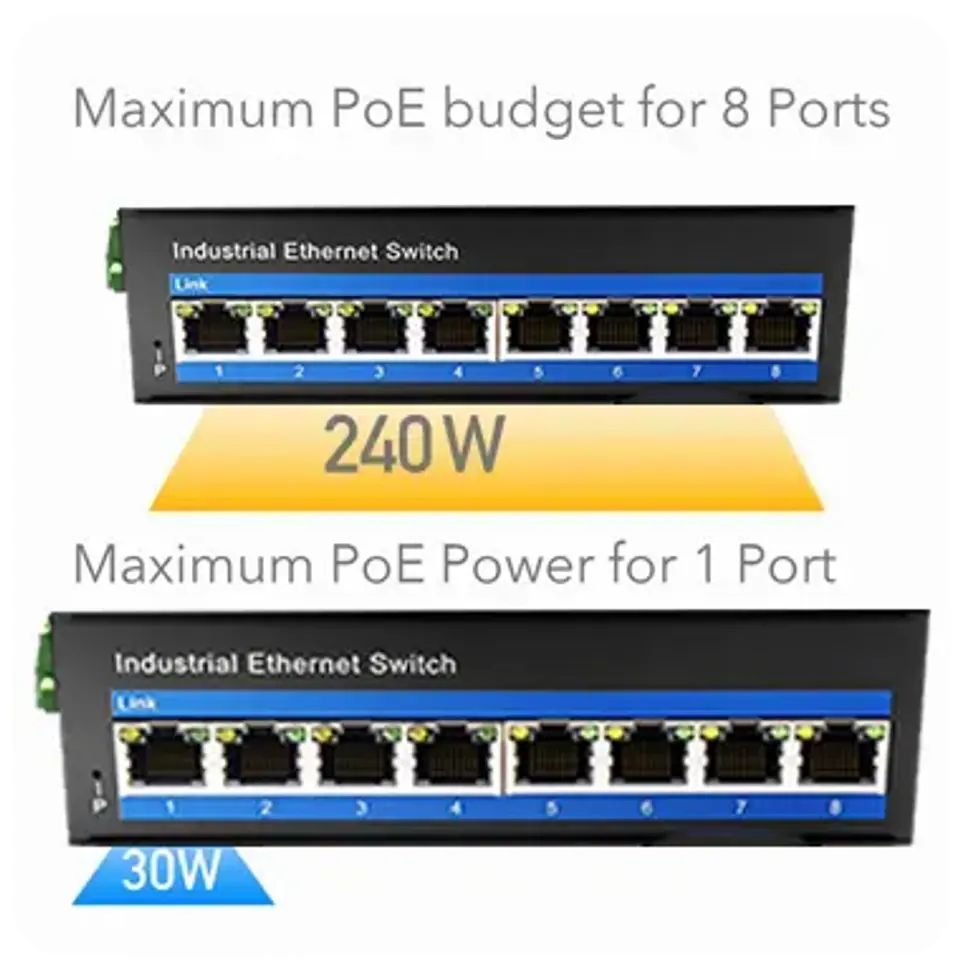

• 8-port PoE, 802.3at/af, max. 30W each port 48V to 57V DC

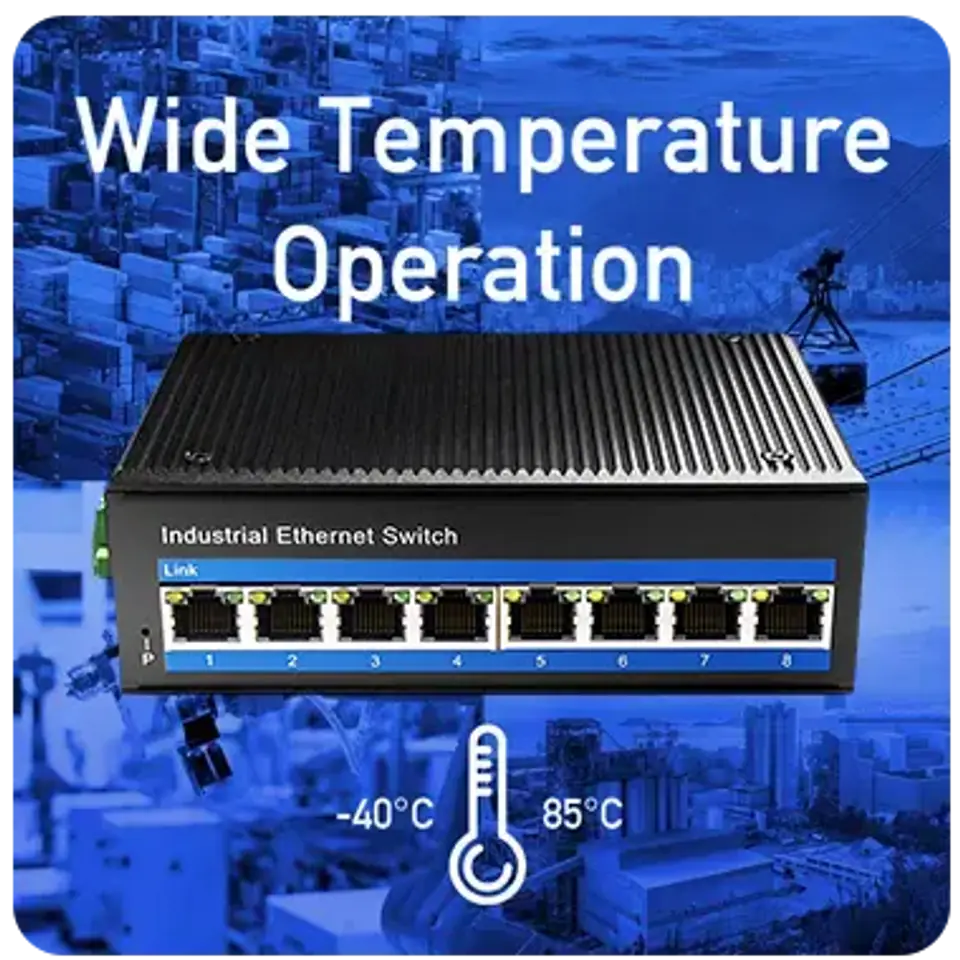

• Operating temperature from -40°C to 85°C

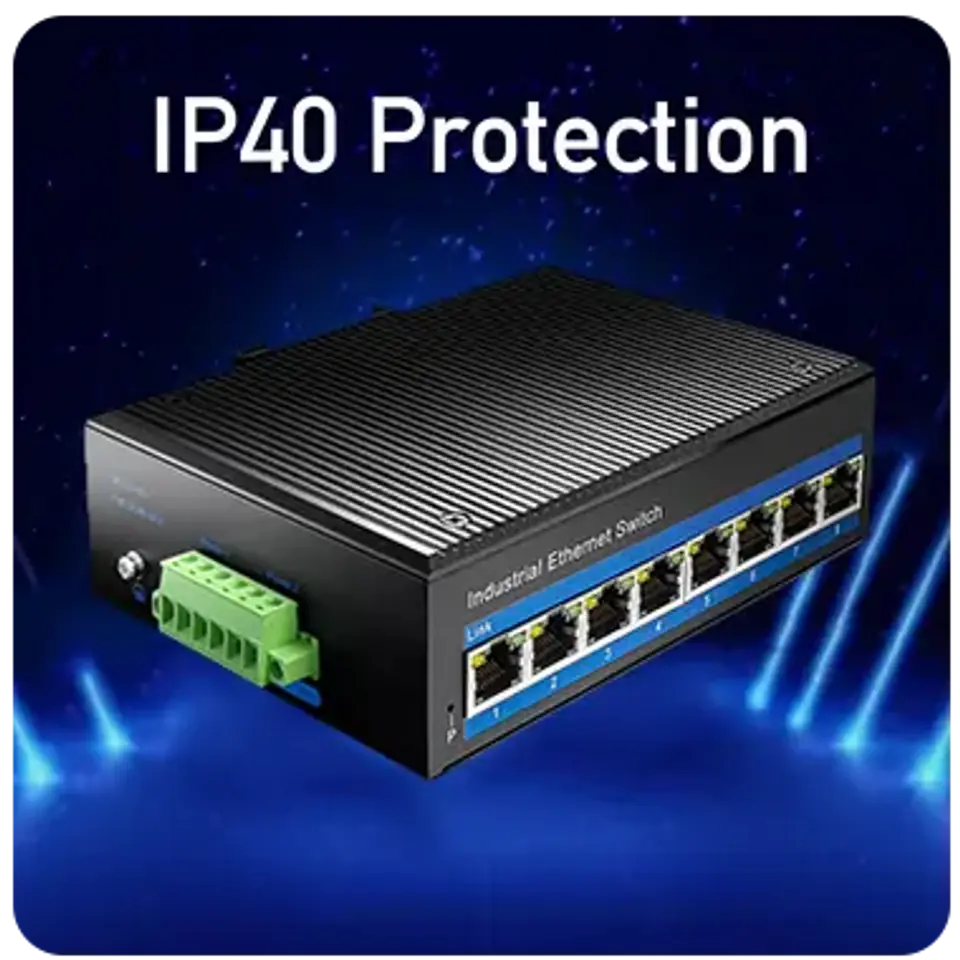

• IP40 aluminum housing
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV DC EFT protection for power supply
• Drop, shock and vibration resistant
• DIN rail and wall-mounted construction

High performance with maximum resistance to environmental conditions

Auto-negotiation RJ-45 ports can transfer large files and be compatible with any 10/100 Mbps Ethernet device. With a non-blocking switching architecture, the product forwards and filters packets at full wiring speed, ensuring maximum throughput.
It is a switch for all conditions - durable housing, temperature resistance. Ideal for industrial applications.

Technical Specifications

Model-  IF1008P
Number of ports - 8 RJ-45 auto-MDI / MDI-X port
PoE Specification

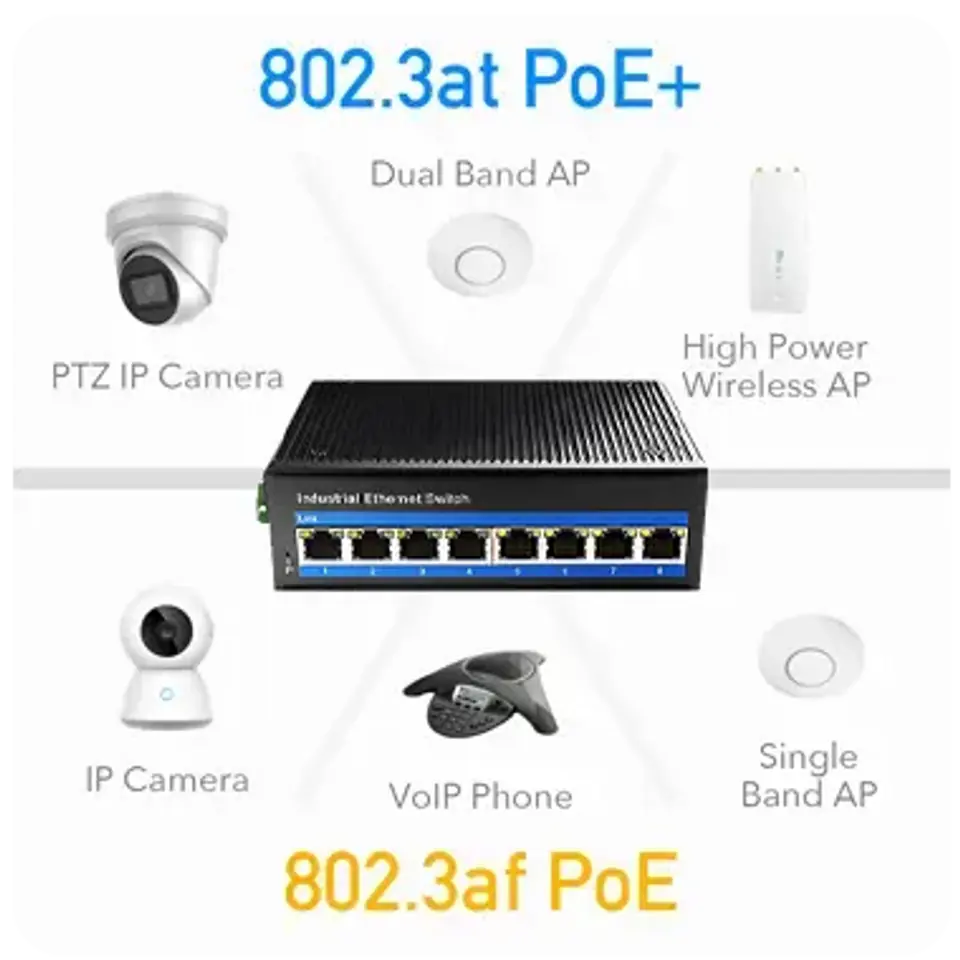

• PoE Standard: IEEE802.3af/ IEEE802.3at
• PoE ports:1-8 port support PoE
• Power Output: Max. 15.4 watts (IEEE 802.3af), Max. 30 watts (IEEE 802.3at)
• PoE port Auto detect AF/AT devices
• Output Voltage: DC48V
• Power Pin Assignment:1/2+;3/6-
• Power Type: End-span( Mid-span optional)

Performance specification

• Bandwidth: 1.6Gbps
• Packet Buffer Memory:1Mbit
• Packet Forwarding Rate: 1.2Mpps
• MAC Address Table: 2K

Installation - DIN rail
Maximum frame size - Package size 9000 bytesFlow control - Back pressure for half duplex, IEEE 802.3x pause for full duplex
Additional features - IP40 aluminum housing

LED indicator

• Power supply: Red
• Ethernet: Yellow
• POE: Green

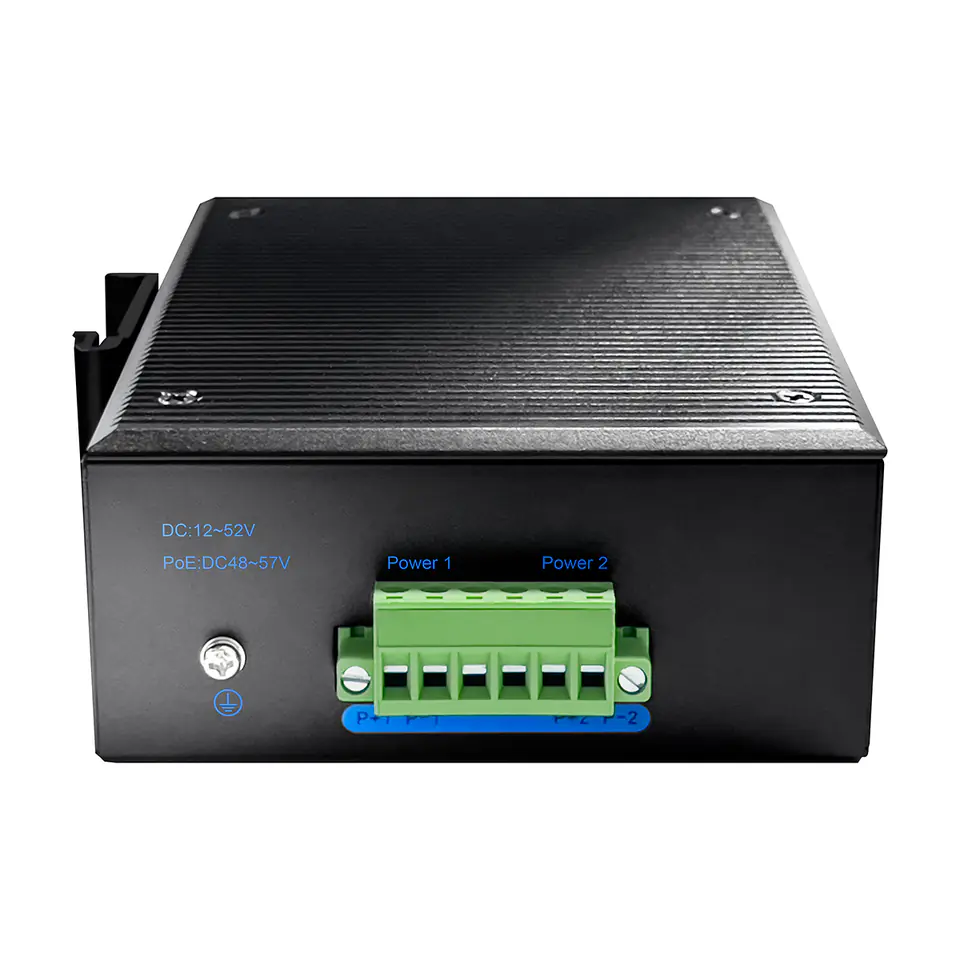

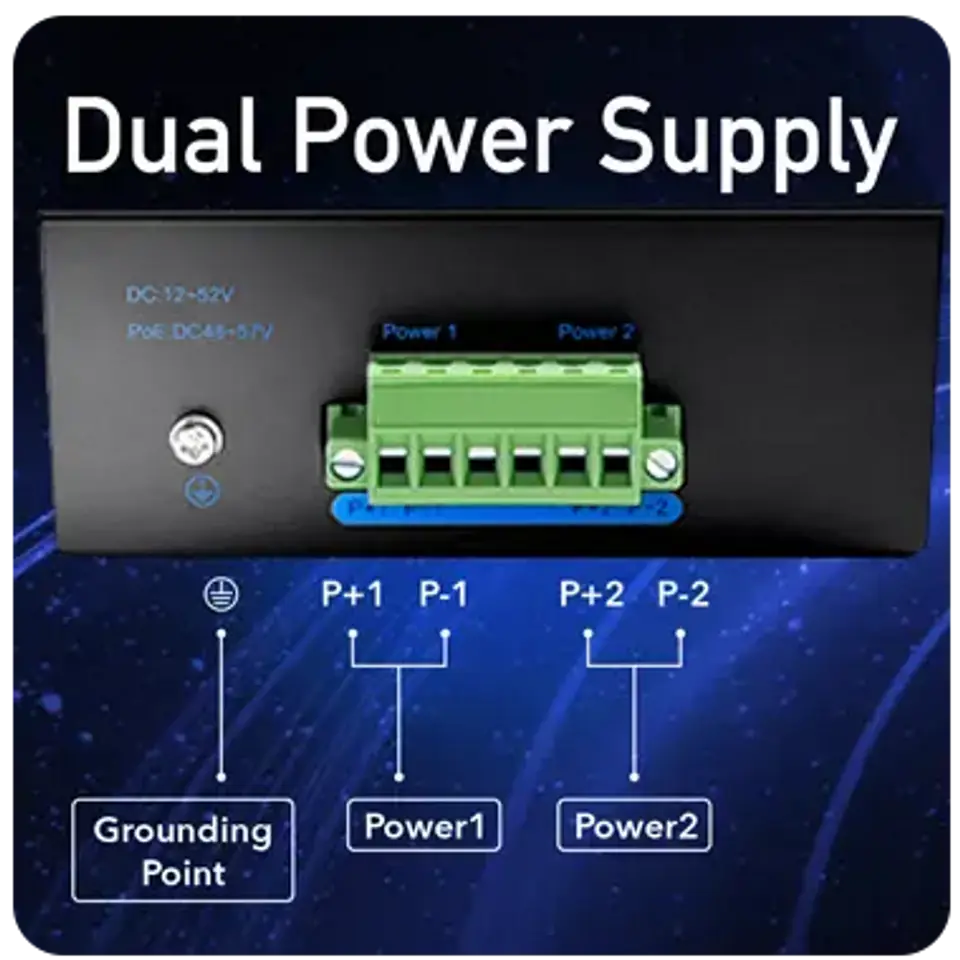

Power input - 48 to 57 V DC
Surge Protection - ±4KV

Network protocols

• IEEE802.3 10BASE-T;
• IEEE802.3i 10Base-T;
• IEEE802.3u 100Base-TX/FX;
• IEEE802.3ab 1000Base-T;
• IEEE802.3z 1000Base-X;
• IEEE802.3x

Network cables

• 10BASE-T: Cat3, 4, 5 UTP (≤100 meters)
• 100BASE-TX: Cat 5 or higher UTP (≤10 meters)
• 1000BASE-TX: Cat 6 or later UTP (≤100 meters)

Industry standard

• FCC CFR47 Part 15, EN55022/CISPR22, Class A
• IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
• IEC61000-4-3 (RS): 10V/m (80~1000MHz)
• IEC61000- 4-4 (EFT): Power supply: ±4kV, Data port: ±2kV
• IEC61000-4-5 (overvoltage): Power supply: ±2kV/DM, ±4kV/CM, Data port: ±2kV
• IEC61000-4-6 (CS): 3V (10kHz-150kHz), 10V (150kHz-80MHz)
• IEC61000-4-16 (common conduction): 30V (continuation), 300V (1s)

MTBF - > 300,000 hours
Dimensions (WxDxH) - 118 x 86 x 33.5 mm

Scales

• Product weight: 0.36 KG
• Box weight: 0.46 KG

Working environment

• Operating temperature: -40~85°C
• Storage Temperature: -40~85°C
• Relative Humidity: 5%~95% (non-condensing)
