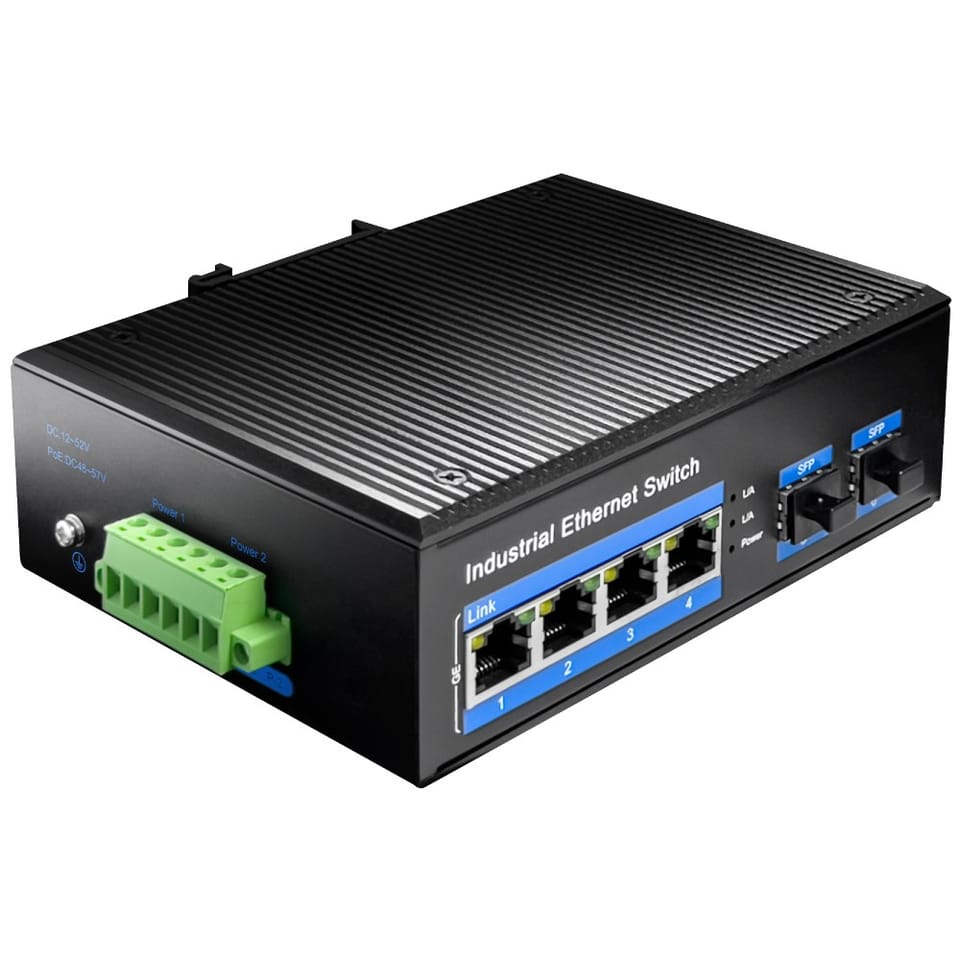

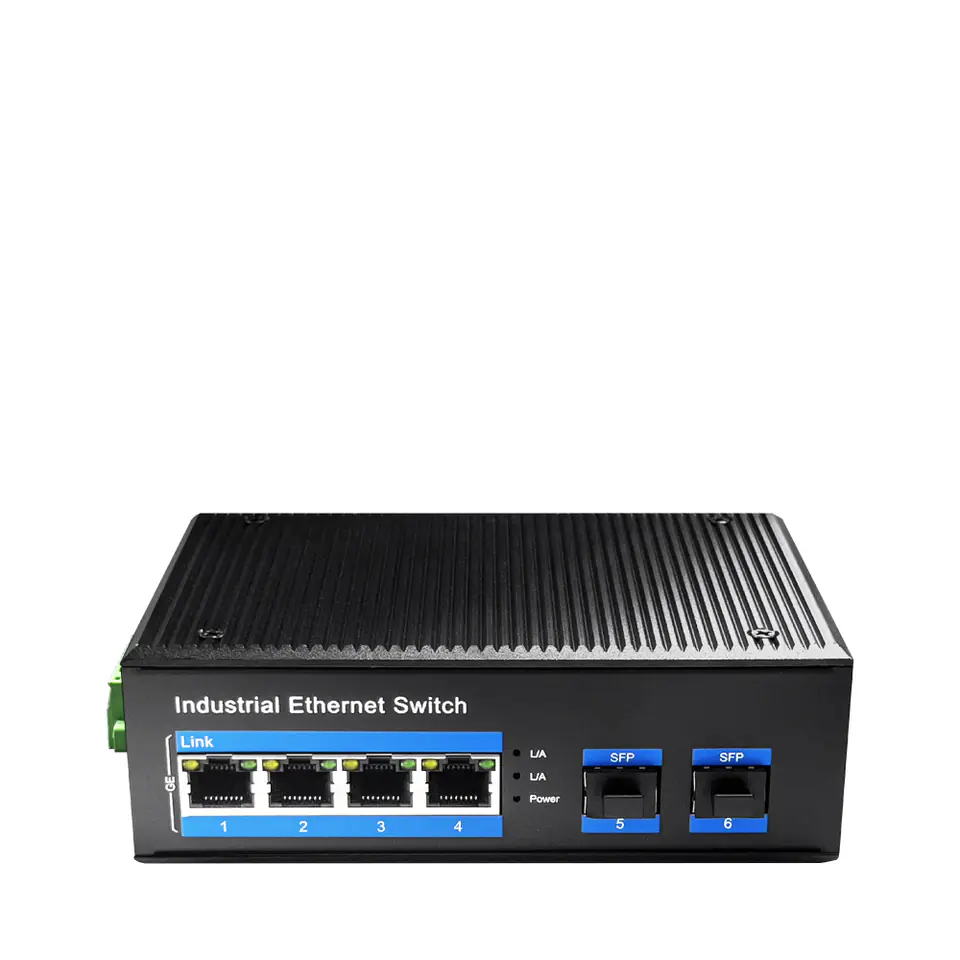

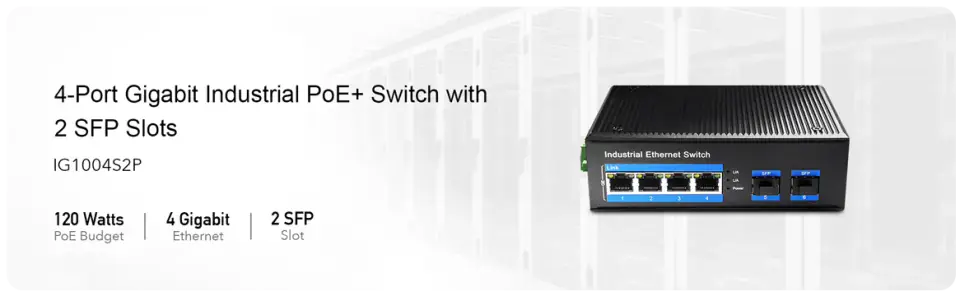

4-port industrial SWITCH CUDY IG1004S2P 1 Gbps with 2 fiber optic slots

• 4 x GbE PoE+ Port and 2 x SFP
• Multimode up to 2km
• Single-mode up to 20km/40km/60km/80km

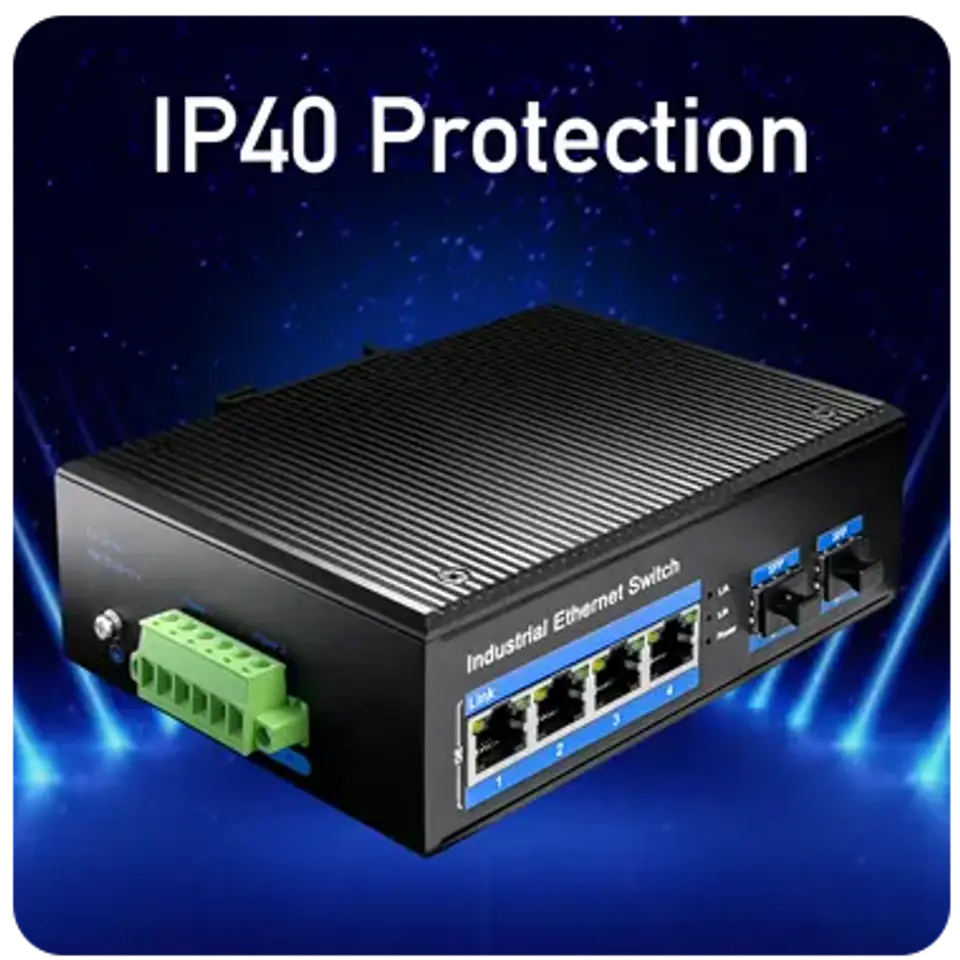

• IP40 aluminum housing
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV DC EFT protection for line power supply
• Drop, shock and vibration resistant
• DIN rail construction

High performance with maximum resistance to environmental conditions

Auto-negotiation RJ-45 ports can transfer large files and be compatible with any 10/100/1000 Mbps Ethernet device. With a non-blocking switching architecture, the product forwards and filters packets at full wiring speed, ensuring maximum throughput.

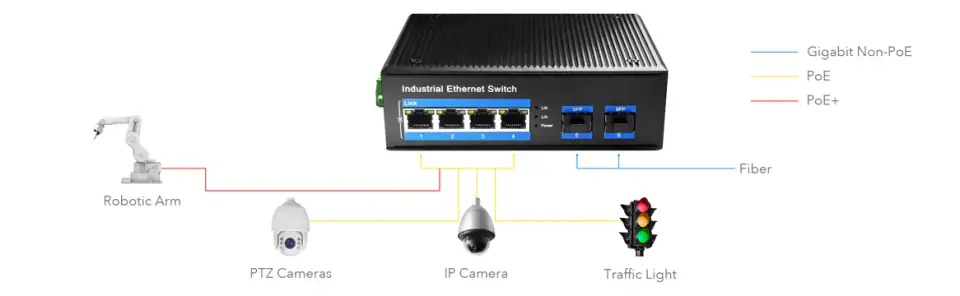

It is a switch for all conditions - durable housing, temperature resistance. Ideal for industrial applications.

Technical Specifications

Model-  IG1004S2P
Number of ports - 4-port RJ-45 auto-MDI / MDI-X
PoE Specification

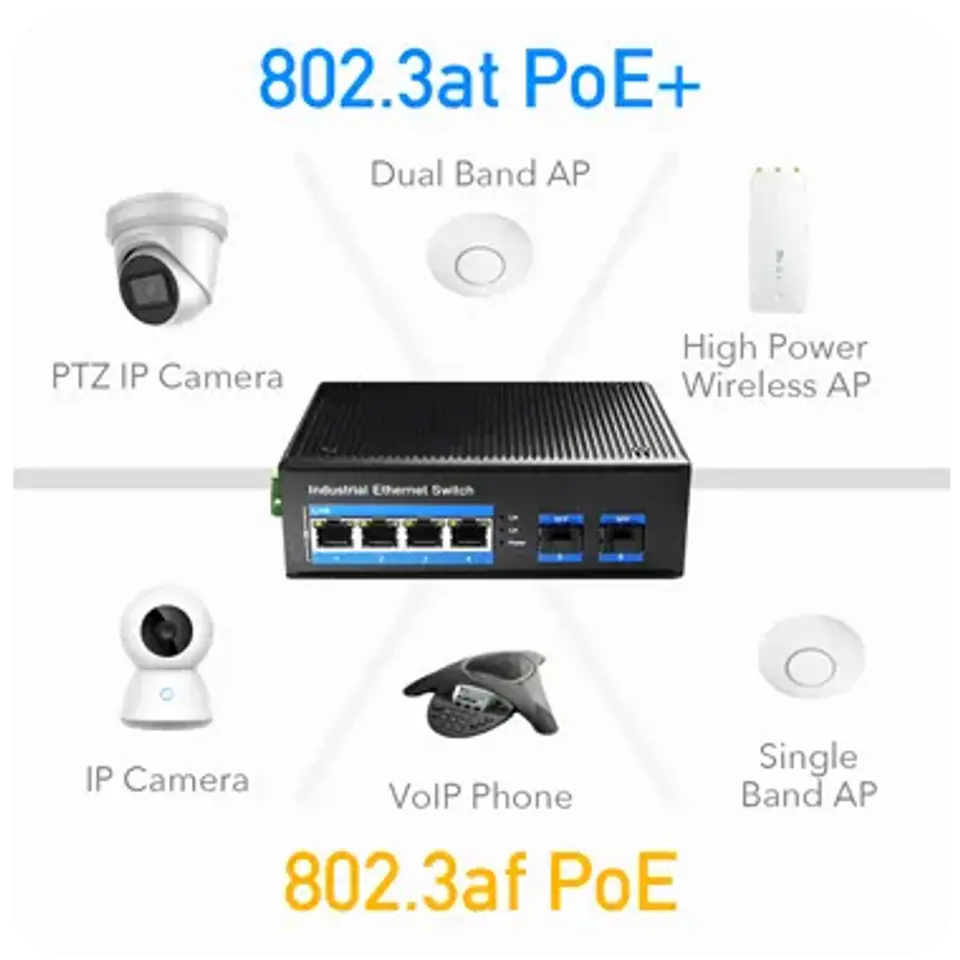

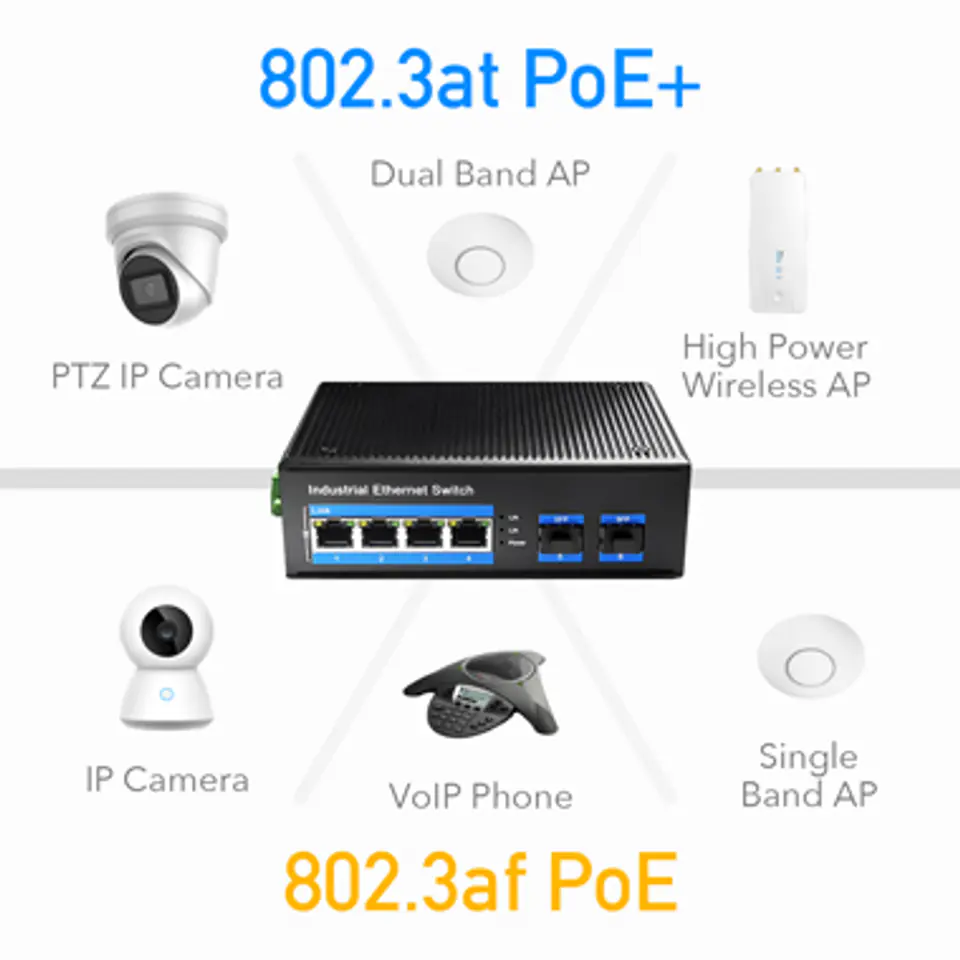

• PoE standard: IEEE802.3af/ IEEE802.3at
• PoE Ports: Support 1-4 PoE ports

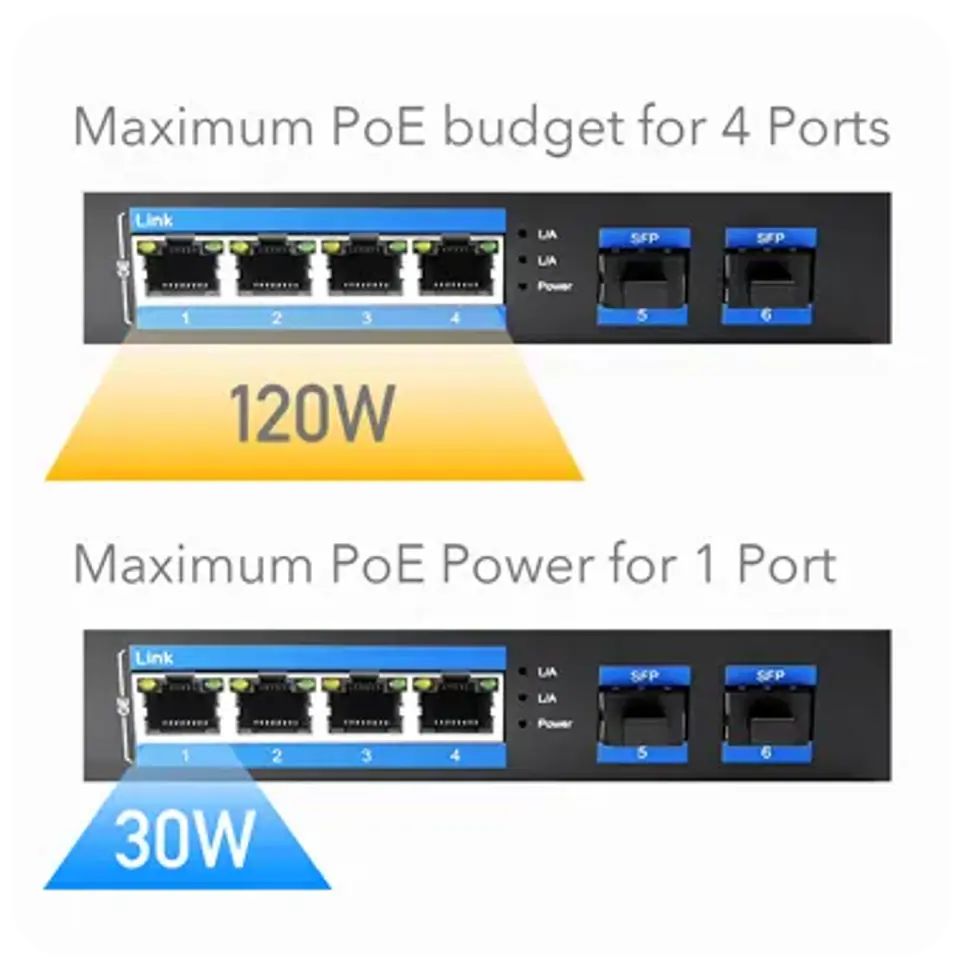

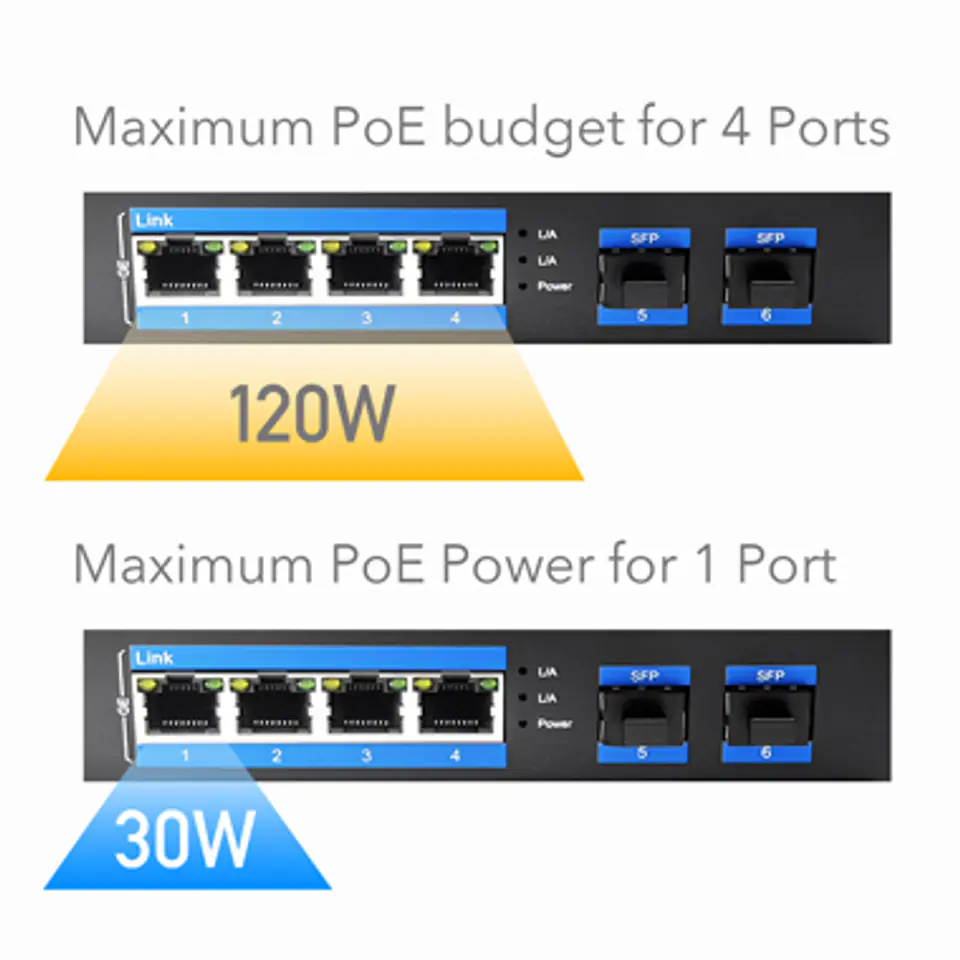

• Output Power: Max. 15.4W (IEEE 802.3af), max. 30 W (IEEE 802.3at)
• PoE port Automatic detection of af/at devices
• Output voltage: DC48V
• Power contact assignment: 1/2+, 3/6-
• Power Type: End Range (Mid-span Optional)

Performance specification

• Bandwidth: 20Gbps
• packet buffer Memory:2Mbit
• Forwarding rate:15Mpps
• MAC Address Table: 8K

Installation - DIN rail
Maximum frame size - Package size 9000 bytesFlow control - Back pressure for half duplex, IEEE 802.3x pause for full duplex
Additional features - IP40 aluminum housing

LED indicator

•

• Power supply: Red
• Fiber: Link 2 (green)
• Ethernet: Yellow

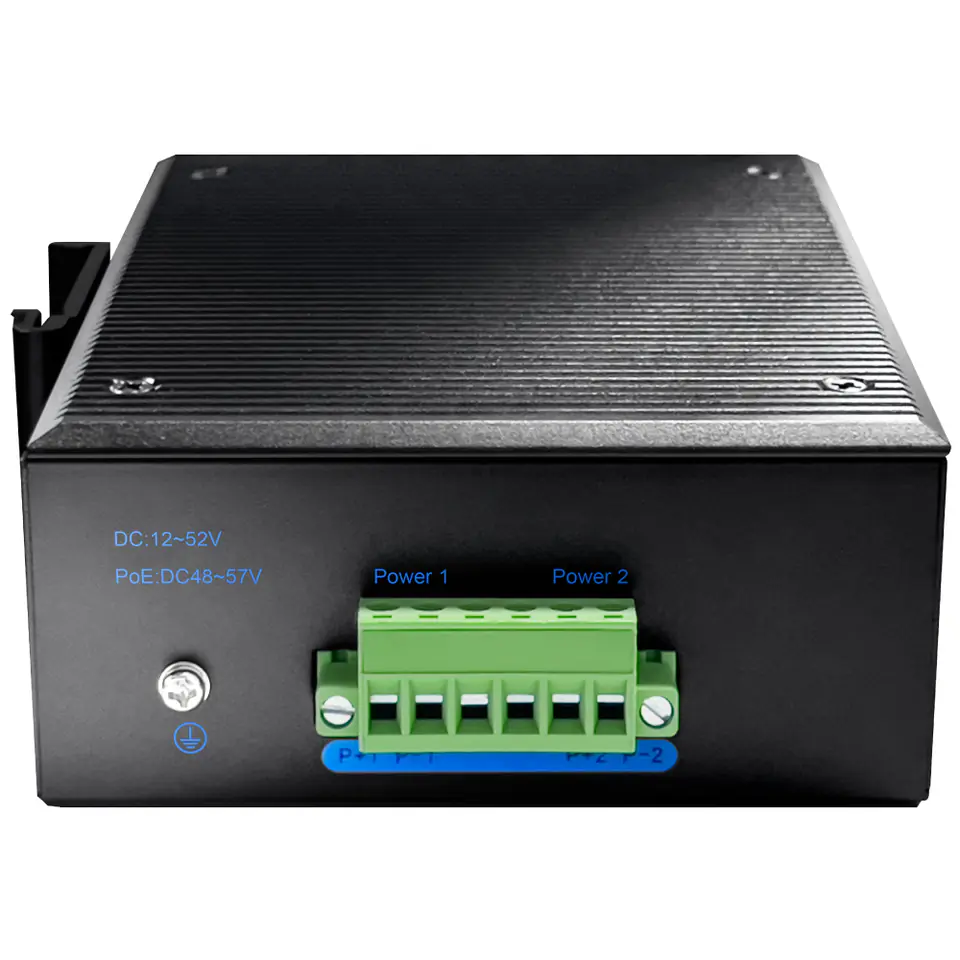

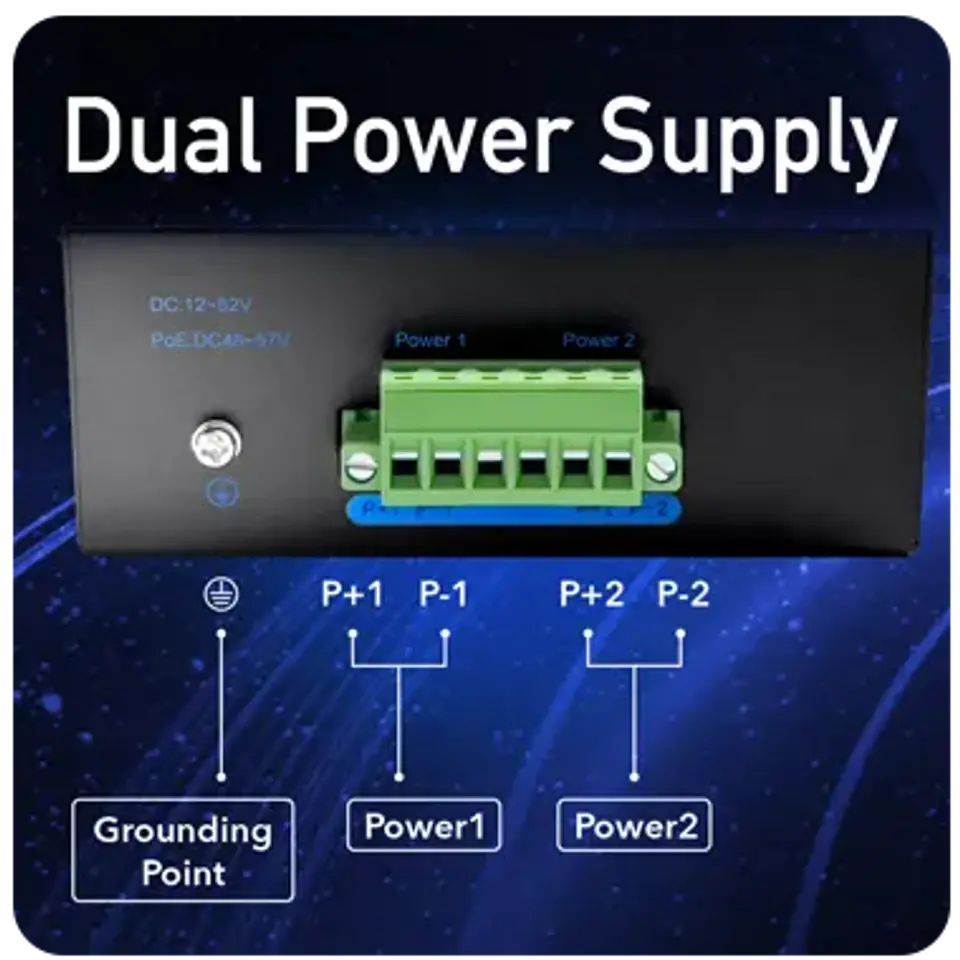

Power Input - Redundant power supply 48 to 57 V DC
Power consumption - < 3 watts
Surge Protection - ±4KV

Network protocols

•

• IEEE802.3 10BASE-T;
• IEEE802.3i 10Base-T;
• IEEE802.3u 100Base-TX/FX;
• IEEE802.3ab 1000Base-T;
• IEEE802.3z 1000Base-X;
• IEEE802.3x

Network cables

•

• 0BASE-T: Cat 3, 4, 5 UTP (≤ 100 meters)
• 100BASE-TX: Cat 5 or later UTP (≤ 10 meters)
• 1000BASE-TX: Cat 6 or later UTP (≤ 100 meters)

Industry standard

•

• FCC CFR47 Part 15, EN55022/CISPR22, Class A
• IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
• IEC61000-4-3 (RS): 10V/m (80~1000MHz)
• IEC61000- 4-4 (EFT): Power supply: ±4kV, Data port: ±2kV
• IEC61000-4-5 (Surge): Power supply: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
• IEC61000-4-6 (CS): 3V (10kHz-150kHz), 10V (150kHz-80MHz)
• IEC61000-4-16 (common conduction): 30V (continuation), 300V (1s)

MTBF - > 300,000 hours
Dimensions (WxDxH) - 143.7 × 103 × 44.2 mm

Scales

• Product weight: 0.36 KG
• Box weight: 0.46 KG

Working environment

• Operating temperature: -40~85°C
• Storage Temperature: -40~85°C
• Relative Humidity: 5%~95% (non-condensing)
