| Case:: | Plastic |
|---|---|

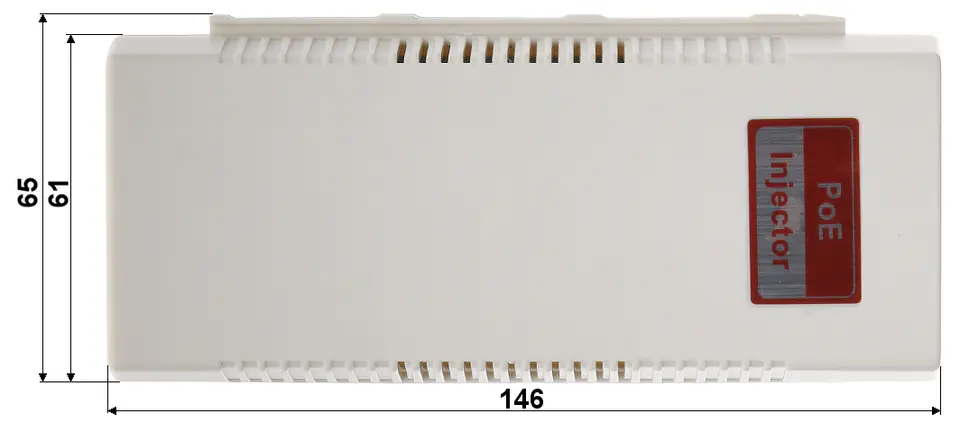

| Dimensions:: | 145 x 65 x 43 mm |
| Input voltage:: | 100 V ... 240 V AC |
| Joint:: | 2 x RJ-45 Jack |
| Number of inputs:: | 1 |
| Operating temperature / relative humidity:: | 0 °C ... 40 °C / 5 % ... 90 % |
| Output power:: | 15.4 watts |
| Output voltage:: | 48 ... 56 VDC |
| Scales:: | 0.166 kg |
| Signal diodes:: | Power connection, PoE |
| Standards:: | IEEE 802.3af |
| Supported baud rate:: | 10 / 100 Mbps |
| Warranty:: | 2 years |

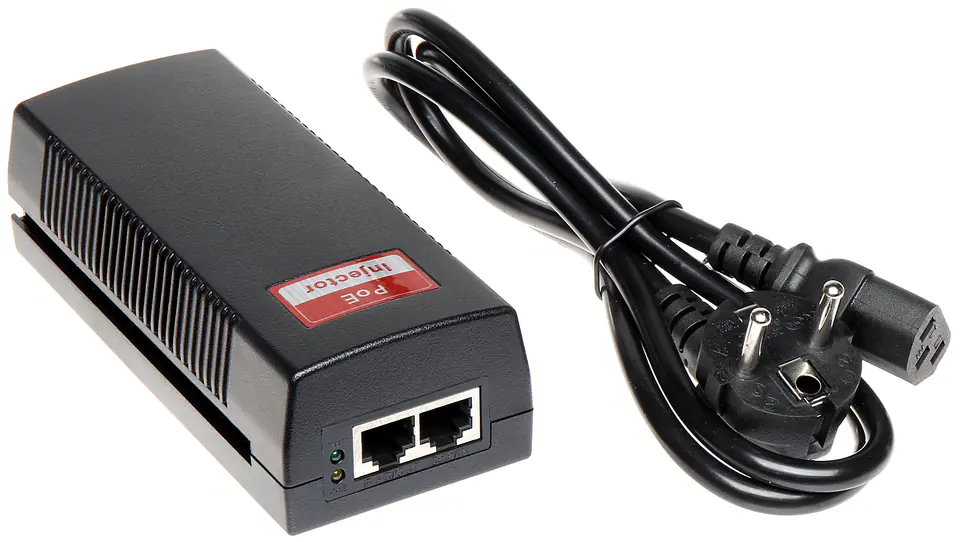

SPT-1/1P is used to power devices using PoE technologyIt allows it to work correctly using only one twisted pair cable, which transmits both data and supply voltage
Remark! If the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current
Special attention should be paid to the proper cooling of the power supply during operation!
