| Case:: | Plastic |
|---|---|
| Colour:: | Green |
| Dimensions:: | 74 x 22 x 17 mm |
| Input voltage:: | 35 ... 56 VDC - PoE |
| Manufacturer / brand:: | ATTE |
| Number of inputs:: | 1 pc. RJ-45 |
| Operating temperature:: | -10 °C ... 40 °C |
| Output power:: | Max. 12 watts (Printing) |
| Output voltage:: | 12 V DC - Plug 2.1/5.5 mm on cable |
| Scales:: | 0.02 kg |
| Selected features:: | Output current : 1 A Protection class : IP20 |
| Signal diodes:: | Indication of the presence of output voltage |
| Warranty:: | 3 years |

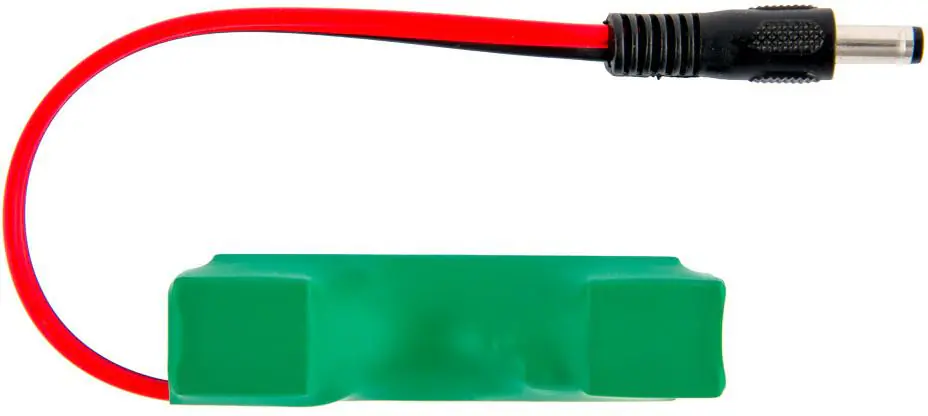

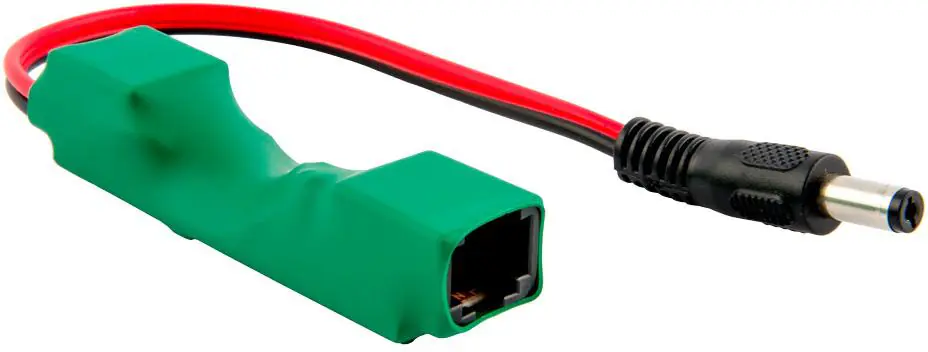

The PoE adapter ASDC-12-121-HS is powered from the PoE 48V line and lowers the voltage to 12V at the 2.1 / 5.5 mm outputThe basic application of the adapter is to power IP cameras or other devices that do not have the possibility of power supply compliant with the PoE standard
The device can be powered from an 802.3af or PoE PASSIVE switch
