PoE+ 30W Gigabit POE200 Power Supply

€25.52
Shipping from warehouse: ⁨D3⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Cudy
Product code:
POE200 / 6971690790257

Specification

Ac adapter frequency:50 - 60 Hz
Ac adapter input voltage:100 - 240 V
Depth:50 mm
Easy to install:Yes
Ethernet interface type:Gigabit Ethernet

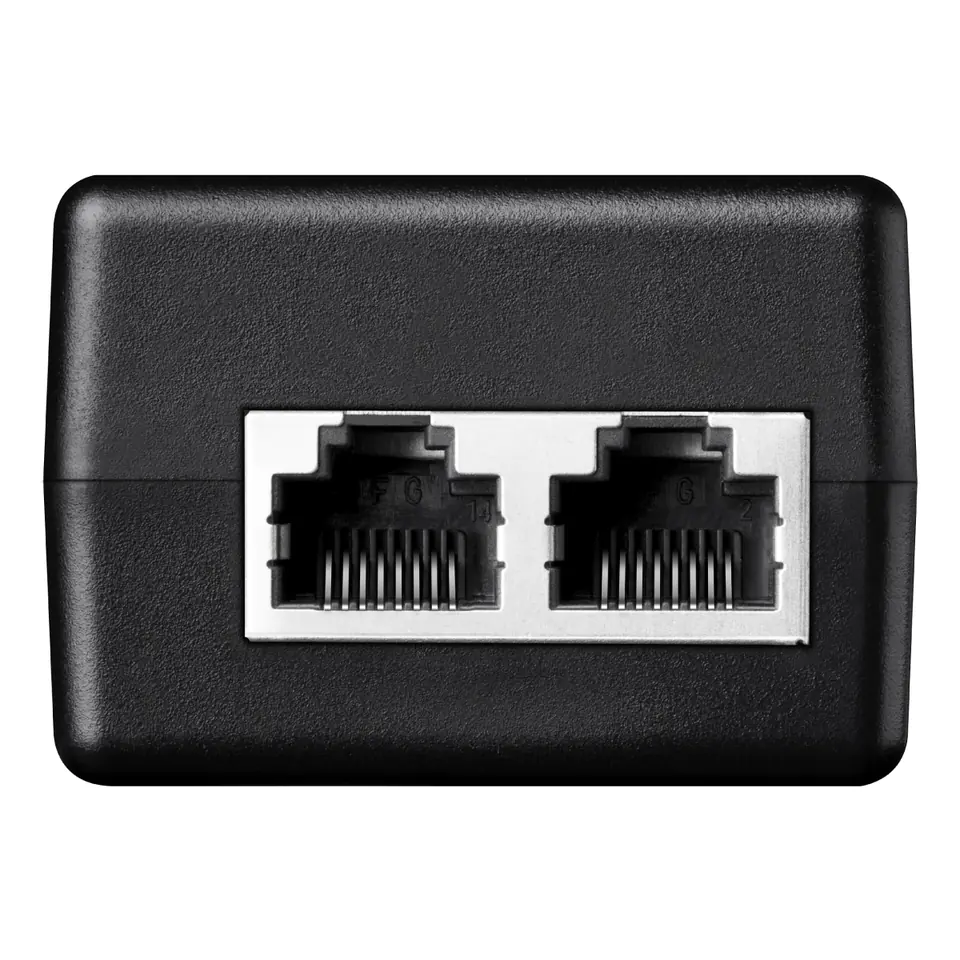

Ethernet lan (rj-45) ports:2
Ethernet lan data rates:100, 1000 Mbit/s, 10
Height:36 mm
Input current:0.5 A
Led indicators:Power, PoE

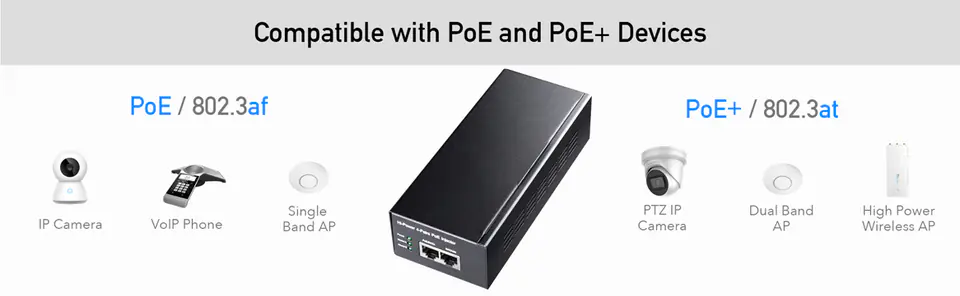

Networking standards:IEEE 802.3at, IEEE 802.3af
Number of products included:1 pc(s)
Operating relative humidity (h-h):10 - 85%
Operating temperature (t-t):-40 - 40 °C
Output power:30 W
Package type:Box
Pin assignment & polarity:1/2 (-), 3/6 (+)
Plug and play:Yes

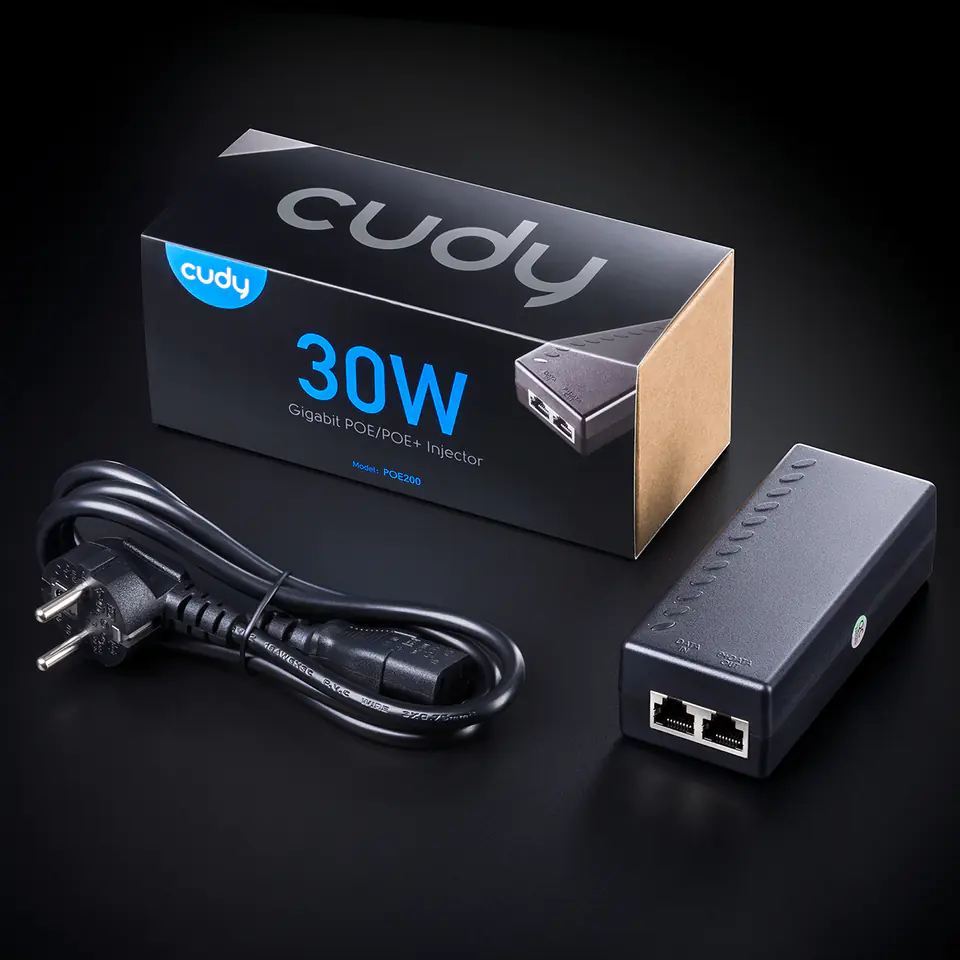

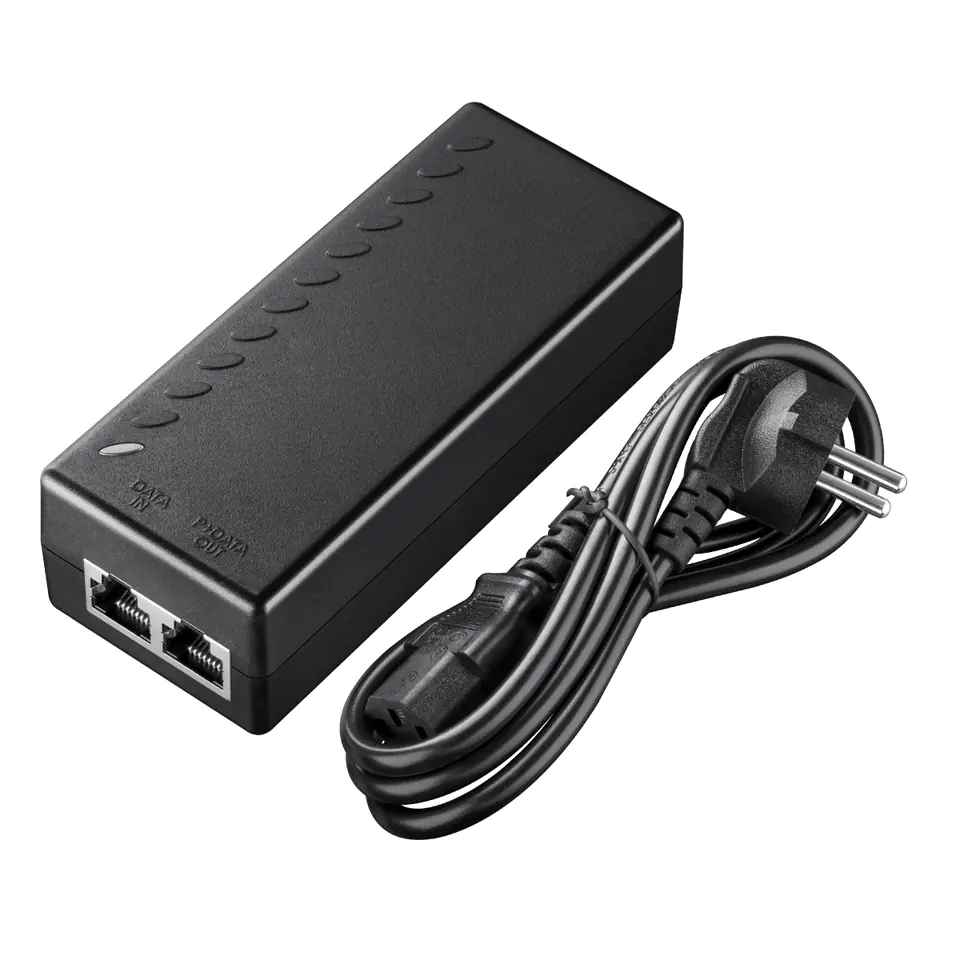

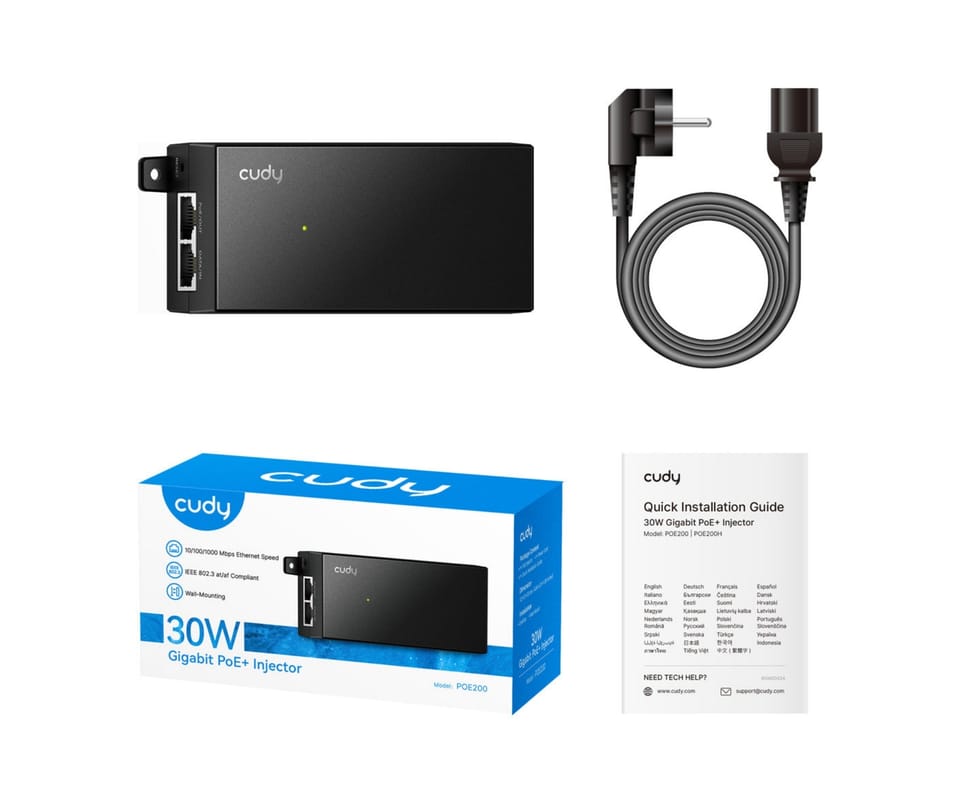

Power cord included:Yes
Power over ethernet (poe):Yes
Power over ethernet (poe) voltage:54 V
Power protection features:Overload, Over current, Over voltage
Product colour:Black

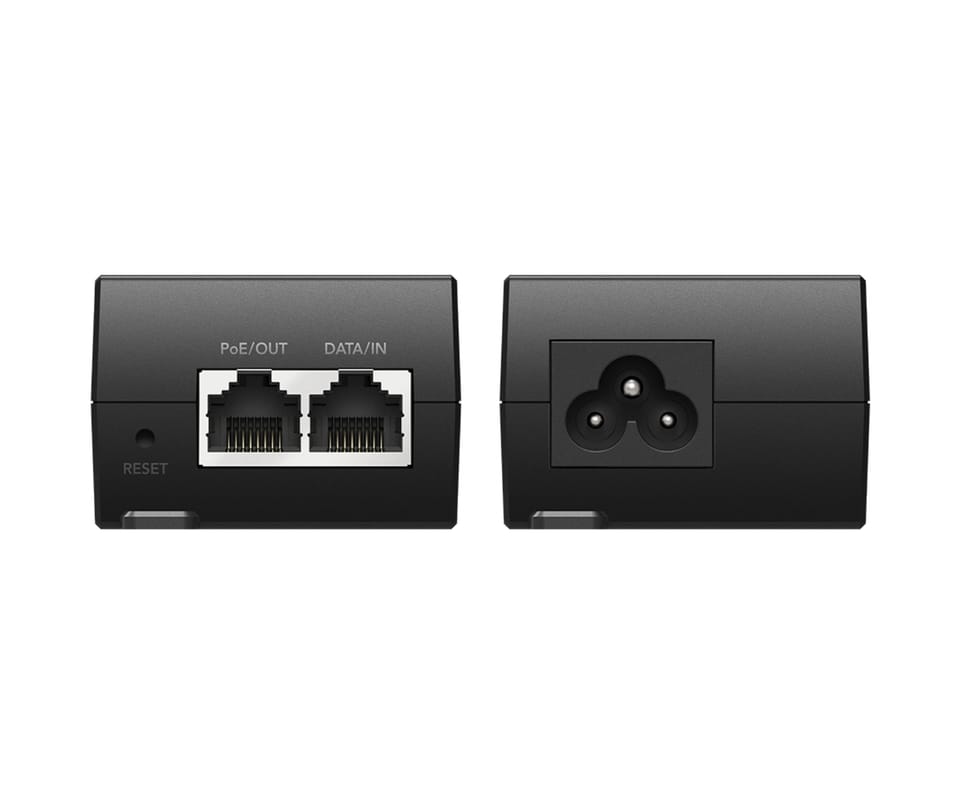

Rj-45 input ports:1
Rj-45 output ports:1
Storage relative humidity (h-h):10 - 90%
Storage temperature (t-t):-40 - 50 °C
Width:121 mm

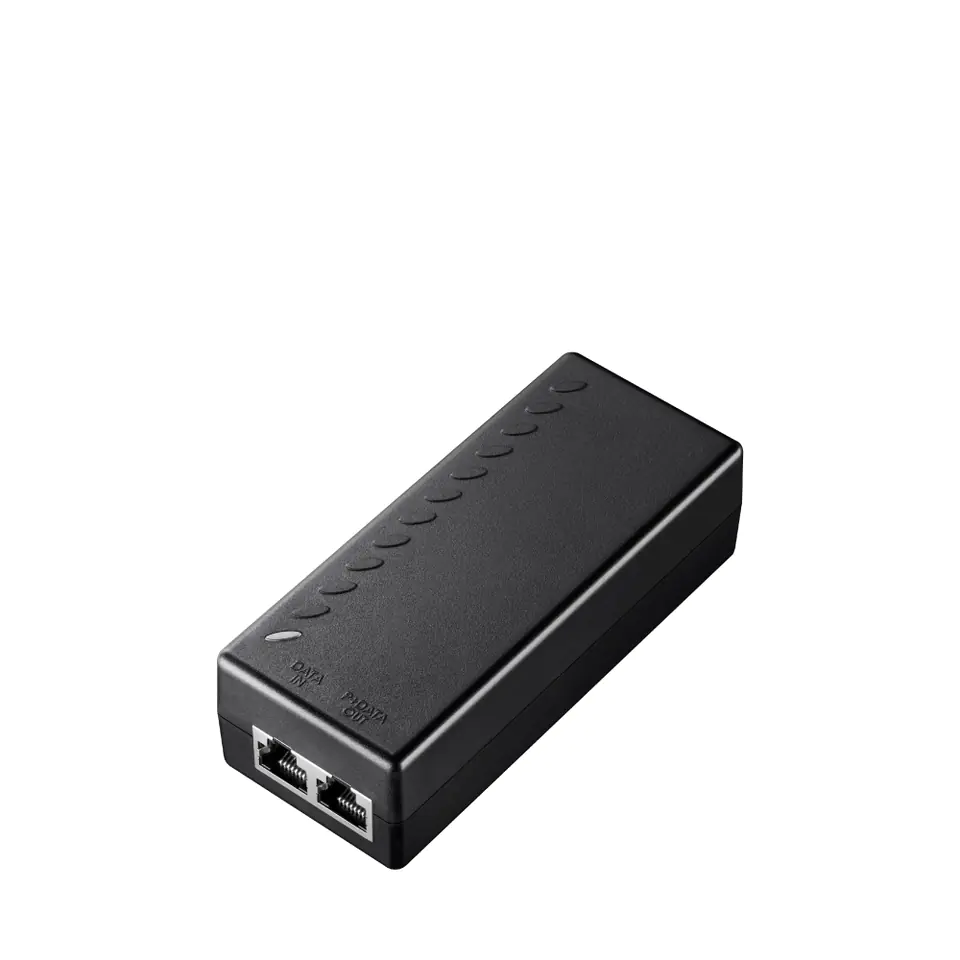

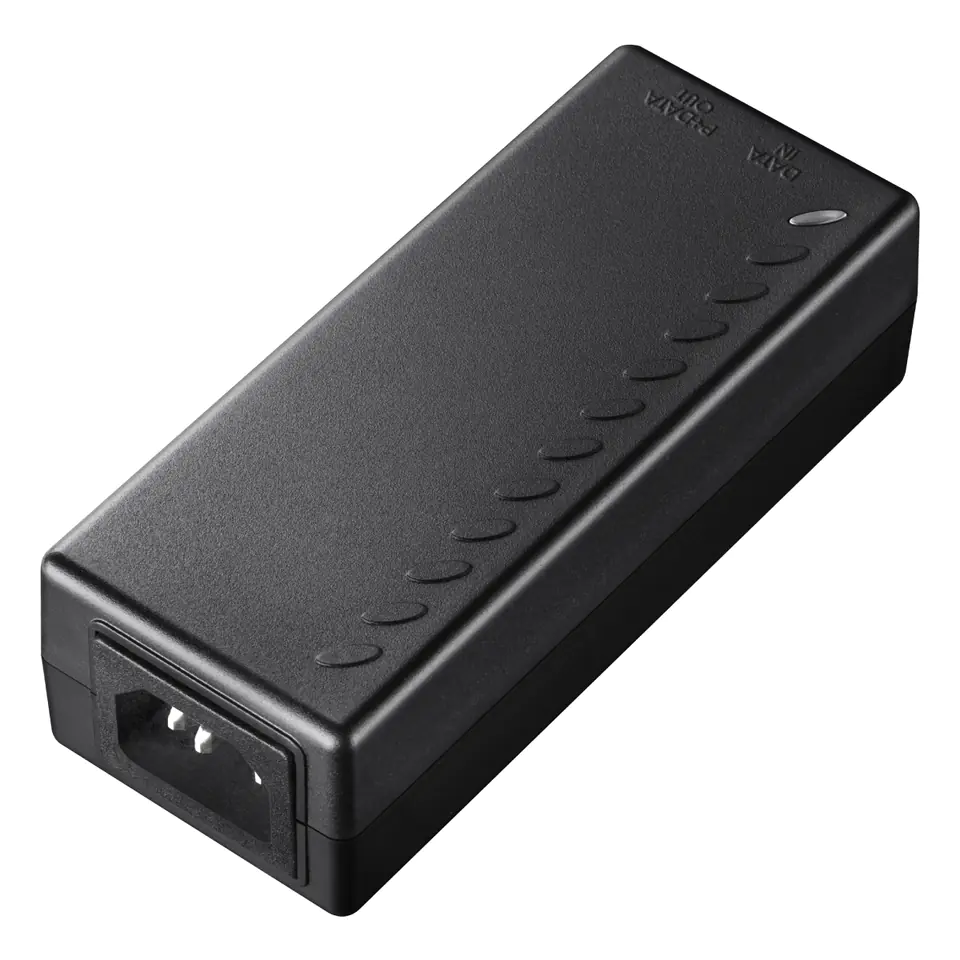

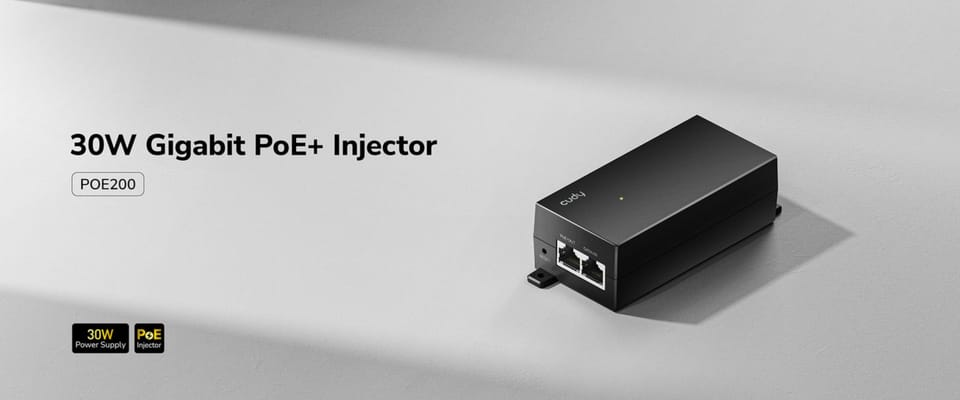

Power Supply Injector PoE/PoE+ Adapter 30W Cudy POE200

Cudy PoE+ power supply is a device that provides power to network devices. The switch has ports with a speed of 10/100/1000Mbps, thanks to which we have the ability to connect many devices without worrying about the speed of data transfer. This model allows you to power devices up to 30W. Injector Cudy works on the principle of Plug & Play, so it does not require additional configuration. On the bottom of the device there are holes through which we can hang the device on the wall.

Power over Ethernet PoE - what is it?

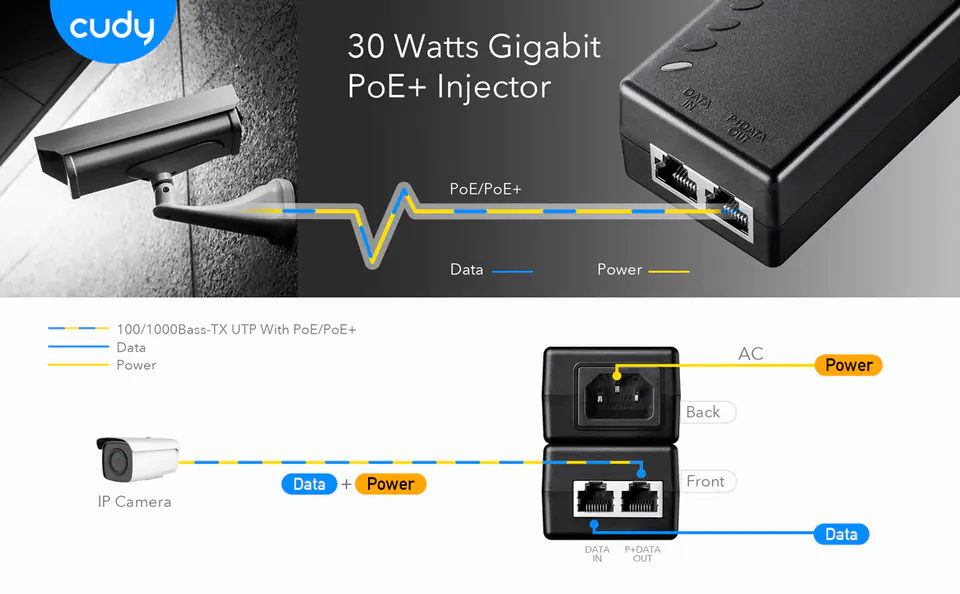

Power over Ethernet (PoE for short) is a technology for transmitting power over an ethernet cable. Thanks to this, we can simultaneously power the device and ensure the exchange of information. PoE technology is especially popular for IP cameras, VoIP phones, Internet access points (Access Points) and POS terminals. Network devices using PoE are convenient to use, which is why they are liked by installers. Taking for example the monitoring network - normally you would have to pull the power and transmission cable to each camera separately. Here we can use a switch that will simultaneously power the devices and send information from them.

Technical Specifications:

PoE+ 30W Gigabit POE200 Power Supply
