POCKET CALIPER CVU 200MM

Technical data:

ETIM classification code: EC000157
Measurement unit: mm, 1/4" inch
Material: Analog
Lock: Screw block.
Accuracy: ±0.03mm
Measuring length: 200mm
Jaw length, pom. Internal: 24mm
Jaw length, pom. external: 50mm
Depth gauge extension: Straight.
Pitch measurement: 0.02mm
Arm thickness: 3.5mm



Mechanical caliper of premium quality, with special attention to details and finish. The caliper is characterized by a very soft and smooth movement of the jaw because the component parts were ground in several stages. Stainless steel, hardened and precisely ground measuring jaws and chrome scale on matt. Jaw thickness of 3.5 to 4 mm ensures high stability. Pitch in mm and inches. Nonius 1/50 mm (0.02 mm) and 1/128 inch (0.0078"), with a graduation length of 48 mm. 4-functions. Equipped with a rectangular depth gauge extension and jaw for internal measurements. Manufactured in accordance with DIN 862. Supplied in a case, with a quality control certificate.


**

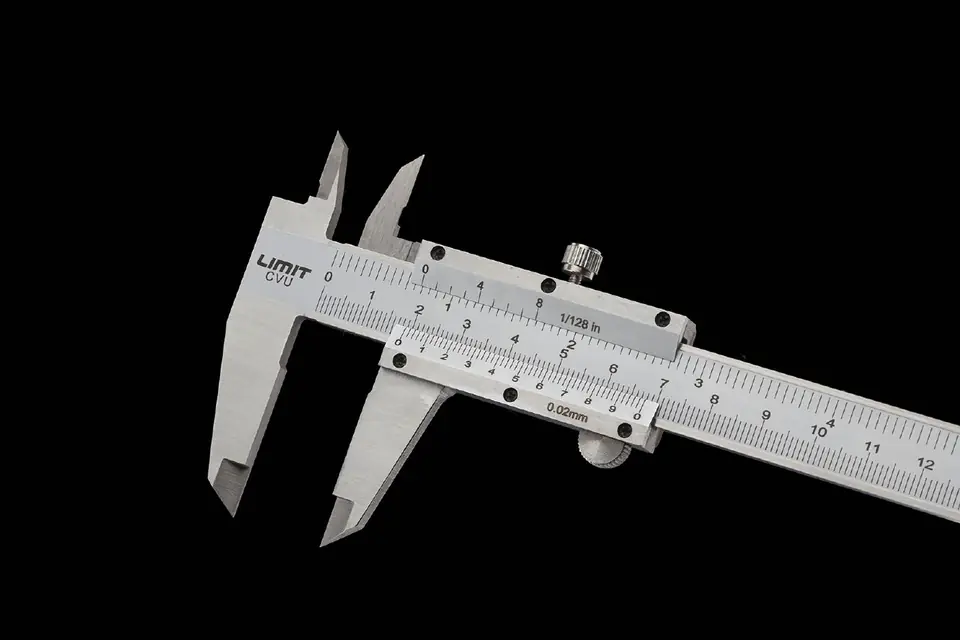

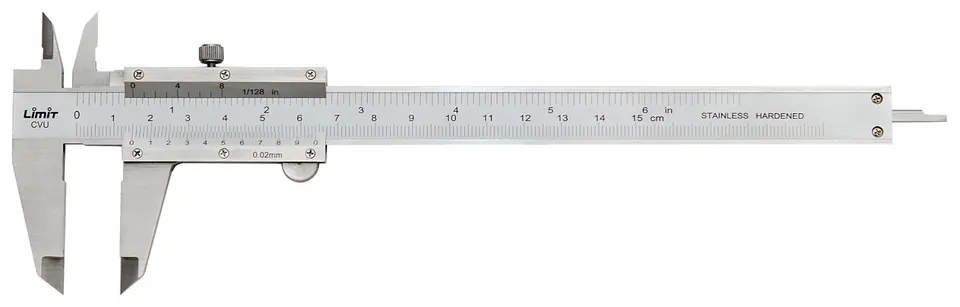

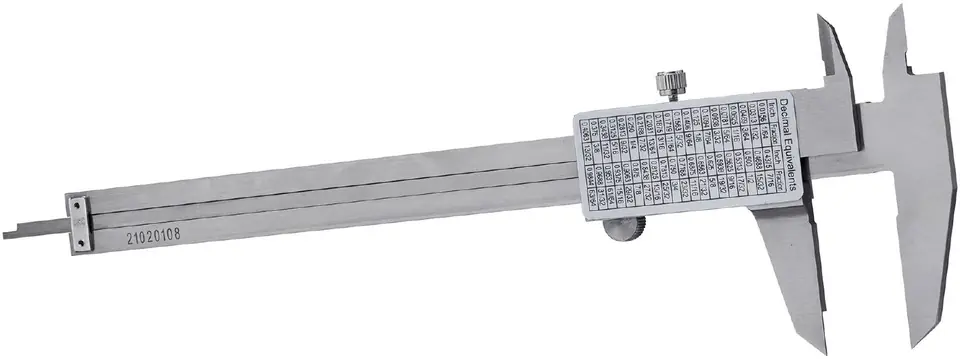

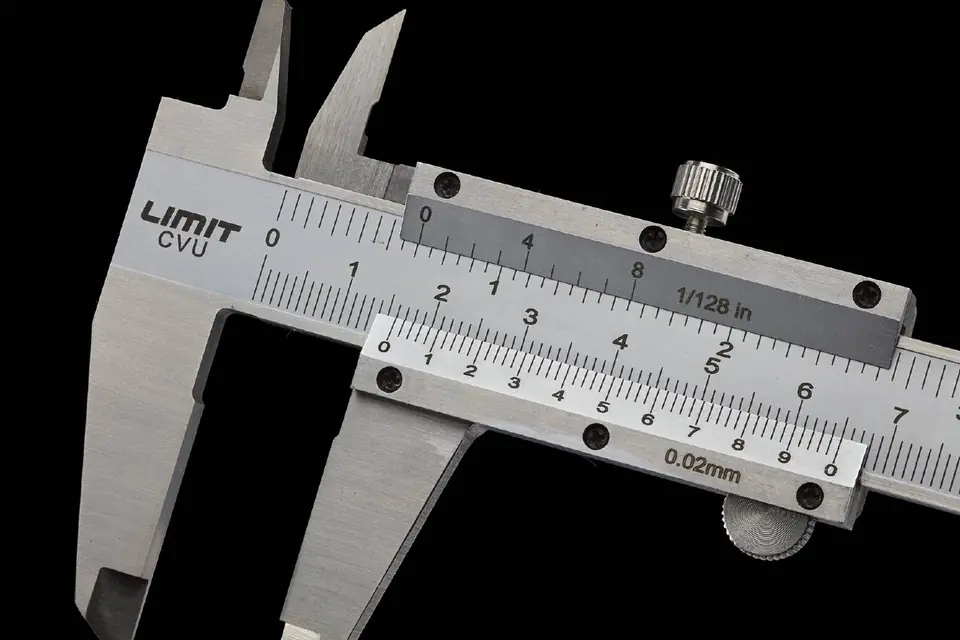

Illustrative photo.
