Manufacturer number: MSW PRO-G 12
Pneumatic lubricator for MSW machines is a device designed for car workshops, agriculture and industry. It enables self-oiling of machines and devices equipped with lubrication systems in the form of calamites. Simple and stable construction ensures comfortable work, and the construction of high quality materials reliability.
The PRO-G 12 is equipped with a twelve-litre grease container that eliminates the need for frequent tank filling. In addition, thanks to the use of an injector using small amounts of compressed air as a drive and a pneumatic pump pressing the lubricant, the device is able to offer a high oil output pressure (240-320 bar).
The comfort of working with the device is ensured by a stable stand with a leg and wheels, an ergonomic handle and a long transmission hose (4 m). This kit, together with the low weight of the lubricator, allows maneuvering the device even on uneven surfaces and comfortable work in almost all conditions without the need for another person.
Product features:
- - Efficiency - oil pressure in the range of 240-320 bar,
- - Convenience - 12-liter grease container and long transmission hose (4 m)
- - Mobility - light weight, base with a leg and two wheels and ergonomic handle,
- - Durability - made of high-strength materials.
- - Model - PRO-G 12
- - Catalogue number - 10060838
- - Article status - New
- - Tank volume - 12 l
- - Output pressure - 240-320 bar
- - Working pressure - 6-8 bar
- - Lubrication pump capacity - 0,75 l/min
- - Compression ratio - 40:1
- - Pressure gauge - Yes
- - Double-scale indicator - Yes, bar/psi
- - Values on the indicator - 0 to 150 psi / 0 to 1 mPa
- - Transmission hose length - 4 m
- - Dimensions (LxWxH) - 30,5 x 35 x 79 cm
- - Weight - 10.2 kg
- - Shipping dimensions (LxWxH) - 37 x 32 x 85 cm
- - Shipping weight - 12,1 kg
- - Trigger for dosing gun
- - Gun nozzle

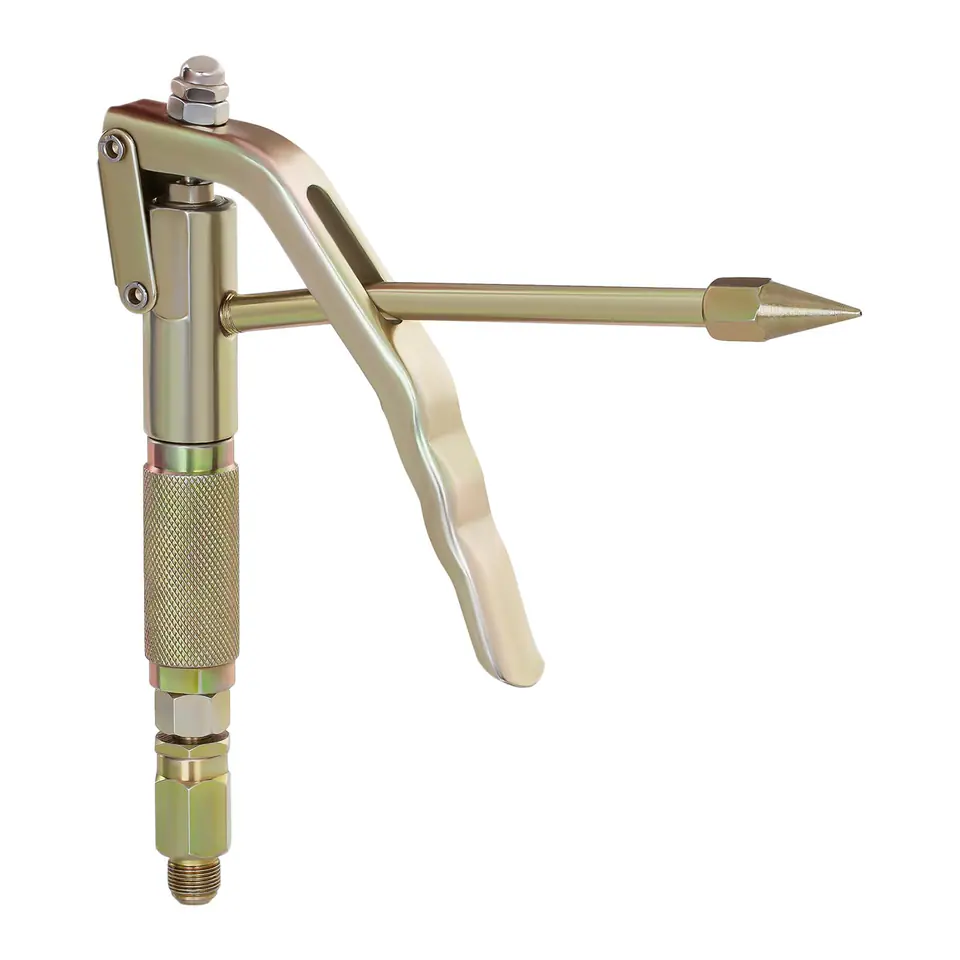

- - Dispense gun
- - Transmission hose 4 m long
- -Pump
- - Pressure gauge and air supply connection
- -Handle
- - Connector

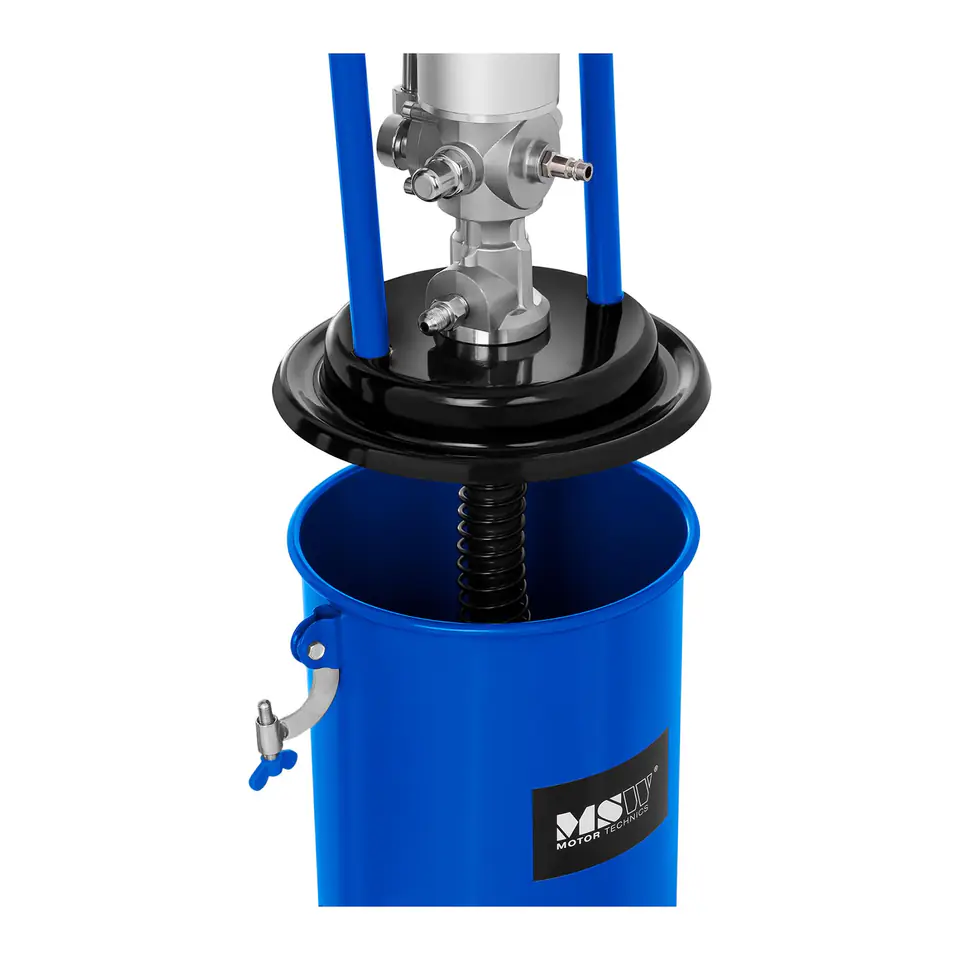

- - Grease container
- - Device base
- - Wheels – 2 pcs.
- - Air filter
- - Hose connection
- -Shield
- - Manual EN
