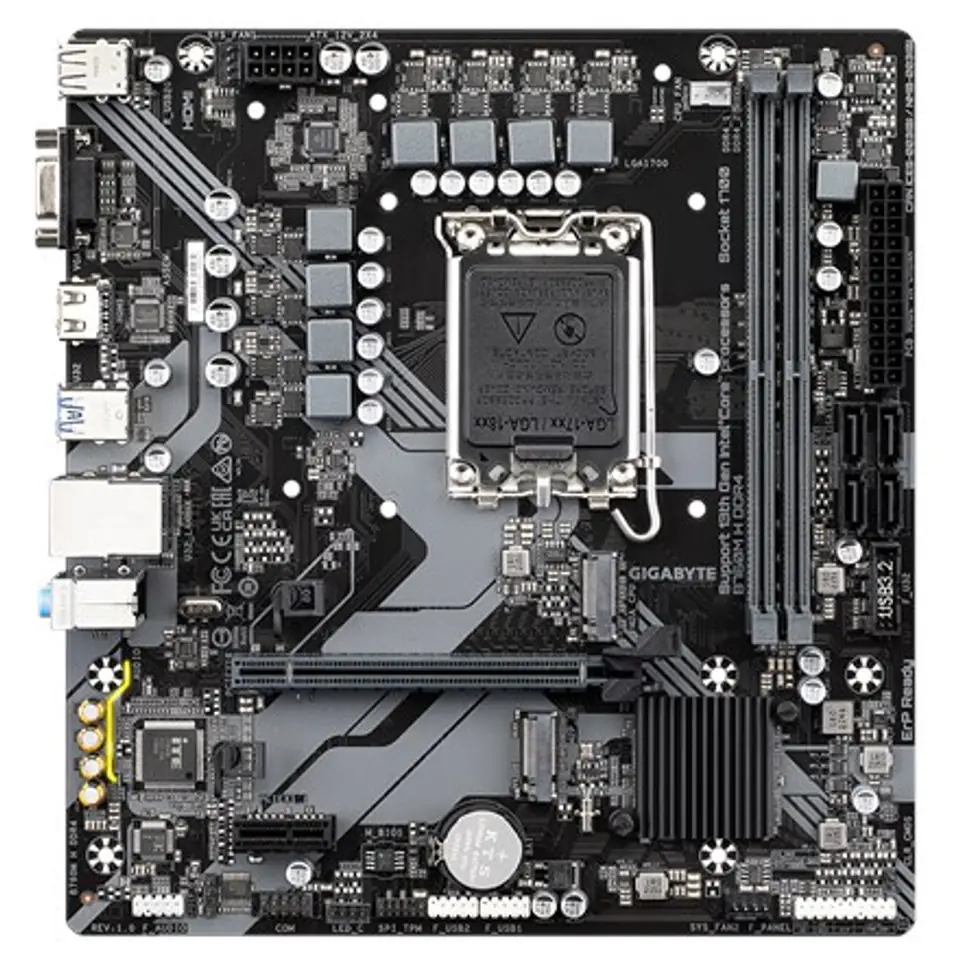

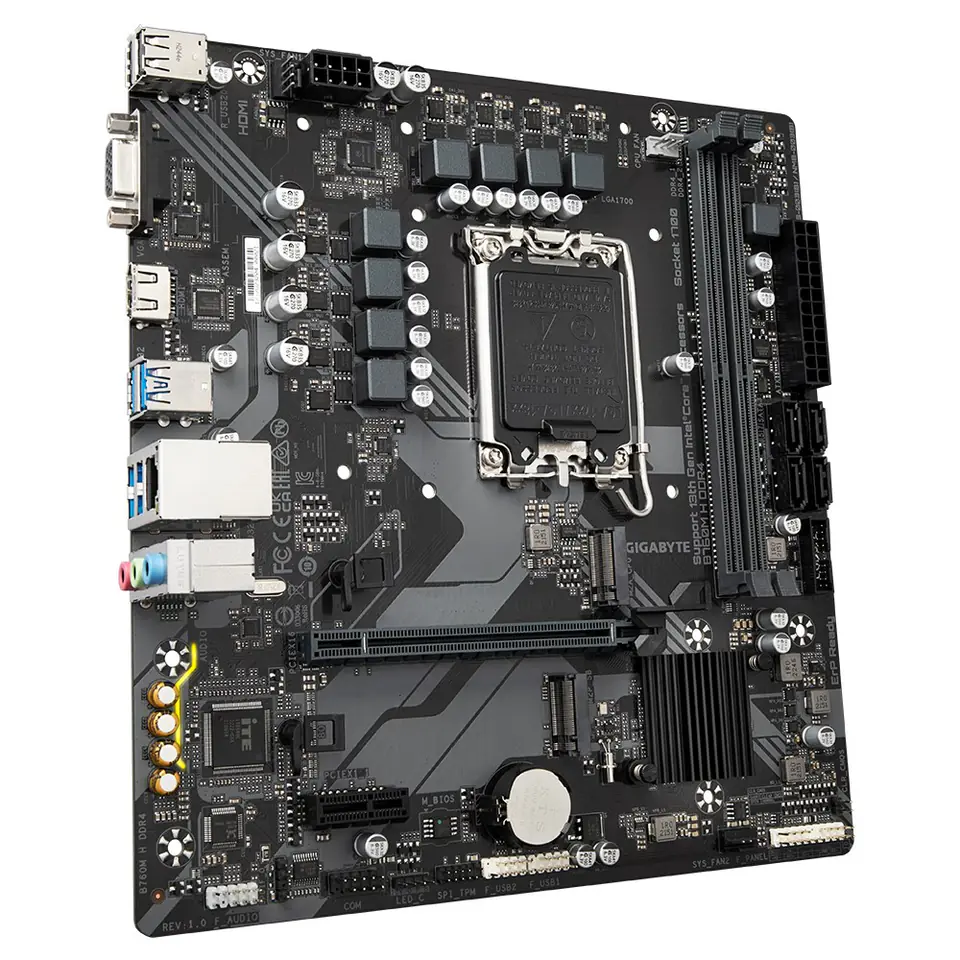

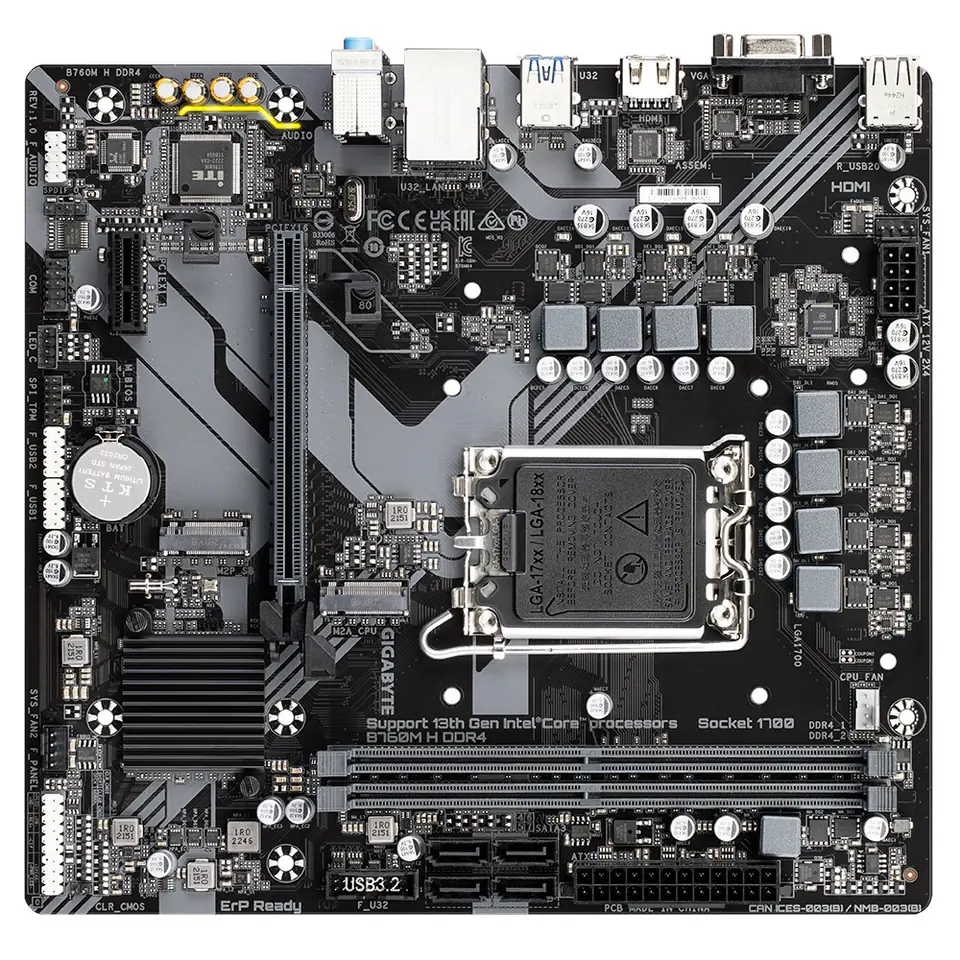

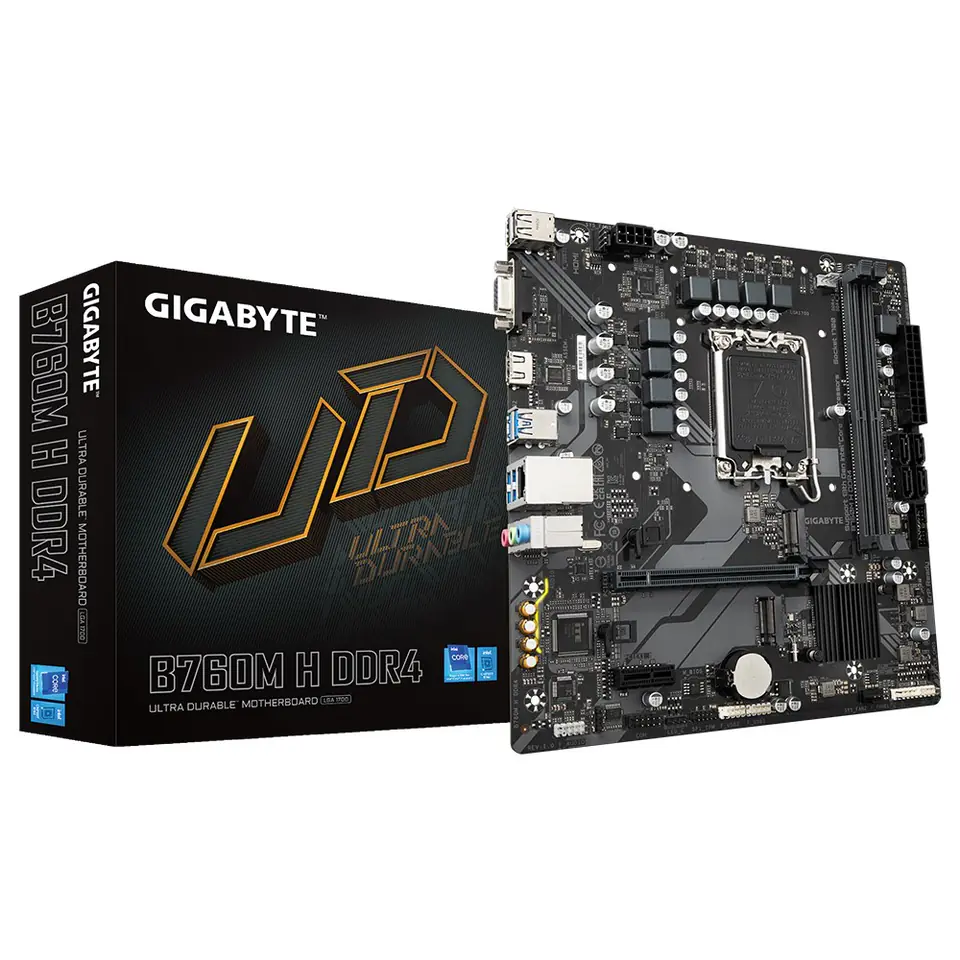

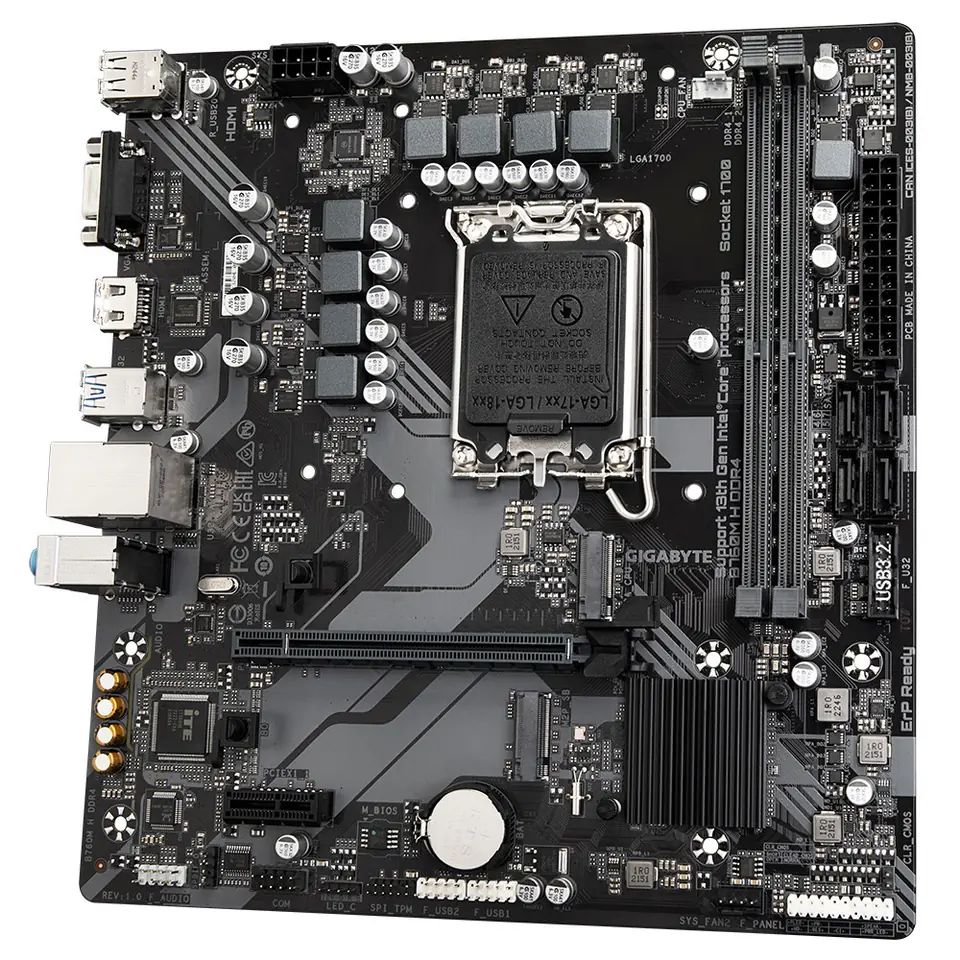

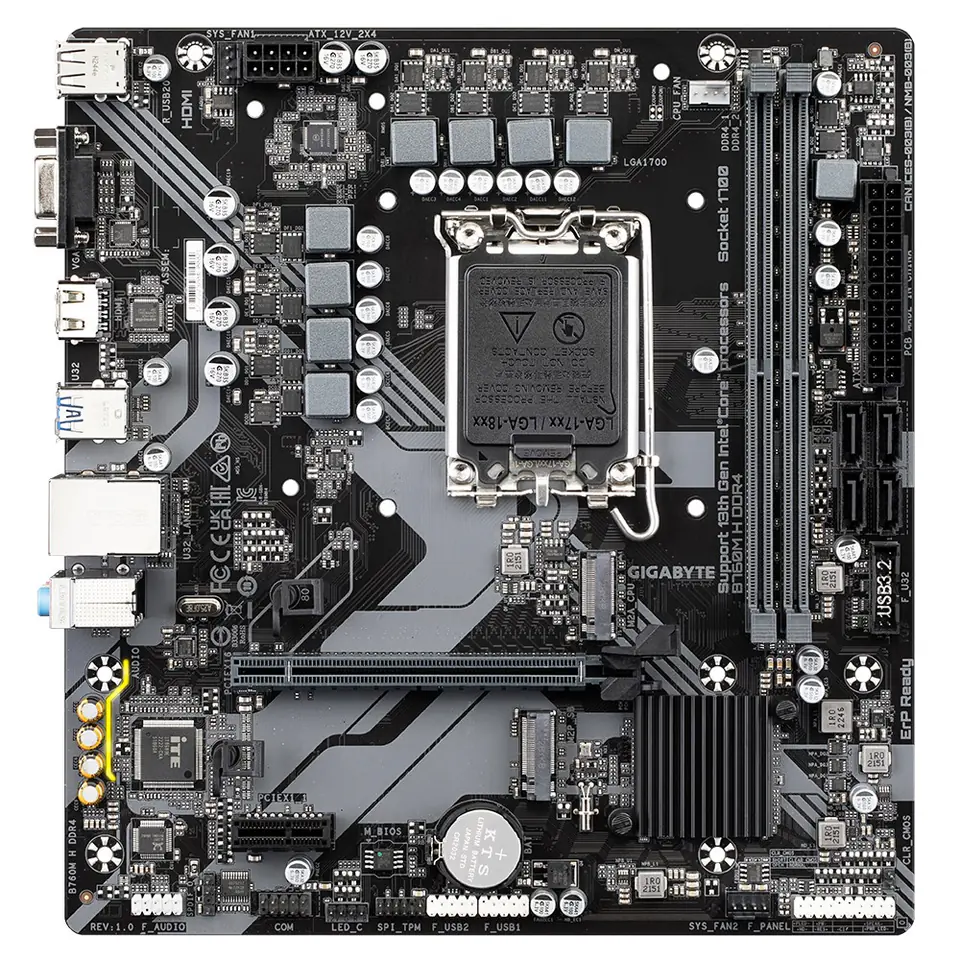

Płyta główna Gigabyte B760M H DDR4
€123.41
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 1 - Fri, Oct 4
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- B760M H DDR4 / 4719331854645
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Celeron®, Intel® Pentium® Gold |
| Cpu fan connector: | Yes |
| Depth: | 215 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Displayport version: | 1.4 |
| Displayports quantity: | 1 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4 |
| Maximum internal memory: | 64 GB |
| Maximum number of smp processors: | 1 |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | Intel B760 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Pci express x16 (gen 4.x) slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Raid levels: | 5, 1, 0, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 3200 MHz |
| Supported memory clock speeds: | 2933 MHz, 2400, 3200 MHz, 2666, 3000, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Tpm connector: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 4 |
| Vga (d-sub) ports quantity: | 1 |
| Wi-fi: | No |
| Width: | 230 mm |
| Windows operating systems supported: | Windows 11, Windows 10 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
