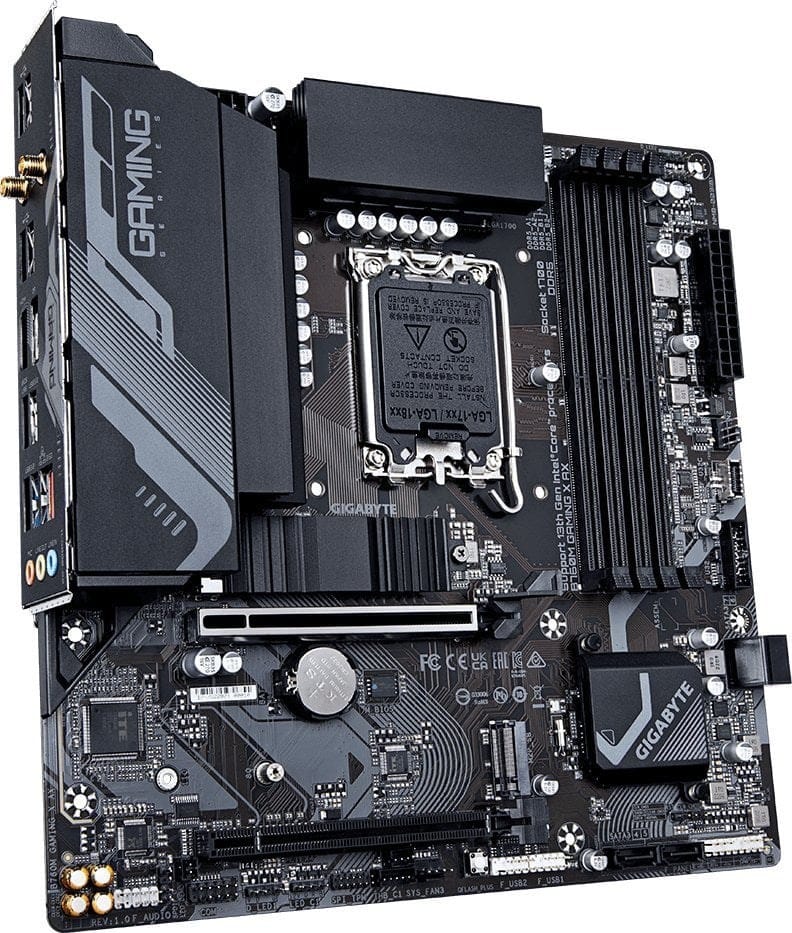

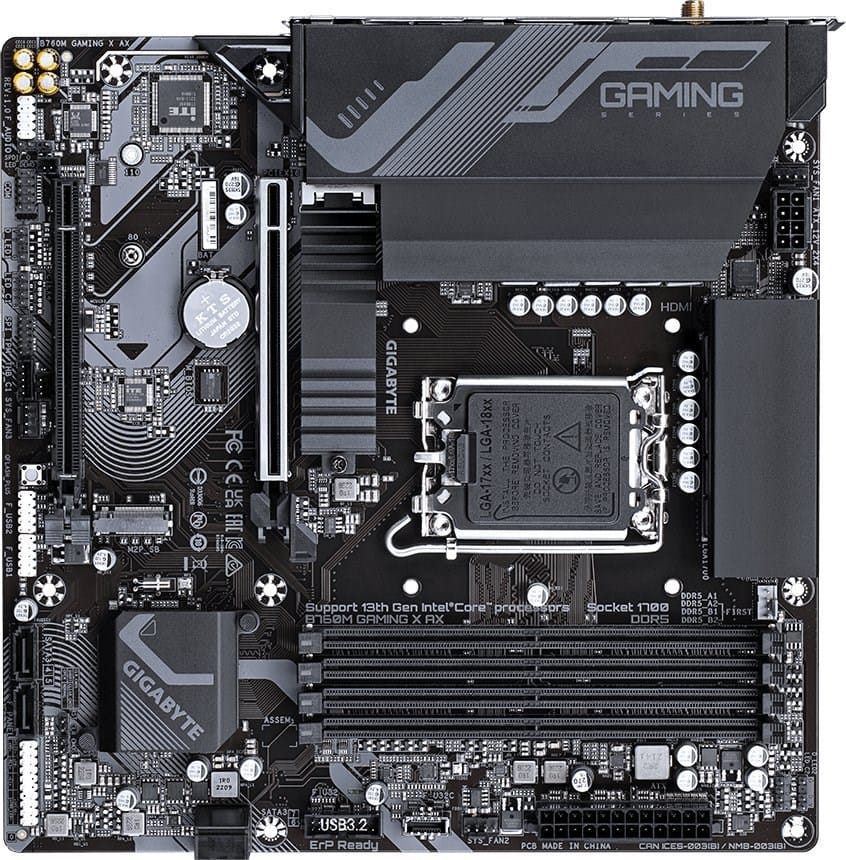

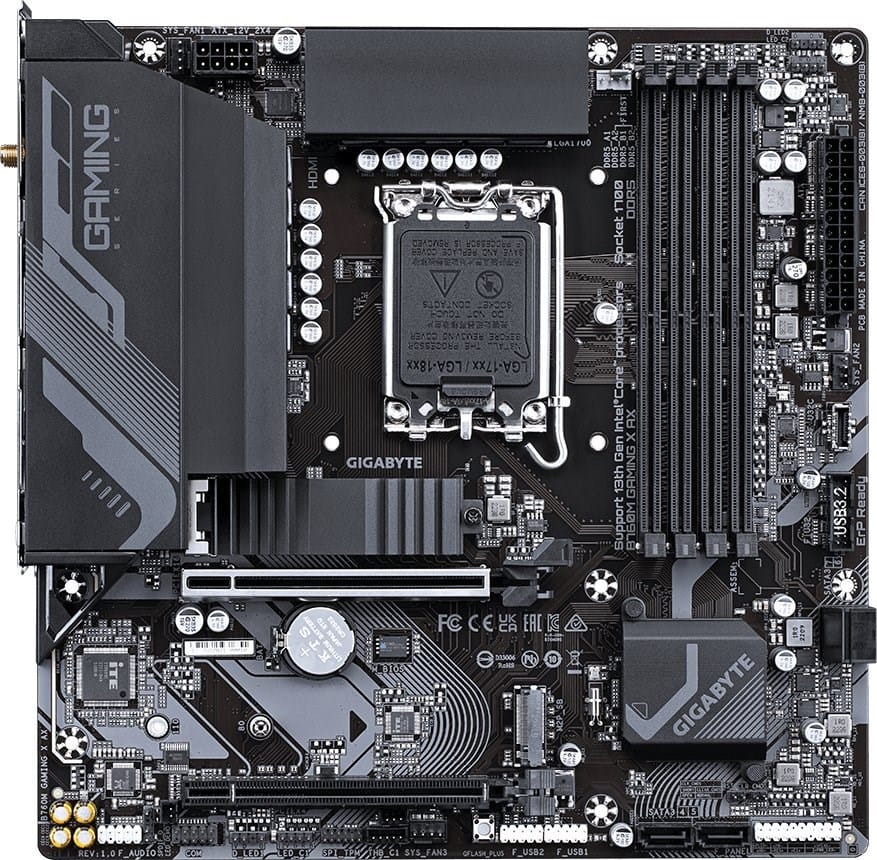

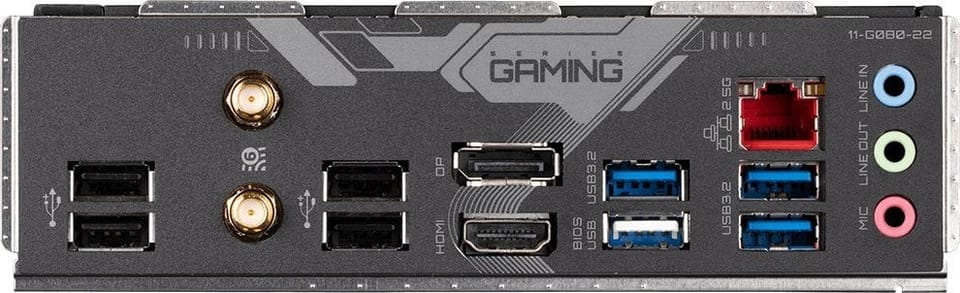

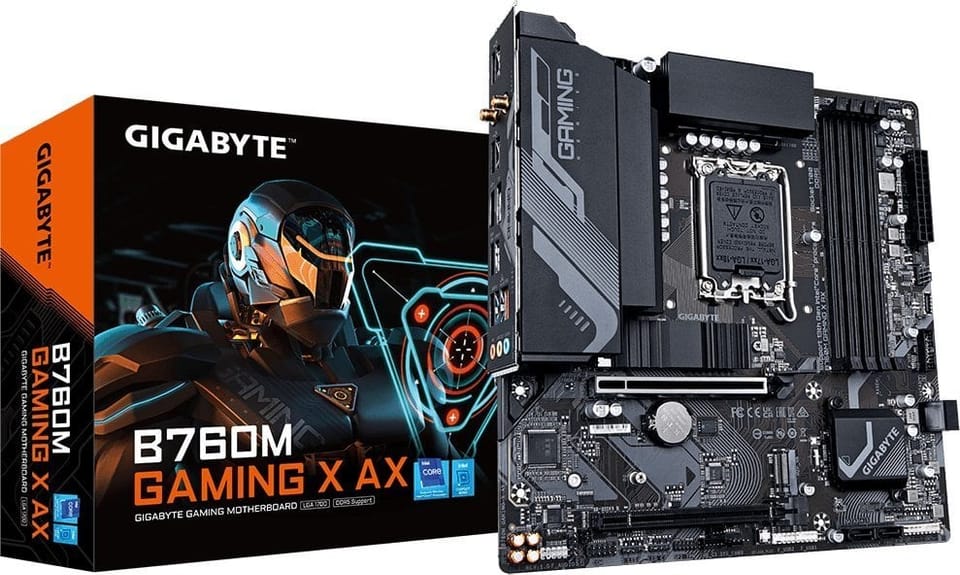

Płyta główna Gigabyte B760M GAMING X AX

€181.56
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Gigabyte
Product code:
B760M GAMING X AX / 4719331853228

Specification

Atx power connector (24-pin):Yes
Audio output channels:7.1 channels
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:5.2
Clear cmos jumper:Yes
Compatible processor series:Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3
Cpu fan connector:Yes
Depth:244 mm
Desktop management interface (dmi) version:2.7
Displayports quantity:1
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdcp:Yes
Hdmi ports quantity:1
Hdmi version:2.0
Headphone outputs:1
Line-in:Yes
Maximum internal memory:256 GB
Maximum resolution:4096 x 2304 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset family:Intel
Motherboard form factor:micro ATX
Number of chassis fan connectors:3
Number of m.2 (m) slots:1
Number of memory slots:4
Number of sata iii connectors:4
Number of storage drives supported:6
Parallel processing technology support:Not supported
Pc health monitoring:Fan, Water cooling, Voltage, Temperature
Pci express x16 (gen 3.x) slots:1
Pci express x16 (gen 4.x) slots:1
Power source type:ATX
Processor manufacturer:Intel
Processor socket:LGA 1700
Raid levels:5, 10, 0, 1
Raid support:Yes
Rgb led pin header:Yes
S/pdif out connector:Yes
Serial port headers:1
Supported memory clock speed (max):7600 MHz
Supported memory clock speeds:7000, 5200, 6400, 7400, 4000, 4800, 6200, 6000, 6800, 7600 MHz, 5800, 5400, 6600, 5600, 7200
Supported memory types:DDR5-SDRAM
Supported processor sockets:LGA 1700
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Thunderbolt headers:2
Top wi-fi standard:Wi-Fi 6E (802.11ax)
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:5
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:3
Usb 3.2 gen 2 (3.1 gen 2) connectors:1
Wi-fi:Yes
Wi-fi standards:802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b
Width:244 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 11, Windows 10

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
