- Intel Socket LGA 1700: Support for 13th and 12th generation processors
- Unmatched performance: Hybrid 6+2+1-phase digital VRM solution
- Dual-channel DDR4 memory: 4*DIMM Support for XMP memory modules
- Next-generation storage: 2 PCIe 4.0 x4 M.2
- M.2 Thermal Shield: To ensure the performance of your M.2 SSD
- EZ-Latch: PCIe 4.0x16 slot with Quick Release design
- Fast networks: 2.5 GbE LAN and Wi-Fi 6E 802.11ax

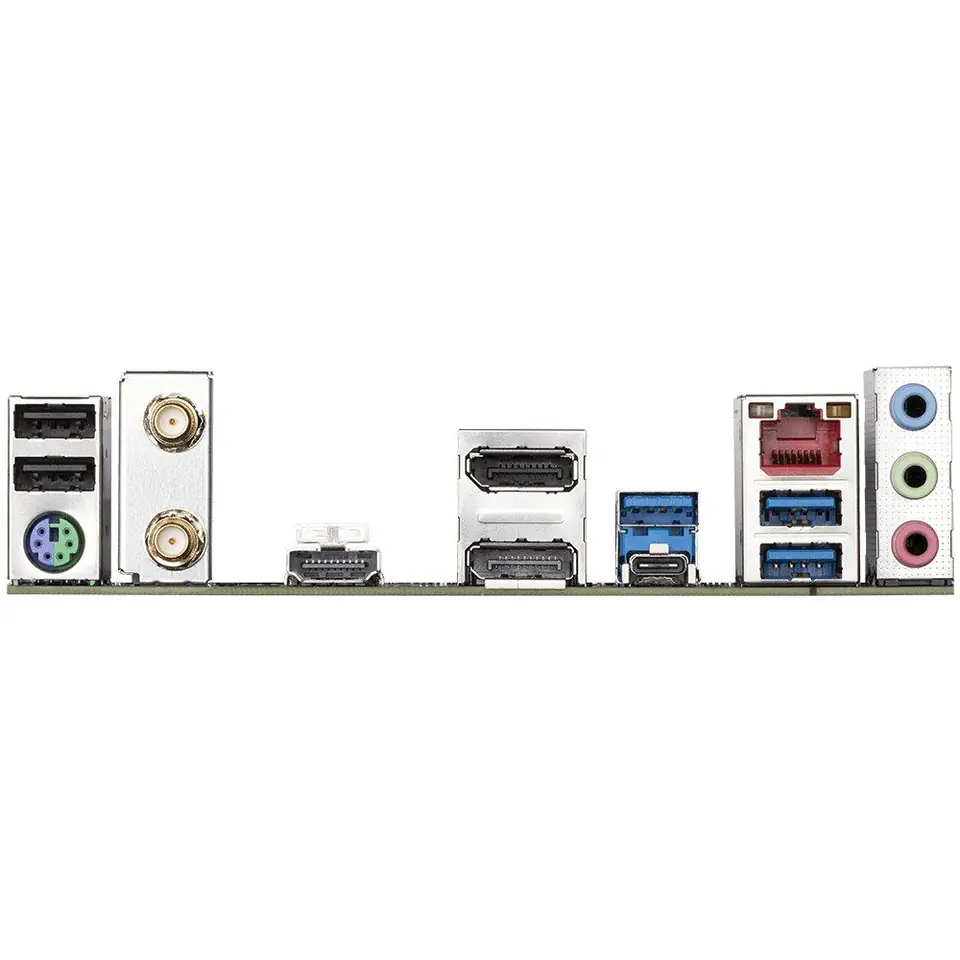

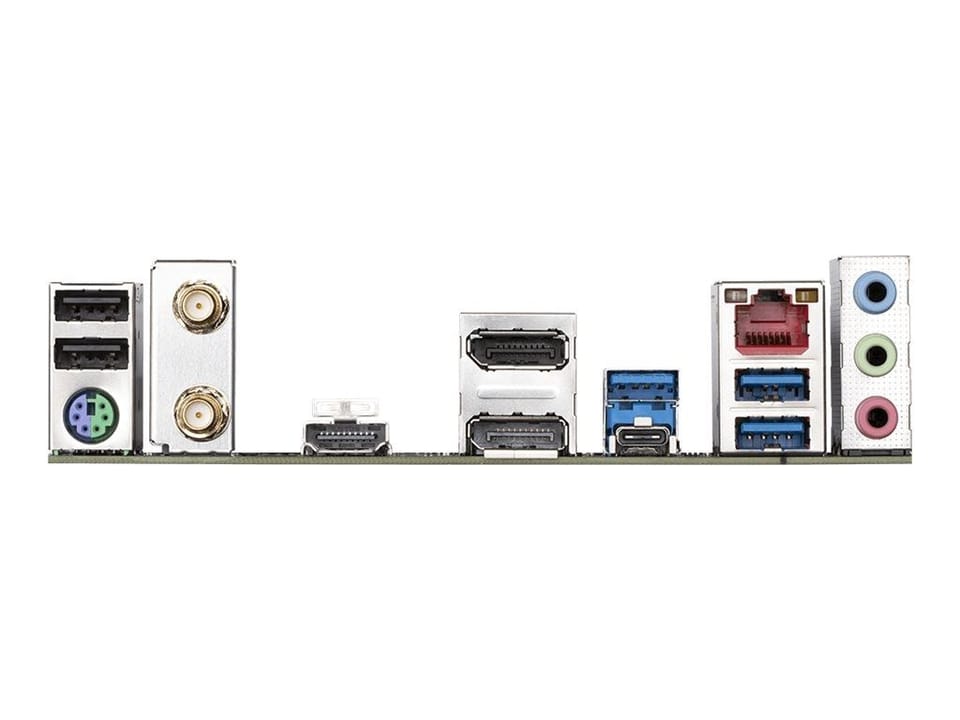

- Enhanced connectivity: Rear USB-C 10Gbps, DP, HDMI
- Smart Fan 6: includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
- Q-Flash Plus: BIOS update without installing CPU, memory and graphics card

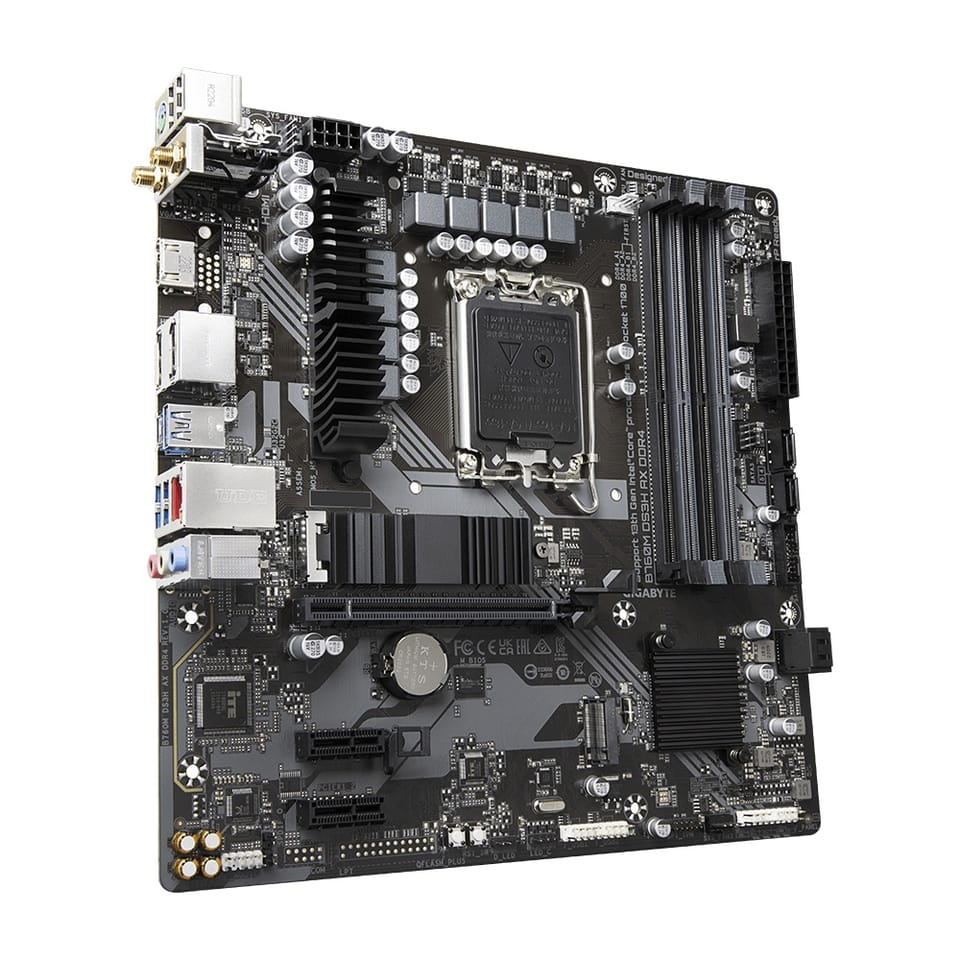

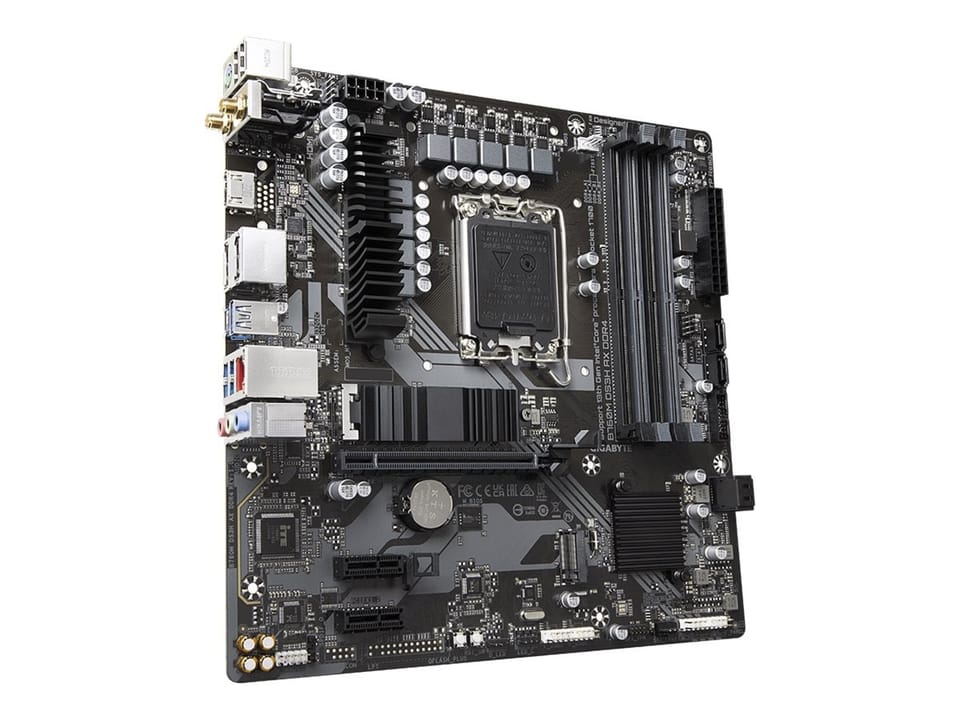

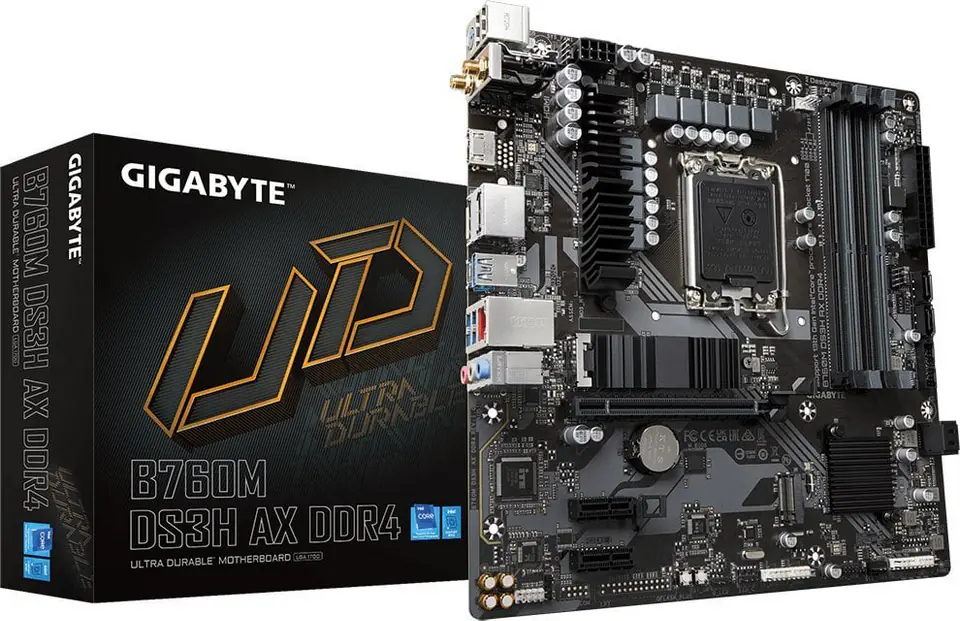

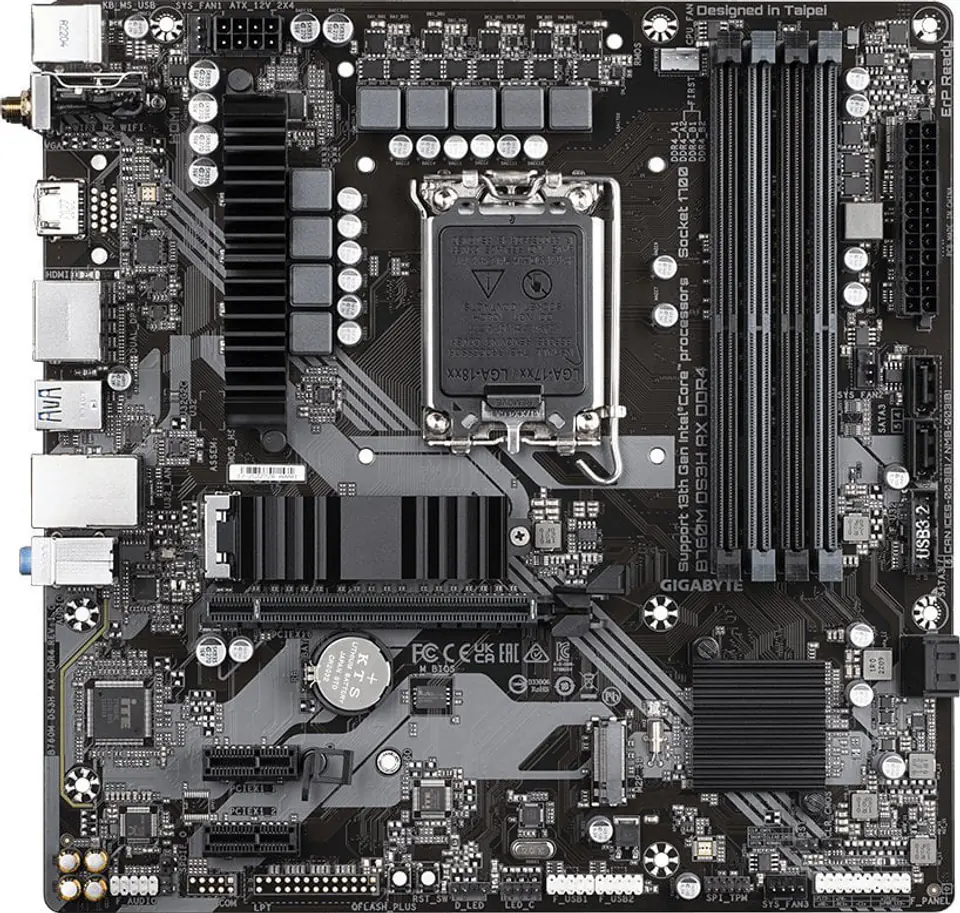

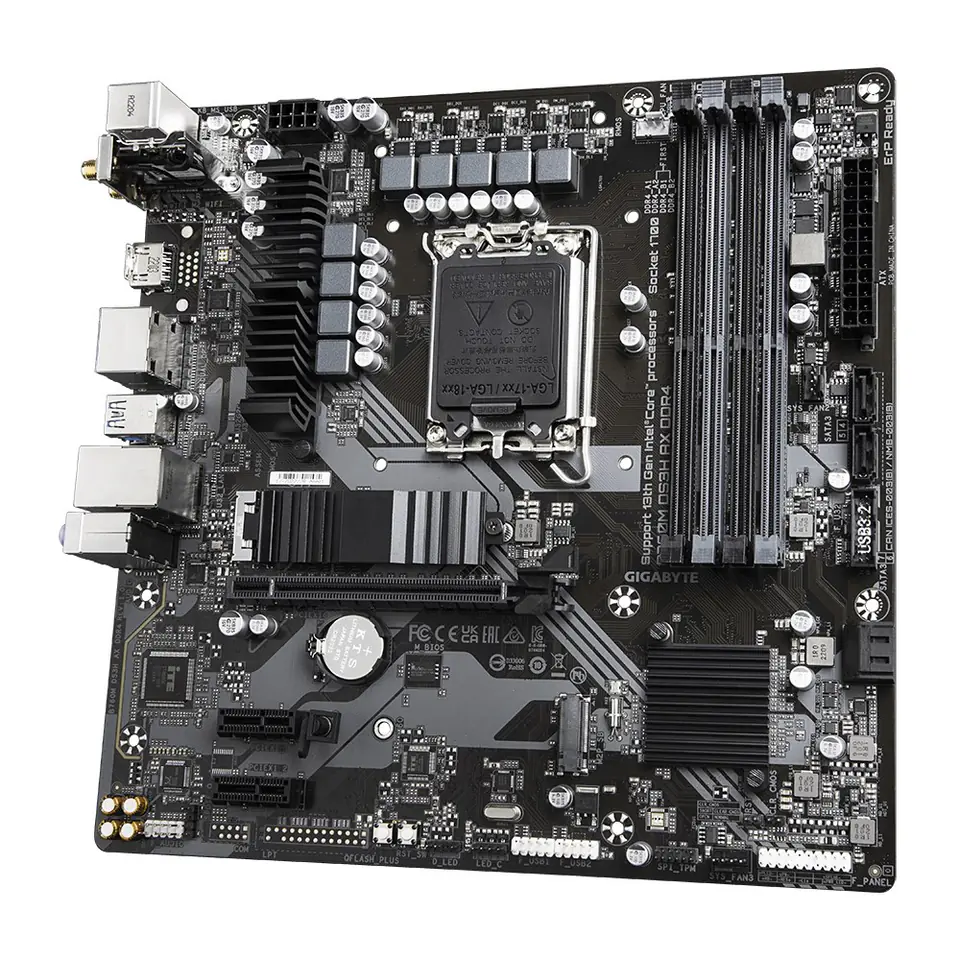

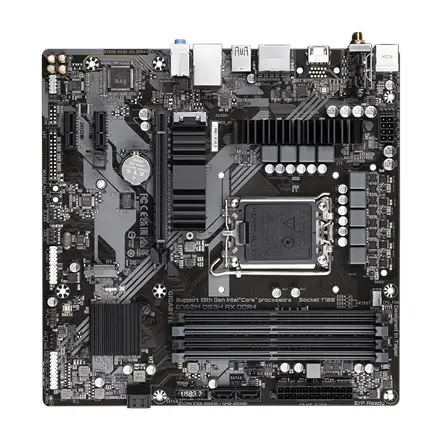

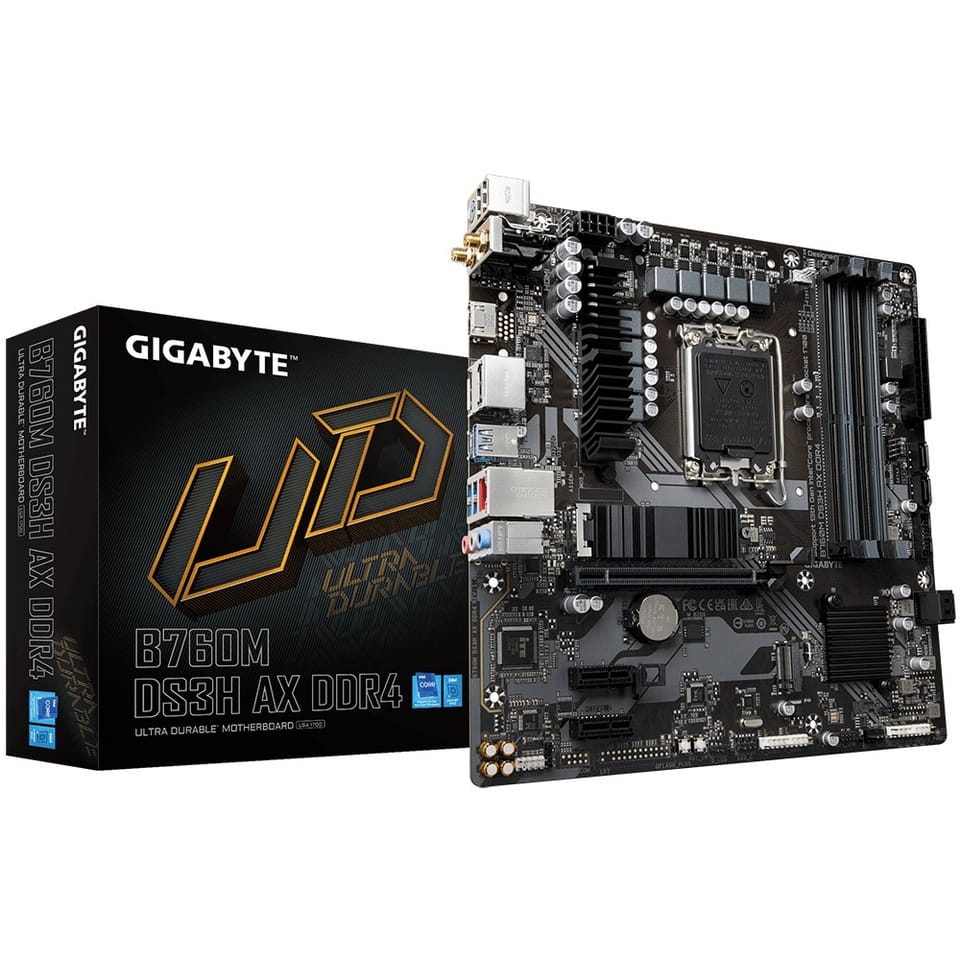

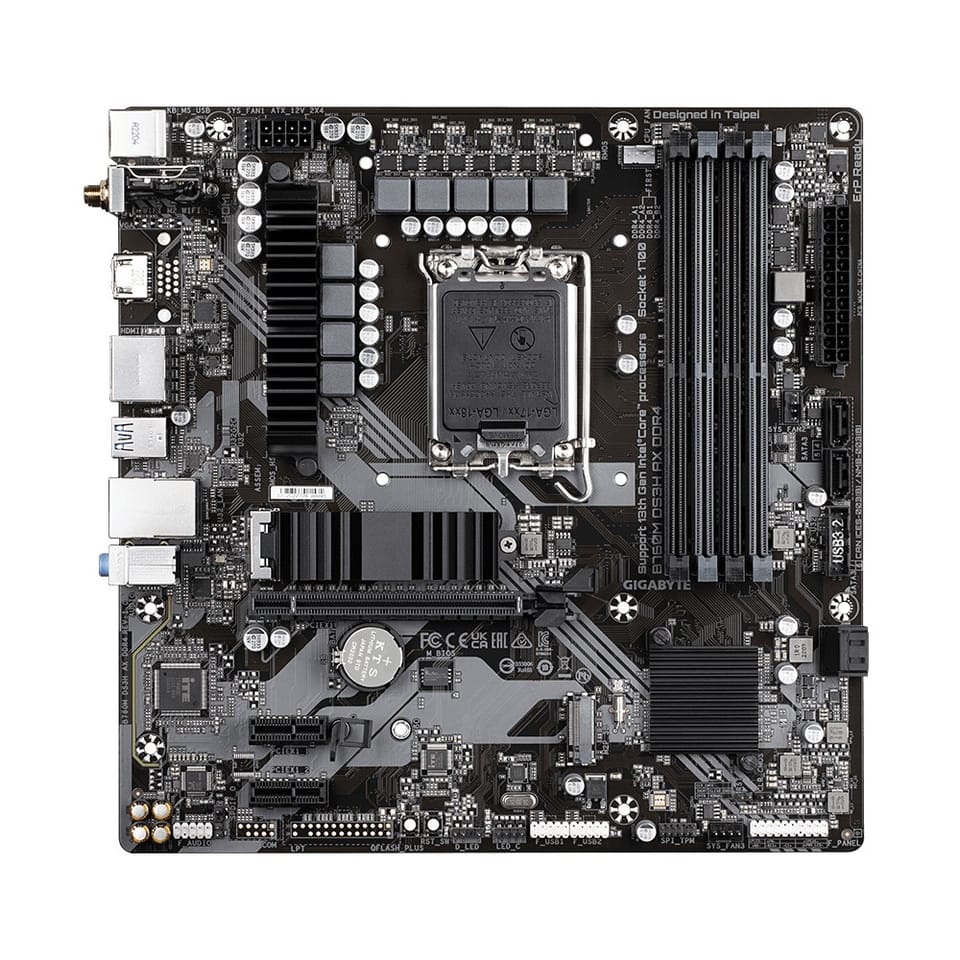

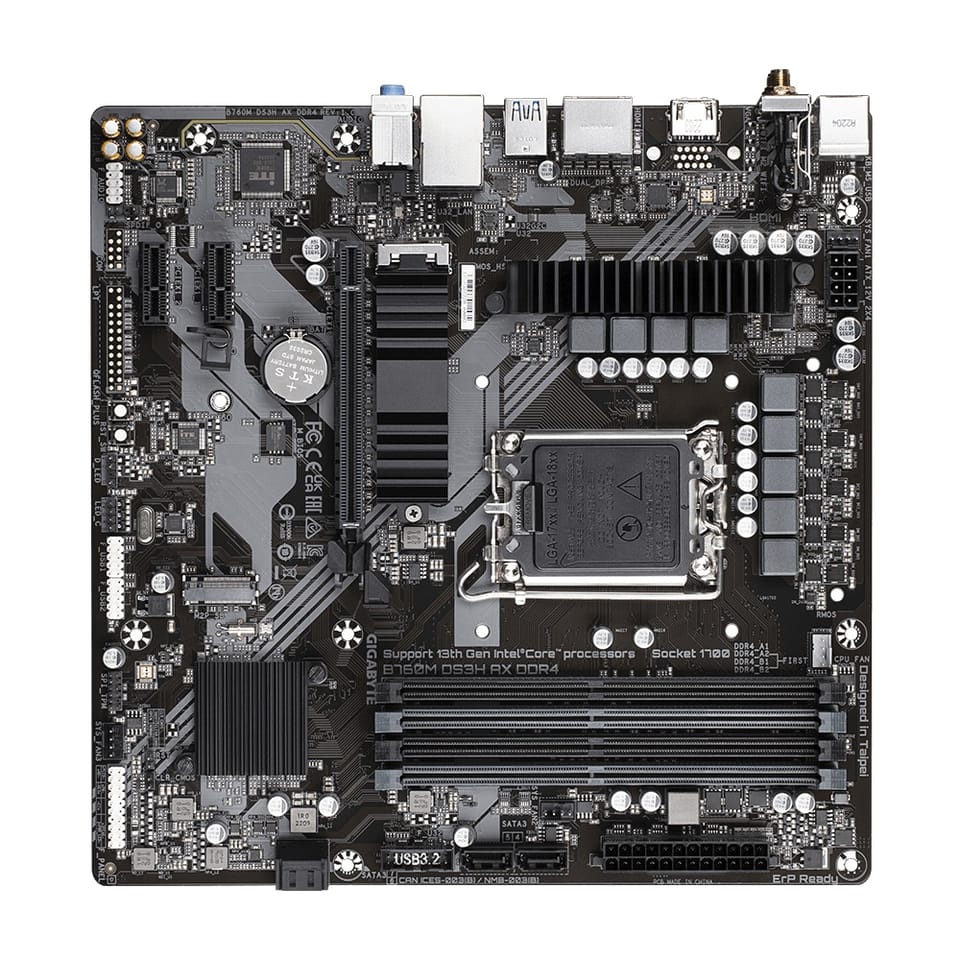

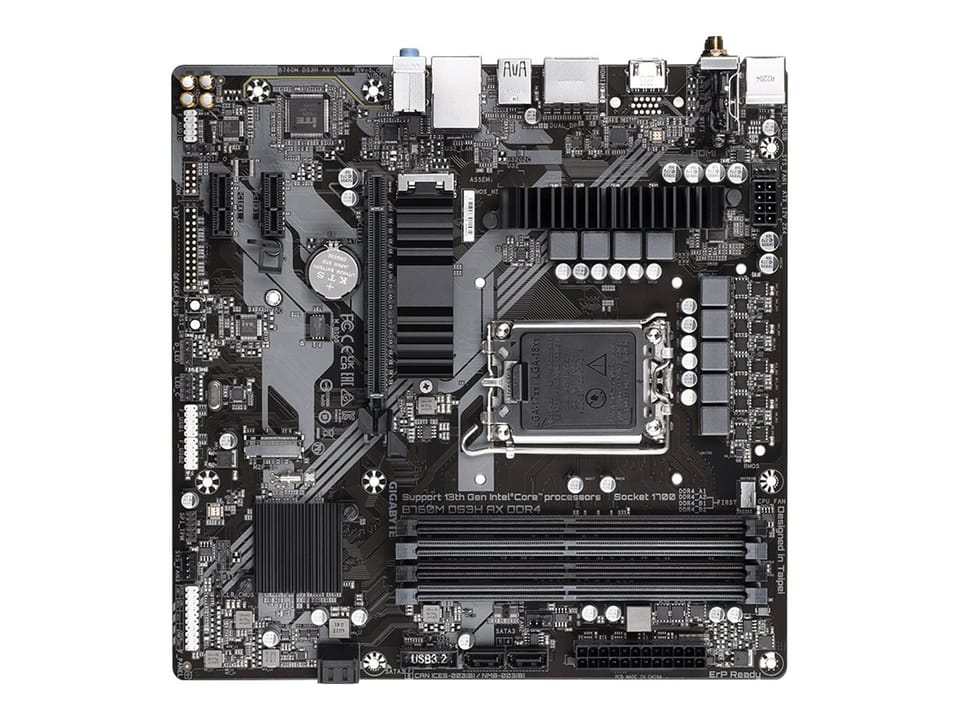

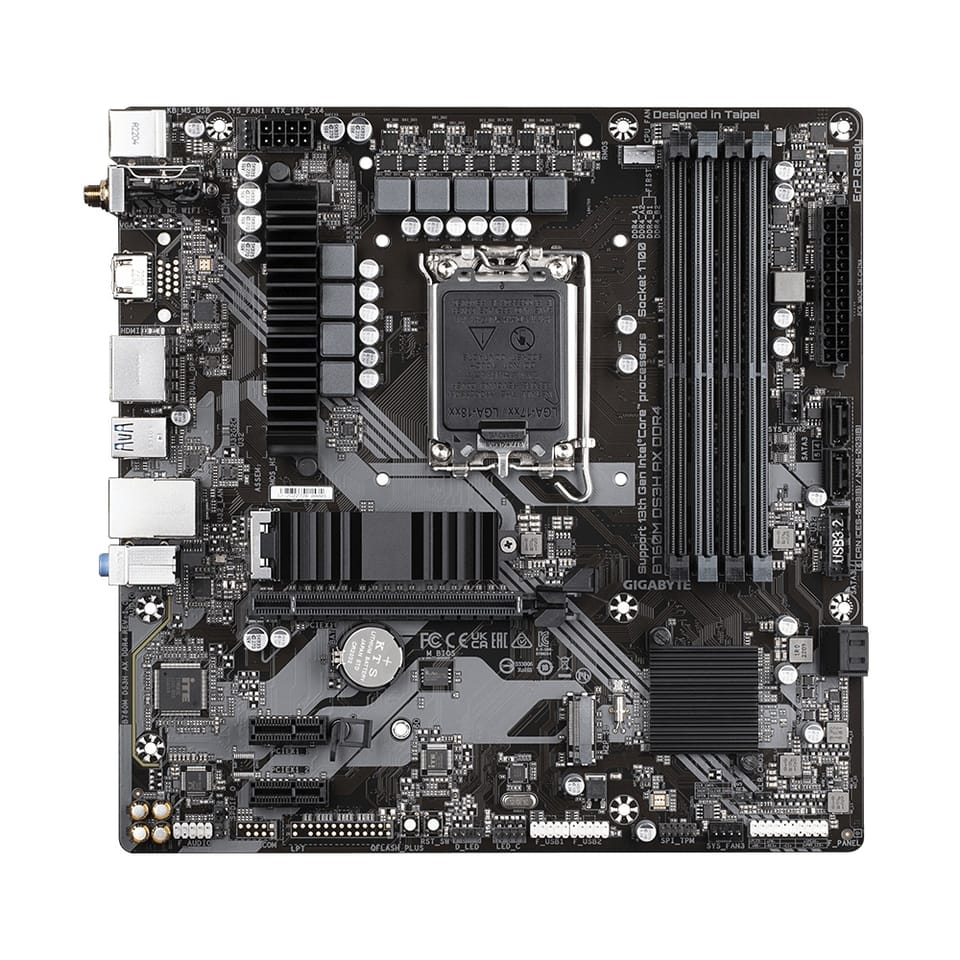

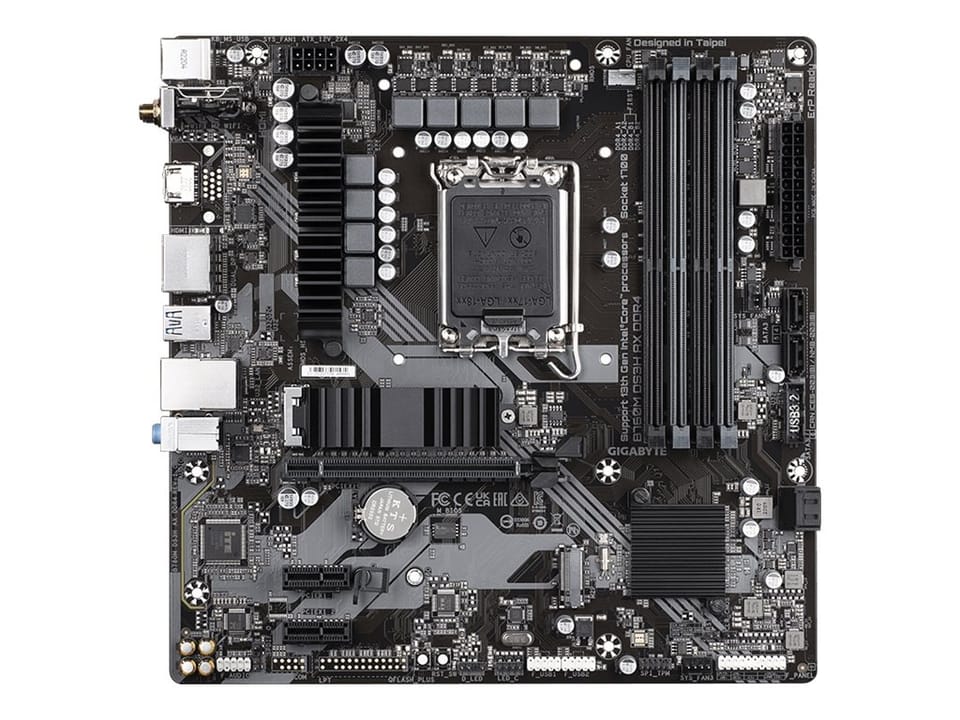

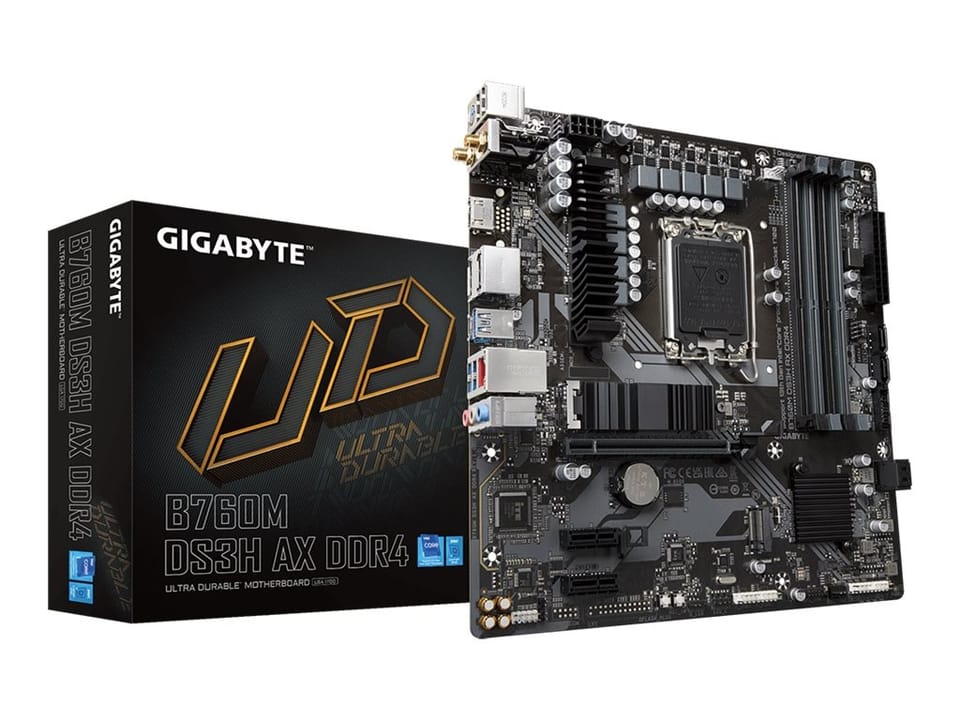

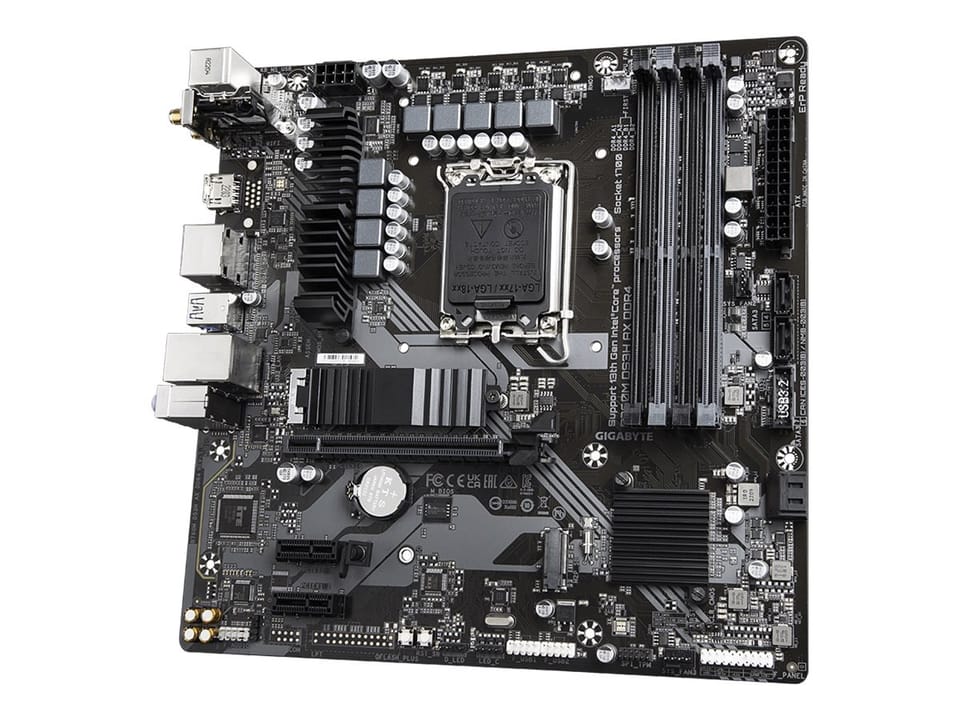

Płyta główna Gigabyte B760M DS3H AX DDR4
€154.25
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- B760M DS3H AX DDR4 / 4719331850869
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.2 |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Directx version: | 12.0 |
| Displayport version: | 1.2 |
| Displayports quantity: | 2 |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0 |
| Headphone outputs: | 3 |
| Height: | 35 mm |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 128 GB |
| Maximum internal memory supported by processor: | 128 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B760 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of battery cells: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Package depth: | 265 mm |
| Package height: | 54 mm |
| Package weight: | 1.1 kg |
| Package width: | 265 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Fan, Water cooling, Voltage, Temperature |
| Pci express x1 slots: | 2 |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product colour: | Bronze |
| Products per shipping (inner) case: | 1 pc(s) |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 0, 10, 5, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speed (max): | 5333 MHz |
| Supported memory clock speeds: | 3200 MHz, 2666, 4266, 3400, 3866, 4133, 4000, 3666, 4800, 4933 MHz, 3466, 4500, 3800, 3333, 4600 MHz, 2400, 4700 MHz, 3733, 4300, 4400, 5000, 3000, 5333 MHz, 2933, 3600 MHz, 3300, 5133, 2133 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Total number of sata connectors: | 4 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb connector type: | USB Type-A, USB Type-C |
| Warranty period: | 3 year(s) |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), 802.11g, 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n) |
| Width: | 244 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Wlan controller model: | RZ608 |
