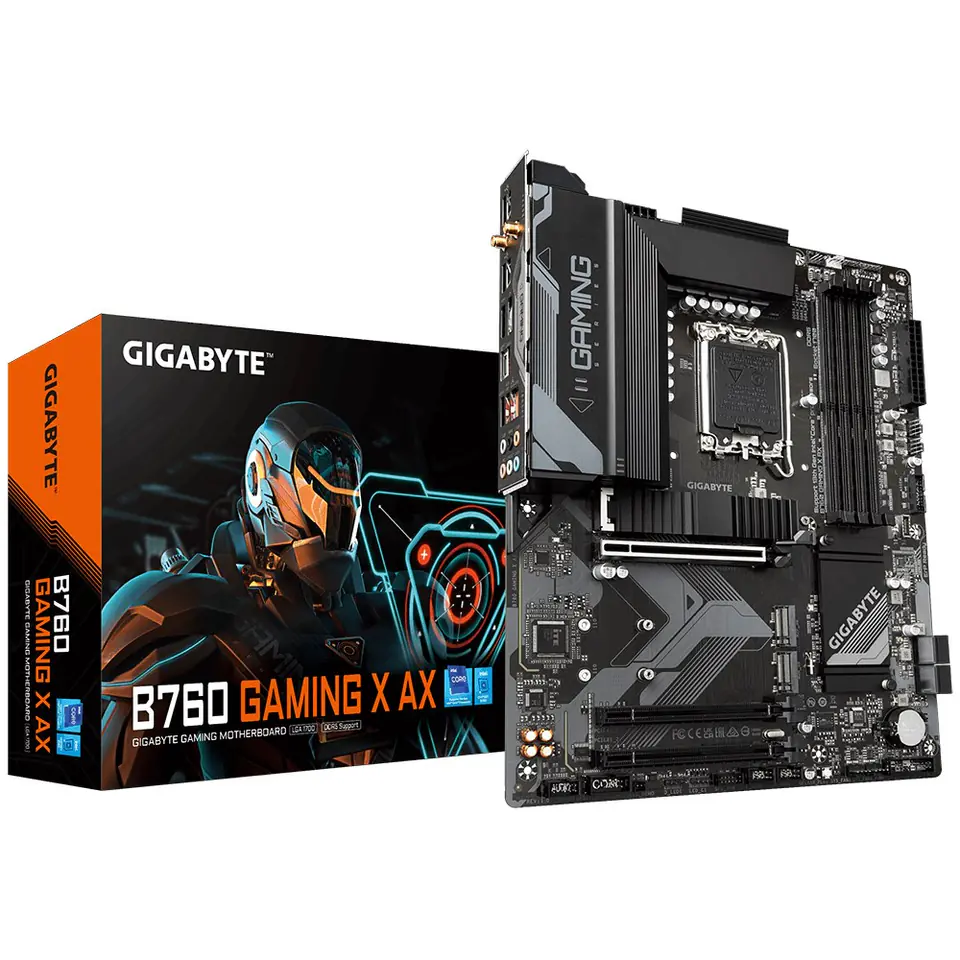

Płyta główna Gigabyte B760 GAMING X AX

€197.74
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Gigabyte
Product code:
B760 GAMING X AX 1.1 / 4719331851774

Specification

12v power connector:Yes
Atx power connector (24-pin):Yes
Audio output channels:7.1 channels
Batteries included:Yes
Battery technology:Lithium-Manganese Dioxide (LiMnO2)
Battery type:CR2032
Battery weight:3 g
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:5.2
Cables included:SATA
Clear cmos jumper:Yes
Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Country of origin:China
Cpu fan connector:Yes
Depth:244 mm
Desktop management interface (dmi) version:2.7
Directx version:12.0
Displayport version:1.2
Displayports quantity:1
Ecc сompatibility:ECC & Non-ECC
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdcp:Yes
Hdmi ports quantity:1
Hdmi version:2.0
Headphone outputs:6
Height:35 mm
Lithium weight per battery:0.07 g
Maximum internal memory:192 GB
Maximum internal memory supported by processor:192 GB
Maximum resolution:4096 x 2304 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:Intel B760 Express
Motherboard chipset family:Intel
Motherboard form factor:ATX
Number of battery cells:1
Number of hdds supported:4
Number of m.2 (m) slots:3
Number of memory slots:4
Number of sata iii connectors:4
Number of storage drives supported:7
Package depth:270 mm
Package height:80 mm
Package weight:1.66 kg
Package width:335 mm
Parallel processing technology support:Not supported
Pc health monitoring:Fan, Temperature, Water cooling, Voltage
Pci express x16 slots:3
Processor manufacturer:Intel
Processor socket:LGA 1700
Product colour:Bronze
Products per shipping (inner) case:1 pc(s)
Raid levels:5, 0, 1, 10
Raid support:Yes
Rgb led pin header:Yes
S/pdif out connector:Yes
Serial port headers:1
Supported memory clock speed (max):7600 MHz
Supported memory clock speeds:6200, 5200, 6400, 7000, 4000, 4800, 5800, 5400, 6800, 6600, 6000, 7400, 7600 MHz, 5600, 7200
Supported memory module capacities:16GB, 32GB, 48GB, 8GB, 1GB, 12GB, 2GB, 4GB
Supported memory types:DDR5-SDRAM
Supported processor sockets:LGA 1700
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Top wi-fi standard:Wi-Fi 6E (802.11ax)
Total number of sata connectors:4
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:5
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:1
Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity:1
Usb 3.2 gen 2 (3.1 gen 2) connectors:1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:1
Usb connector type:USB Type-A, USB Type-C
Warranty period:3 year(s)
Wi-fi:Yes
Wi-fi standards:802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b
Width:305 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 11 x64, Windows 10 x64
Wlan controller model:Intel Wi-Fi 6E AX211

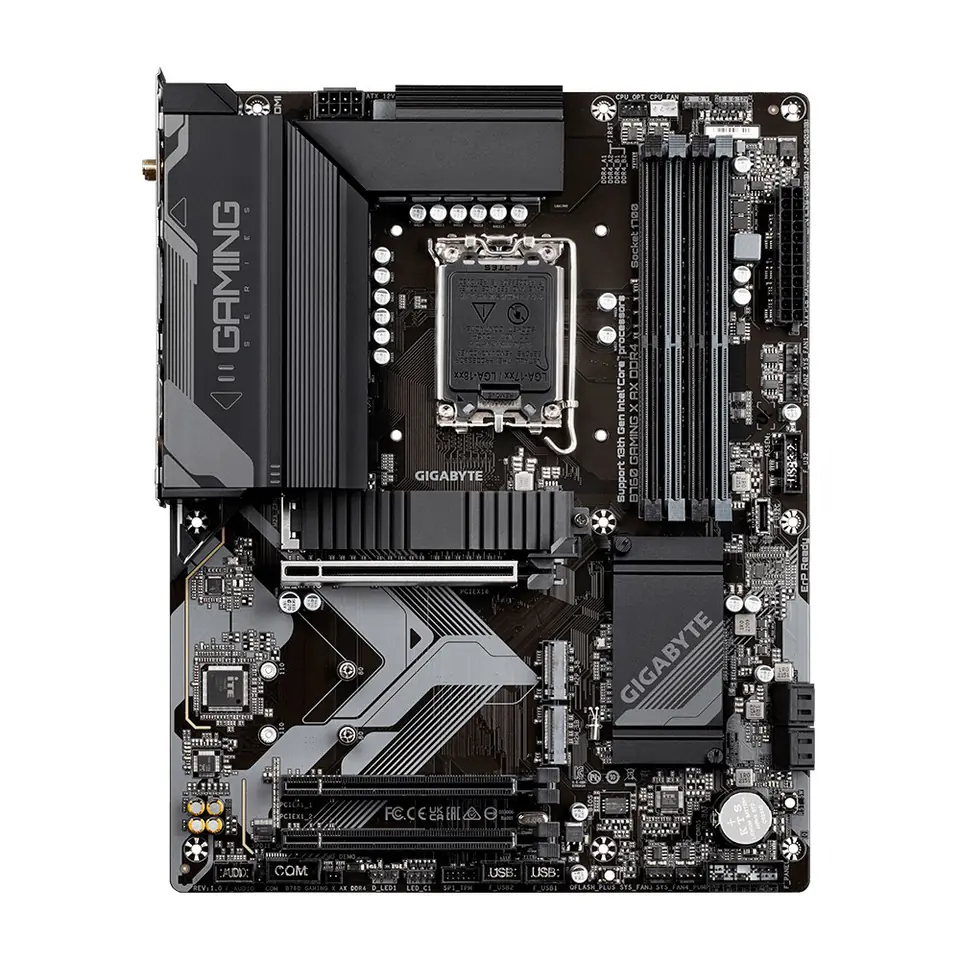

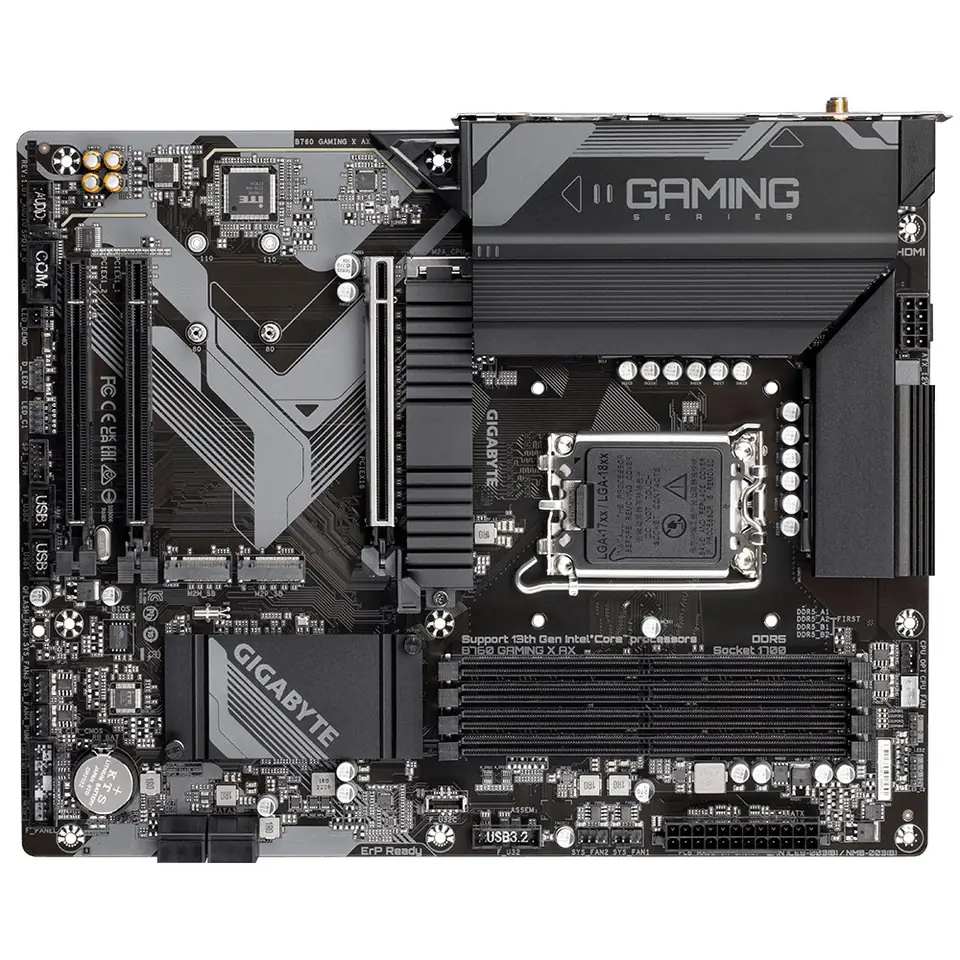

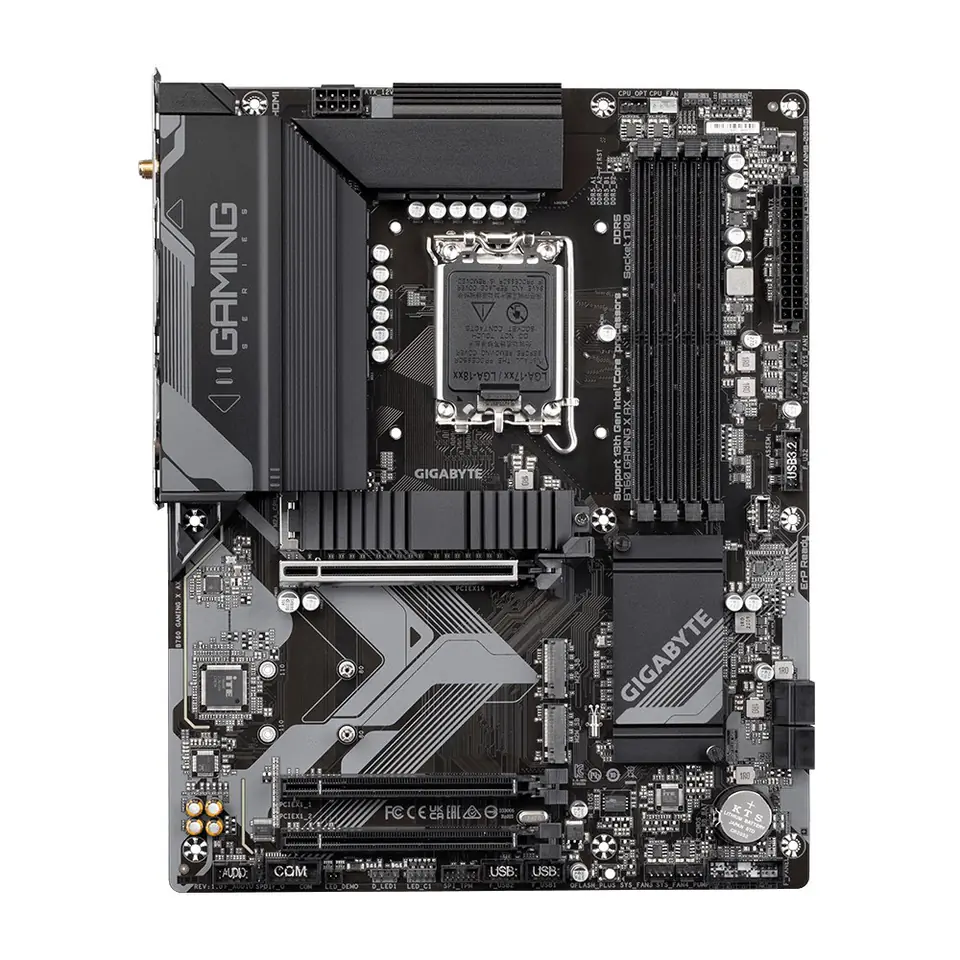

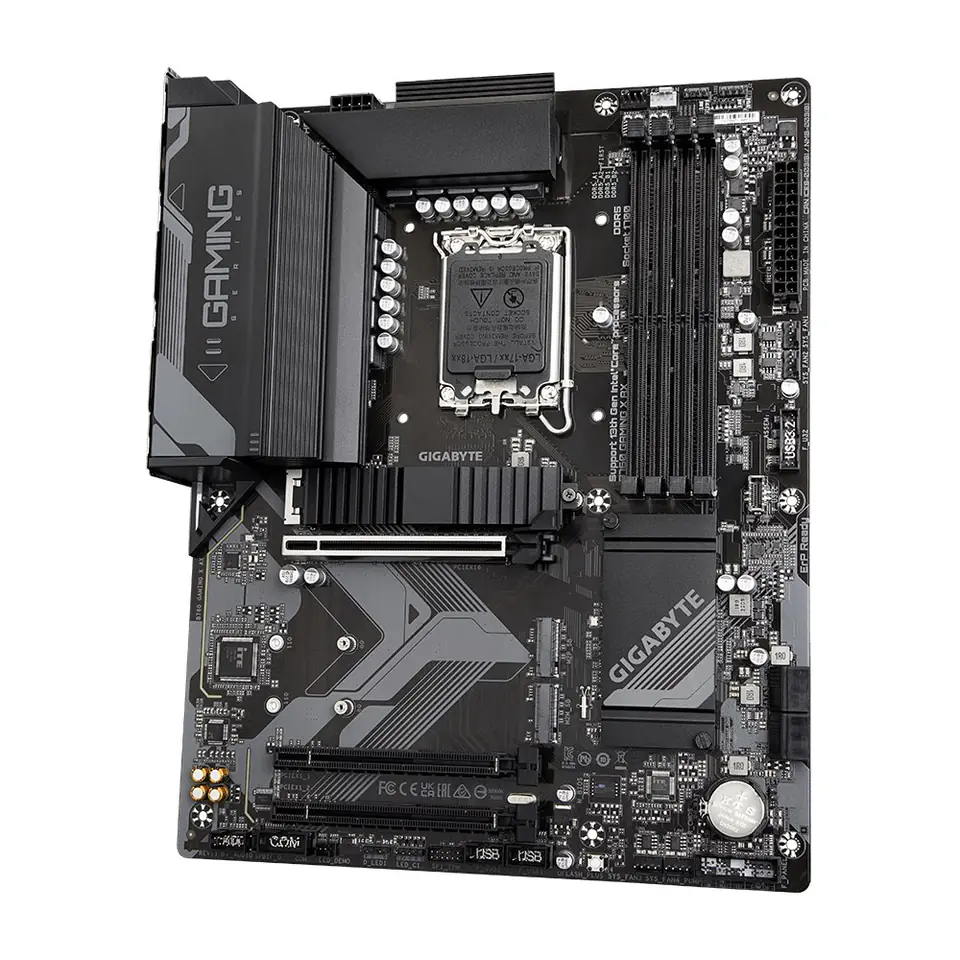

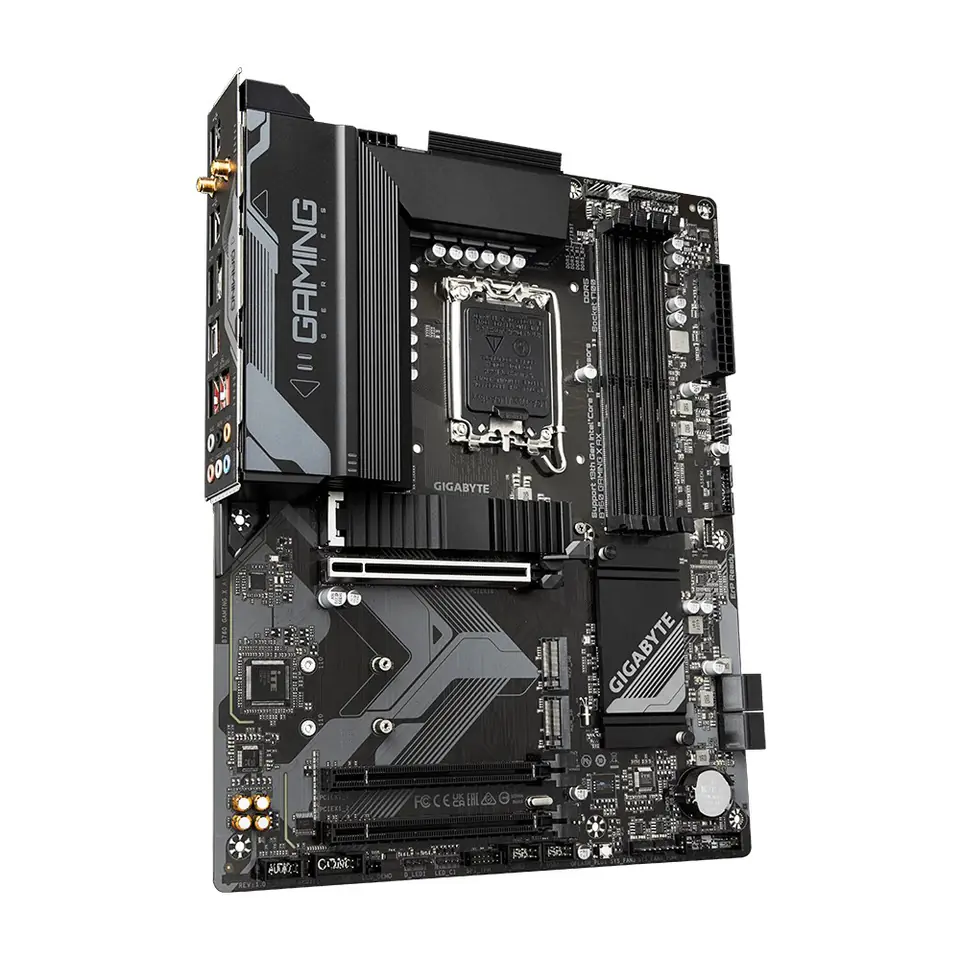

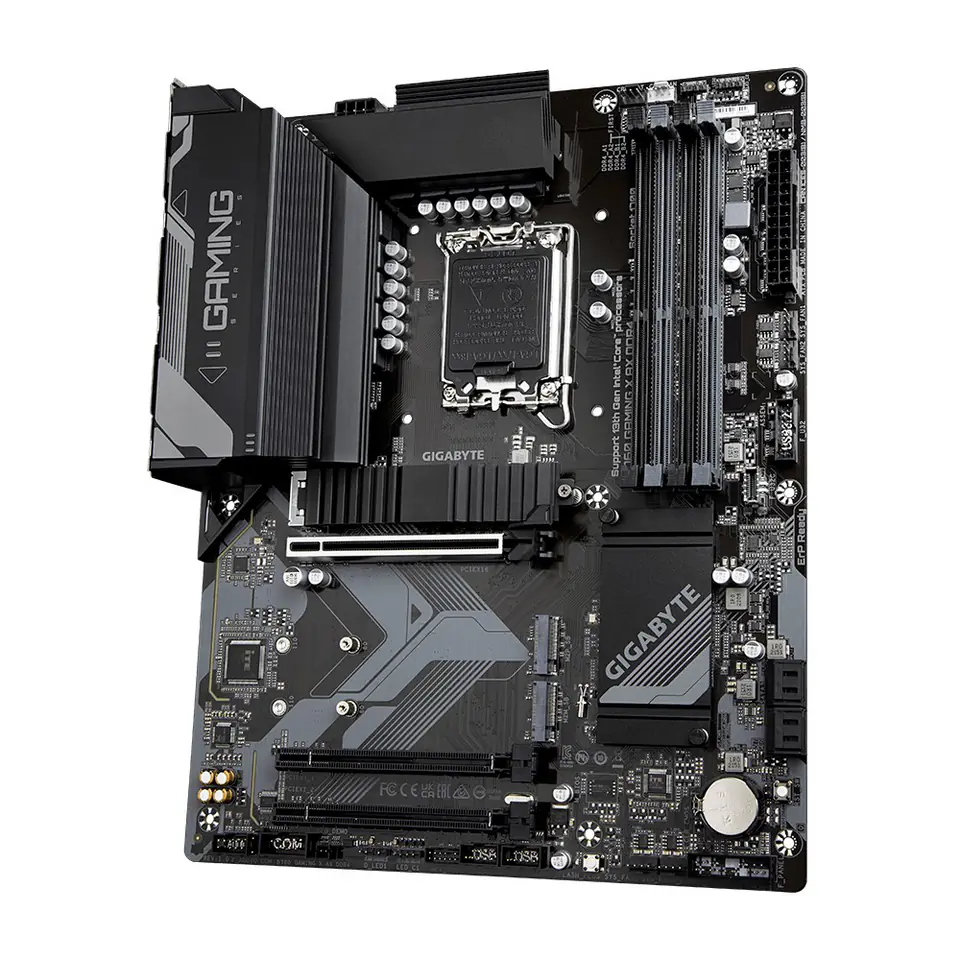

B760 Gaming X AX s1700 DDR5 DP/HDMI ATX motherboard

  • Intel Socket LGA 1700: Supports 13th and 12th generation processors
  • Unrivaled performance: 8+1+1 phase hybrid digital VRM solution
  • Dual-channel DDR5 memory: 4*SMD DIMMs with support for XMP memory modules
  • Next-generation storage: 3 PCIe 4.0 x4 M.2

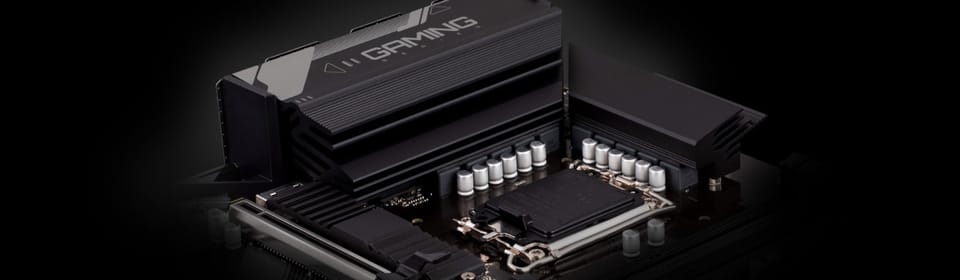

  • Advanced thermal design and M.2 thermal shield: to ensure VRM power stability and M.2 SSD performance
  • EZ-Latch: PCIe 4.0 x 16 slot with quick release design
  • Fast networks: 2.5 GbE LAN and Wi-Fi 6E 802.11ax

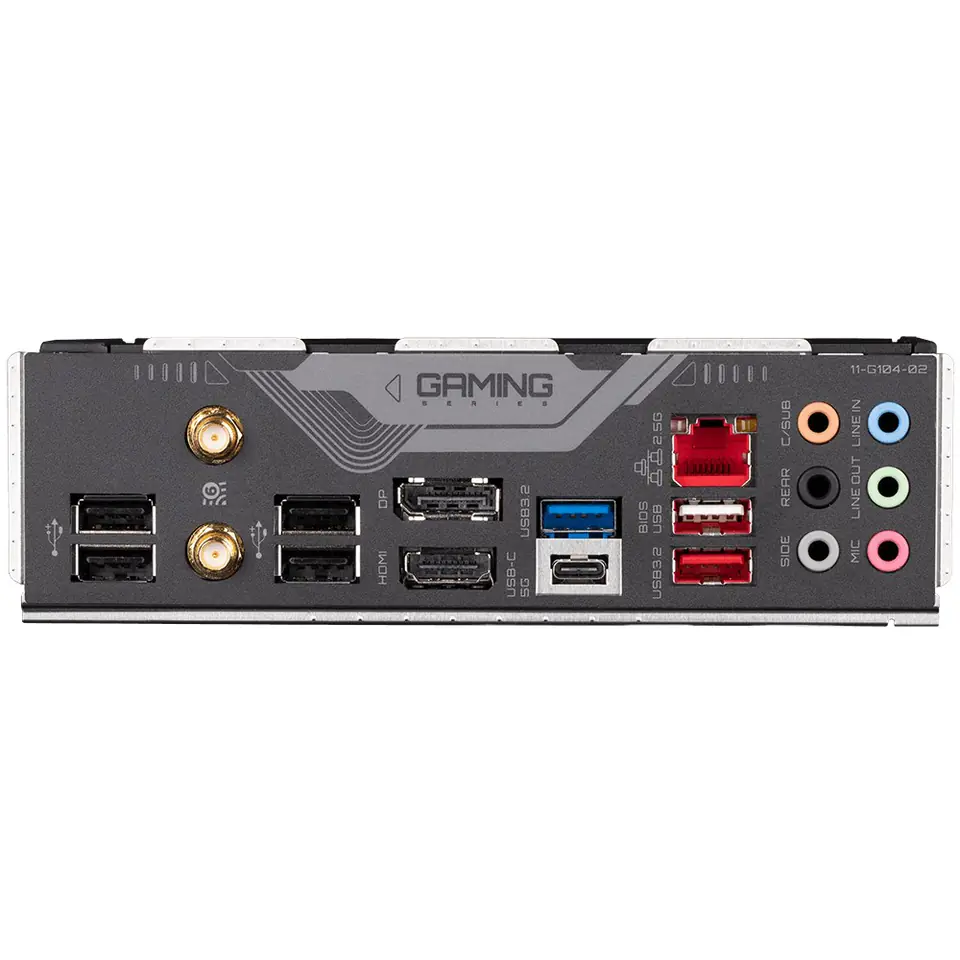

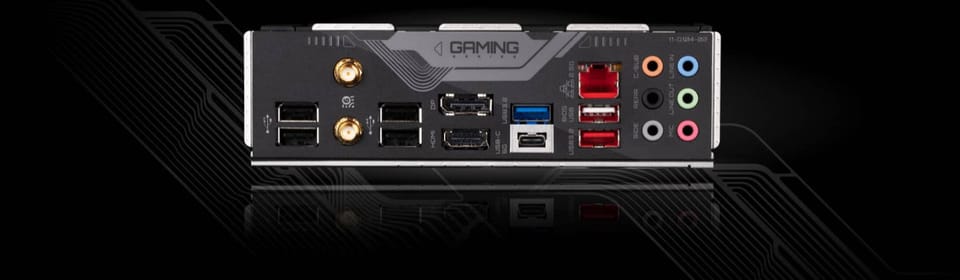

  • Enhanced Connectivity: Front USB-C 10Gbps, DP, HDMI
  • Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
  • Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
