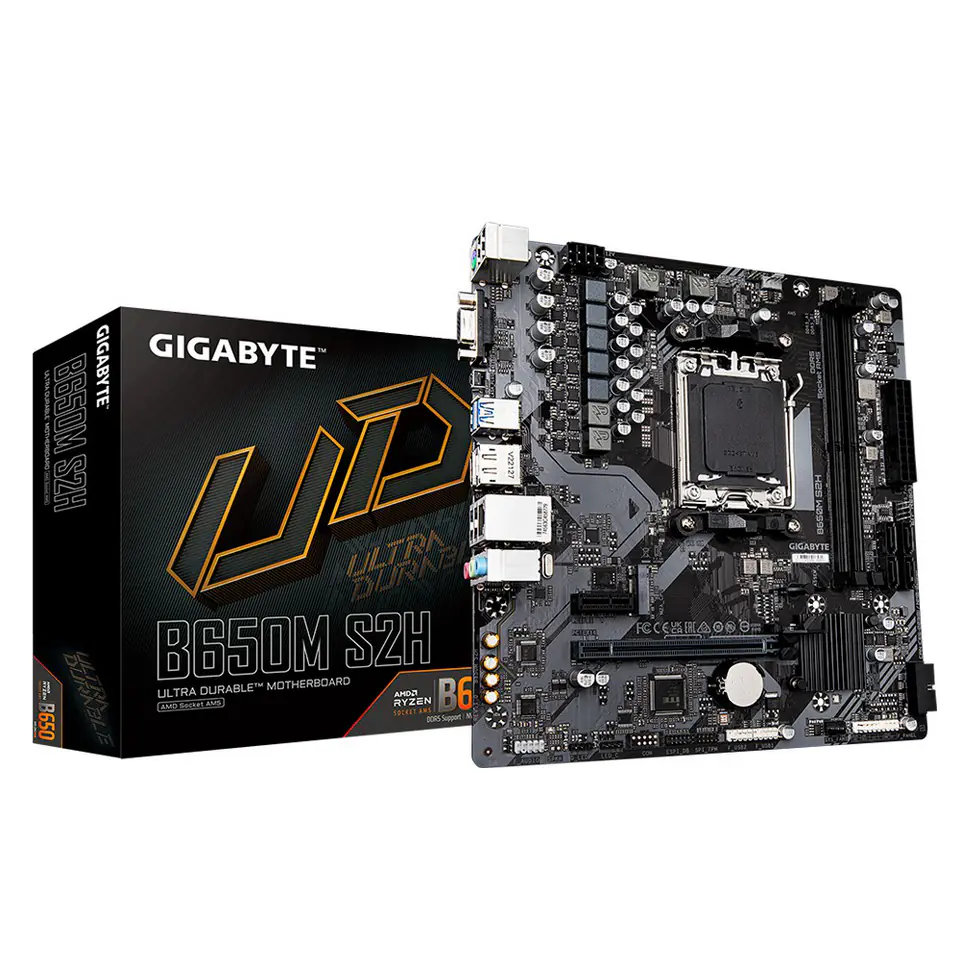

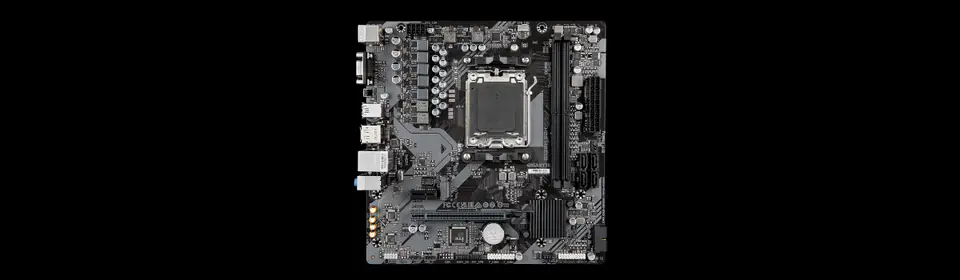

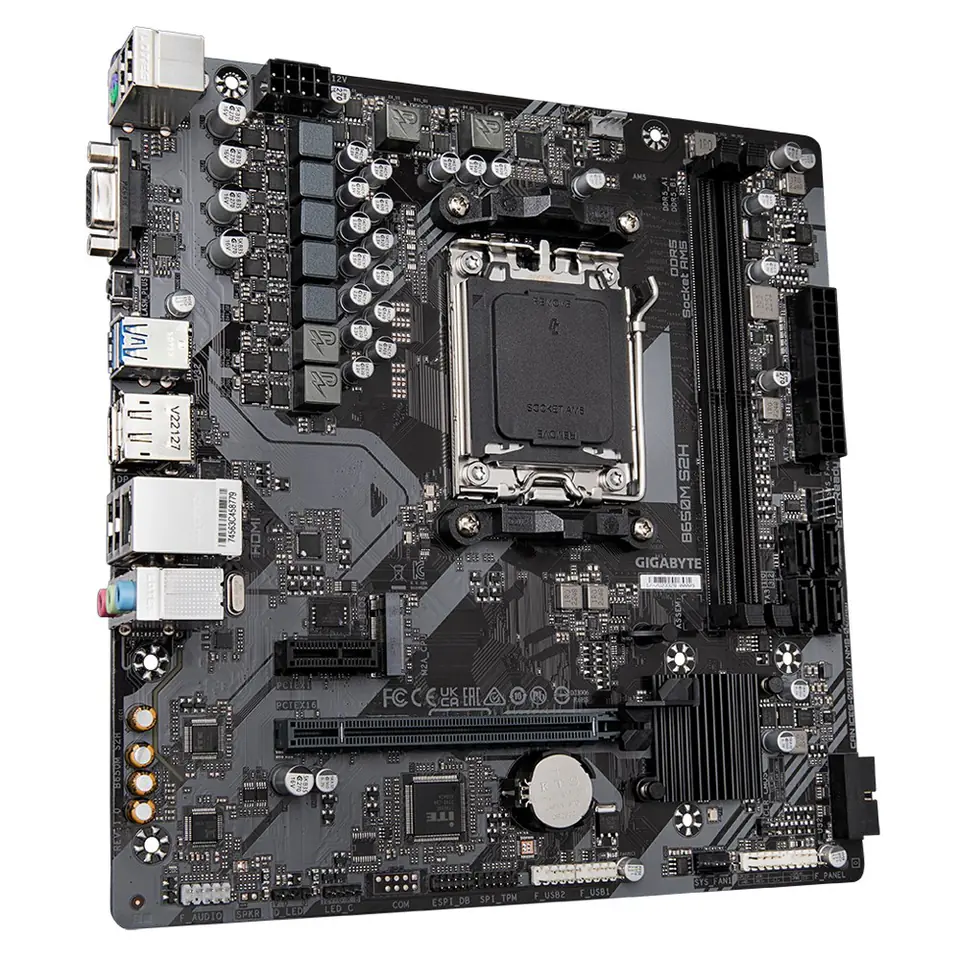

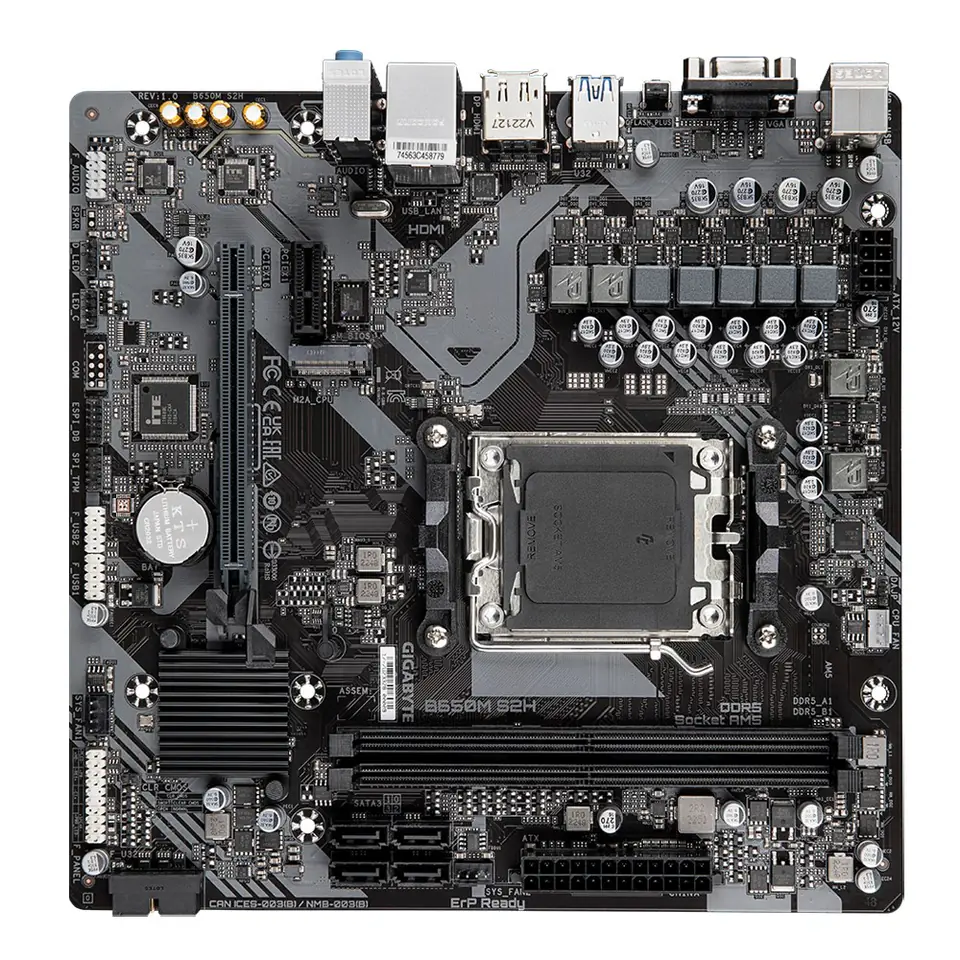

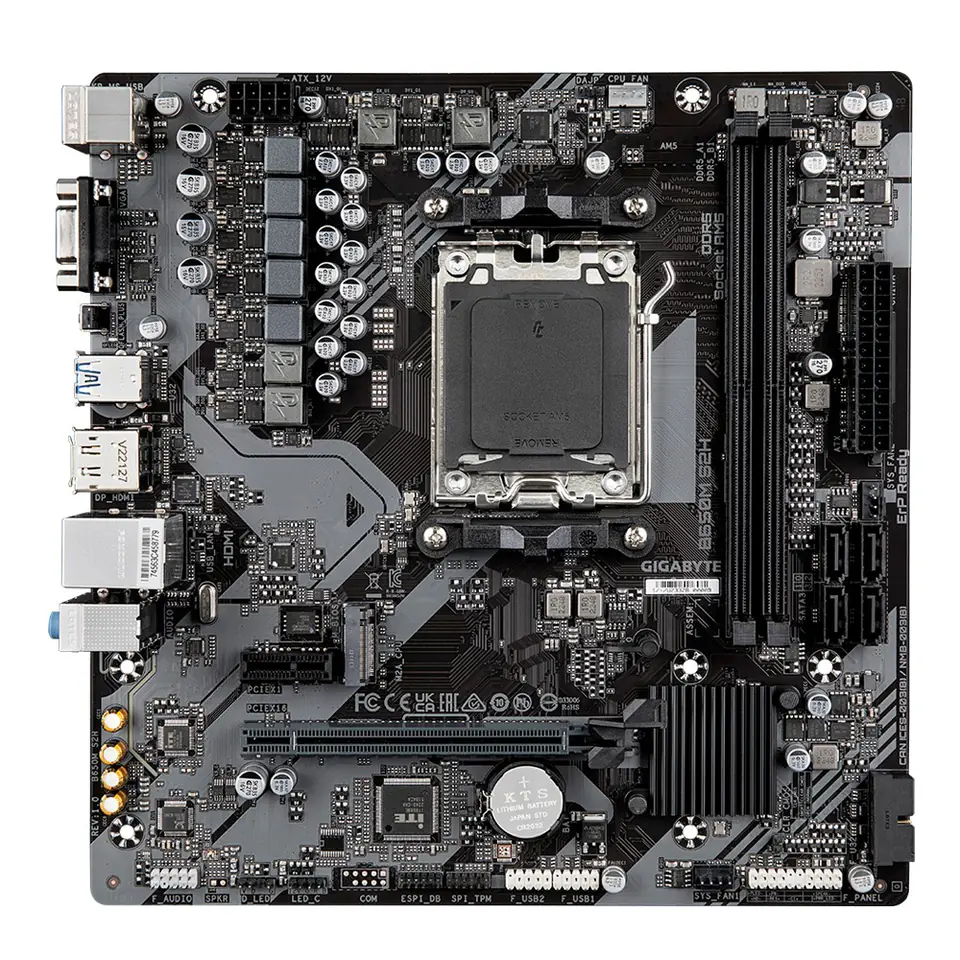

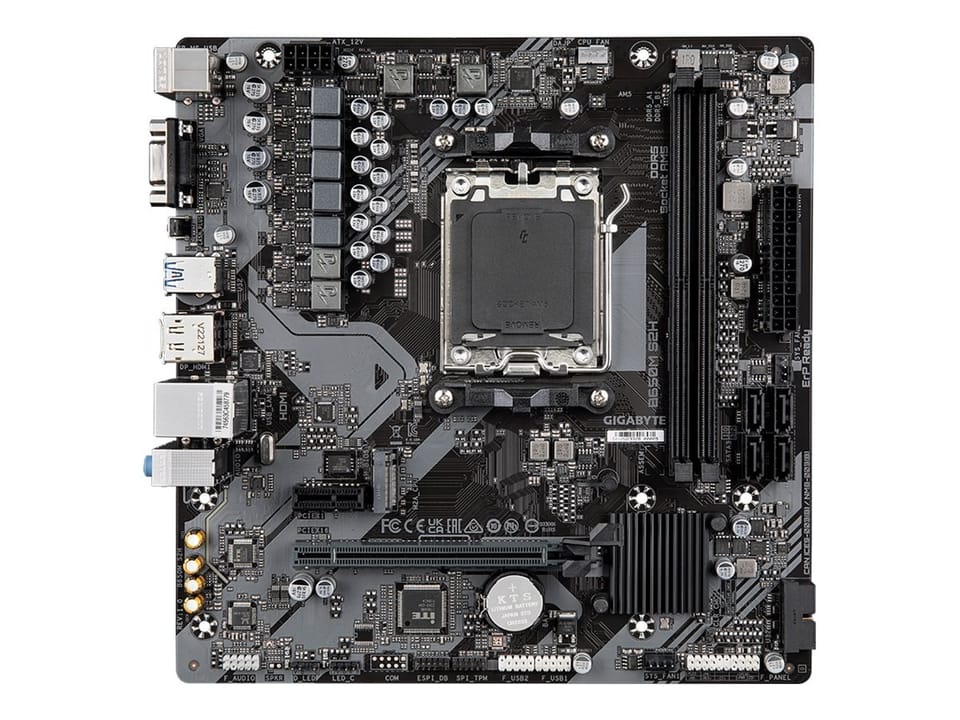

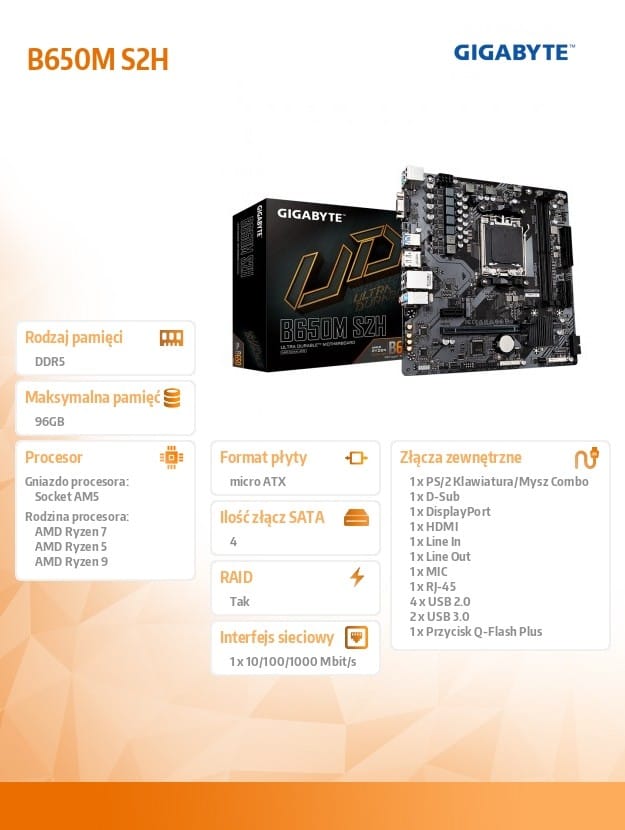

Płyta główna Gigabyte B650M S2H

€126.28
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Gigabyte
Product code:
B650M S2H / 4719331856298

Specification

12v power connector:Yes
Atx power connector (24-pin):Yes
Audio output channels:7.1 channels
Batteries included:Yes
Battery technology:Lithium-Manganese Dioxide (LiMnO2)
Battery type:CR2032
Battery weight:3 g
Bios type:UEFI AMI
Cables included:SATA
Clear cmos jumper:Yes
Compatible processor series:AMD Ryzen 7000 Series
Country of origin:China
Cpu fan connector:Yes
Depth:225 mm
Desktop management interface (dmi) version:2.7
Directx version:12.0
Displayport version:1.4
Displayports quantity:1
Ecc сompatibility:Non-ECC
Eps power connector (8-pin):Yes
Ethernet interface type:Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdcp:Yes
Hdmi ports quantity:1
Hdmi version:2.1
Headphone outputs:3
Height:35 mm
Lithium weight per battery:0.07 g
Maximum internal memory:96 GB
Maximum internal memory supported by processor:96 GB
Maximum resolution:4096 x 2160 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:AMD B650
Motherboard chipset family:AMD
Motherboard form factor:micro ATX
Number of battery cells:1
Number of displays supported:3
Number of hdds supported:4
Number of m.2 (m) slots:1
Number of memory slots:2
Number of sata iii connectors:4
Number of storage drives supported:5
Package depth:265 mm
Package height:54 mm
Package weight:917 g
Package width:265 mm
Parallel processing technology support:Not supported
Pc health monitoring:Voltage, Temperature, Water cooling, Fan
Pci express x1 slots:1
Pci express x16 slots:1
Processor manufacturer:AMD
Processor socket:Socket AM5
Product colour:Bronze
Products per shipping (inner) case:1 pc(s)
Ps/2 ports quantity:1
Raid levels:1, 0, 10
Raid support:Yes
Rgb led pin header:Yes
Supported memory clock speed (max):6200 MHz
Supported memory clock speeds:6200, 4800 MHz, 6000, 6400, 5600, 4400 MHz, 5200
Supported memory types:DDR5-SDRAM
Supported processor sockets:Socket AM5
Supported storage drive interfaces:M.2, SATA III
Supported storage drive types:HDD & SSD
Total number of sata connectors:4
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:4
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:2
Usb connector type:USB Type-A
Vga (d-sub) ports quantity:1
Warranty period:3 year(s)
Wi-fi:No
Width:230 mm
Windows operating systems supported:Windows 10 x64, Windows 11 x64
  • AMD AM5 socket: Supports AMD Ryzen 7000 series processors
  • Unrivaled performance: 5+2+2 phase digital VRM solution

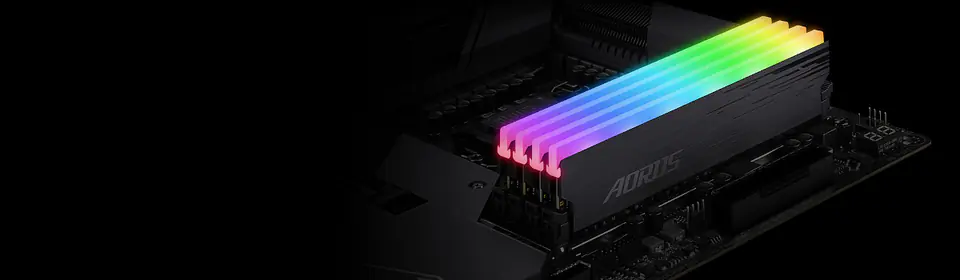

  • Dual-channel DDR5 memory: 2*SMD DIMM with support for AMD EXPO and Intel XMP memory modules
  • SuperSpeed storage: PCIe 4.0 x4 M.2
  • EZ Latch: PCIe x16 slot with quick release design
  • Fast networks: GbE LAN

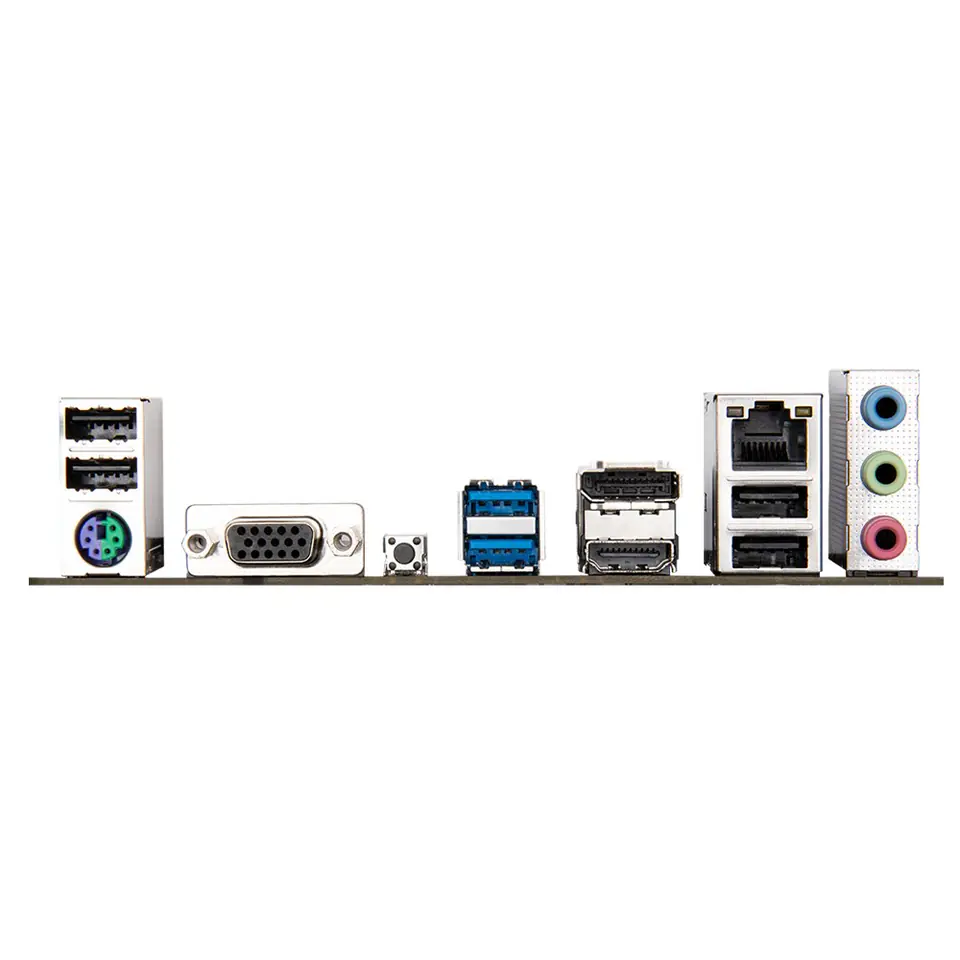

  • Extended connectivity: DP, HDMI, D-Sub
  • Smart Fan 6: Includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
  • Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card

Lasting performance

GIGABYTE Ultra Durable motherboards are built with optimized components for superior performance and a timeless platform.

Connectivity has come

Ultimate connectivity with blazing-fast data transfer speeds for next-generation networking and storage.

  • GbE LAN with bandwidth management
  • GbE LAN includes a network bandwidth management application that helps reduce network latency and keep ping times low for better response in congested LAN environments.
  • PCIe 4.0 hardware design
  • GIGABYTE B650 motherboards are ready for PCIe 4.0 devices, which are designed to provide twice the bandwidth of current PCIe 3.0 devices. To achieve high speed and maintain good signal integrity, GIGABYTE R&D uses a low impedance PCB to ensure maximum performance.
  • High-class audio capacitors
  • GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help ensure high resolution and audio fidelity, providing gamers with the most realistic sound effects.
  • Audio noise protection
  • GIGABYTE motherboards feature audio noise protection, which essentially isolates the board's sensitive analog audio components from potential interference at the circuit board level.

Easy friendly

Innovative and intuitive hardware, software and BIOS interface design to create your personal style.

  • EZ latch
  • Easily unlock the PCIe slot latch by removing the graphics card from the PCIe slot.
  • Q-Flash Plus
  • Easily update BIOS without having to install CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card or enter the BIOS menu to flash the BIOS. Just download and save the new BIOS file (rename it gigabyte.bin) to your USB flash drive, then press the dedicated Q-Flash Plus button and you're done!

Smart fan 6

Smart Fan 6 includes several unique cooling features that ensure your gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support a PWM/DC fan and pump, and users can easily define each fan's curve based on various temperature sensors across the board via an intuitive user interface.

Cooling functions

  • High Current Support: Each fan connector supports PWM and DC fan and water cooling pump and power up to 24W (12V x 2A) with overcurrent protection
  • Precise Control: Multiple temperature/fan speed control points ensure precise fan curve
  • Dual Curve Mode: Dual incline/stair mode for different user scenarios
  • Fan Stop: The fan can stop completely below a user-defined temperature point

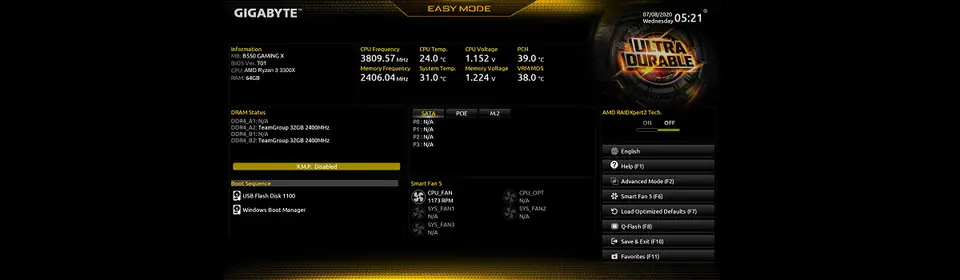

Intelligent fan BIOS interface 6

  • Improve Fan Curve UI: We are increasing control points from 5 to 7 and a larger fan speed graph to provide precise and easier fan curve control.
  • Dual Slope/Stair Graph Mode: The fan curve can be quickly switched between incline and stair modes for different user scenarios. Slope is the traditional and intuitive linear fan speed curve. With the newly added non-linear staircase mode, the fan maintains the same speed within a specific temperature range.
  • Manual Entry: For advanced users, we provide manual fan speed entry for more precise control.
  • EZ Tuning: With can place 4 EZ Tuning points at difficult temperature/fan speed, and Smart Fan 6 can quickly generate fan curve.
  • Fan Curve Profile: The fan curve profile can be saved in BIOS ROM, the profile will be retained after BIOS update.

GIGABYTE Control Center

GIGABYTE Control CENTER (GCC) is the unified software for all supported GIGABYTE products. It provides a newly designed intuitive user interface to control all necessary functions.

  • A unified software platform for all products supported by Gigabyte
  • Intuitive user interface for ease of use
  • Modular control components only for installed hardware
  • Auto update feature to keep your system up to date and support future products

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
