With technology changing rapidly, GIGABYTE is always keeping up with the latest trends and providing customers with advanced features and the latest technology. GIGABYTE motherboards are equipped with an enhanced power solution, the latest storage standards and exceptional connectivity to ensure optimised gaming performance.

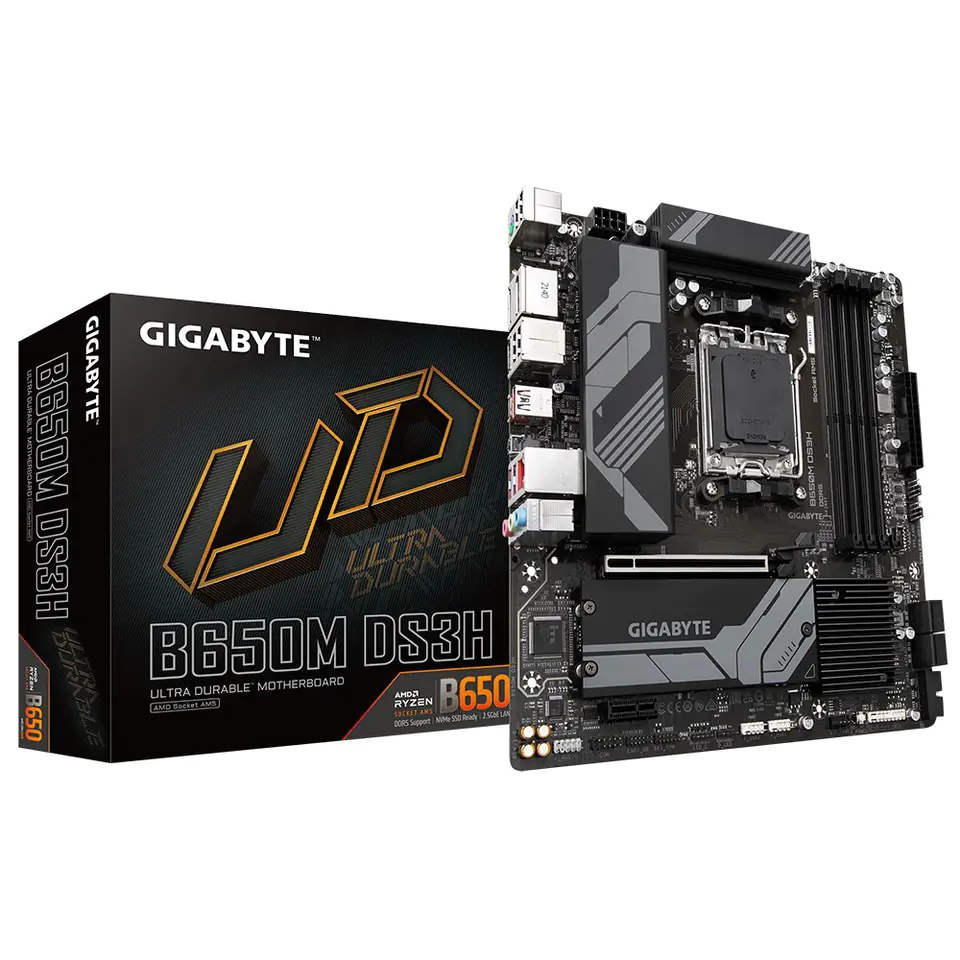

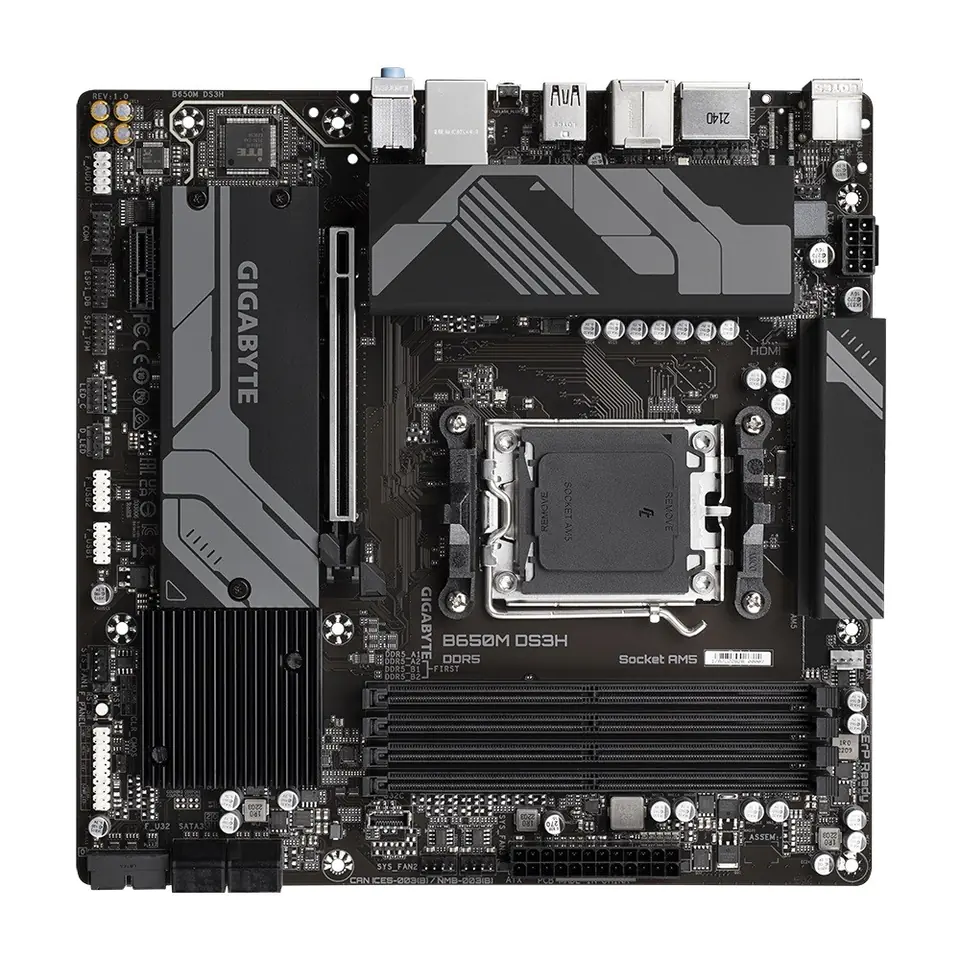

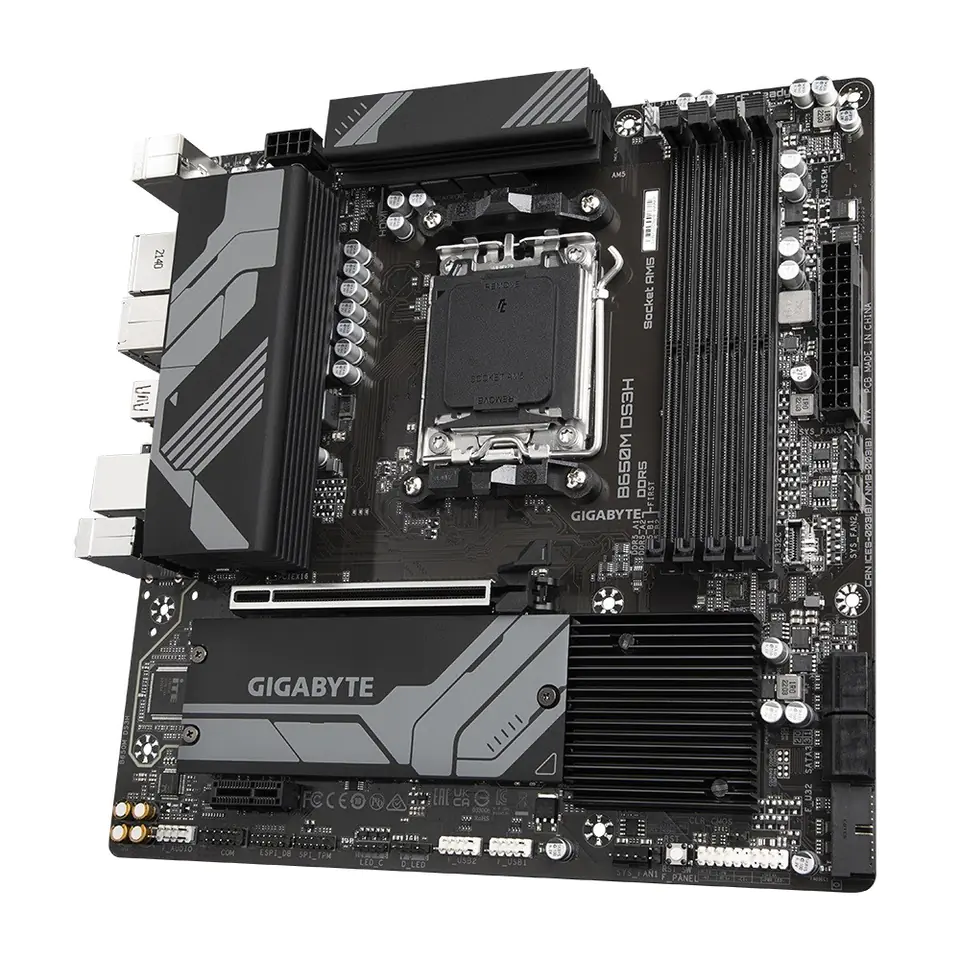

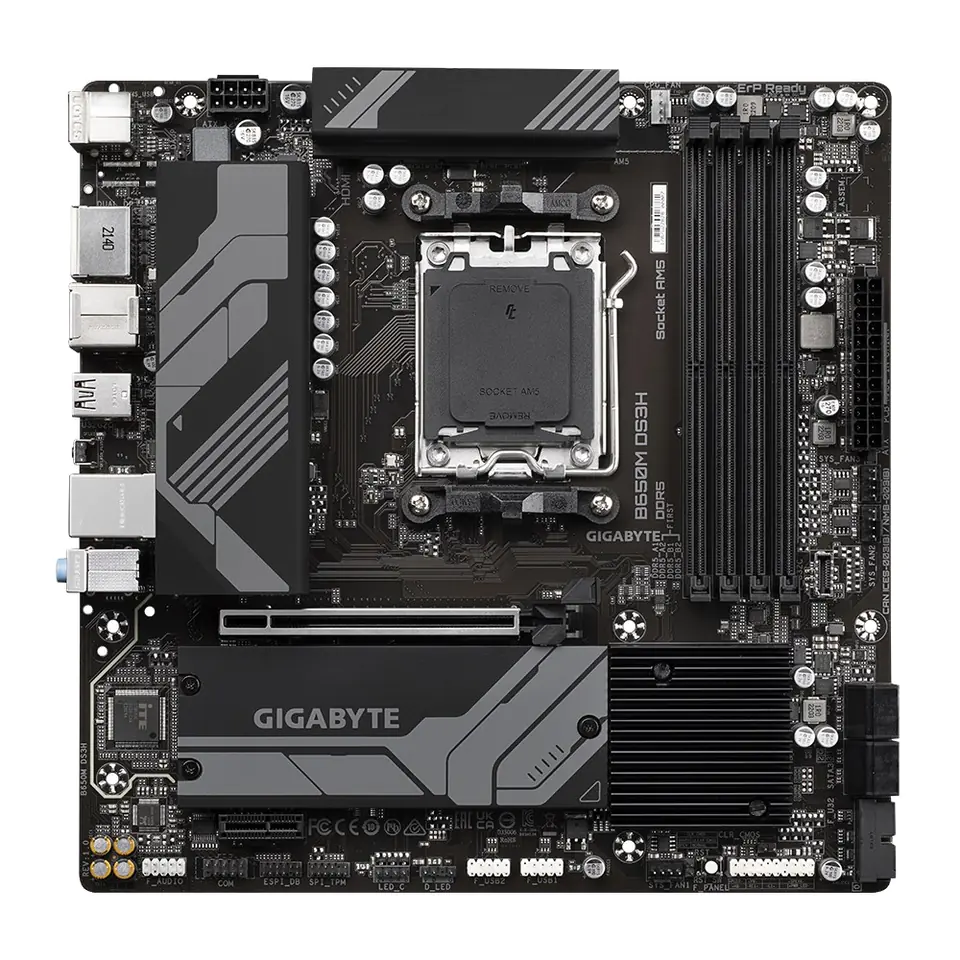

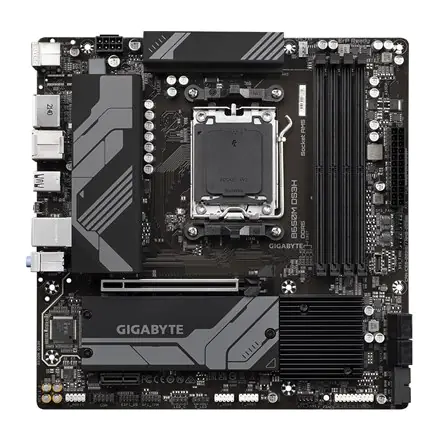

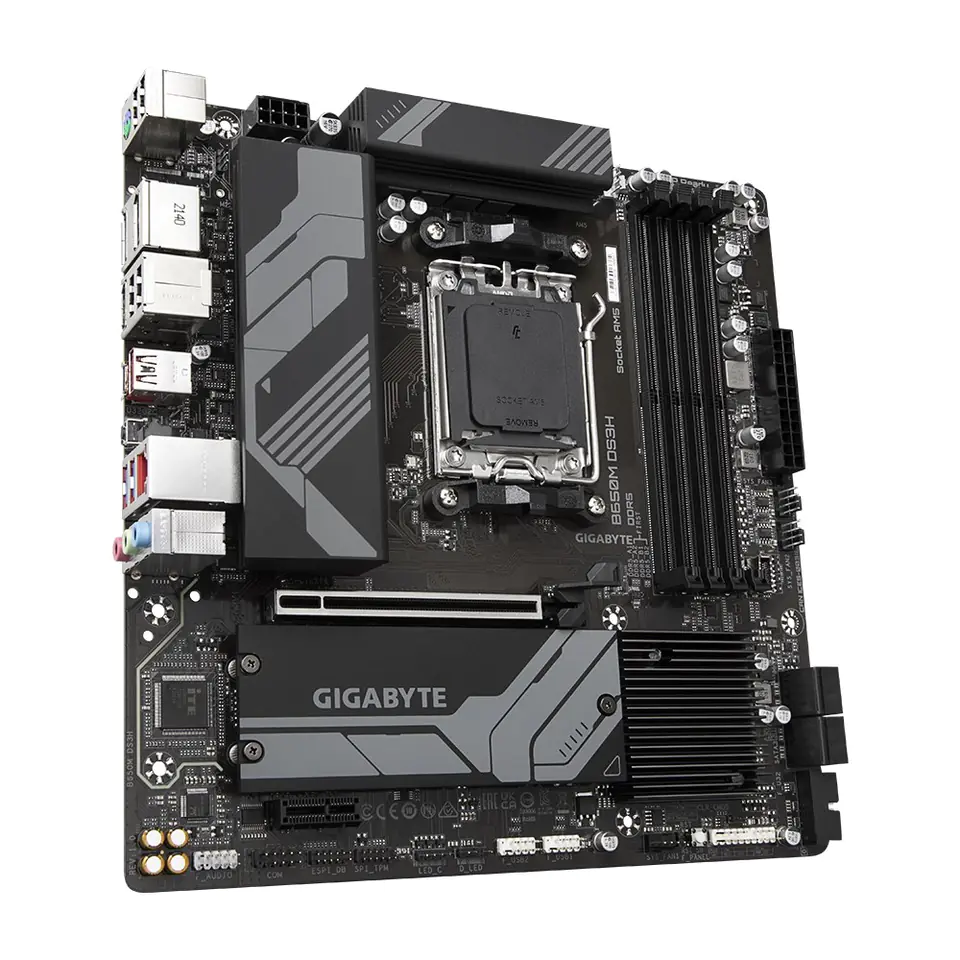

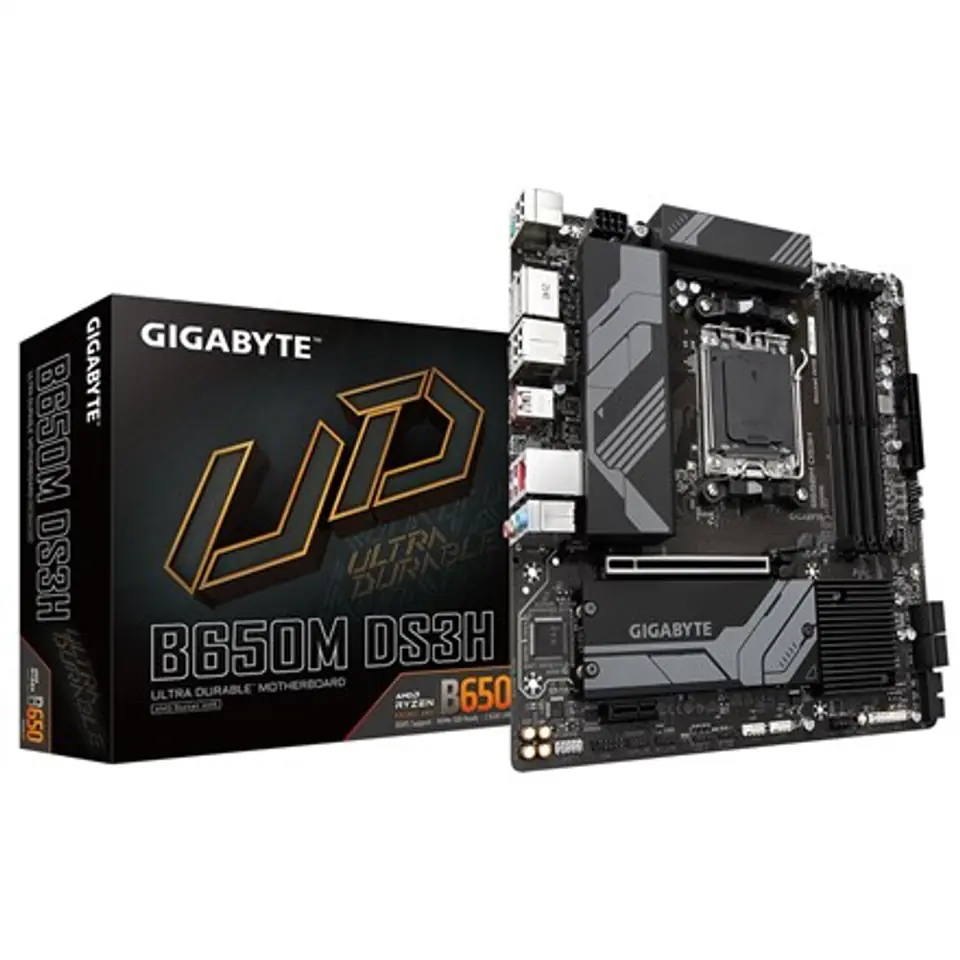

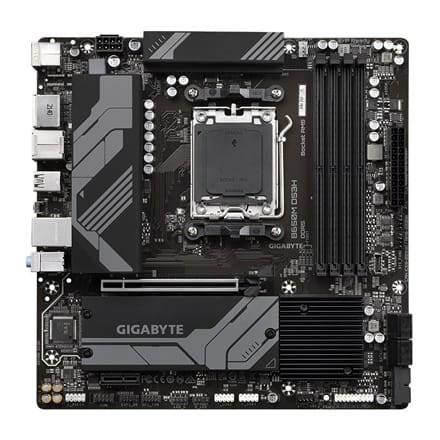

Płyta główna Gigabyte B650M DS3H
€171.57
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- B650M DS3H / 4719331849825
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Acpi version: | 5.0 |
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Bios memory size: | 256 Mbit |
| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | AMD Ryzen 7000 Series |
| Component for: | PC |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Directx version: | 12.0 |
| Displayport version: | 1.4 |
| Displayports quantity: | 2 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 3 |
| Height: | 35 mm |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 192 GB |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | AMD B650 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | micro ATX |
| Non-ecc: | Non-ECC |
| Number of battery cells: | 1 |
| Number of displays supported: | 3 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata express connectors: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| On-board graphics card: | No |
| Package depth: | 268 mm |
| Package height: | 68 mm |
| Package weight: | 1.66 kg |
| Package width: | 270 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Voltage, Fan, Temperature |
| Pci express x1 slots: | 1 |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Product colour: | Bronze |
| Products per shipping (inner) case: | 1 pc(s) |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 10, 0, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 8000 MHz |
| Supported memory clock speeds: | 4800, 6200, 6800, 7000, 5200, 6400, 6000, 7600 MHz, 7800, 5600, 7200, 8000 |
| Supported memory module capacities: | 48GB, 12GB, 8GB, 1GB, 16GB, 2GB, 4GB, 32GB |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | Socket AM5 |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| System management bios (smbios) version: | 2.7 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb connector type: | USB Type-A, USB Type-C |
| Warranty period: | 3 year(s) |
| Wi-fi: | No |
| Width: | 244 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
