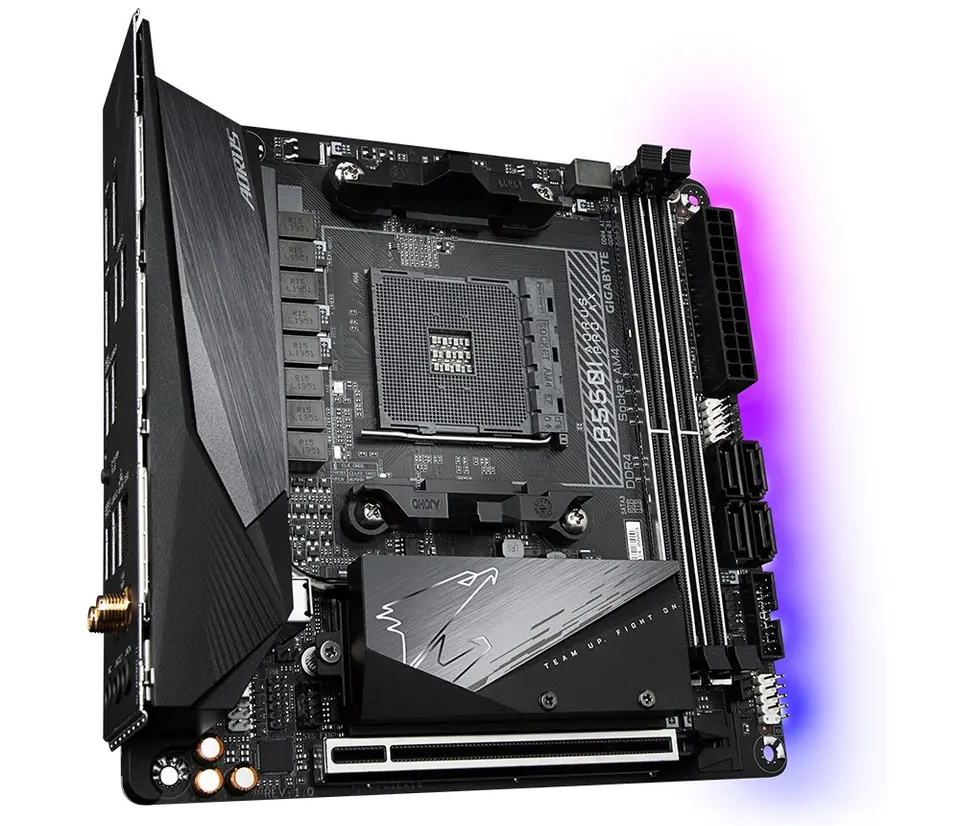

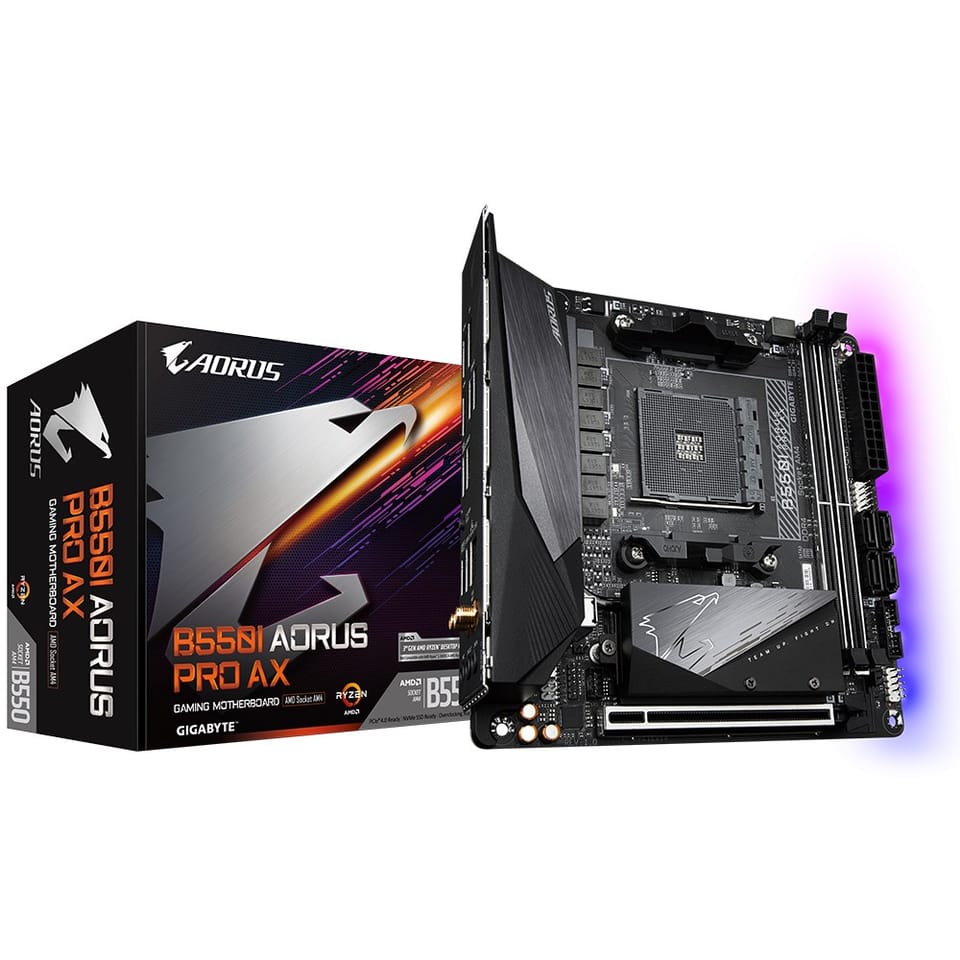

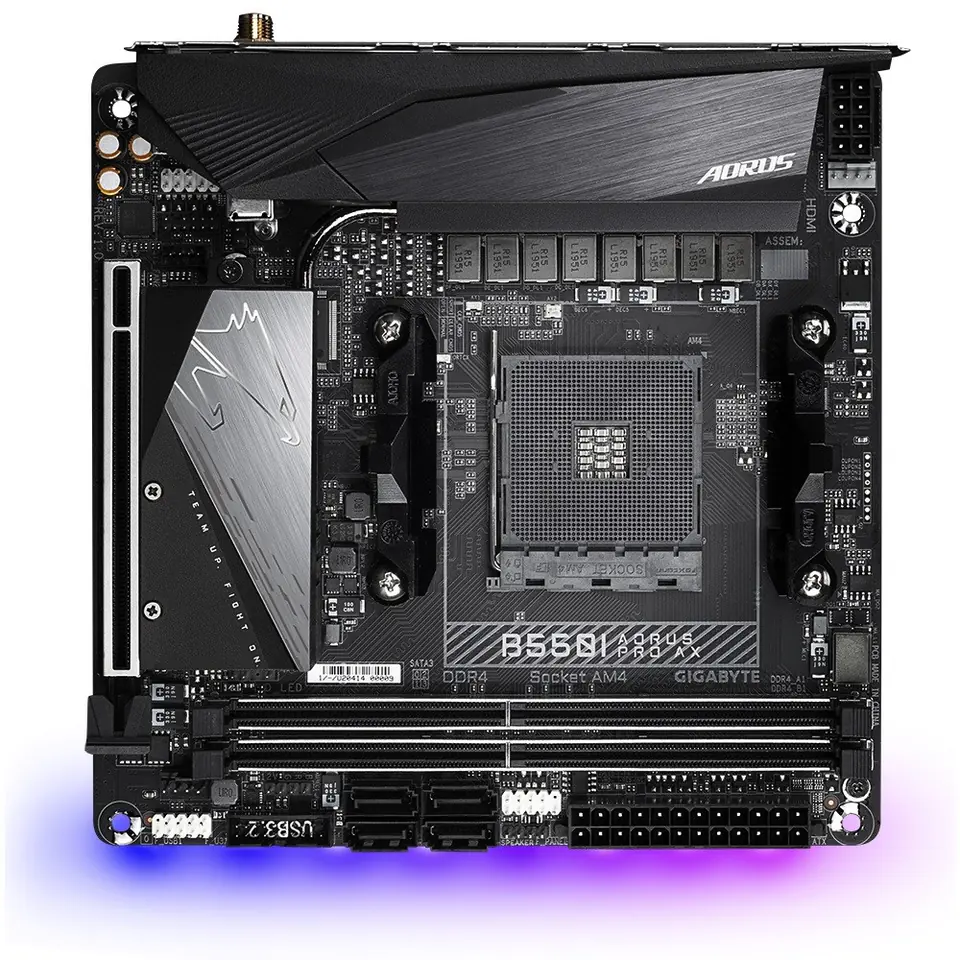

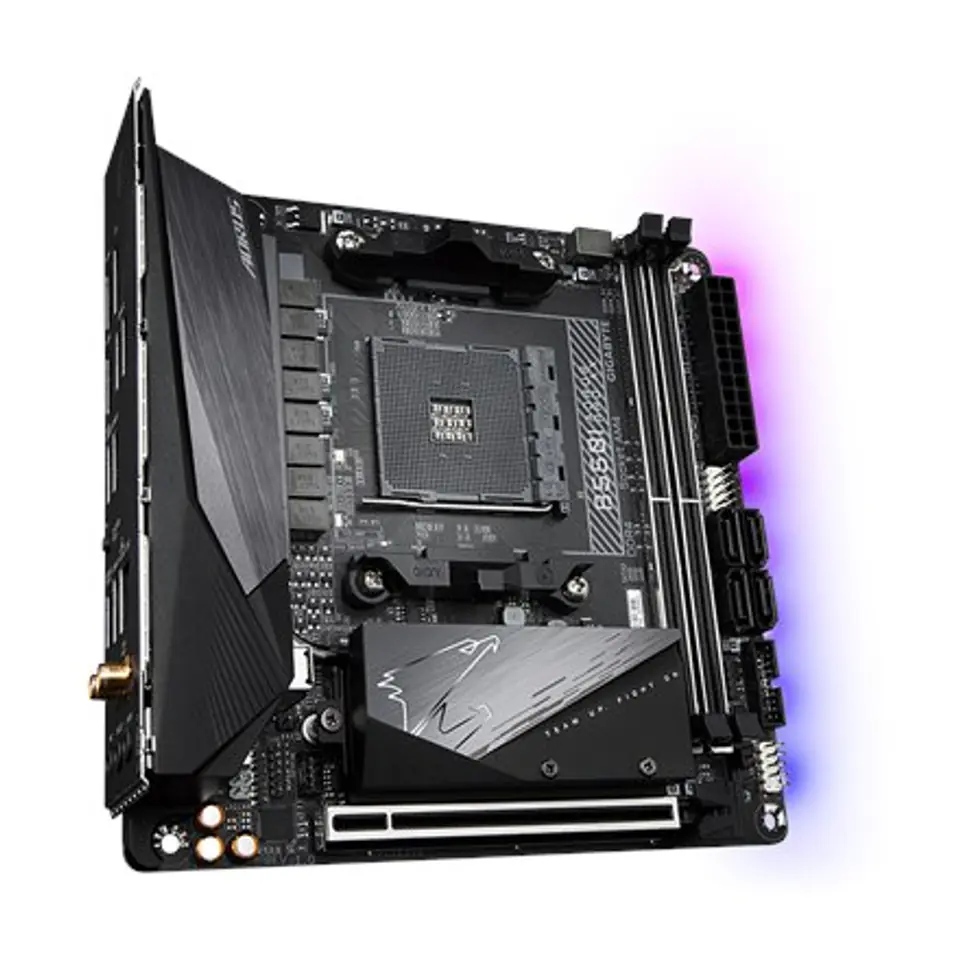

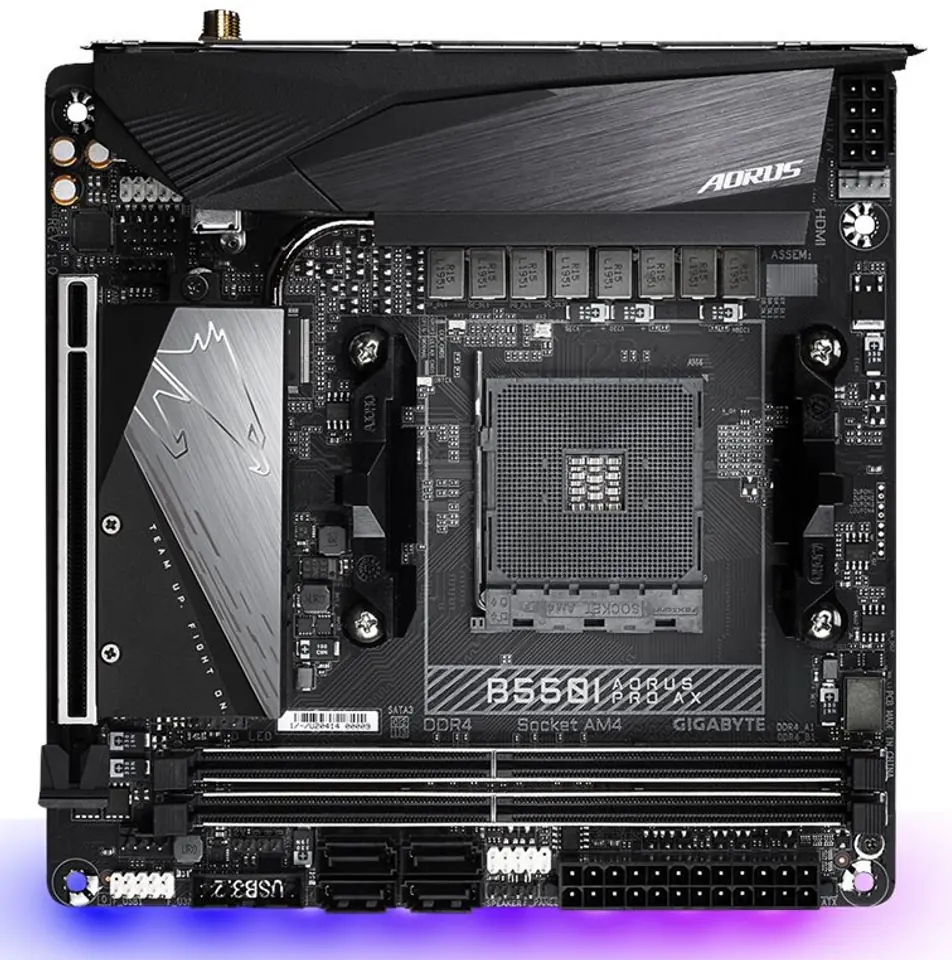

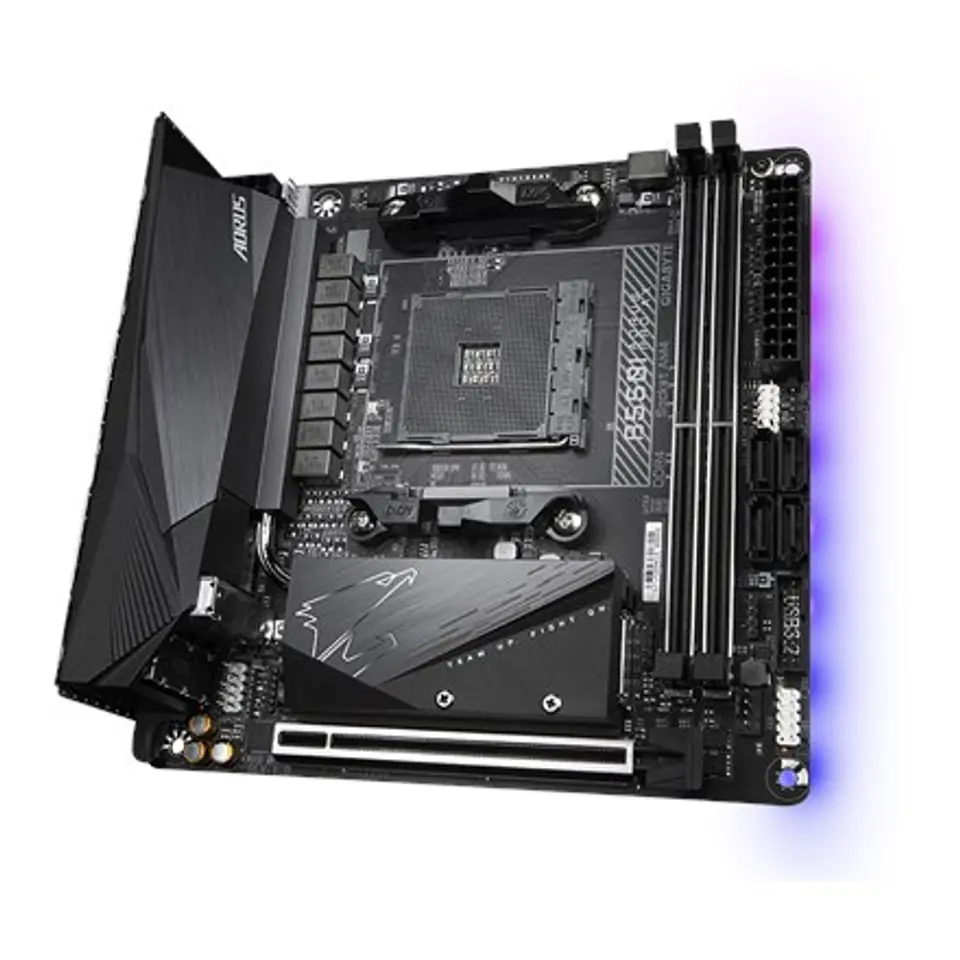

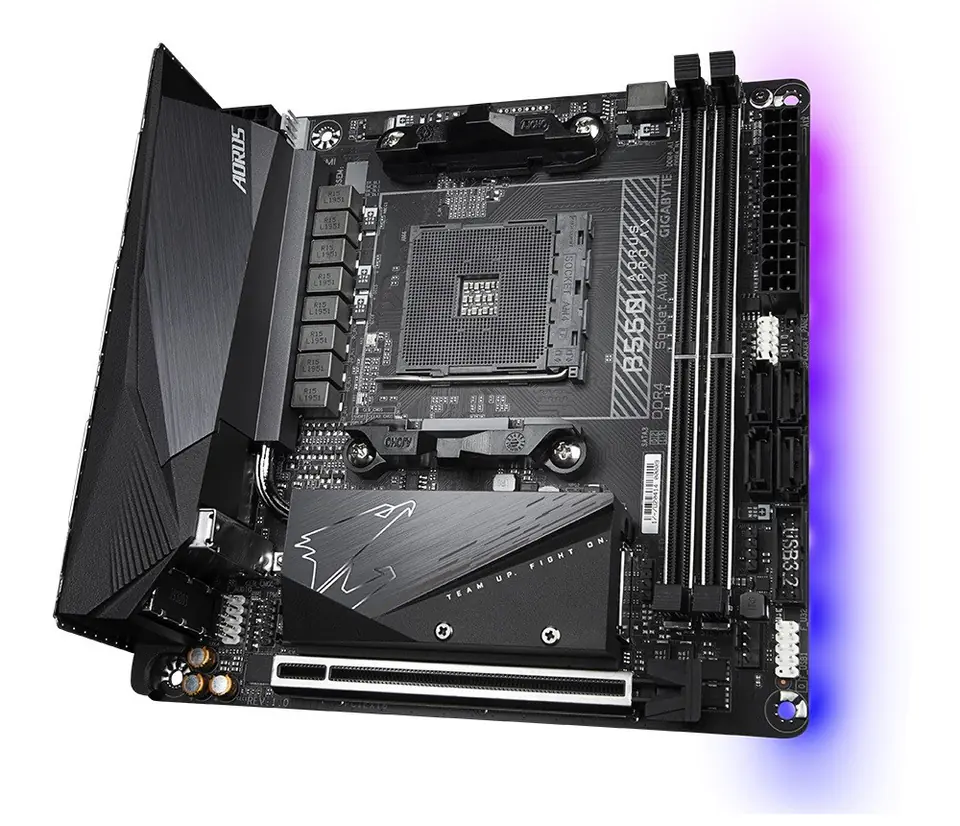

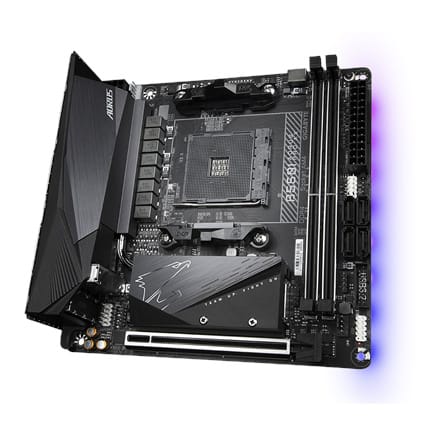

Płyta główna Gigabyte B550I AORUS PRO AX

Name: Płyta główna Gigabyte B550I AORUS PRO AX
Brand: Gigabyte
SKU: 1568735
Price: 207.04 EUR
Availability: InStock

€207.04

Shipping from warehouse: ⁨A1⁩

Estimated shipping: Tue, Nov 26 - Fri, Nov 29

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: B550I AORUS PRO AX / 4719331809508

Specification

12v power connector:	Yes
Atx power connector (24-pin):	Yes
Audio connector:	Yes
Audio output channels:	7.1 channels
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5
Clear cmos jumper:	Yes
Compatible processor series:	AMD Ryzen™ 5000 G-Series, AMD Ryzen™ 4000 G-Series, AMD Ryzen™ 3000 Series, AMD Ryzen™ 5000 Series
Cooling type:	Active
Cpu fan connector:	Yes
Depth:	170 mm
Desktop management interface (dmi) version:	2.7
Displayports quantity:	1
Eps power connector (8-pin):	Yes
Ethernet interface type:	Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Graphics card family:	AMD
Hdcp:	Yes
Hdmi ports quantity:	2
Headphone outputs:	3
High dynamic range (hdr) supported:	Yes
Maximum internal memory:	64 GB
Maximum resolution:	5120 x 2880 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Motherboard chipset:	AMD B550
Motherboard chipset family:	AMD
Motherboard form factor:	Mini-ITX
Number of chassis fan connectors:	2
Number of led strips supported:	2
Number of m.2 (m) slots:	2
Number of memory slots:	2
Number of sata connectors:	4
Pc health monitoring:	Voltage, Fan, Water cooling, Temperature
Pci express x1 slots:	1
Pci express x16 slots:	1
Power fan connector:	Yes
Power source type:	ATX
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Raid levels:	1, 10, 0
Raid support:	Yes
Supported memory clock speed (max):	5300 MHz
Supported memory clock speeds:	5100 MHz, 5300 MHz, 3400, 3866, 2400, 4133, 4000, 4800 MHz, 5200, 3466, 2933, 3600, 4600, 3200 MHz, 4266, 2667, 3733, 4400 MHz, 2133
Supported memory module capacities:	32GB
Supported memory types:	DDR4 SO-DIMM
Supported storage drive interfaces:	M.2, PCI Express 3.0, PCI Express 4.0, SATA
Supported storage drive types:	SSD
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity:	1
Wi-fi:	Yes
Width:	170 mm
Windows operating systems supported:	Windows 11 x64, Windows 10 x64

AMD B550 Mini-ITX AORUS motherboard with direct 8-phase digital VRM, advanced thermal design with extended VRM heatsink, thermal backplane, dual PCIe 4.0/3.0 M.2 slots with thermal shield, Intel WiFi 6 802.11ax, 2, 5 GbE LAN, RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series processors
Dual-channel ECC/non-ECC unbuffered DDR4 memory, 2 DIMMs
Direct 8-phase digital VRM solution with 90A Smart Power Stage (SPS)
Advanced thermal design with extended and multi-layer heat sink and thermal base plate
x16 slot ready for Ultra Durable PCIe 4.0
Two ultra-fast NVMe PCIe 4.0/3.0 x4 M.2 with thermal shield
Built-in Intel WiFi 6 802.11ax 2T2R and BT5 with AORUS antenna
AMP-UP Audio with ALC1220-VB and Nichicon audio capacitors for rear 120dB SNR
Blazing fast 2.5GbE LAN with bandwidth management

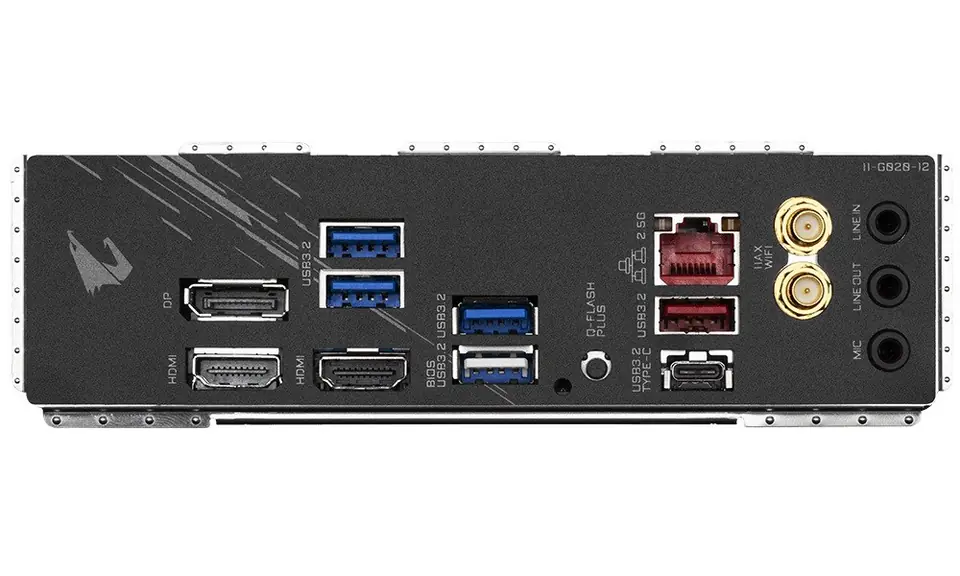

USB 3.2 Gen2 Type-C and DisplayPort + Dual HDMI support
RGB FUSION 2.0 supports addressable LED and RGB LED strips
Smart Fan 5 includes multiple temperature sensors, hybrid fan headers with FAN STOP and noise detection
Q-Flash Plus Update BIOS without installing CPU, memory and graphics card

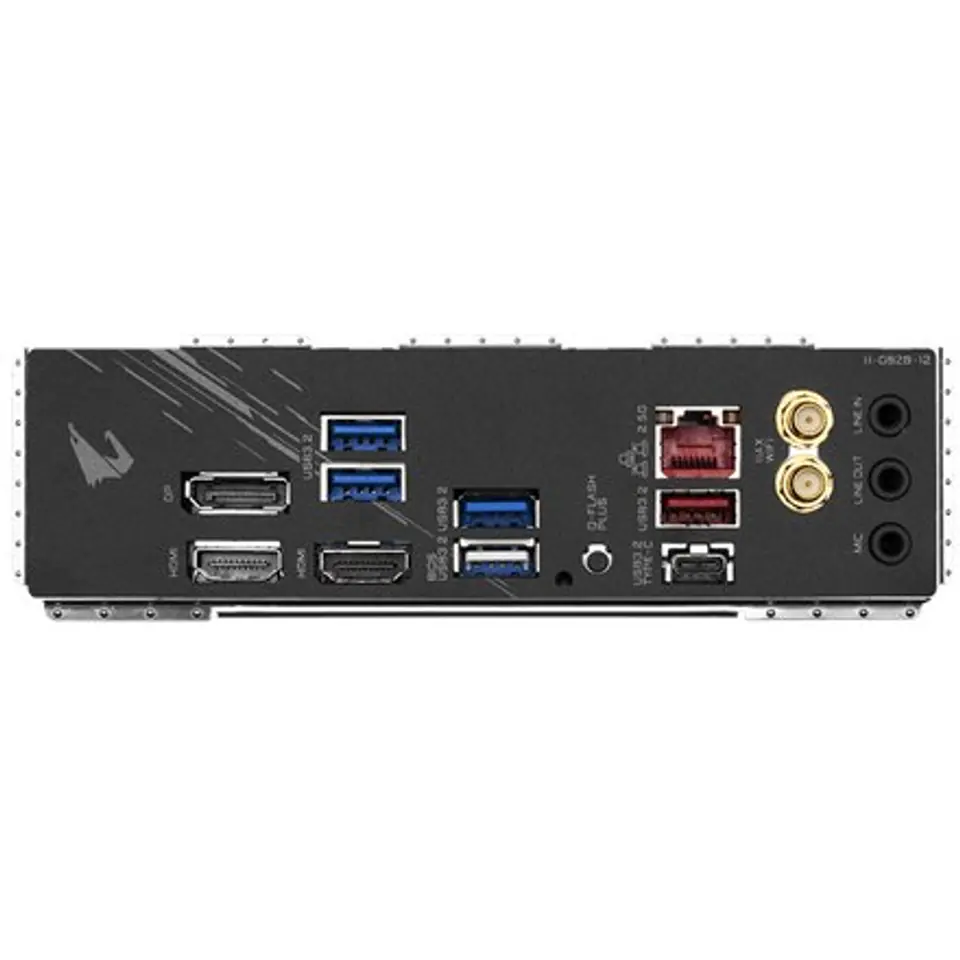

Pre-installed IO shield for easy and quick installation
