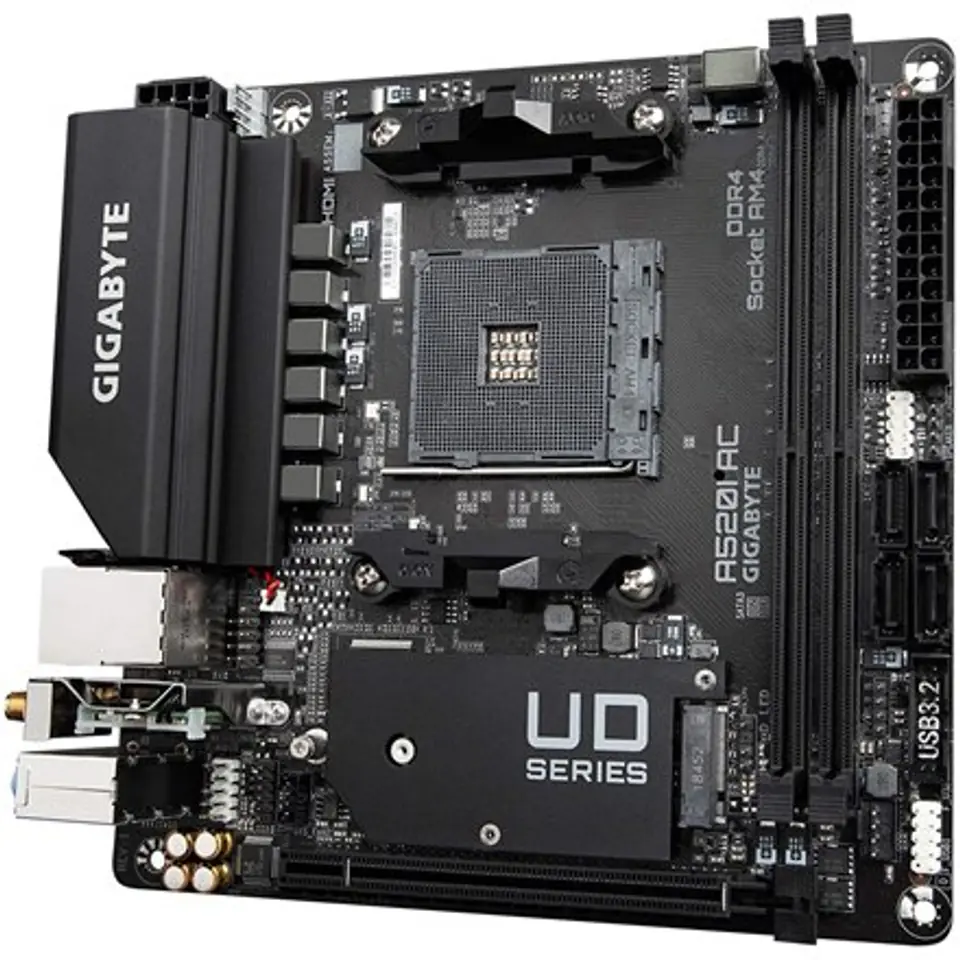

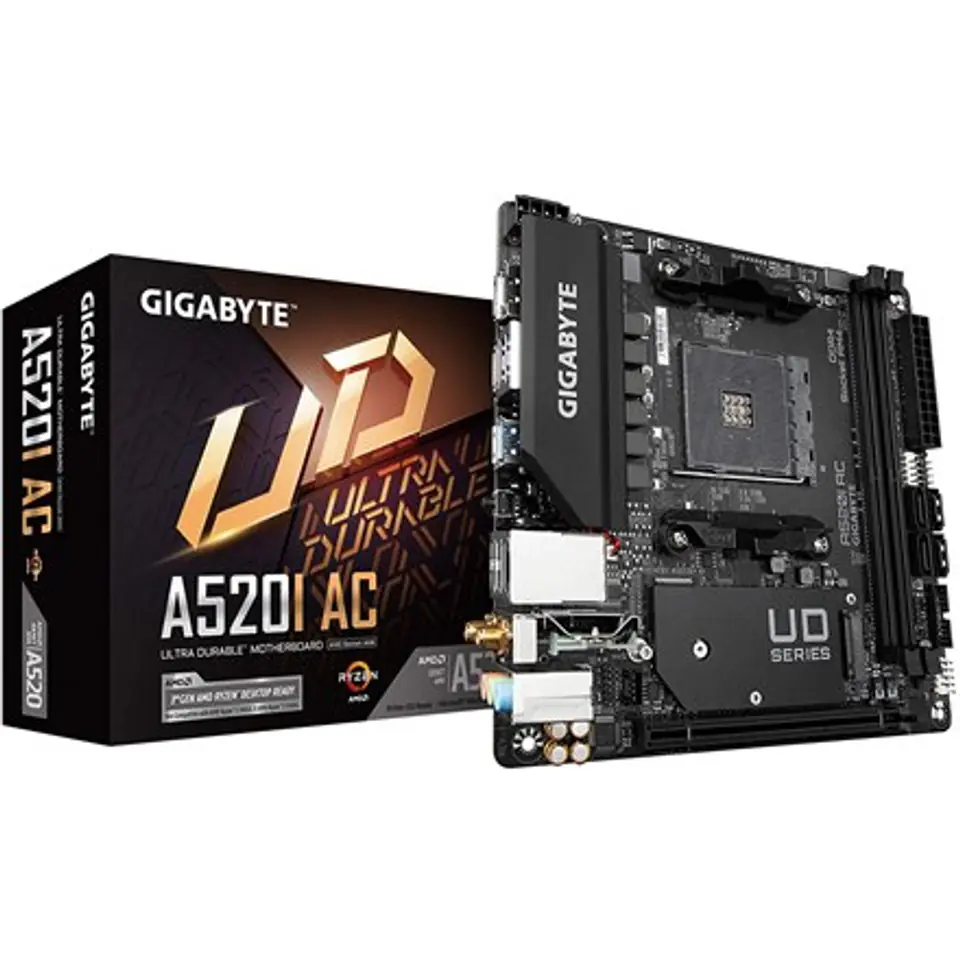

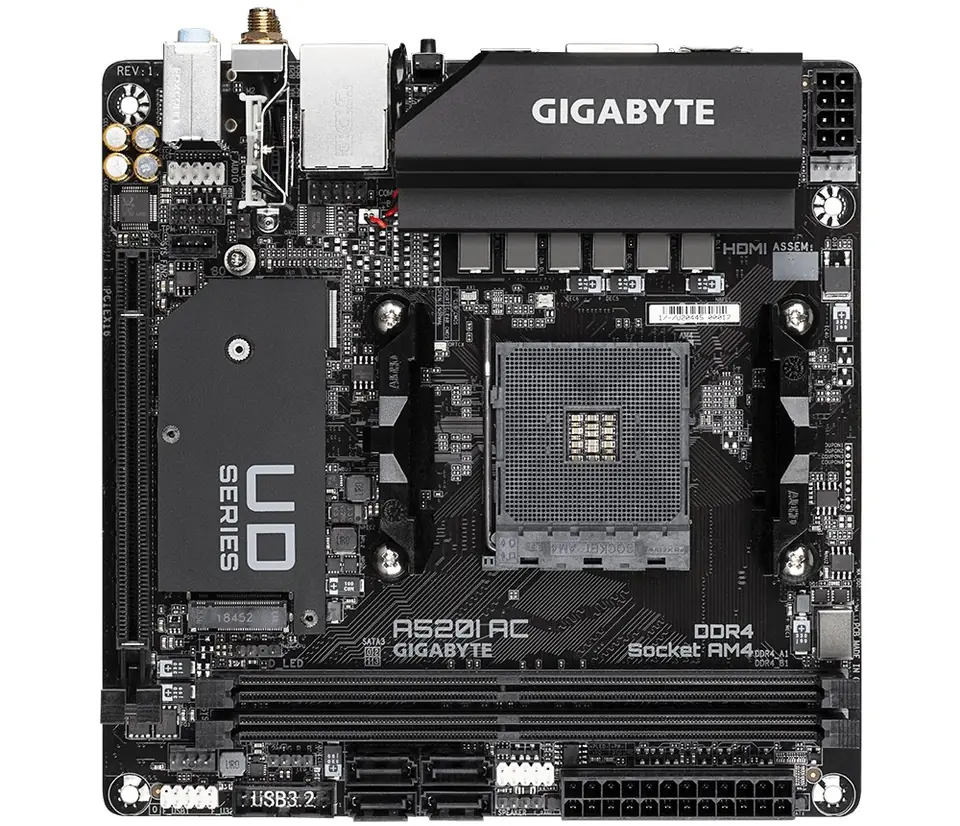

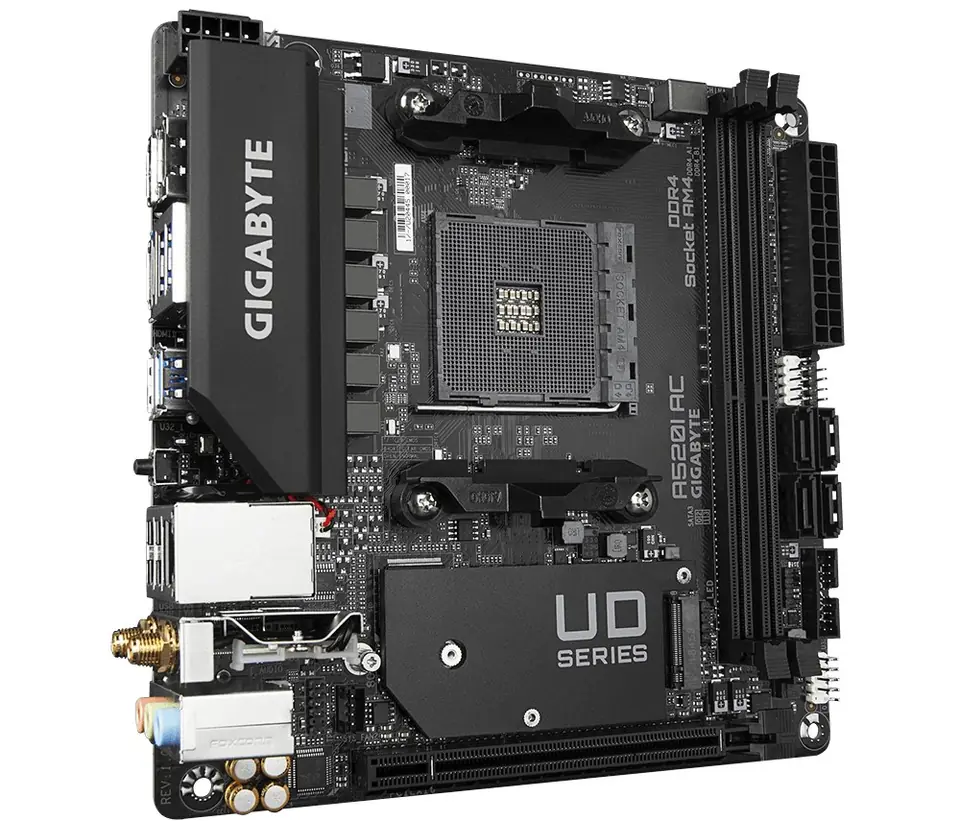

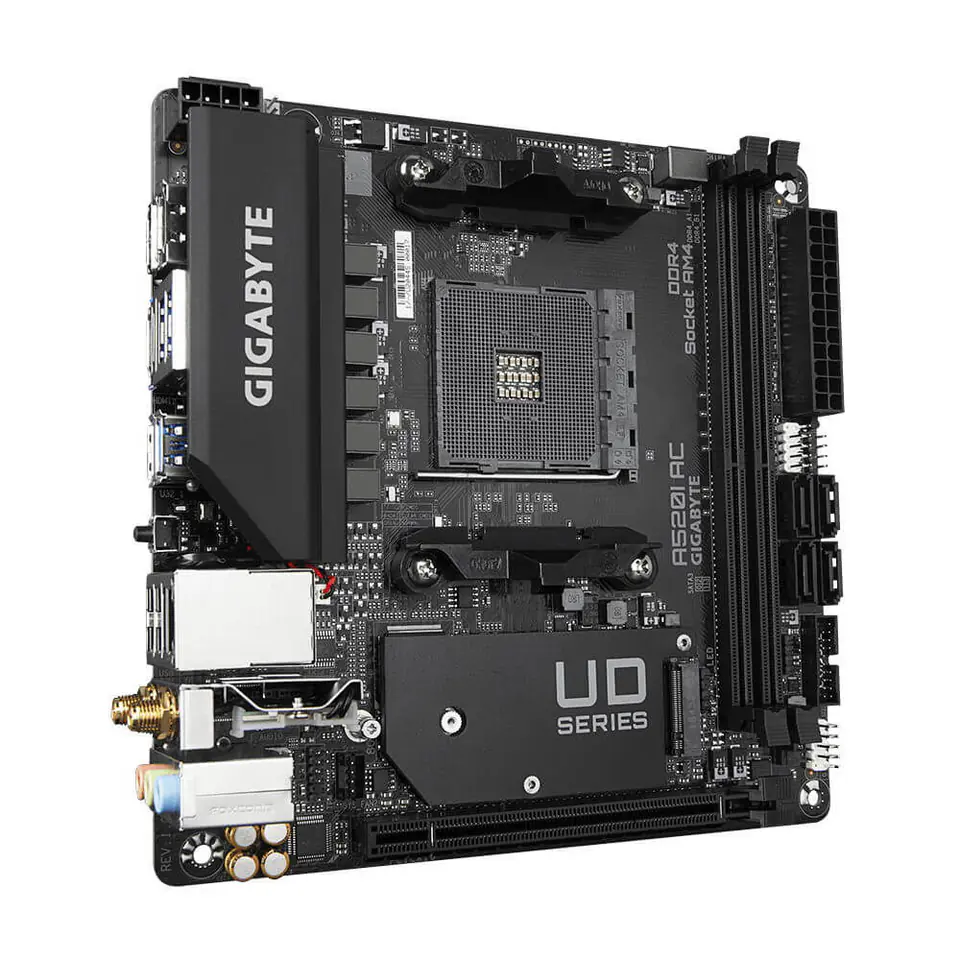

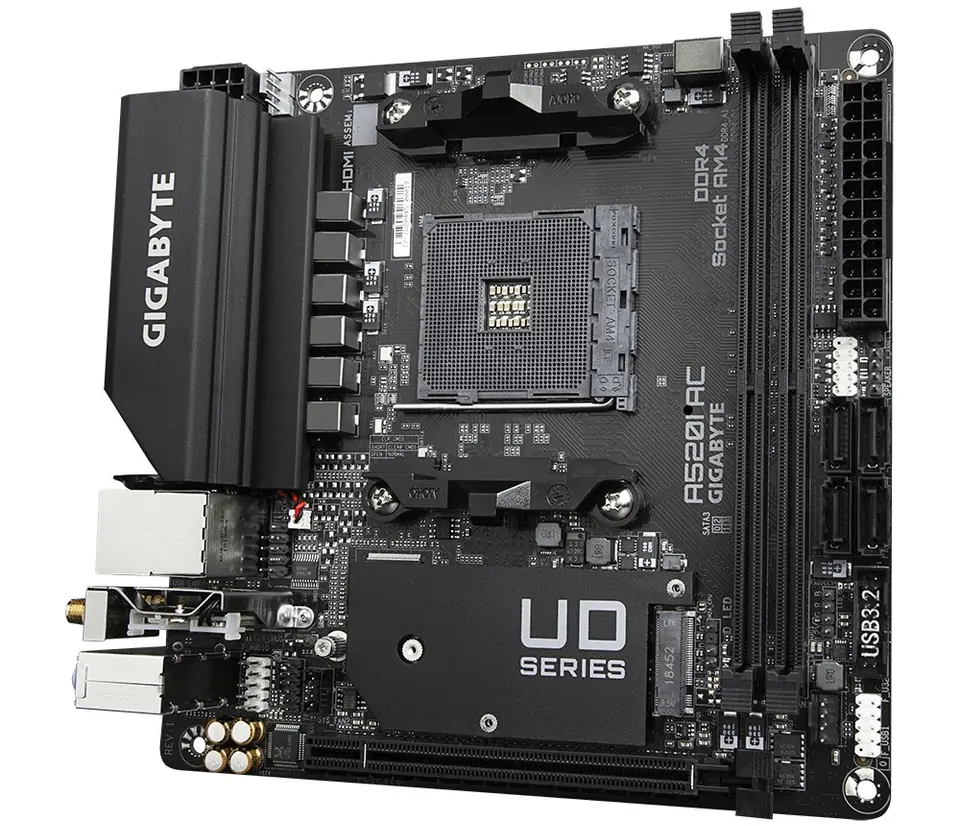

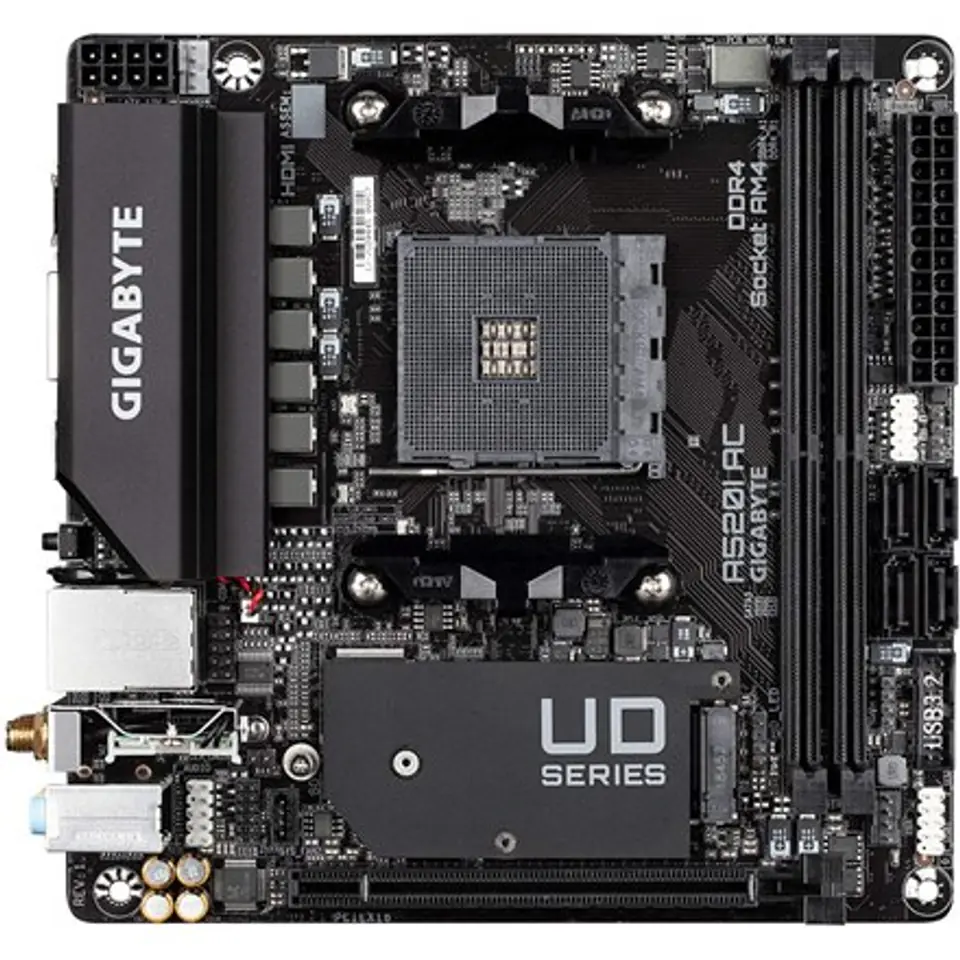

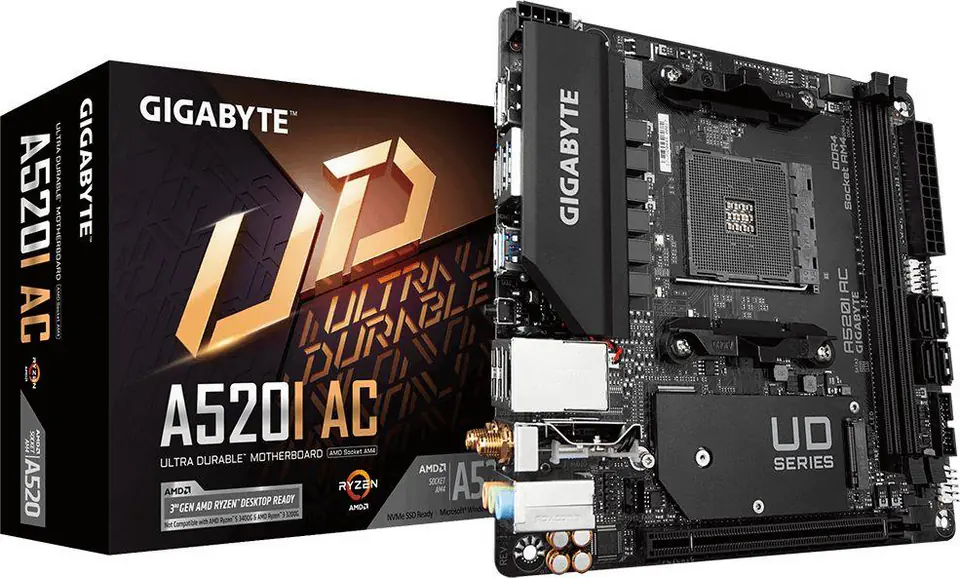

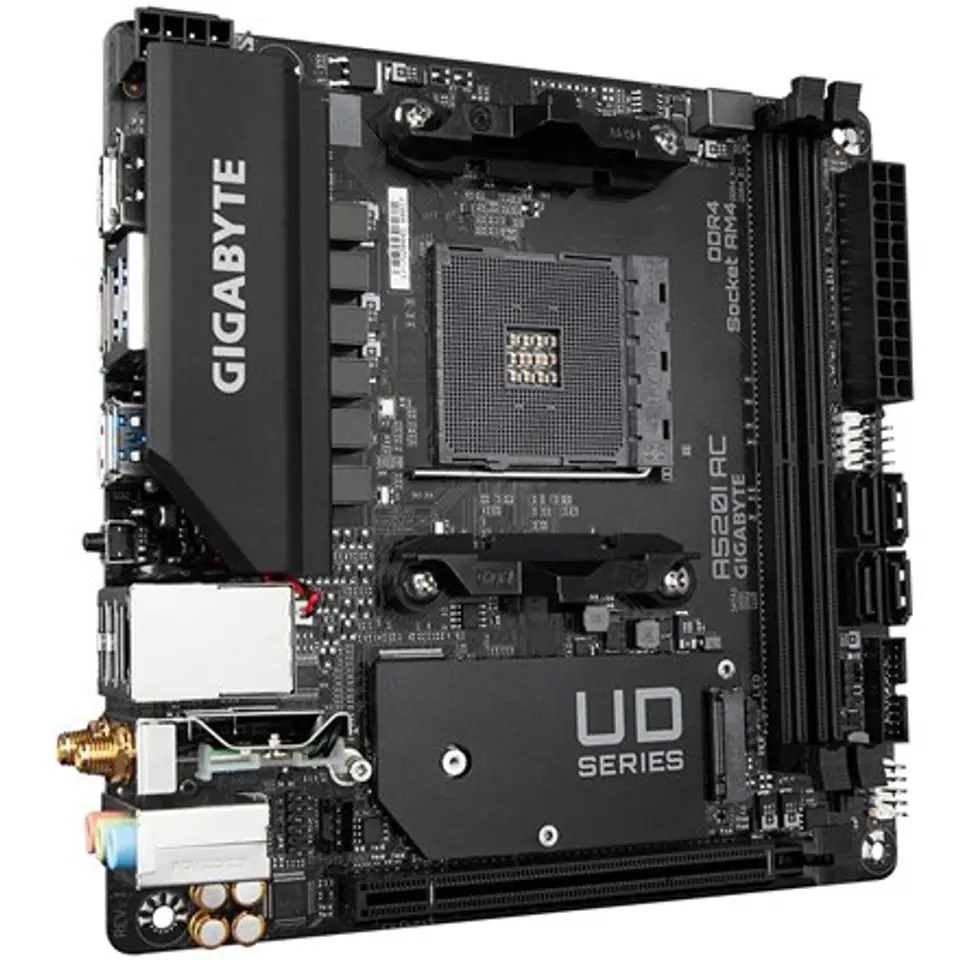

Płyta główna Gigabyte A520I AC

€130.32
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Gigabyte
Product code:
A520I AC / 4719331809867

Specification

Atx power connector (24-pin):Yes
Audio chip:Realtek ALC887
Audio connector:Yes
Audio output channels:7.1 channels
Batteries included:Yes
Battery technology:Lithium-Manganese Dioxide (LiMnO2)
Battery type:CR2032
Battery weight:3 g
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:4.2
Clear cmos jumper:Yes
Compatible processor series:AMD Ryzen 3000 Series
Country of origin:China
Cpu fan connector:Yes
Depth:170 mm
Desktop management interface (dmi) version:2.7
Directx version:12.0
Displayport version:1.4
Displayports quantity:1
Ecc сompatibility:ECC & Non-ECC
Eps power connector (8-pin):Yes
Ethernet interface type:Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Harmonized system (hs) code:84733020
Hdcp:Yes
Hdmi ports quantity:2
Hdmi version:2.1
Headphone outputs:3
Height:35 mm
Lithium weight per battery:0.07 g
Maximum internal memory:64 GB
Maximum internal memory supported by processor:64 GB
Maximum resolution:5120 x 2880 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Motherboard chipset:AMD A520
Motherboard chipset family:AMD
Motherboard form factor:mini ITX
Number of battery cells:1
Number of displays supported:3
Number of hdds supported:4
Number of m.2 (m) slots:1
Number of memory slots:2
Number of sata iii connectors:4
Number of storage drives supported:5
On-board graphics card:No
Parallel processing technology support:Not supported
Pc health monitoring:Fan, Voltage, Temperature
Pci express x16 slots:1
Power fan connector:Yes
Processor manufacturer:AMD
Processor socket:Socket AM4
Product colour:Black
Products per shipping (inner) case:1 pc(s)
Raid levels:10, 1, 0
Raid support:Yes
Rgb led pin header:Yes
Serial port headers:1
Supported memory clock speed (max):5300 MHz
Supported memory clock speeds:2400, 4000, 2667, 4400 MHz, 5000, 2933, 3600, 5200, 4866 MHz, 5100 MHz, 2133, 3333, 3200 MHz, 4600
Supported memory module capacities:12GB, 1GB, 8GB, 16GB, 2GB, 4GB, 32GB
Supported memory types:DDR4-SDRAM
Supported processor sockets:Socket AM4
Supported storage drive interfaces:M.2, SATA III
Top wi-fi standard:Wi-Fi 5 (802.11ac)
Total number of sata connectors:4
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:1
Usb 2.0 ports quantity:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:4
Warranty period:3 year(s)
Wi-fi:Yes
Wi-fi standards:Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 4 (802.11n), 802.11b
Width:170 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 11 x64, Windows 10 x64

AMD A520 Mini-ITX Ultra Durable motherboard with Direct 6 Phases Digital VRM, integrated Intel 802.11ac Wi-Fi, Realtek GbE LAN with bandwidth management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0 , Q-Flash Plus

  • Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series processors
  • Dual-channel ECC/non-ECC unbuffered DDR4 memory, 2 DIMMs
  • Direct 6-phase digital VRM with 55A DrMOS
  • Ultra-fast NVMe PCIe 3.0 x4 M.2 connector
  • Built-in Intel Dual Band 802.11ac WIFI and BT 4.2 with Ultra Durable Antenna
  • Realtek GbE LAN with bandwidth management
  • DisplayPort, dual HDMI for multiple displays
  • RGB FUSION 2.0 with support for addressable LED strips and RGB LEDs
  • Smart Fan 5 is equipped with multiple temperature sensors, hybrid fan connectors with FAN STOP function
  • Q-Flash Plus Update BIOS without installing CPU, memory and graphics card
  • Design of anti-sulfur resistors
