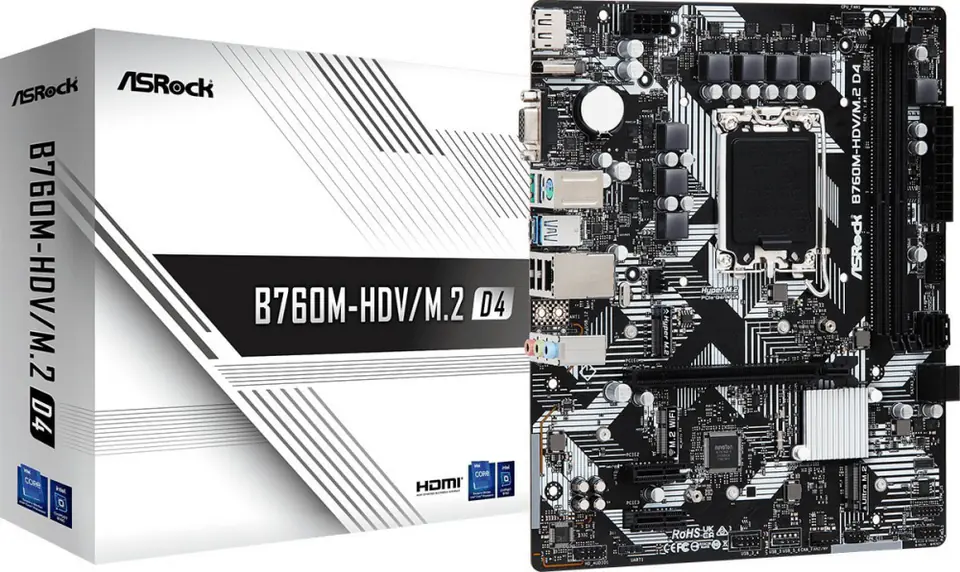

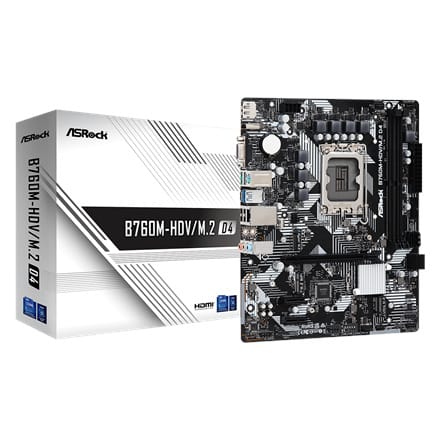

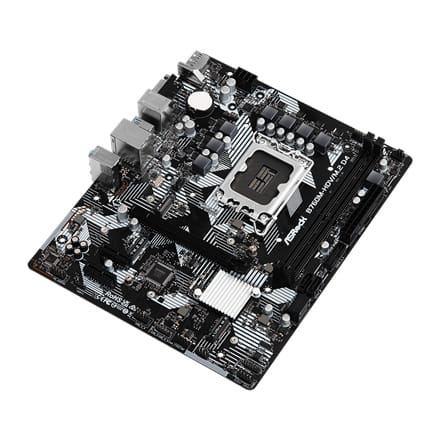

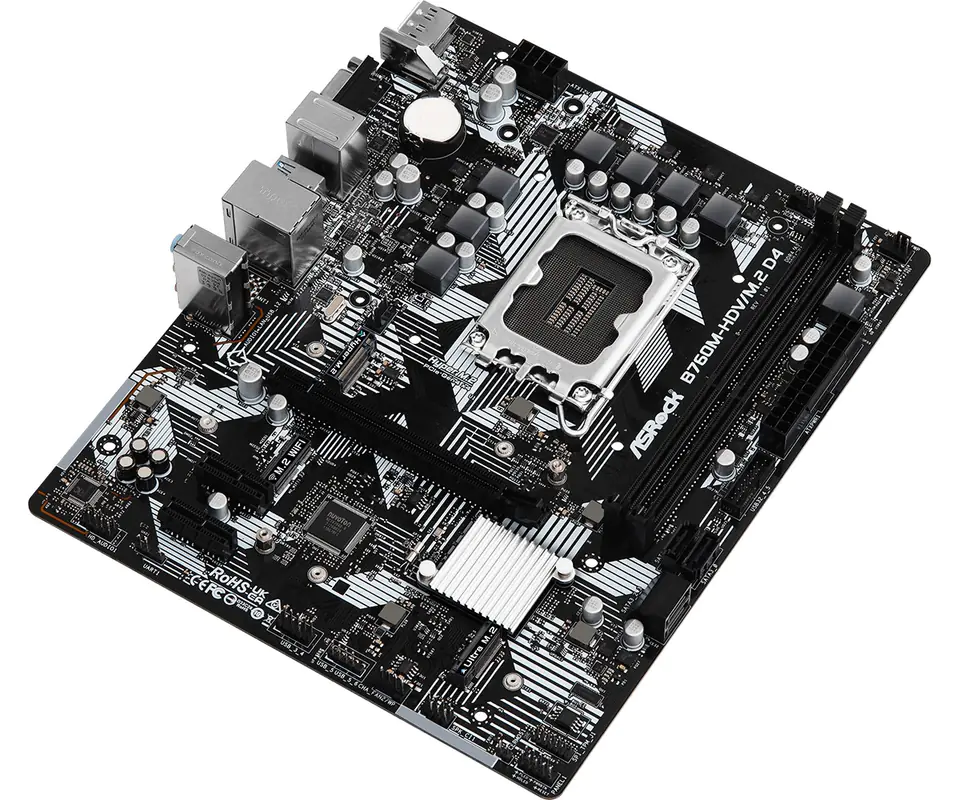

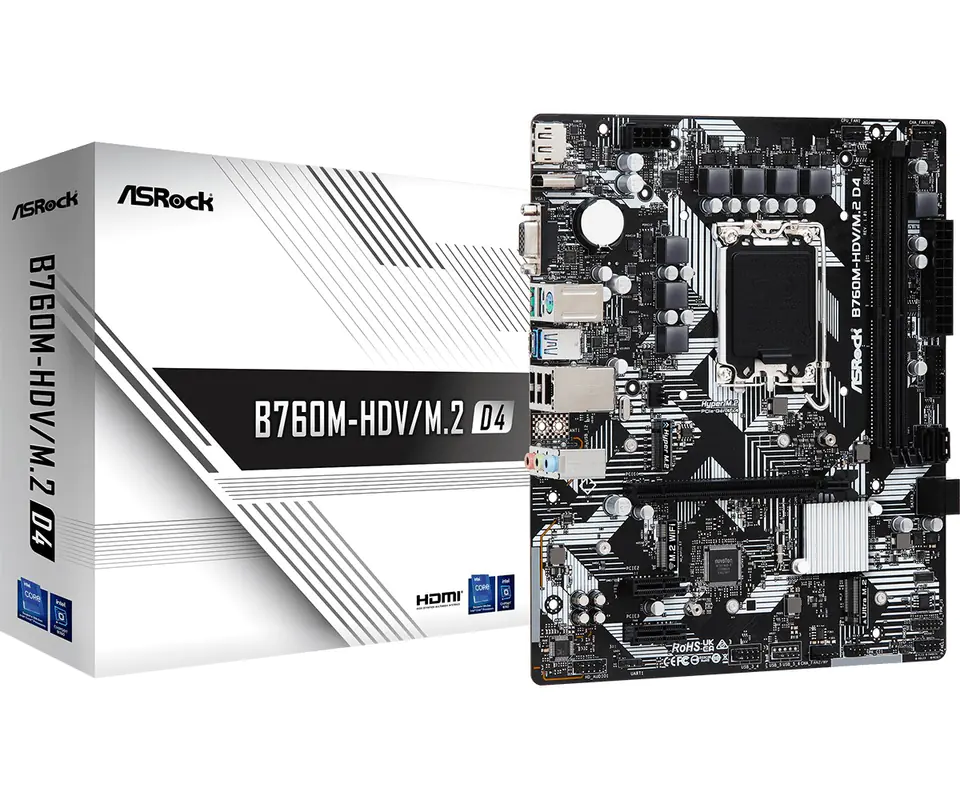

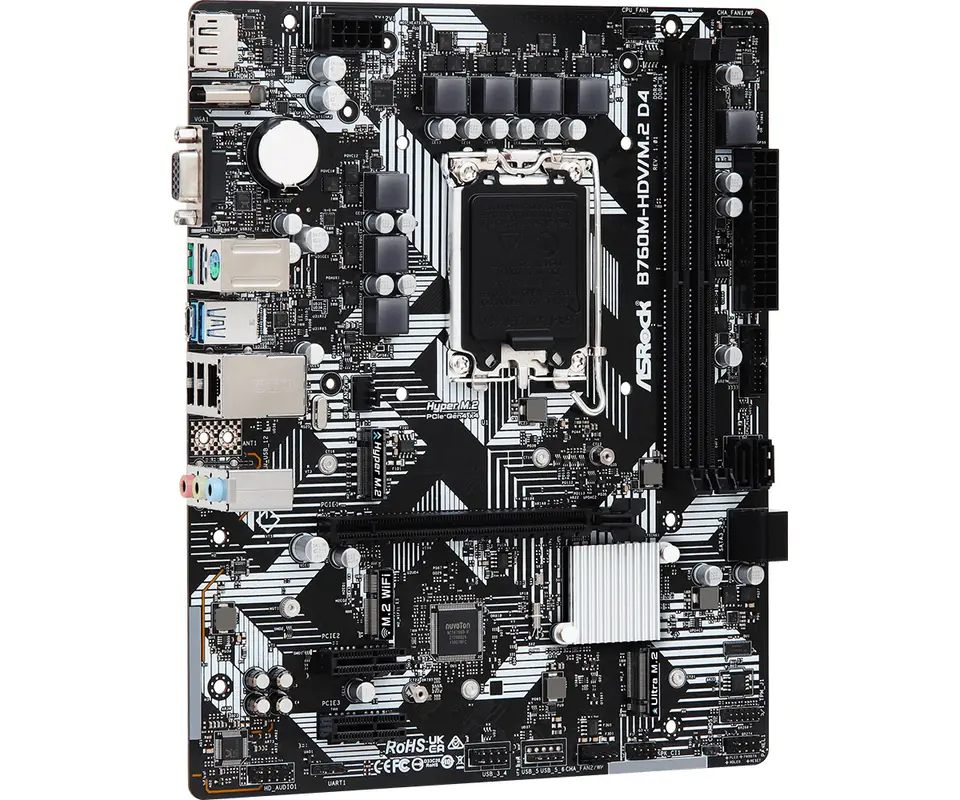

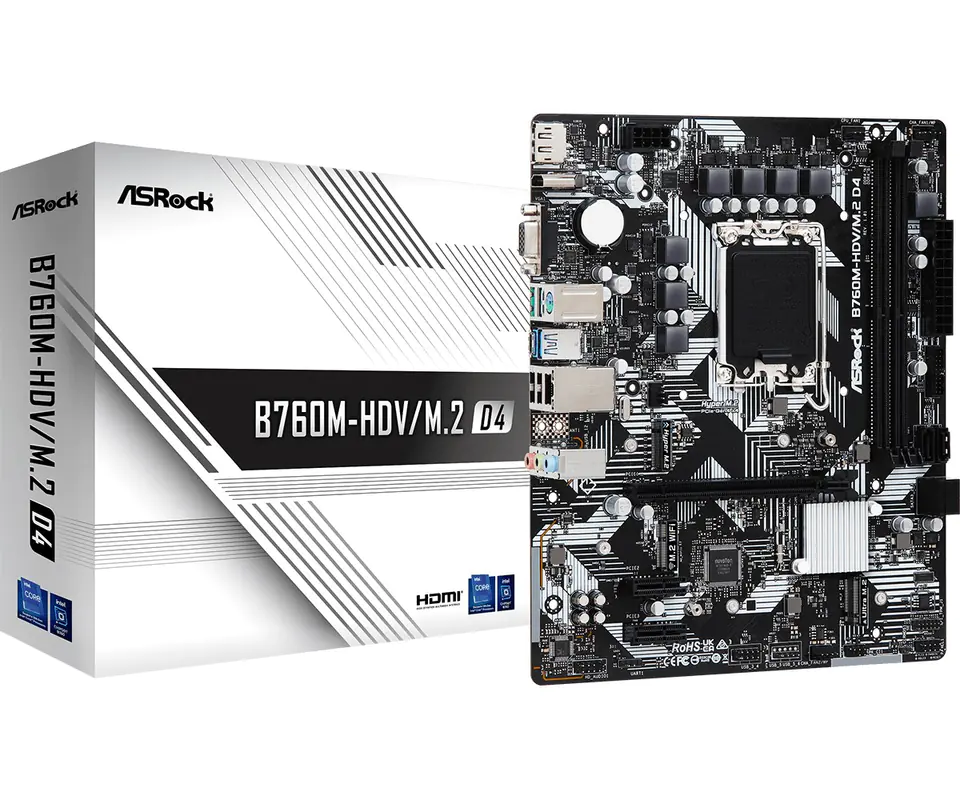

Płyta główna Asrock B760M-HDV/M.2 D4

€107.64
Shipping from warehouse: ⁨M7⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
ASRock
Product code:
B760M-HDV/M.2 D4 / 4710483942020

Specification

Atx power connector (24-pin):Yes
Audio chip:Realtek ALC897
Audio output channels:7.1 channels
Bios type:UEFI AMI
Cables included:SATA
Chassis intrusion connector:Yes
Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Cpu fan connector:Yes
Depth:201 mm
Displayport version:1.4
Displayports quantity:1
Ecc сompatibility:Non-ECC
Eps power connector (8-pin):Yes
Ethernet interface type:Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel connector:Yes
Hdcp:Yes
Hdmi ports quantity:1
Lan controller:Realtek RTL8111H
Line-in:Yes
Maximum internal memory:64 GB
Maximum number of smp processors:1
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:Intel B760
Motherboard chipset family:Intel
Motherboard form factor:micro ATX
Number of m.2 (m) slots:1
Number of memory slots:2
Number of sata iii connectors:4
Parallel processing technology support:Not supported
Pci express x1 (gen 3.x) slots:2
Pci express x16 (gen 4.x) slots:1
Processor manufacturer:Intel
Processor socket:LGA 1700
Ps/2 ports quantity:1
Raid levels:1, 10, 5, 0
Raid support:Yes
Supported memory clock speeds:5333, 3200 MHz, 4400 MHz
Supported memory types:DDR4-SDRAM
Supported storage drive interfaces:M.2, SATA III
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:3
Usb 2.0 ports quantity:2
Usb 3.2 gen 1 (3.1 gen 1) connectors:2
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:3
Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity:1
Vga (d-sub) ports quantity:1
Wi-fi:No
Width:244 mm
Windows operating systems supported:Windows 10 Education x64, Windows 11 x64

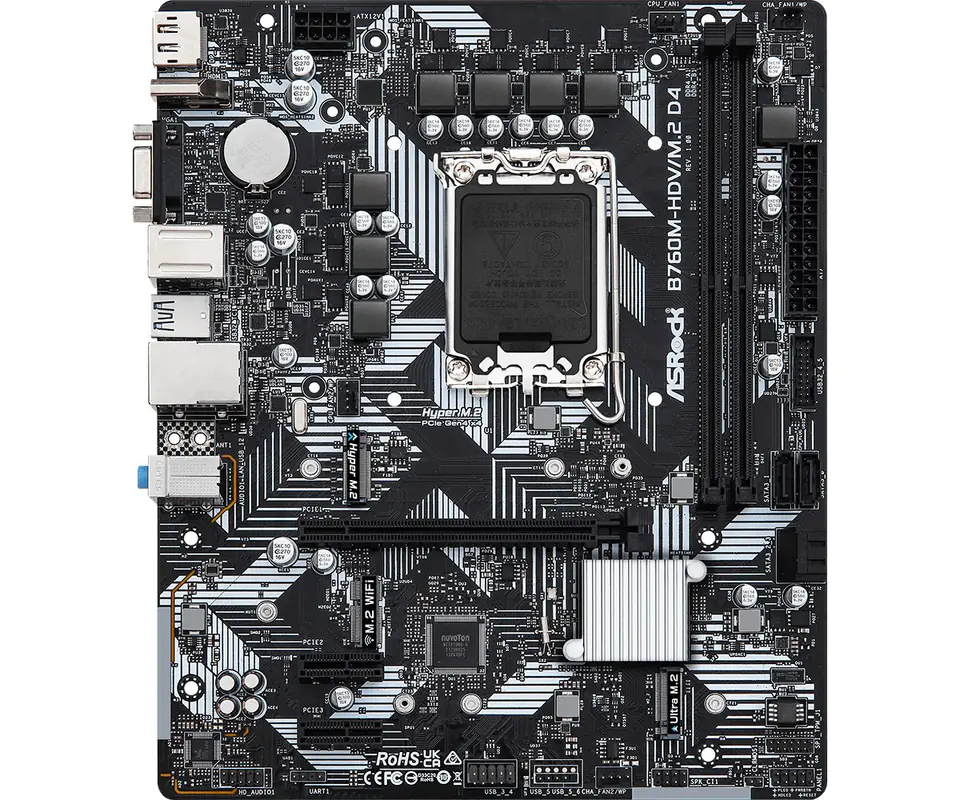

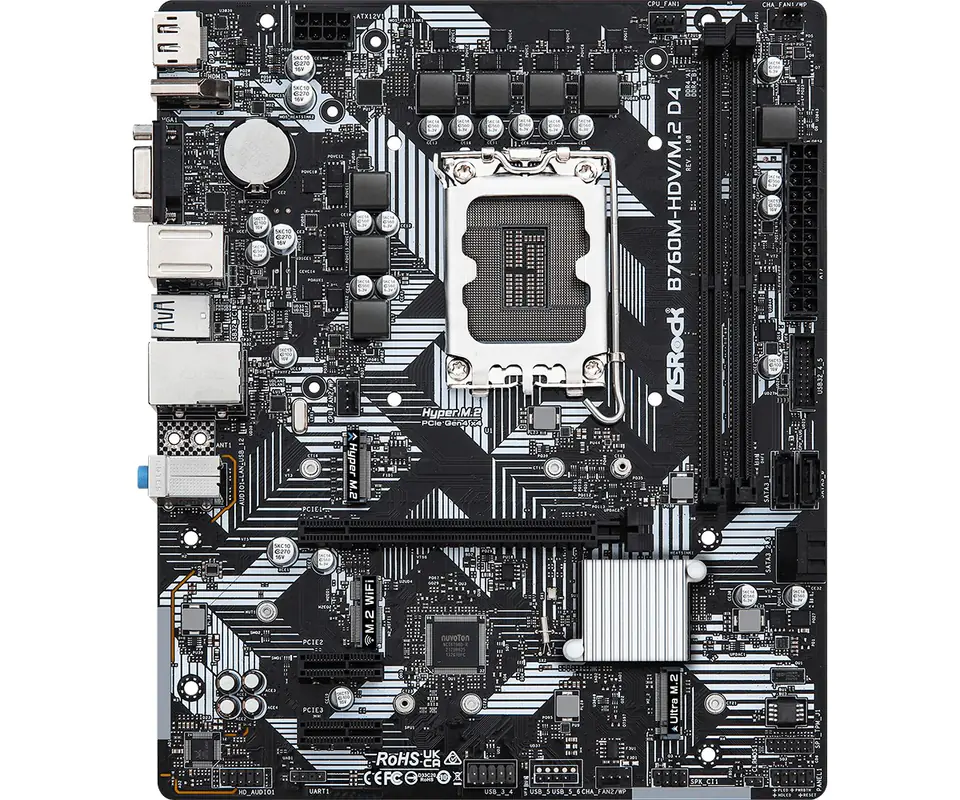

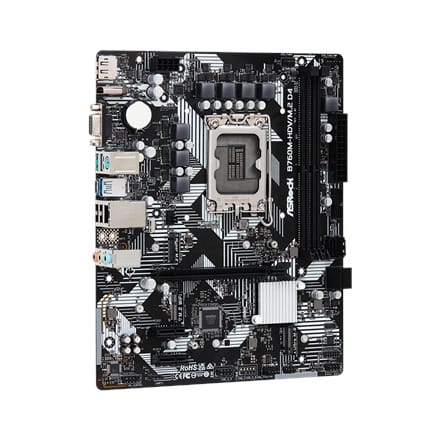

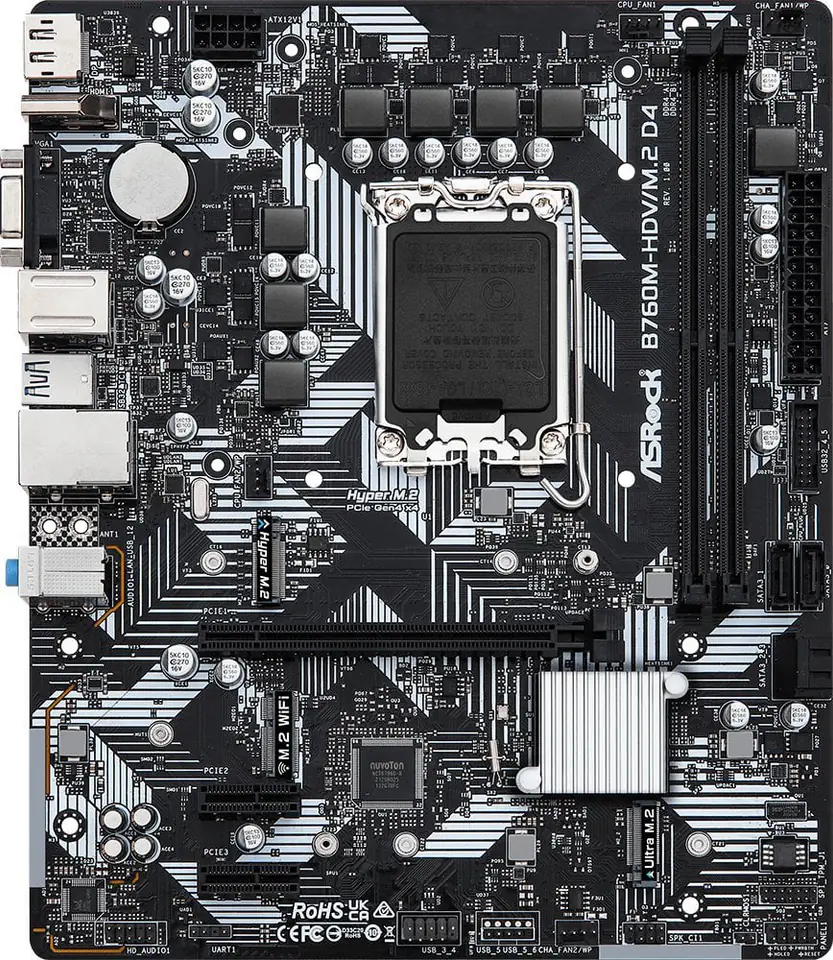

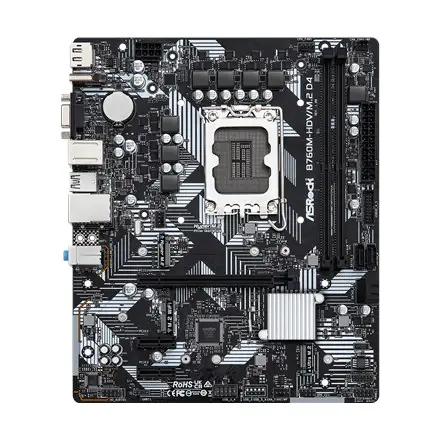

B760M-HDV/M.2 D4 motherboard

  • Supports 13th and 12th generation Intel Core processors (LGA1700)
  • 5+1+1 Power Phase
  • Supports DDR4 5333MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics outputs: HDMI, DisplayPort, D-Sub
  • Realtek ALC887/897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4),
  • 1 Ultra M.2 (PCIe Gen3x4 & SATA)
  • 1 USB 3.2 Gen1 Type-C (Rear),
  • 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
  • 5 USB 2.0 (2 Rear, 3 Front)
  • Realtek 1G LAN
  • Supports ASRock Automatic Driver Installer

5+1+1 Phase Power Layout

Durable components and smooth power transfer to the CPU translate into enhanced performance for gamers.

High Speed M.2 Connections(PCIe Gen4 x4)

Support for PCI Express 4.0 M.2 SSDs, which can operate up to twice as fast as the previous 3rd generation for lightning-fast data transfers.

M.2 (KEY E) for WiFi

In addition to the integrated LAN port, users can also choose 802.11ac wireless connectivity via the M.2 (Key E) slot.

*Wi-Fi module not included.

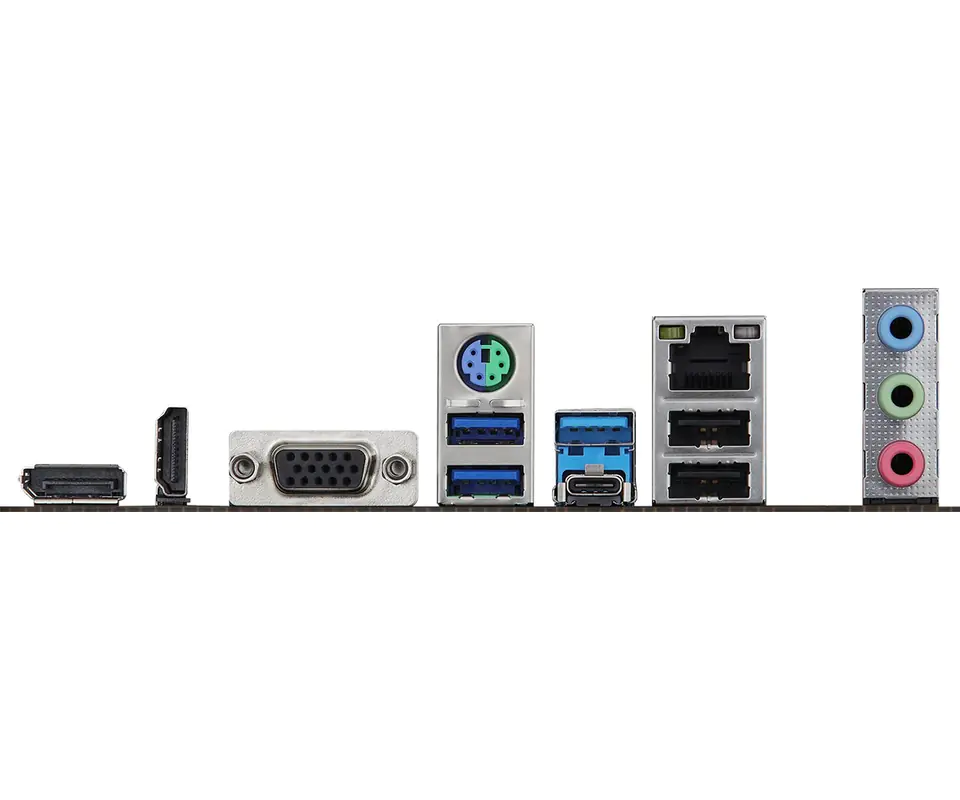

3 graphics outputs

This float is equipped with the three most commonly used types of video outputs: D-Sub + DisplayPort + HDMI.

*Support only with processors with integrated graphics cards. Please refer to the CPU support lists on the motherboard pages.
