Technical data:
Nominal power:650 W
Planing thickness:0 – 2,6 mm
Weight:2.8 kg
Adjustable frame depth:0 – 9 mm
No-load speed:16.500 min-1

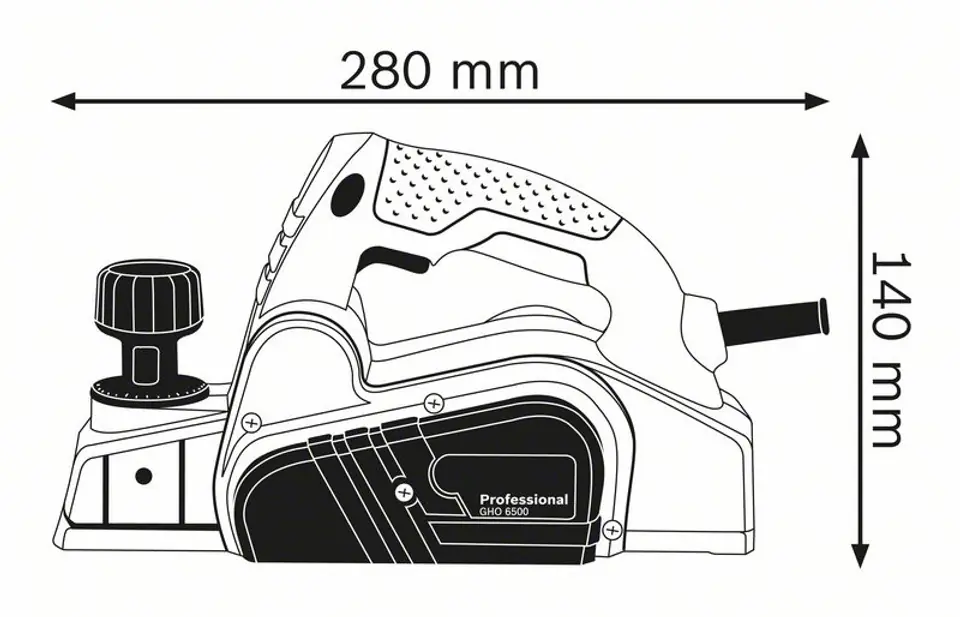

Tool dimensions (width):158 mm
Tool dimensions (length):280 mm
Tool dimensions (height):140 mm
Planing width:82 mm
Sound Pressure Level:86 dB(A)
Sound Power Level:97 dB(A)
Measurement error K:3 dB
Efficient plow with max. planing depth 2.6 mm!
Powerful 650W motor for fast planing speed
New design of the planing depth adjustment system up to max. 2.6 mm
Optimized airflow simplifies chip ejector operation
Parallel guide
Hexagonal pin wrench
**

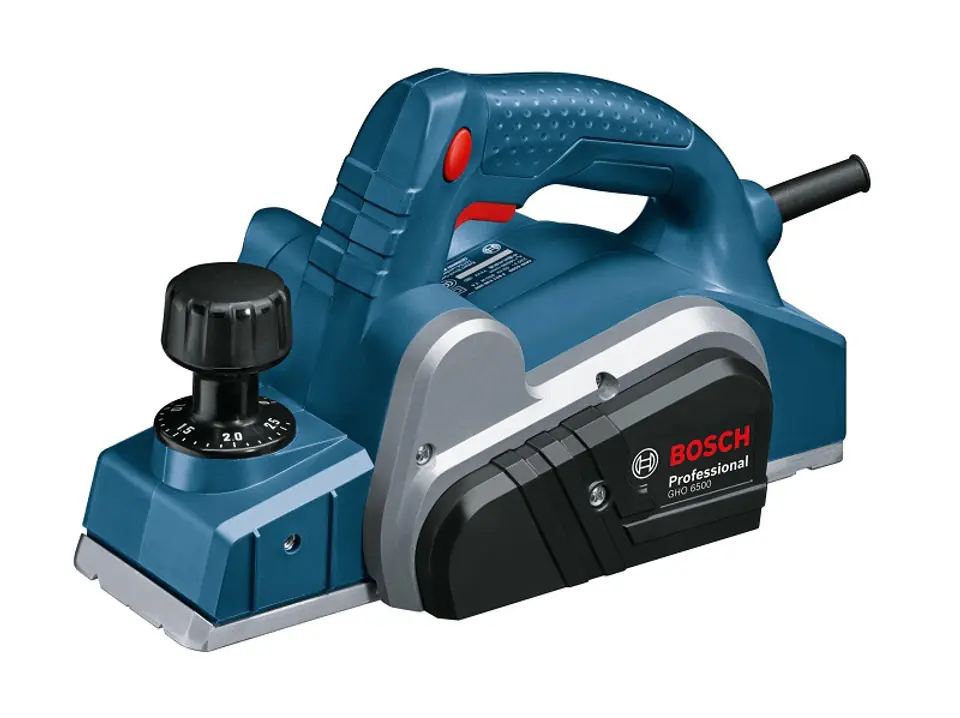

The photo has an illustrative function.
