Technical data:
Nominal power:850 W
Planing thickness:0 – 4 mm
Weight:3.2 kg
Adjustable frame depth:0 – 24 mm
No Load Speed:14.000 min-1

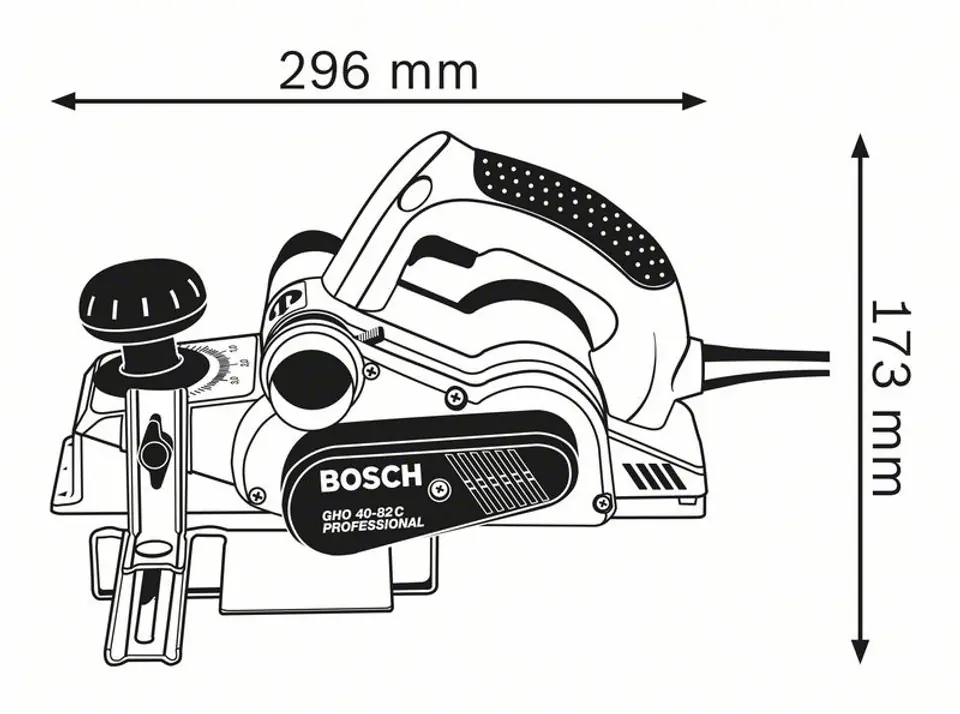

Tool dimensions (width):169 mm
Tool dimensions (length):296 mm
Tool dimensions (height):173 mm
Planing width:82 mm
Sound pressure level:85 dB(A)
Sound Power Level:96 dB(A)
Measurement error K:3 dB
Plough guarantees the highest quality of surface treatment
Highest machining quality thanks to very sharp knives and constant rotational speed, even when planing in hard wood
The fastest and cheapest knife replacement on the market thanks to the viable Woodrazor knives. Maximally simplified knife position adjustment
Precise bearings and thermodynamic motor protection significantly extend tool life
1 planer knife, 82 x 5.5 x 1.1 mm 2 608 635 376
L-BOXX 238 1 600 A00 1RS
Depth limiter 1 608 132 006
Parallel guide 2 607 000 102
Dust bag 2 605 411 035
Filling for L-BOXX 1/1, per unit 1 600 A00 2UU
**

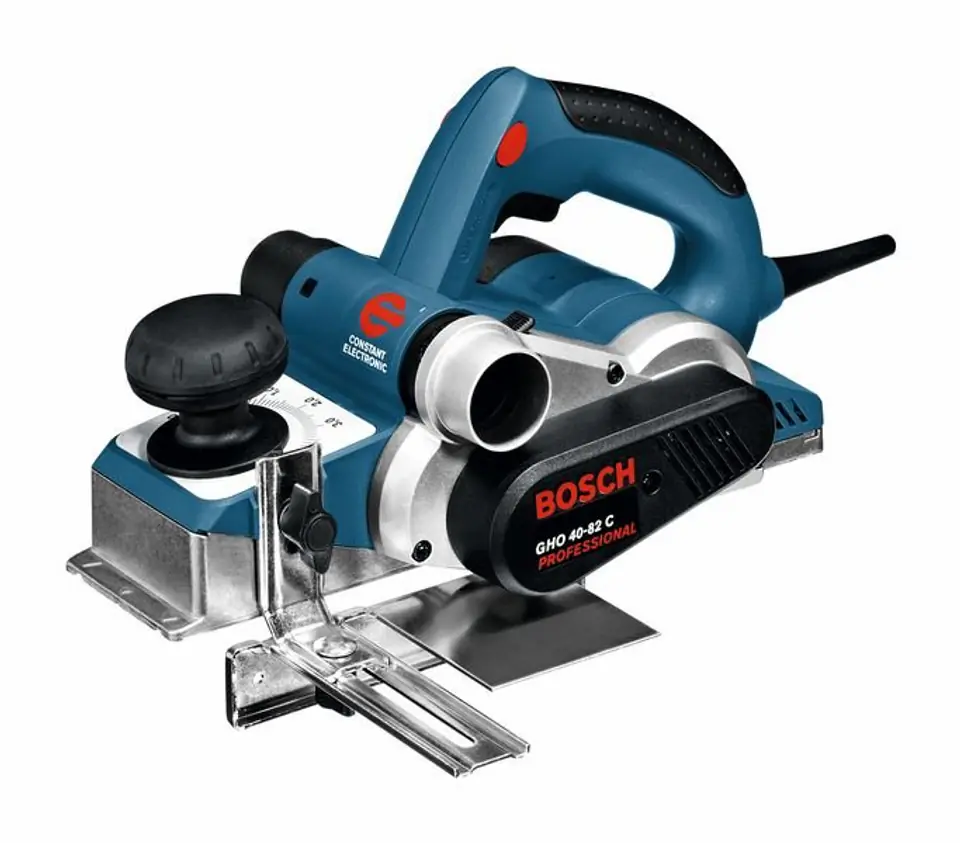

The photo has an illustrative function.
