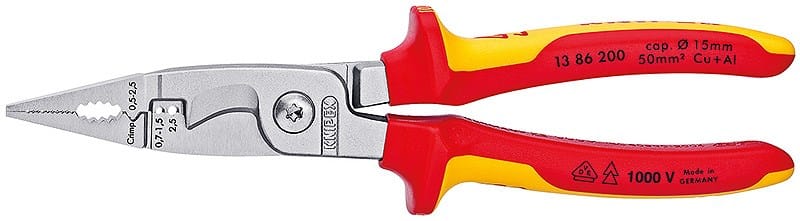

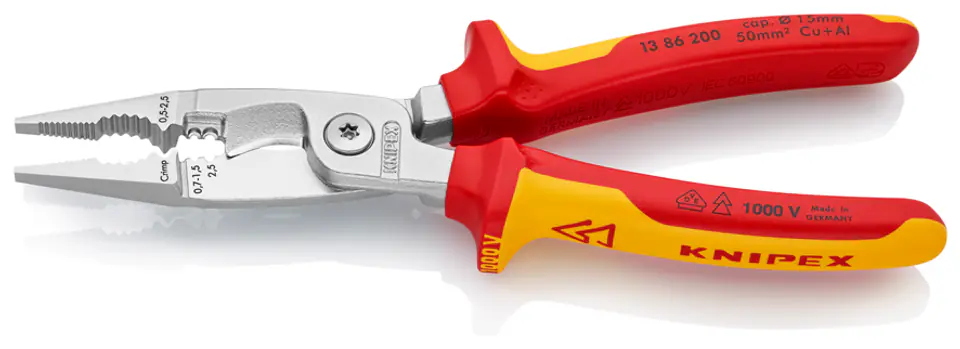

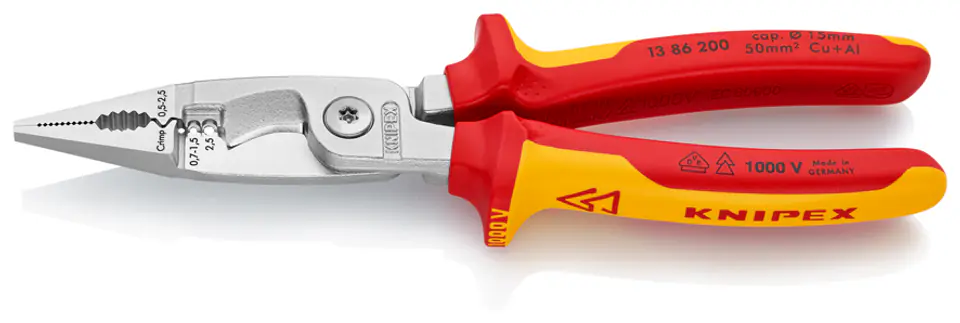

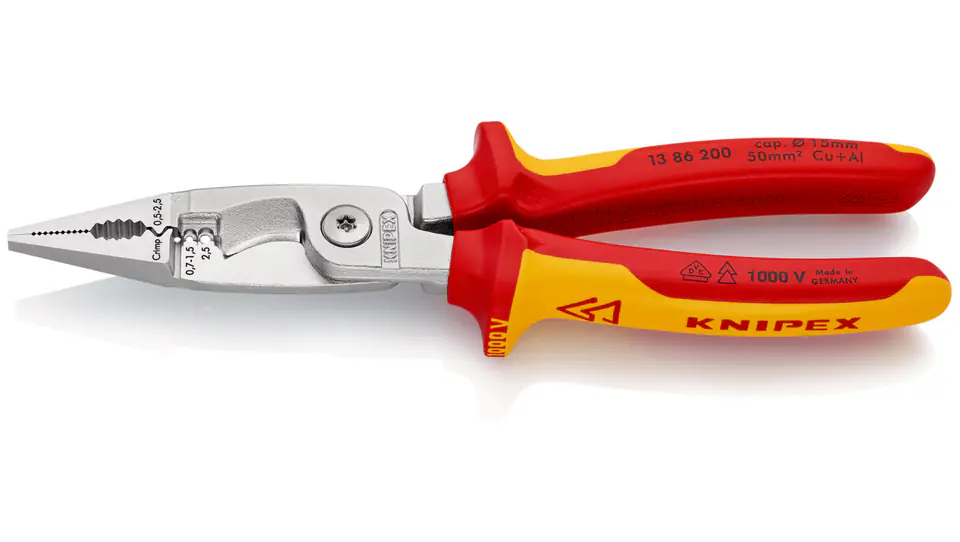

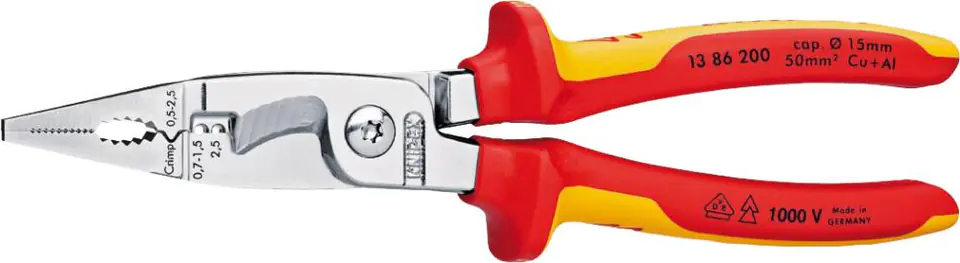

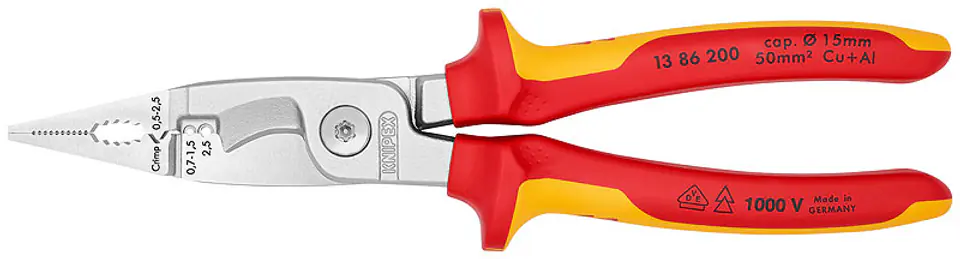

Multifunctional pliers for electrical installation work allow gripping materials with a flat and round cross-section, bending, deburring, cutting and isolating wires and kneading cable sleeves
6 functions in one tool

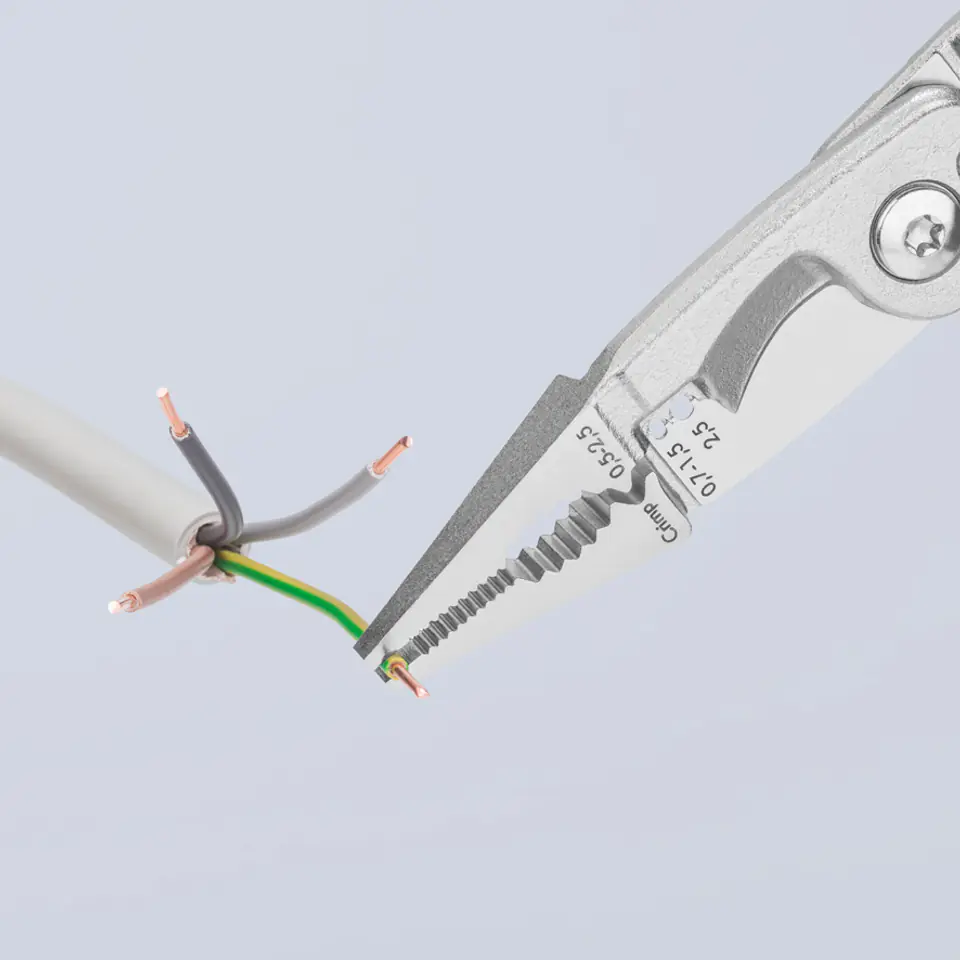

Smooth gripping surfaces allow safe gripping of individual conductors profiled gripping surfaces and shape gripping surfaces allow gripping materials with flat and round cross-section
The outer edge of the jaw allows the processing of flush-mounted cans and the removal of burrs in the throughput holes

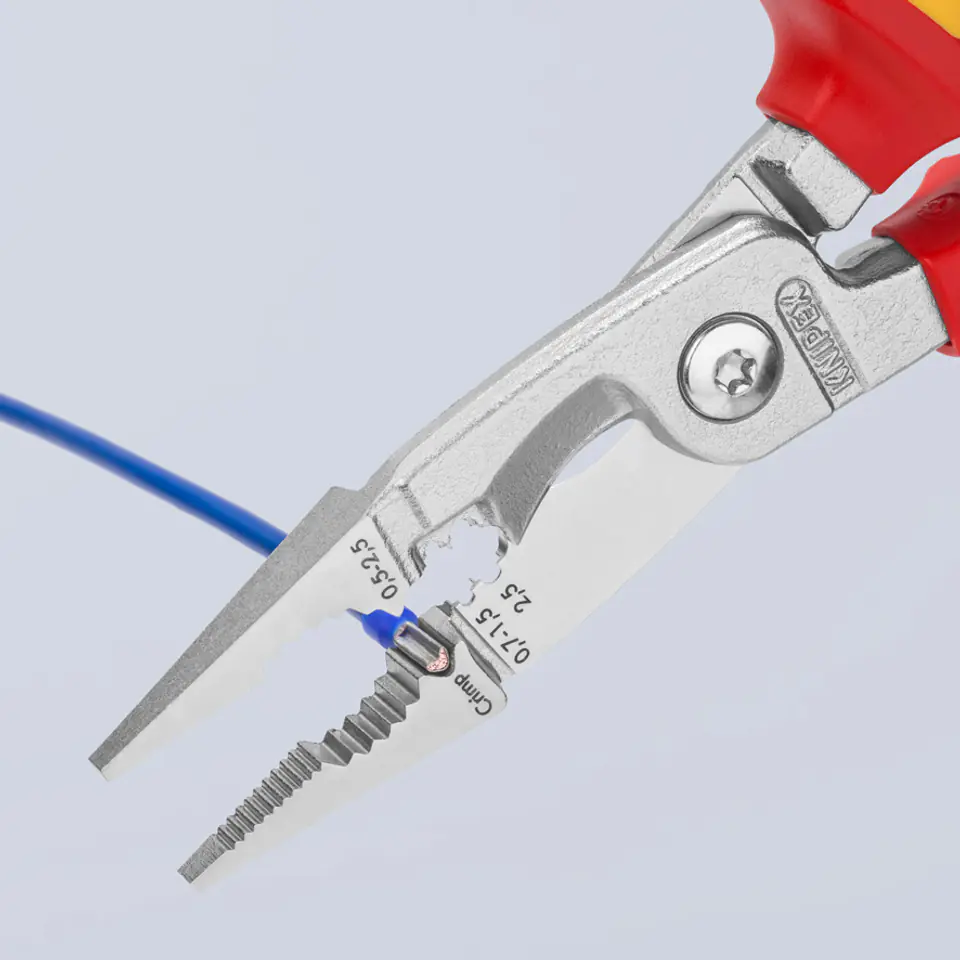

Profiles for stripping insulation from wires with a cross section of 0.75 - 1.5 mm2 and 2.5 mm2

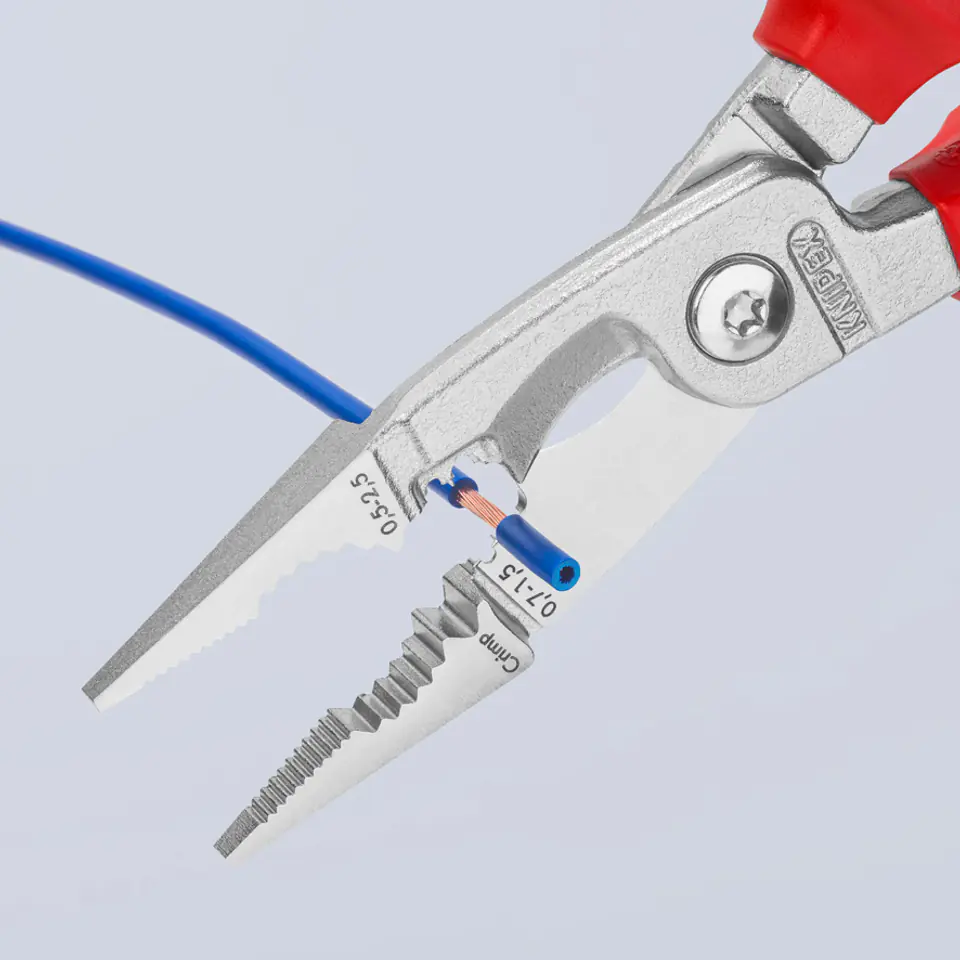

Crimping socket for cable sleeves 0.5 - 2.5 mm2

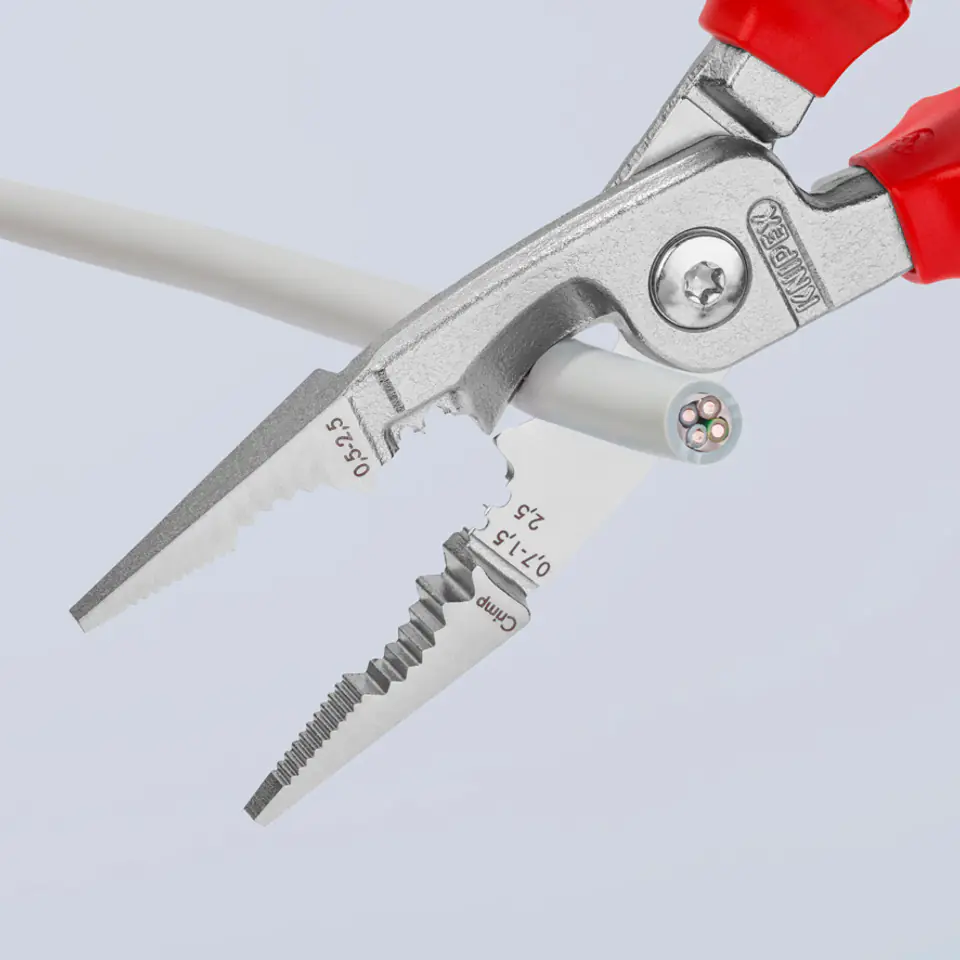

Cable shears with precision blades separately induction hardened for cutting copper and aluminum cables with cross section / diameter up to 5 x 2.5 mm2 / O 15 mm
The ability to grasp without the need to completely open the pliers (intelligent holding mechanism in the version with a swing spring). The blade remains closed and secured
Compact design makes it easy to work in hard-to-reach places
Screwed connector for precise movement of pliers without backlash
Head
Plipped
Handle with multi-component caps, insulated according to VDE
Insulation standardIEC 60900 DIN EN 60900
Cutting range of copper, multicore cable (diameter)15 O mm
Cutting range of copper, multicore cable50 mm2
Operating range of single conductors0.75 - 1.5 + 2.5 mm2
Operating range in mm20.5 - 2.5 mm2
AWG1/0
