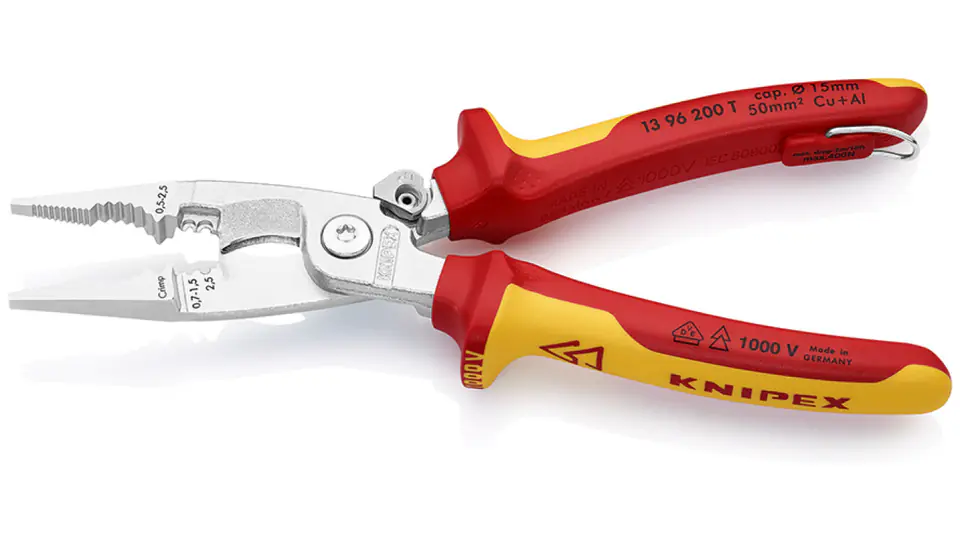

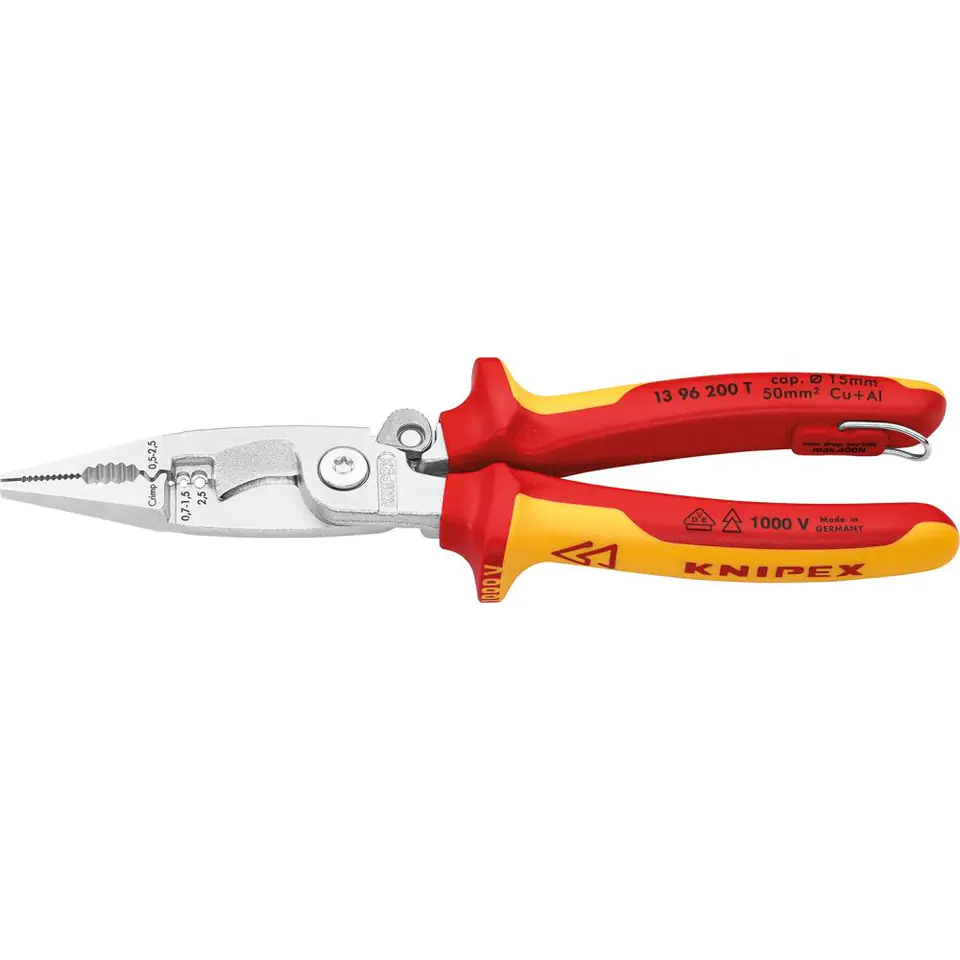

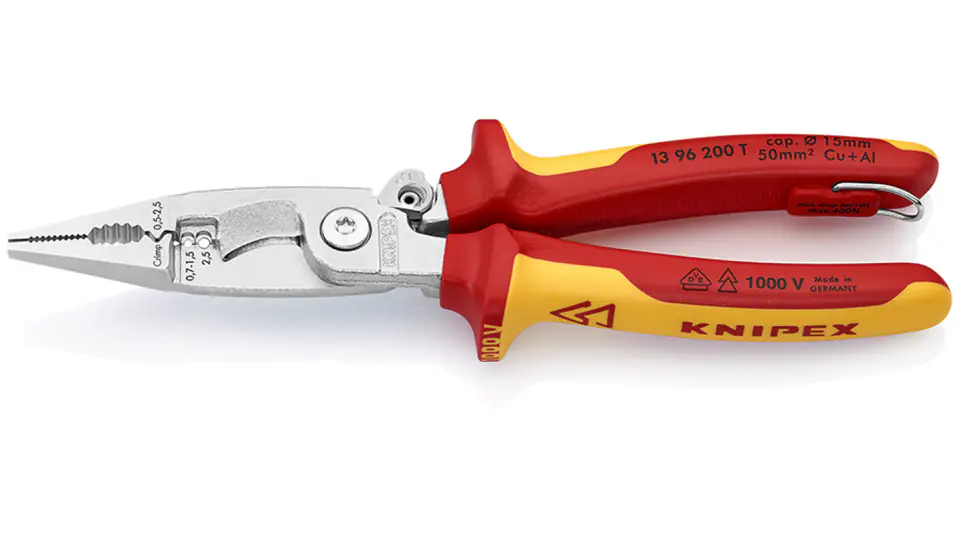

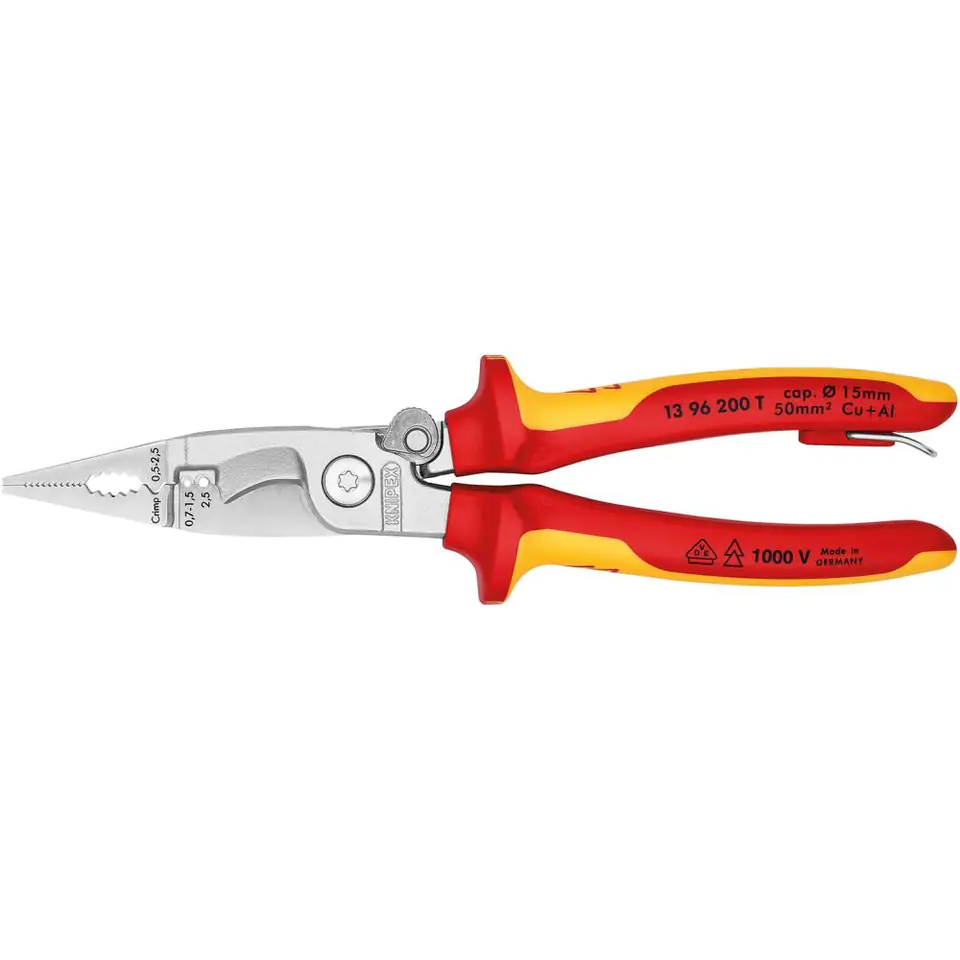

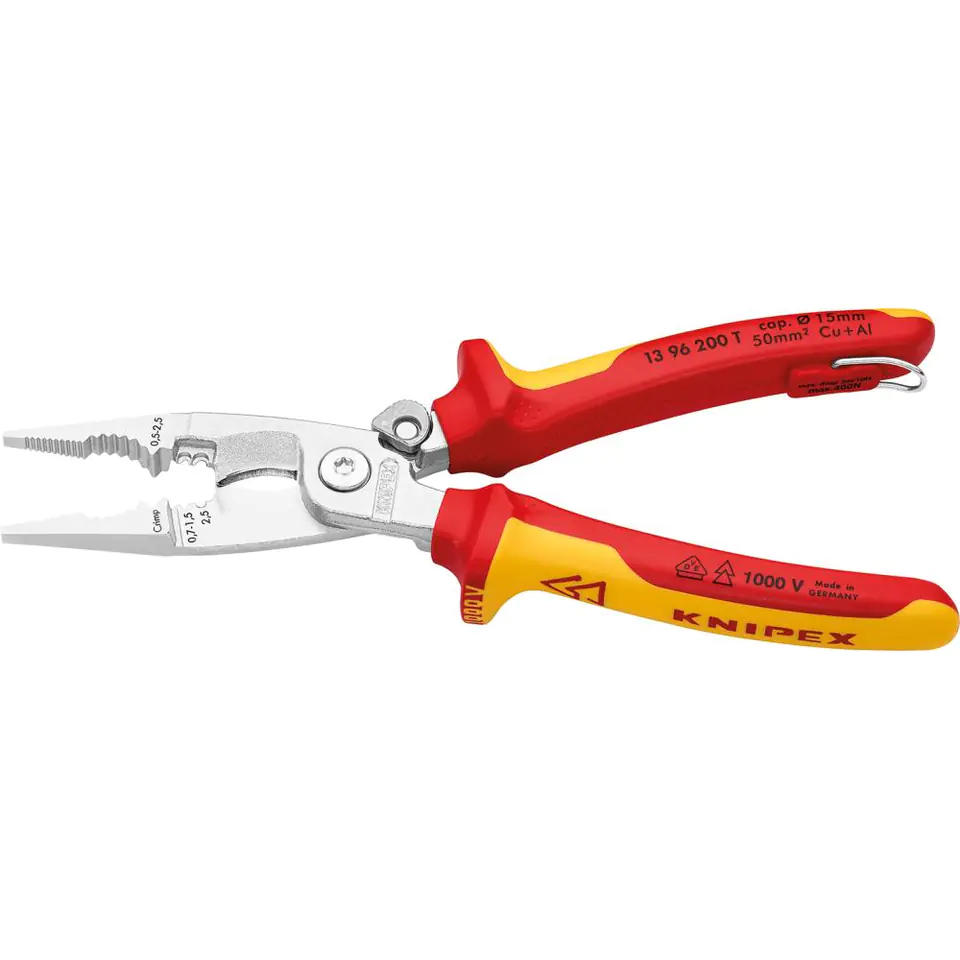

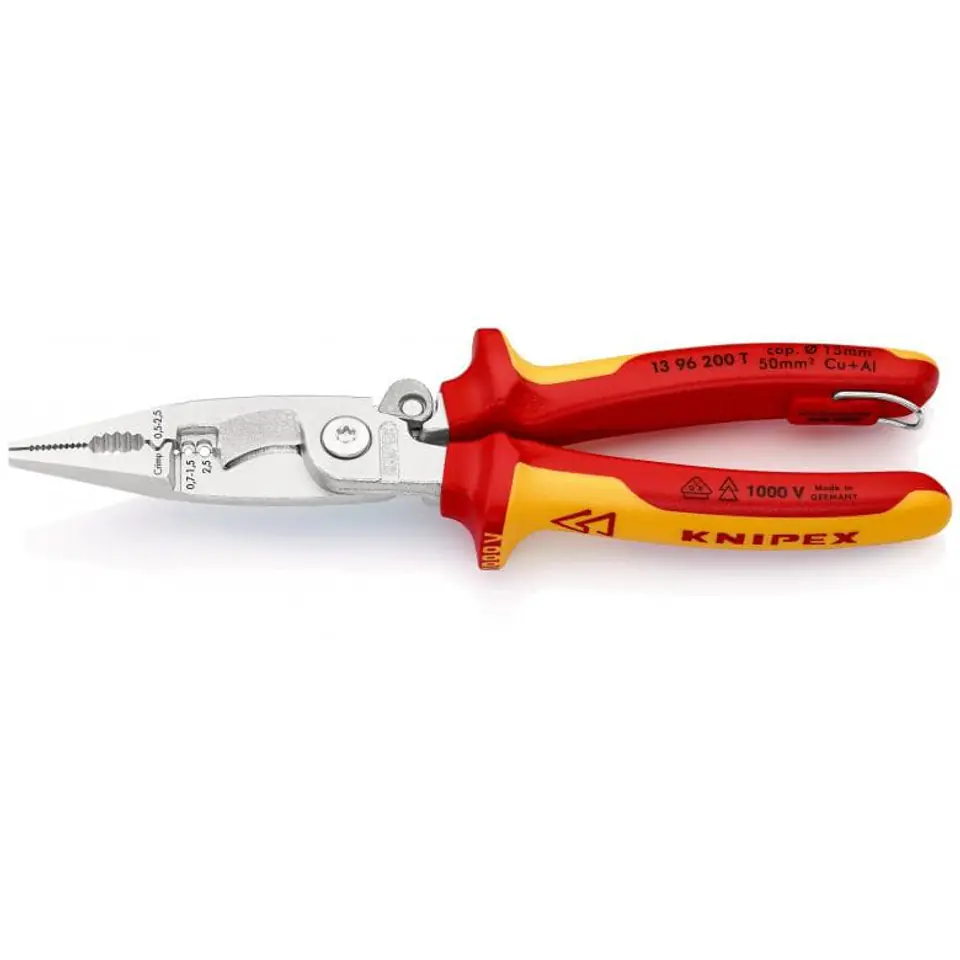

PLIERS FOR ELECTRICAL INSTALLATION WORKS 6IN1

Specifications:

Item no.: 13 96 200 T
EAN: 4003773081425
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps insulated according to VDE
Weight: 275 g
Dimensions: 200 x 65 x 28 mm
Standard: DIN EN 60900 IEC 60900
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of copper, multicore cable: 15 mm
Cutting range of copper, multicore cable: 50 mm2
Single conductor operating range: 0.75 - 1.5 mm2 / 2.5 mm2
Operating range in mm2: 0.5 - 2.5 mm2
AWG: 1 / 0
Fall protection: yes
isolated according to VDE: yes



6 functions in one tool
Multifunctional pliers for electrical installation work enable gripping of flat and round materials, bending, deburring, cutting and unsoftening wires and crimping cable sleeves
Pliers with integrated insulated hitch for attaching fall protection during operation

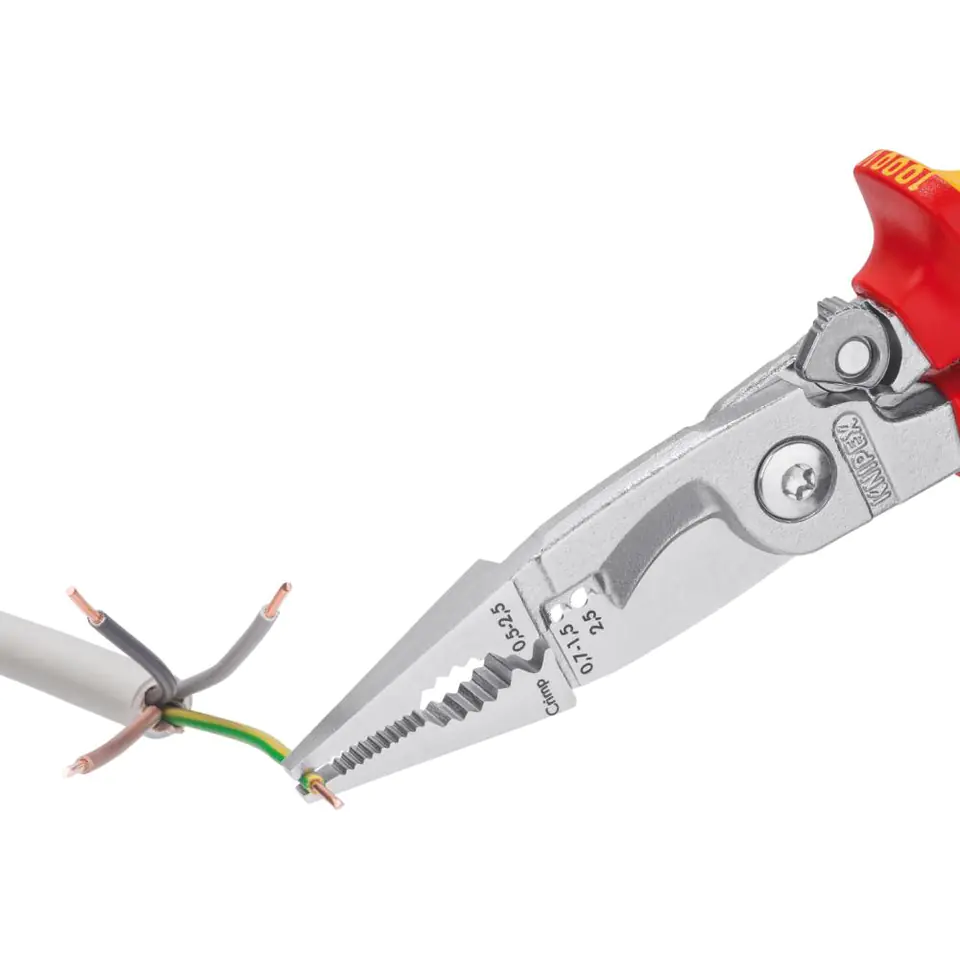

Smooth gripping surfaces for safe gripping of single wires, profiled gripping surfaces and contoured gripping surface allow gripping of flat and round materials

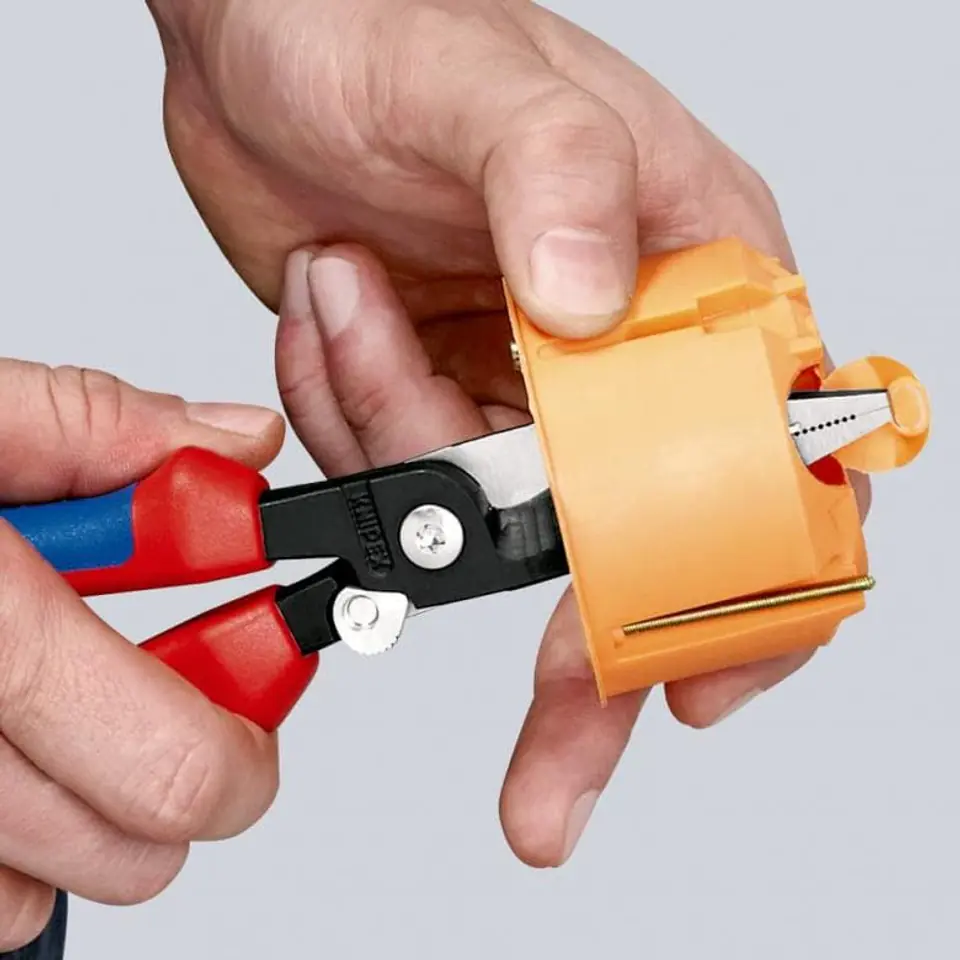

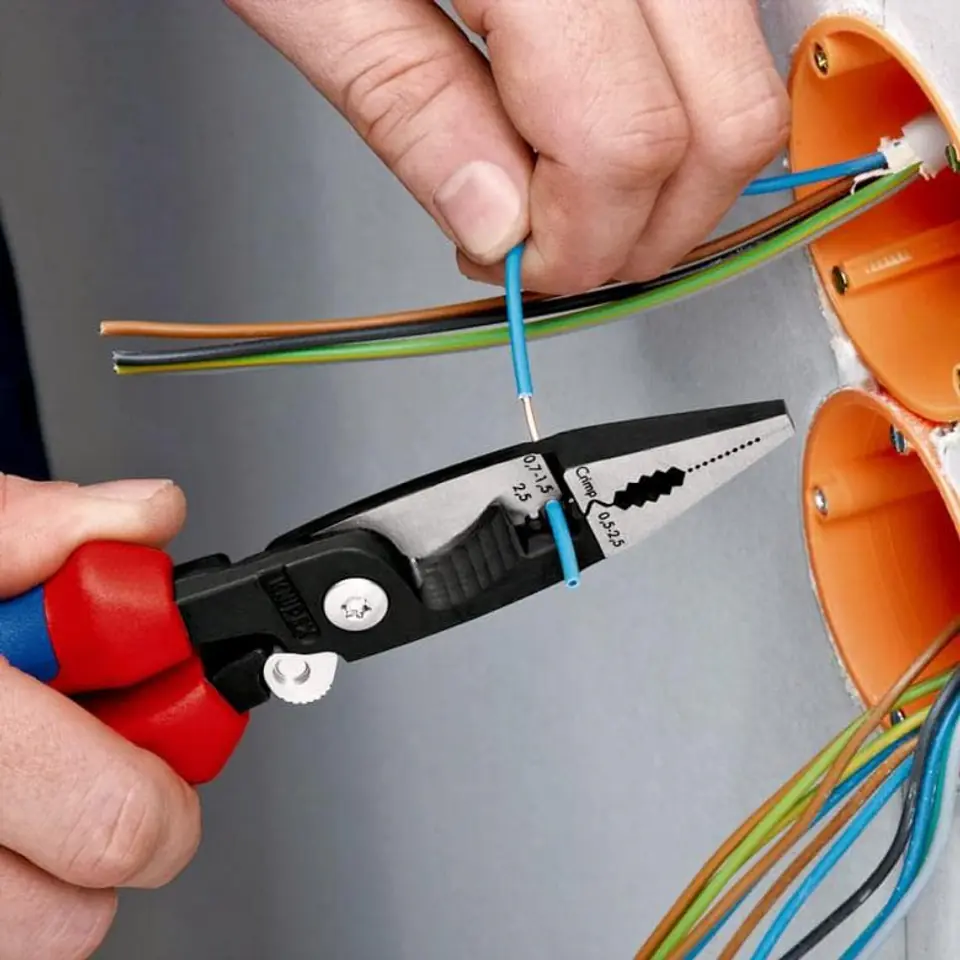

The outer edge of the jaw allows the processing of flush-mounted cans and deburring in the throughpoints

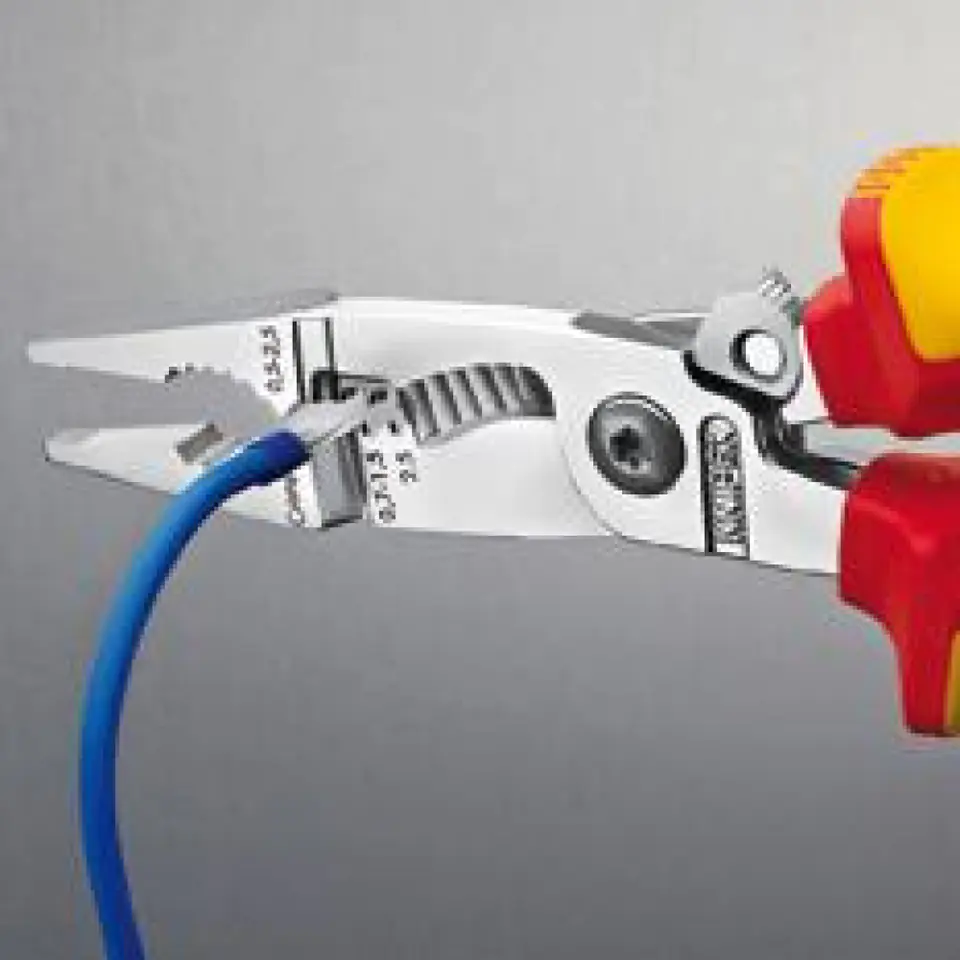

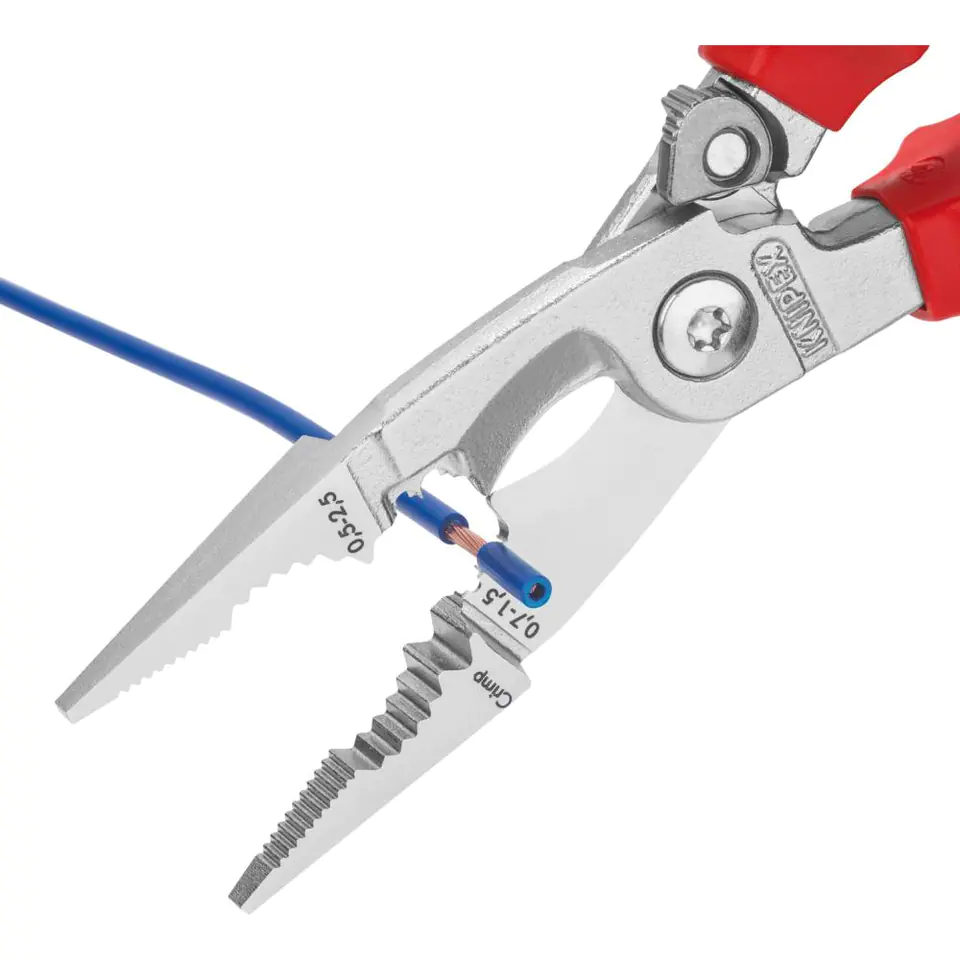

Profiles for stripping insulation from wires with a cross section of 0.75 - 1.5 mm2 and 2.5 mm2

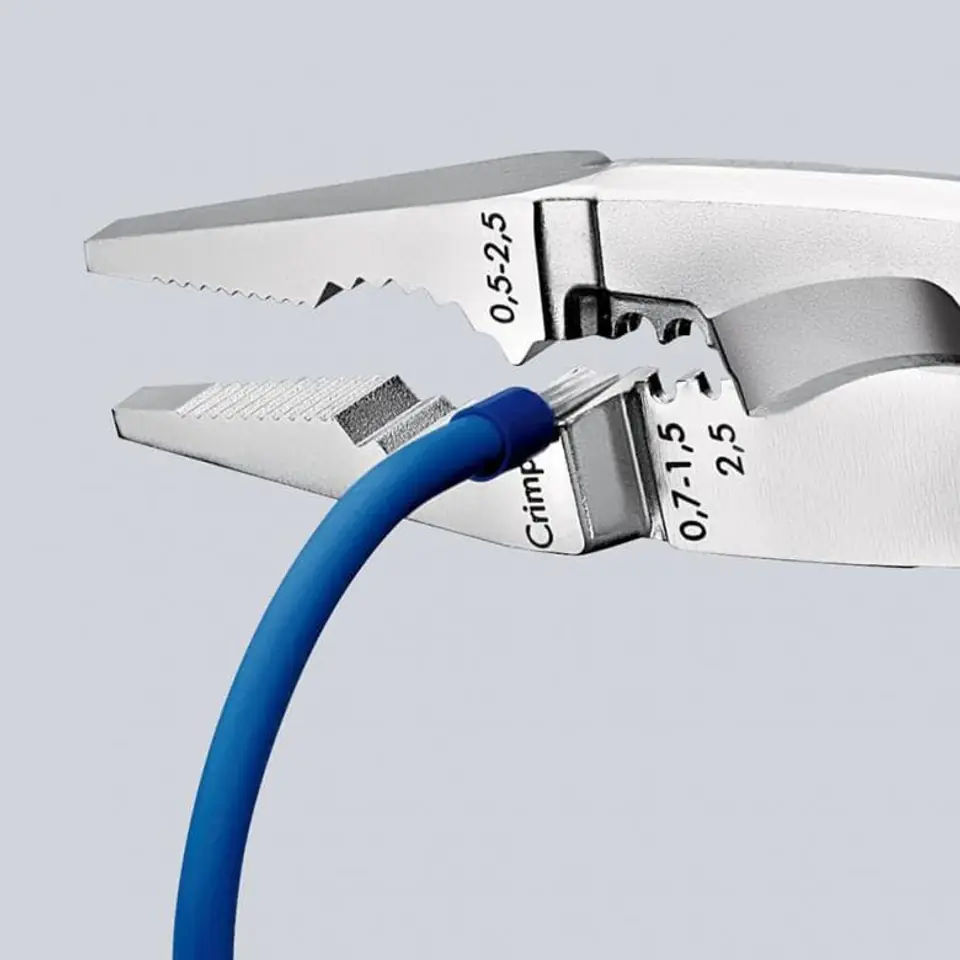

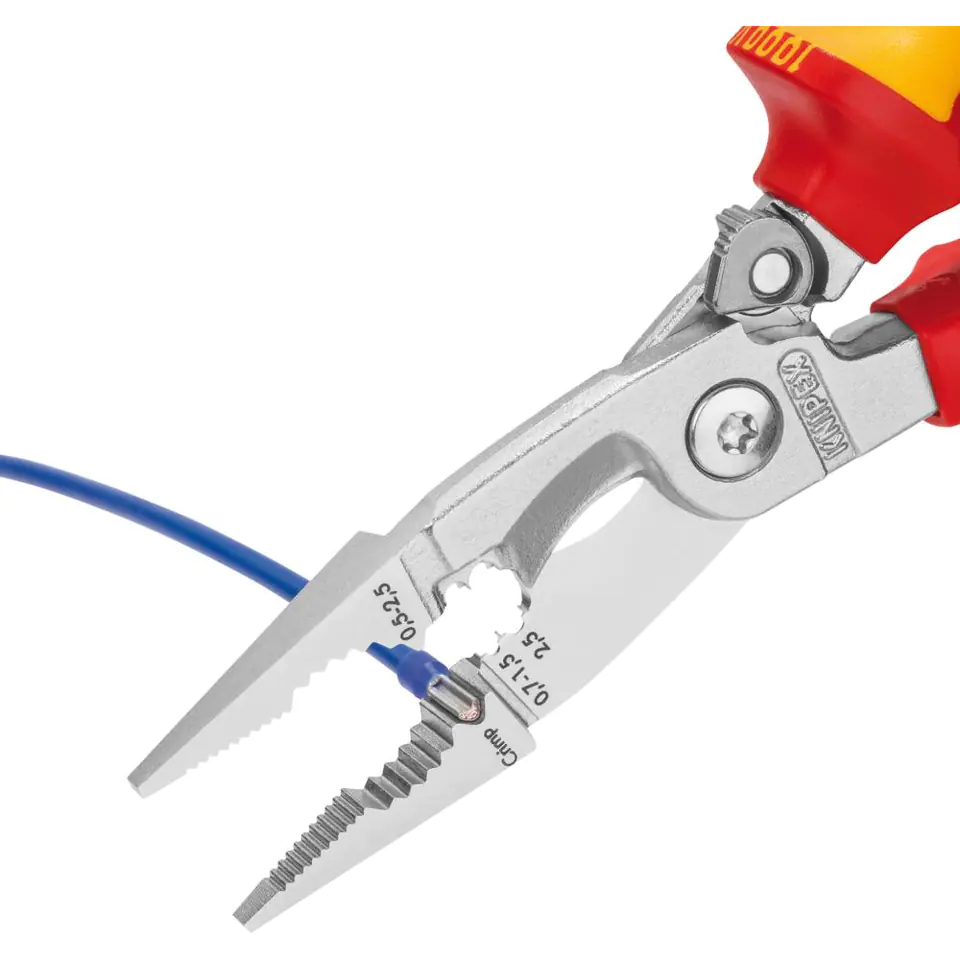

Crimping socket for cable sleeves 0,5 - 2,5 mm2

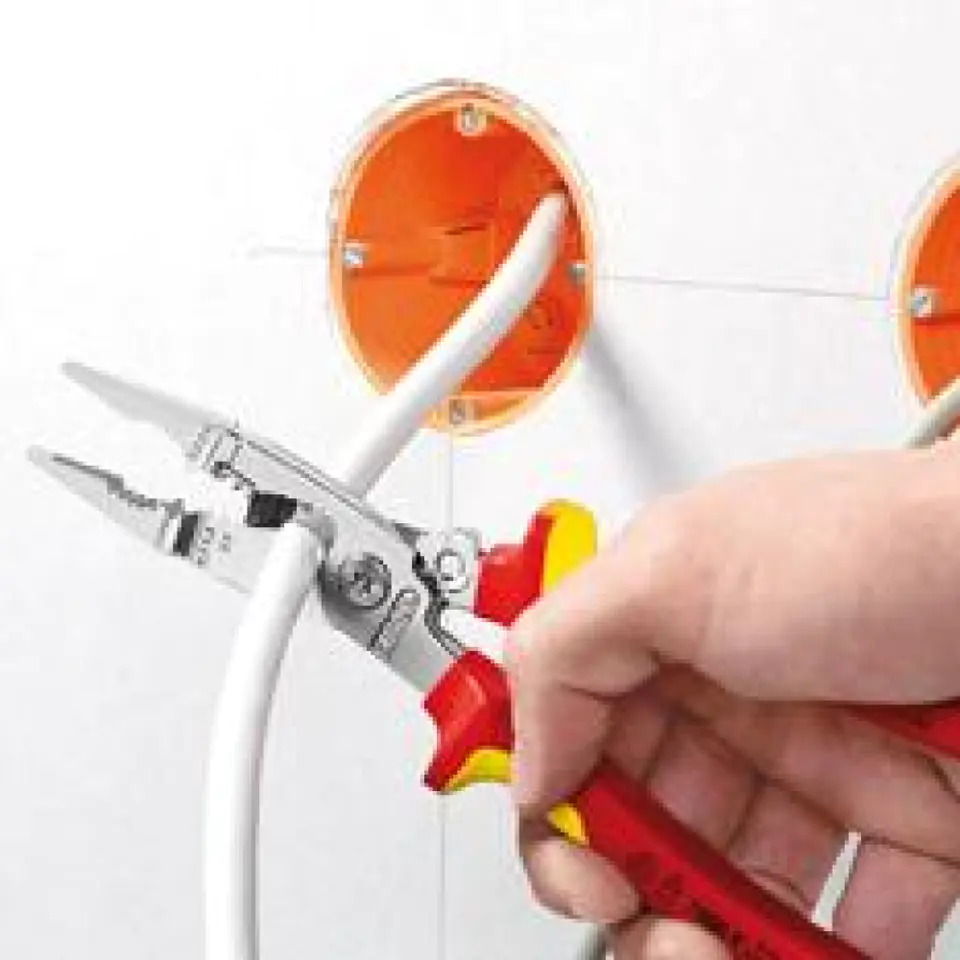

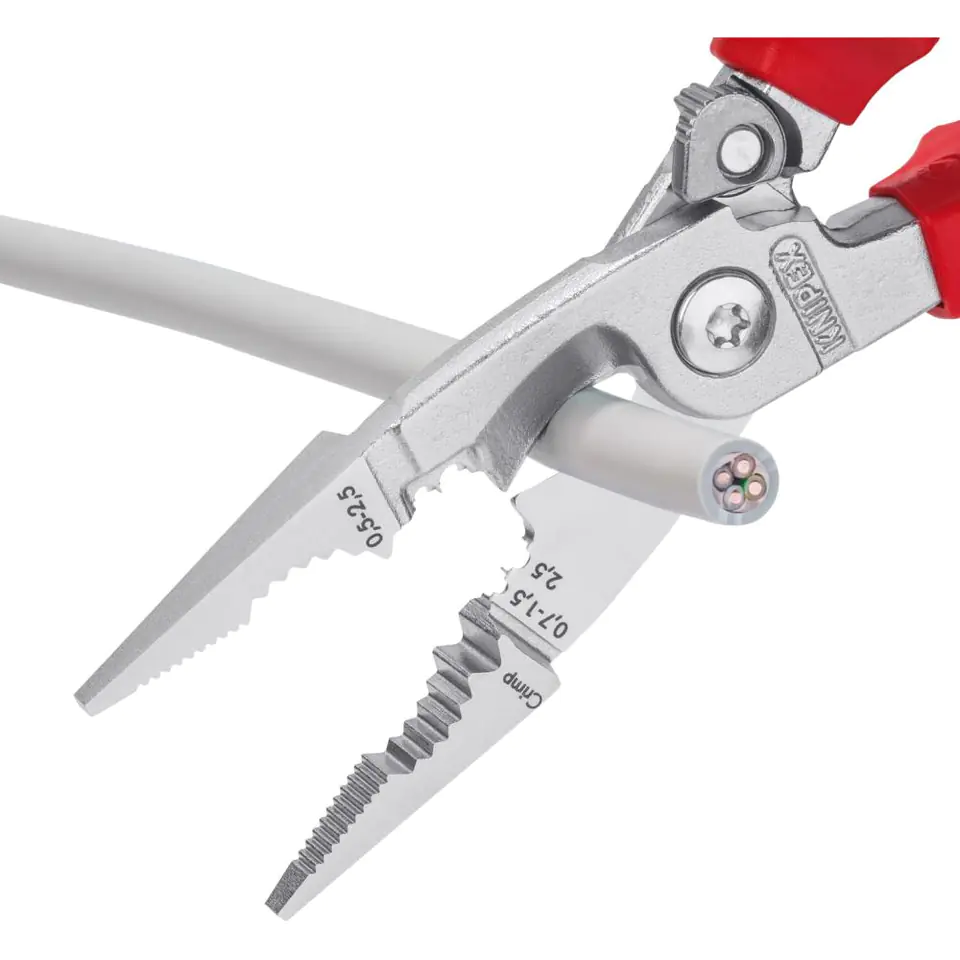

Cable shears with precision blades separately hardened induction for cutting copper and aluminum cables with cross section / diameter up to 5 x 2.5 mm2 / Ø 15 mm
Compact design makes it easy to work in hard-to-reach places
Screw joint for precise movement of pliers without backlash
Special high-quality tool steel, forged, multi-stage oil-hardened


**

Illustrative photos.
