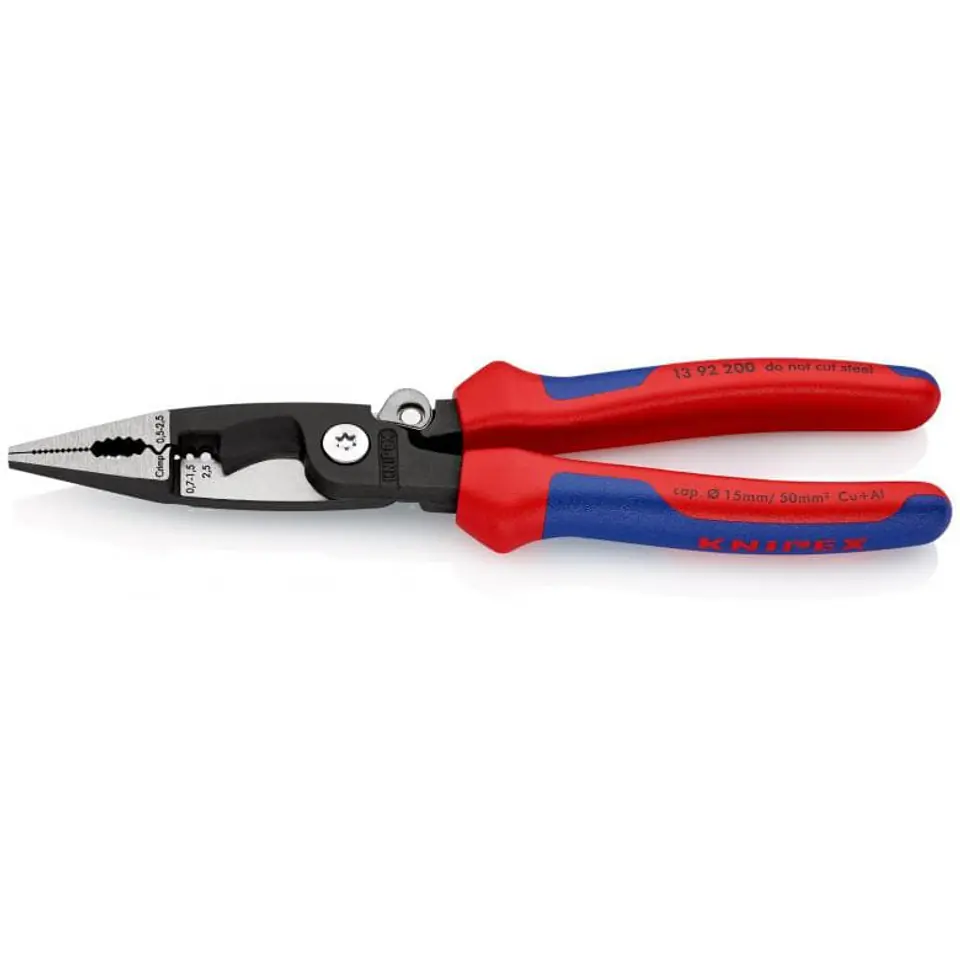

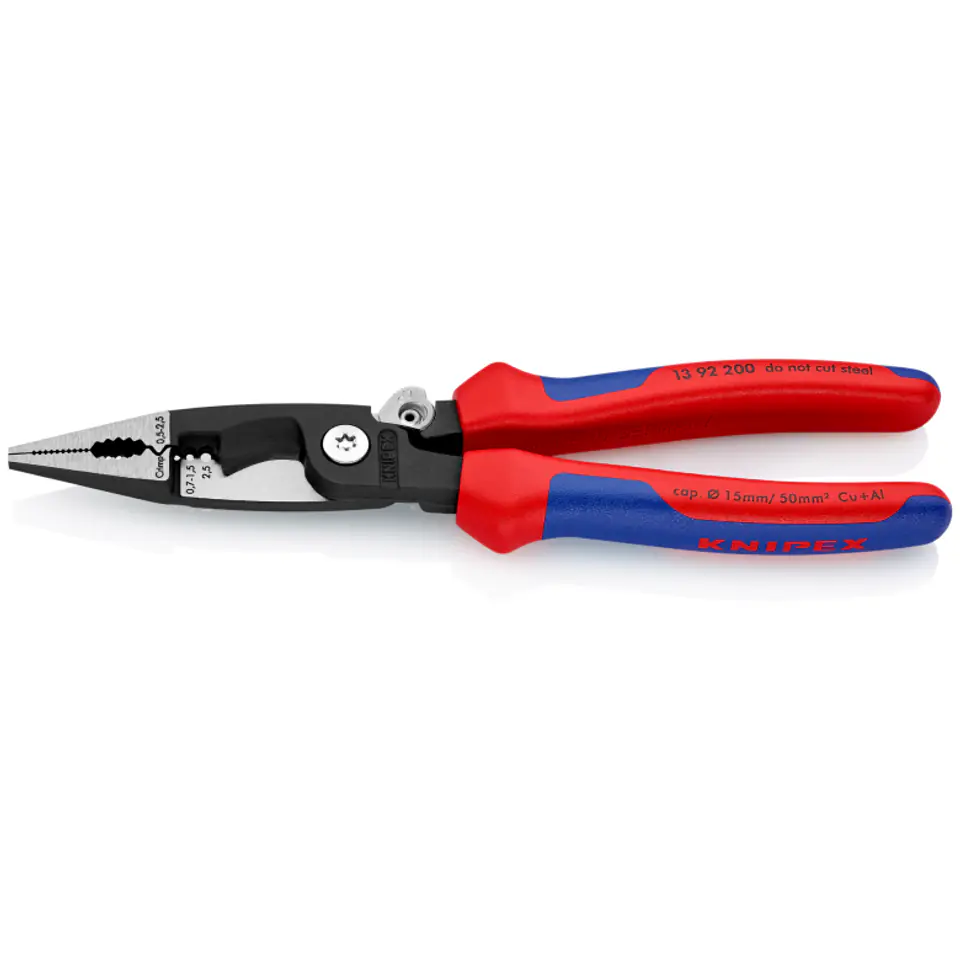

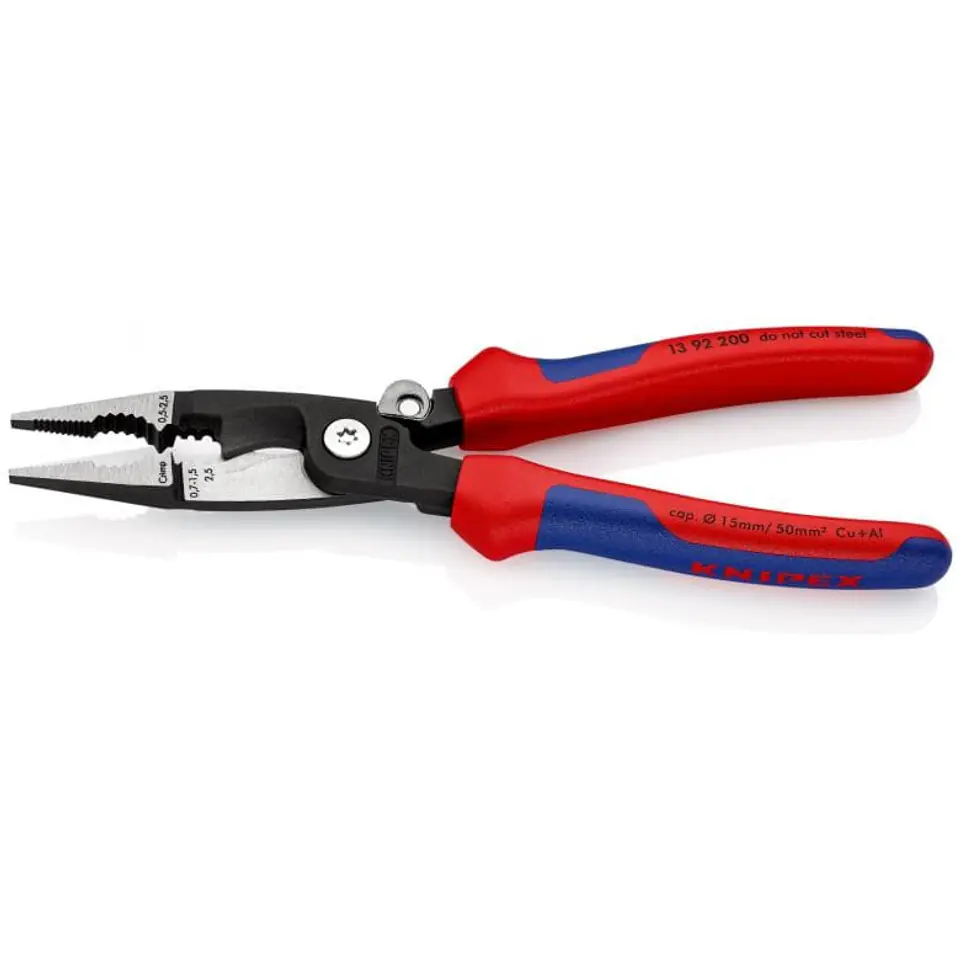

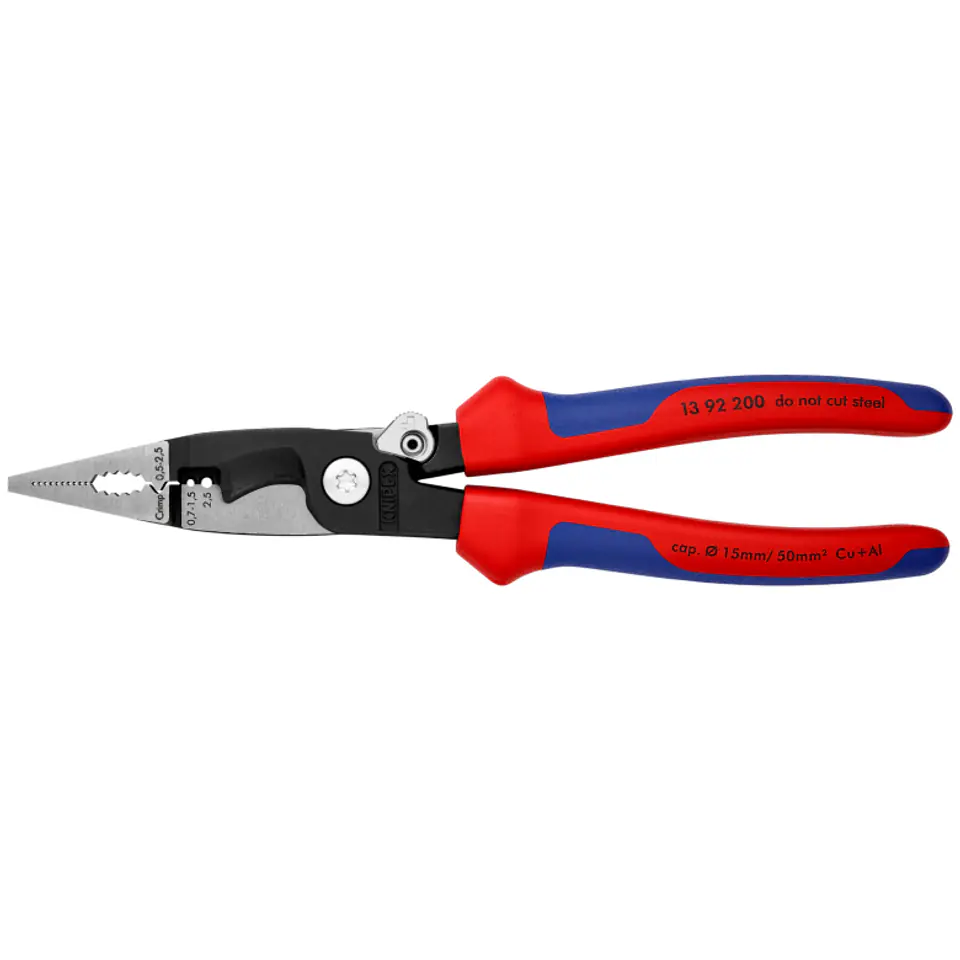

PLIERS FOR ELECTRICAL INSTALLATION WORKS 6IN1

Specifications:

Item no.: 13 92 200
EAN: 4003773075103
Pliers: phosphated, black
Head: polished
handles: with multi-component caps
Weight: 280 g
Dimensions: 200 x 85 x 20 mm
REACH: does not contain SVHC
RoHS: not applicable
Cutting range of copper, multicore cable: 15 mm
Cutting range of copper, multicore cable: 50 mm2
Single conductor operating range: 0.75 - 1.5 mm2 / 2.5 mm2
Operating range in mm2: 0.5 - 2.5 mm2
AWG: 1 / 0



6 functions in one tool
Multifunctional pliers for electrical installation work enable gripping of flat and round materials, bending, deburring, cutting and unsoftening wires and crimping cable sleeves
On models with a spring opening in the connector, the opening lock keeps the blades in the closed position, allowing you to use other functions while
The intelligent restraint mechanism allows you to grip without having to fully open the pliers. The blade remains closed and secured.
Smooth gripping surfaces for safe gripping of single wires, profiled gripping surfaces and contoured gripping surface allow gripping of flat and round materials

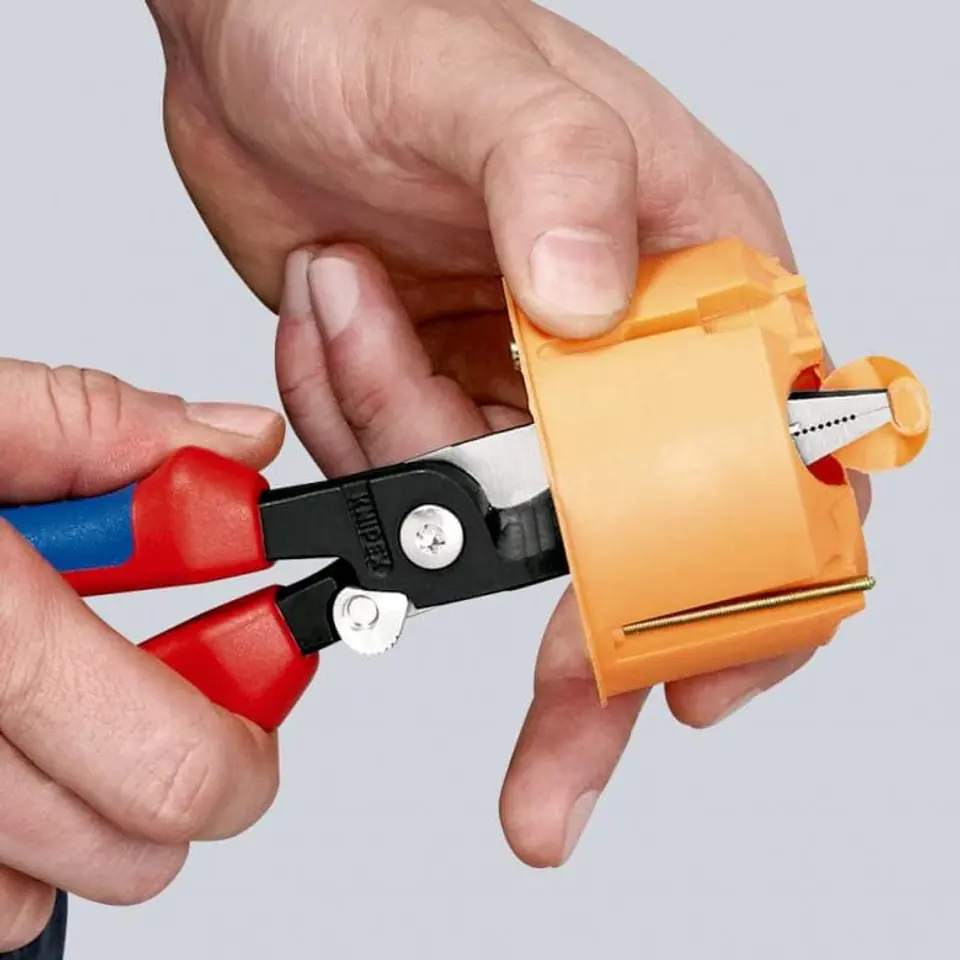

The outer edge of the jaw allows the processing of flush-mounted cans and deburring in the throughpoints

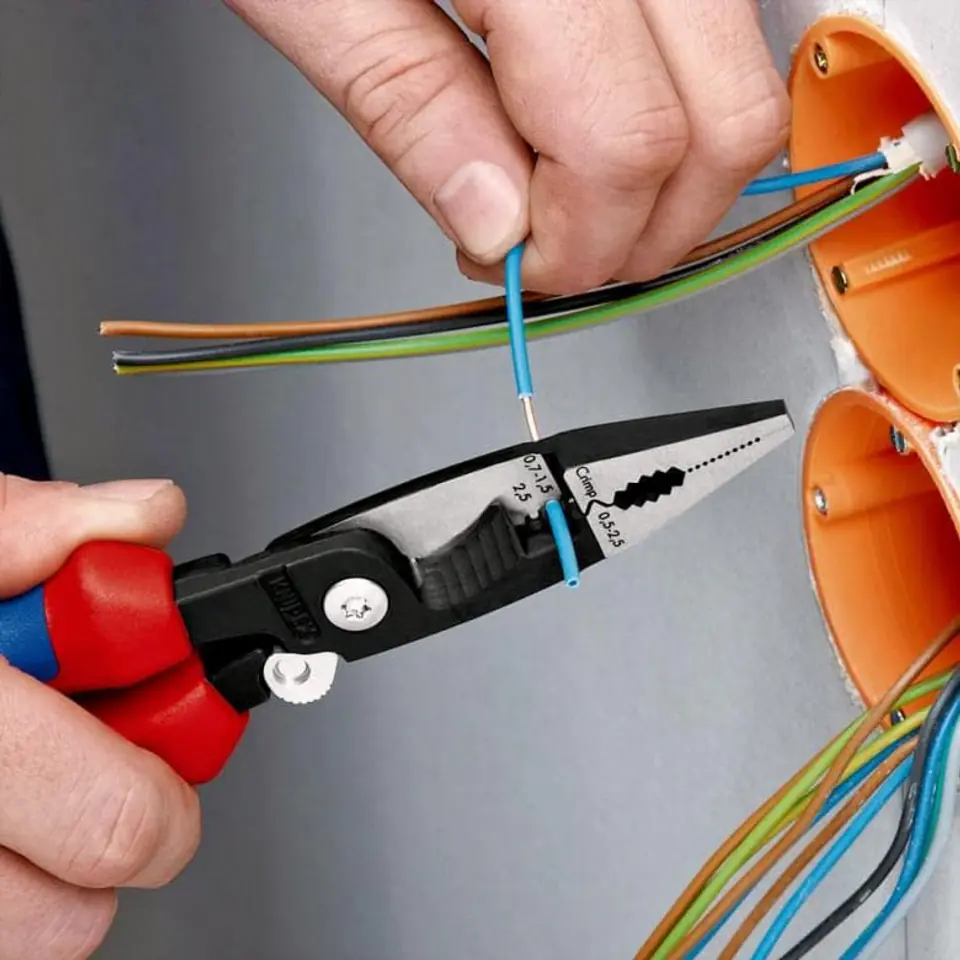

Profiles for stripping insulation from wires with a cross section of 0.75 - 1.5 mm2 and 2.5 mm2
Crimping socket for cable sleeves 0,5 - 2,5 mm2

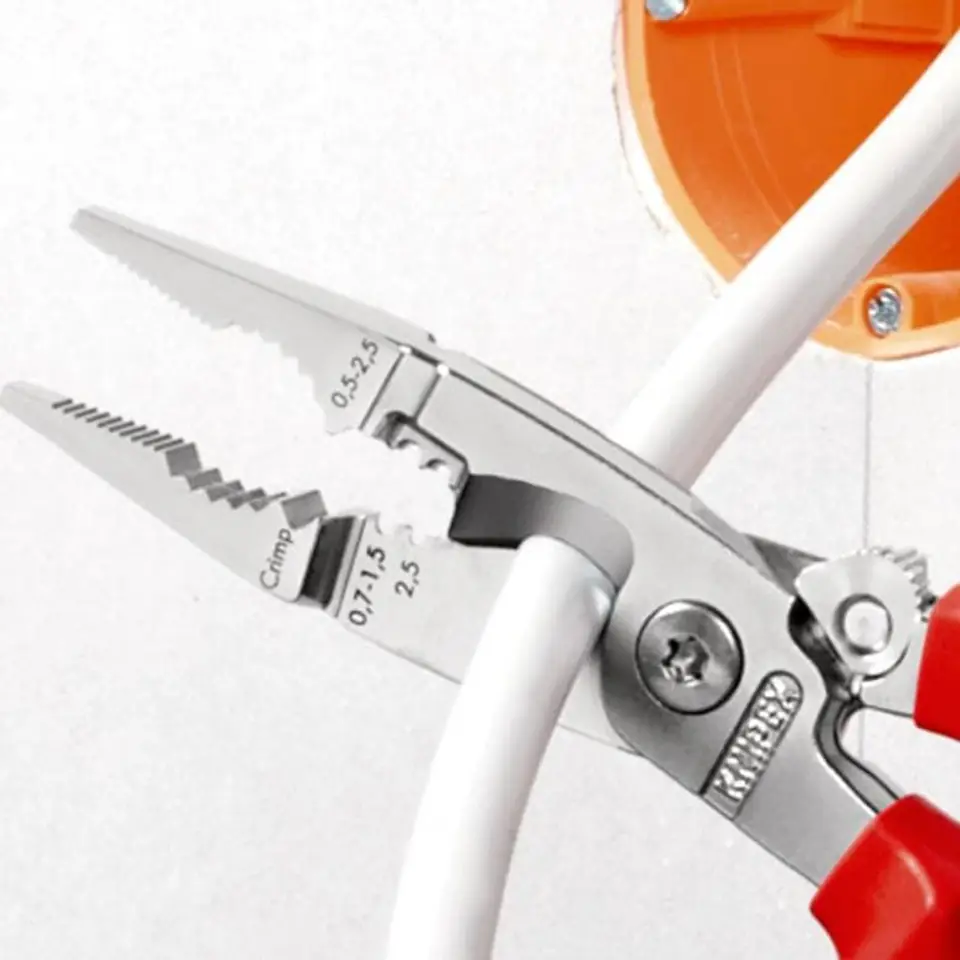

Cable shears with precision blades separately hardened induction for cutting copper and aluminum cables with cross section / diameter up to 5 x 2.5 mm2 / Ø 15 mm

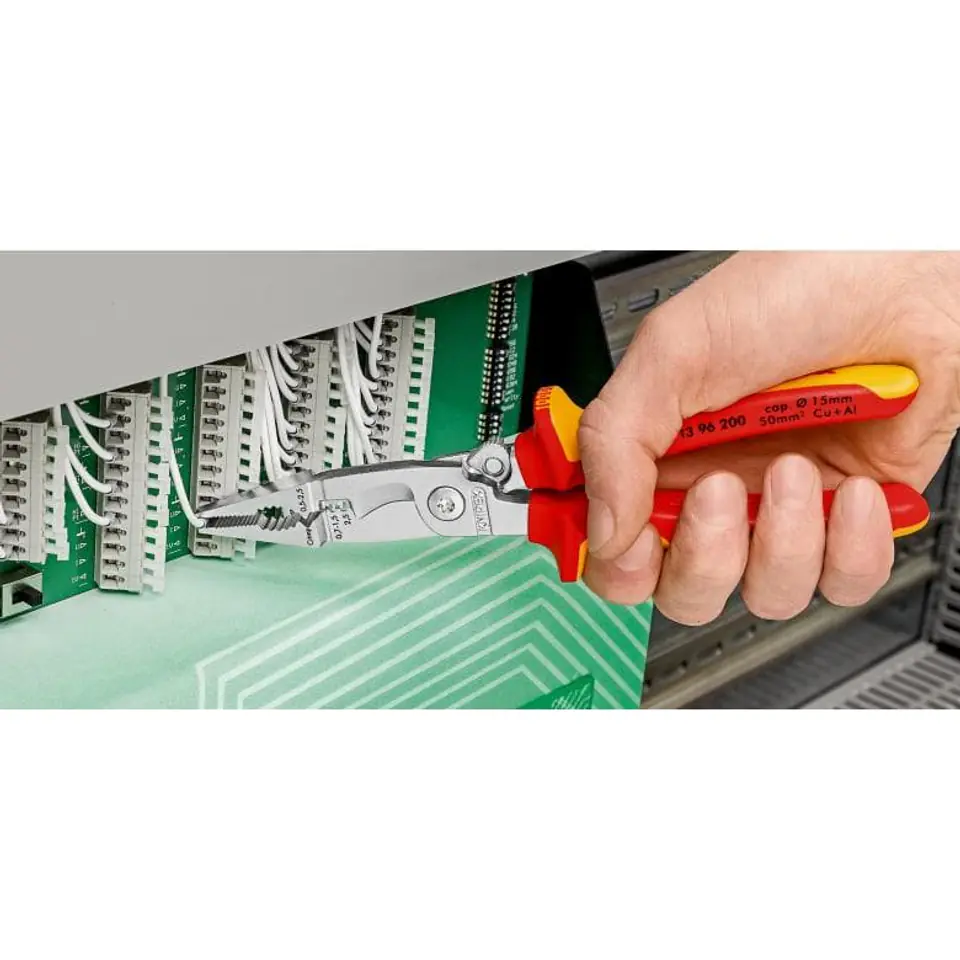

Compact design makes it easy to work in hard-to-reach places
Screw joint for precise movement of pliers without backlash
Special high-quality tool steel, forged, multi-stage oil-hardened


**

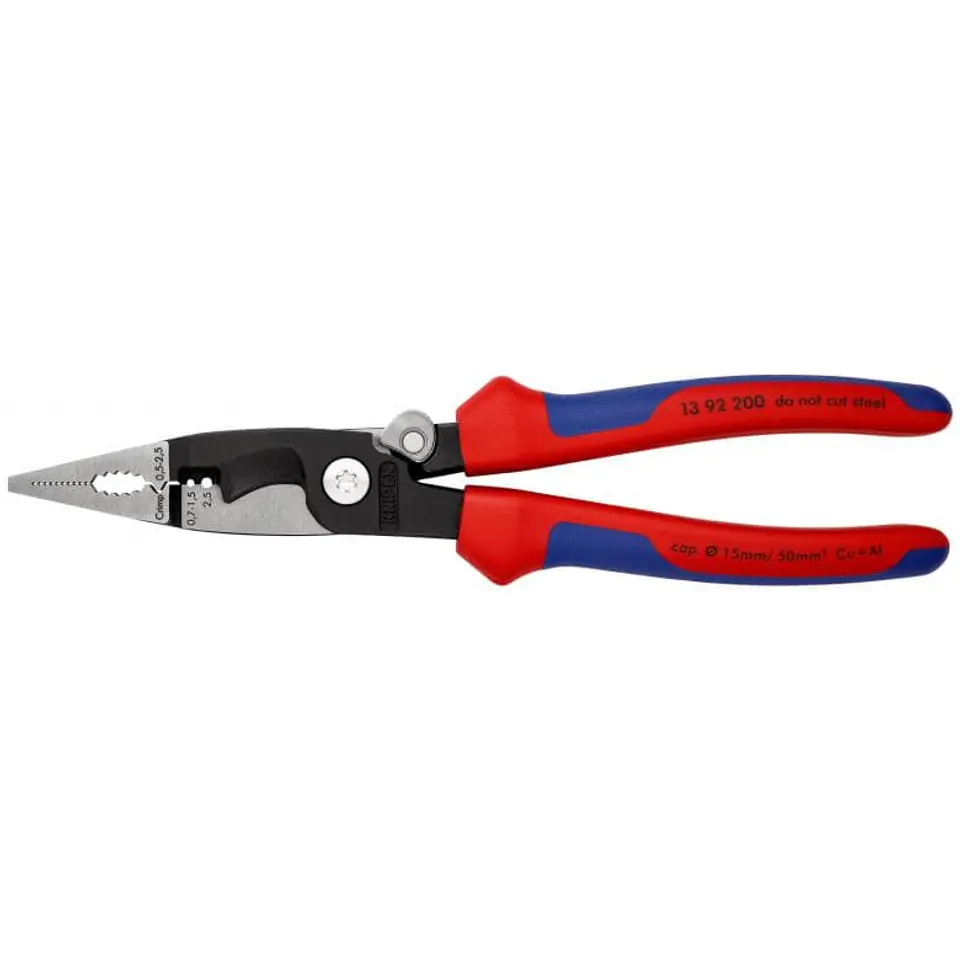

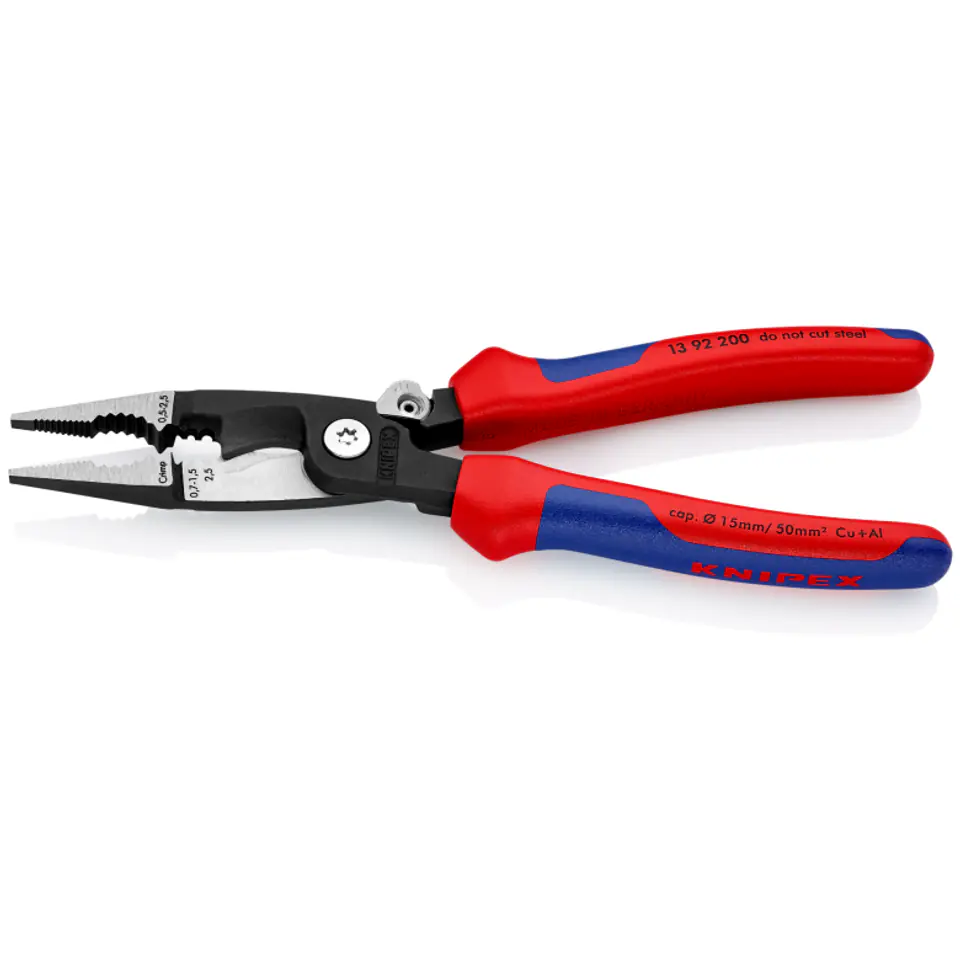

Illustrative photo.
