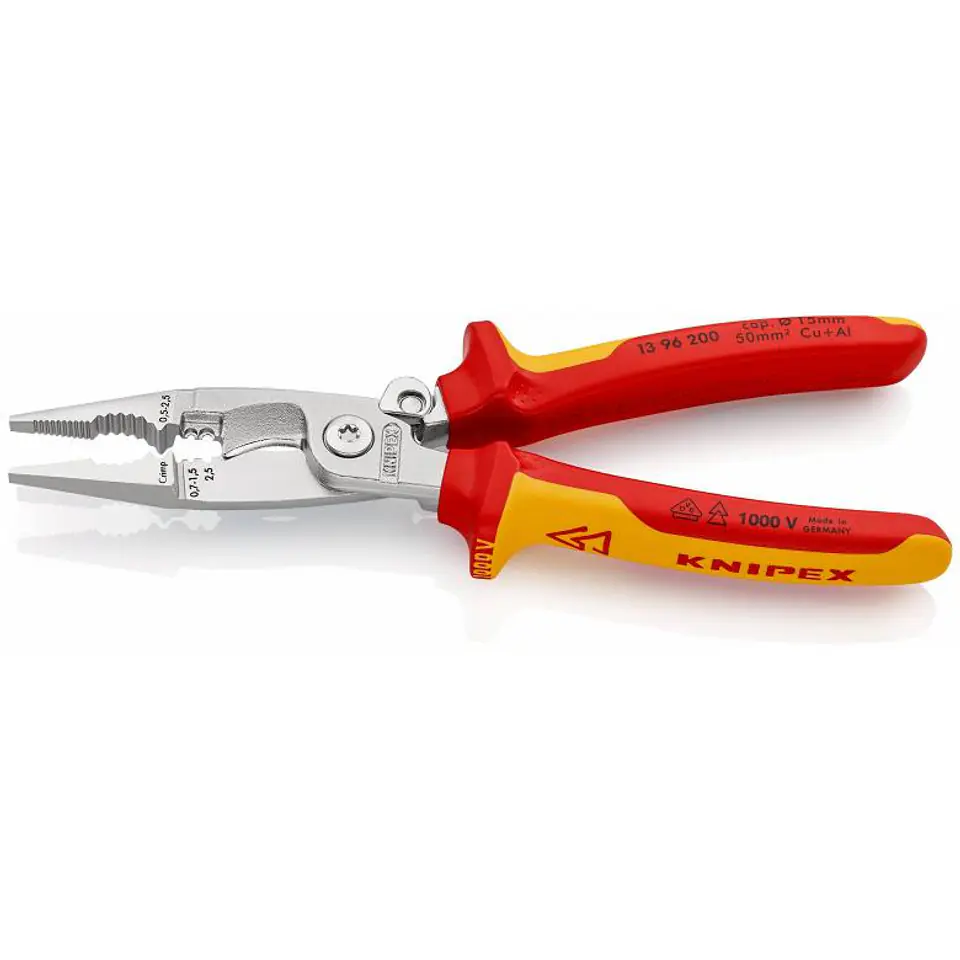

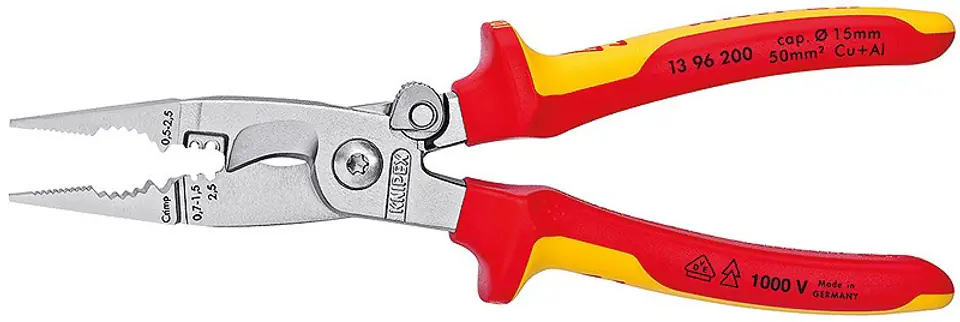

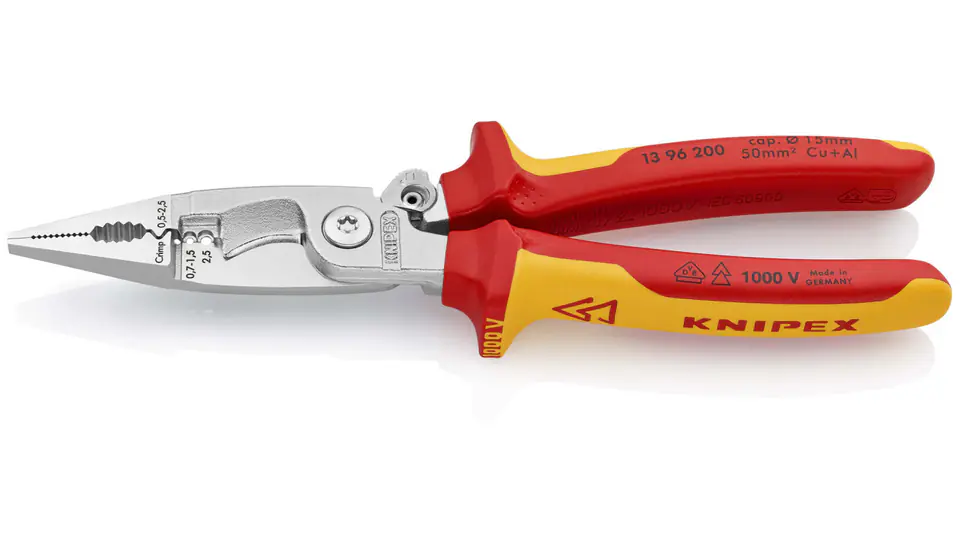

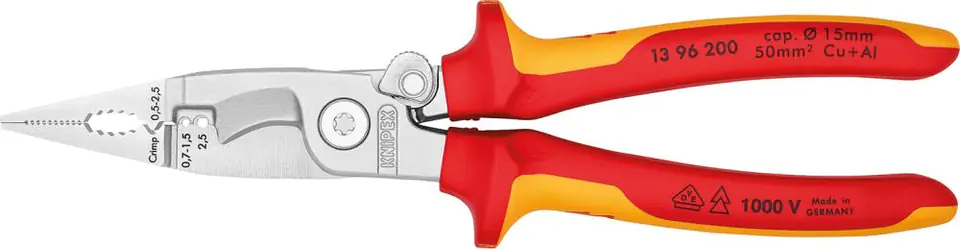

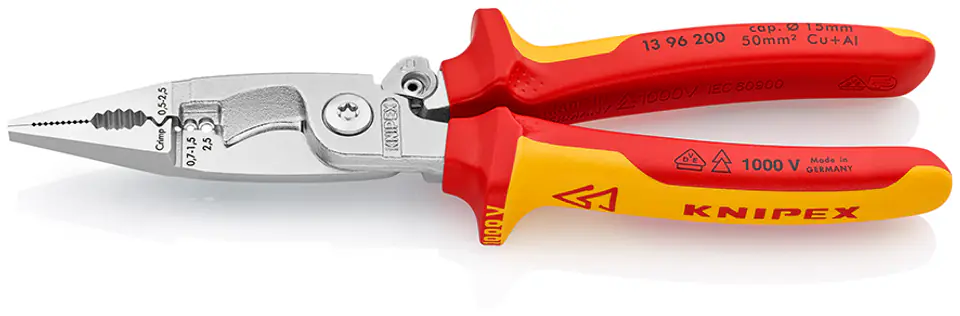

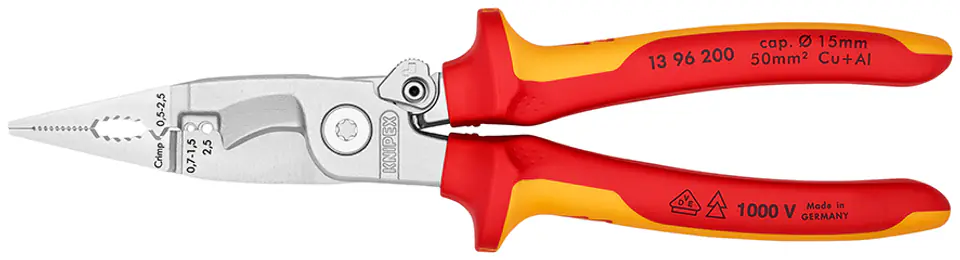

PLIERS FOR ELECTRICAL INSTALLATION WORK 6IN1

Technical data:

Article no.: 13 96 200
EAN: 4003773075110
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps, insulated according to VDE
Weight: 280 g
Dimensions: 200 x 85 x 20 mm
Standard: DIN EN 60900 IEC 60900
Cutting range of copper, multicore cable: 15 mm
Cutting range of copper, multicore cable: 50 mm2
Single conductor operating range: 0.75 - 1.5 mm2 / 2.5 mm2
Operating range in mm2: 0.5 - 2.5 mm2
AWG: 1/ 0
VDE insulated: yes





6 functions in one tool
Multifunctional pliers for electrical installation work allow gripping materials with a flat and round cross-section, bending, deburring, cutting and isolating wires and kneading cable sleeves
On models with a swing spring in the connector, the opening lock holds the blades in the closed position, allowing other functions to be used during this time
The intelligent restraint mechanism allows gripping without having to completely open the pliers. The blade remains closed and secured.

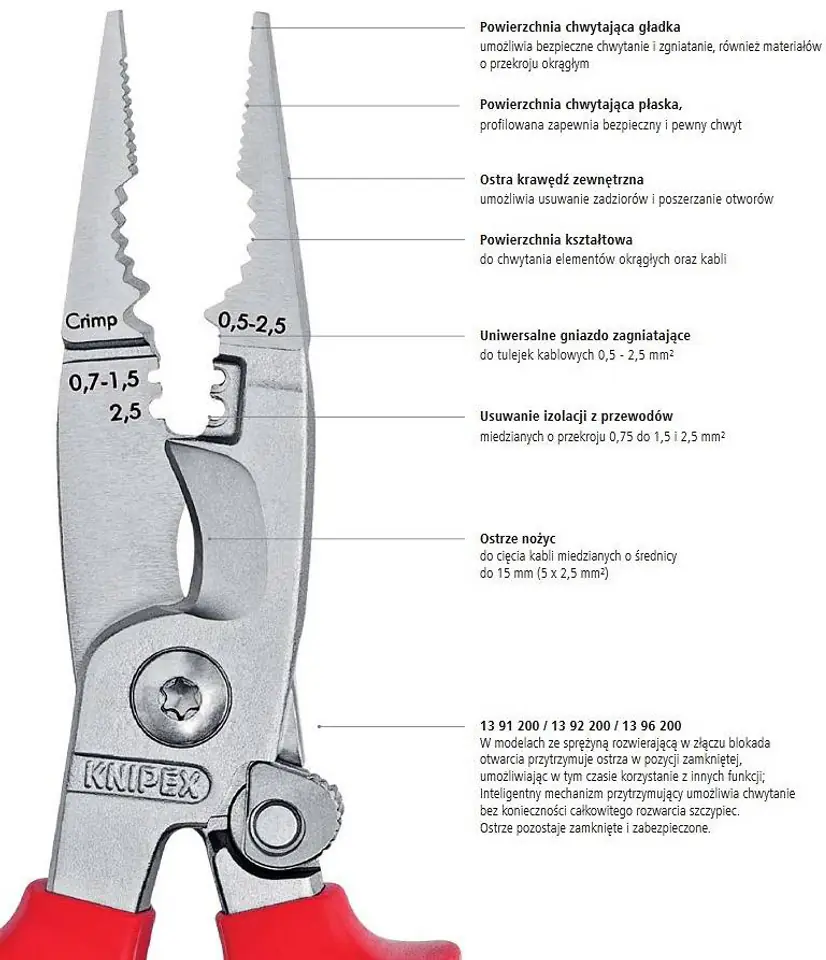

Smooth gripping surfaces allow safe gripping of individual conductors profiled gripping surfaces and shape gripping surfaces allow gripping materials with flat and round cross-section

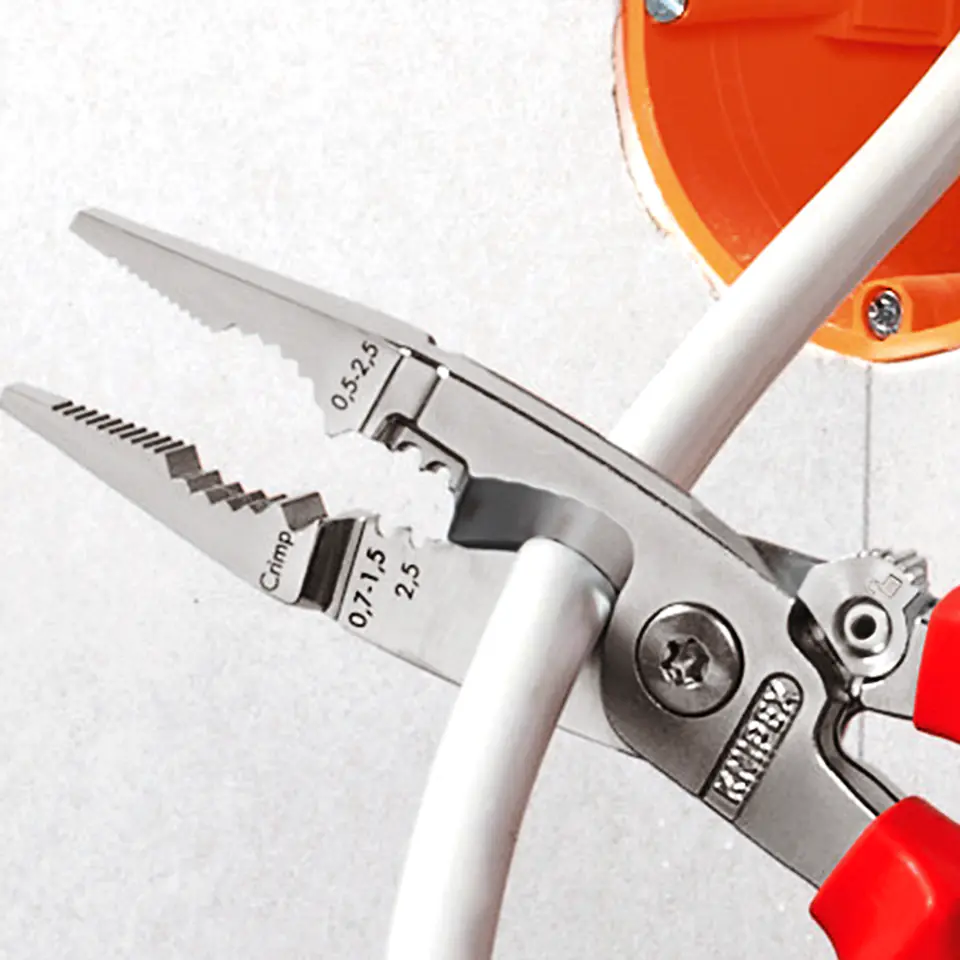

The outer edge of the jaw allows the processing of flush-mounted cans and the removal of burrs in the throughput holes

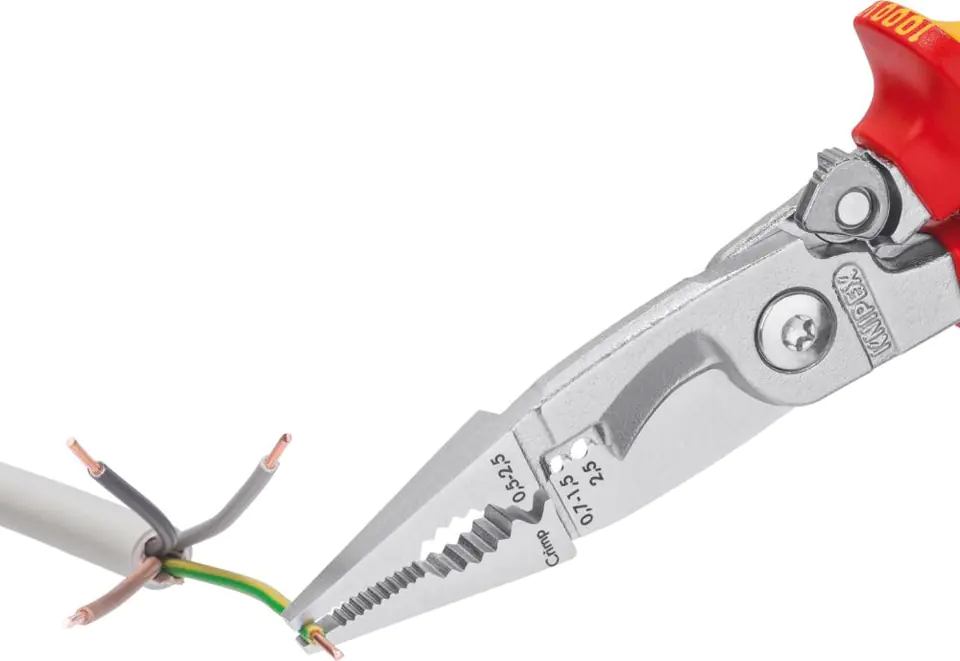

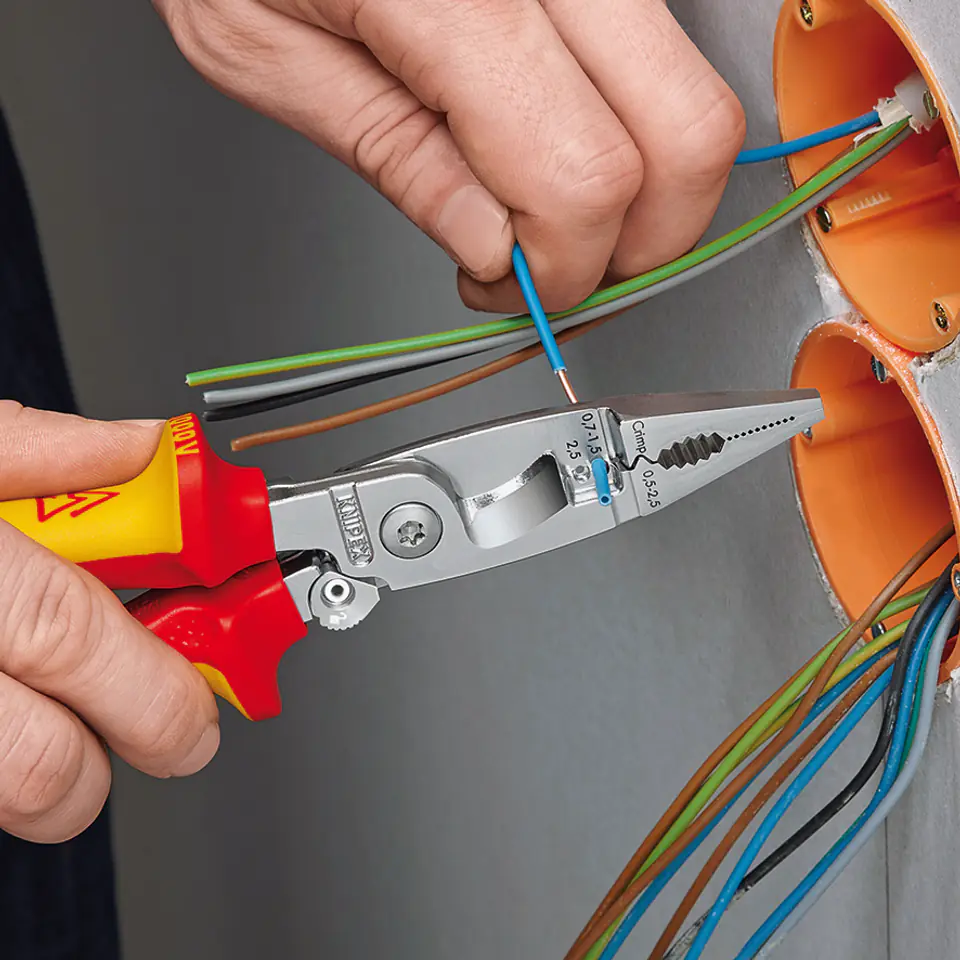

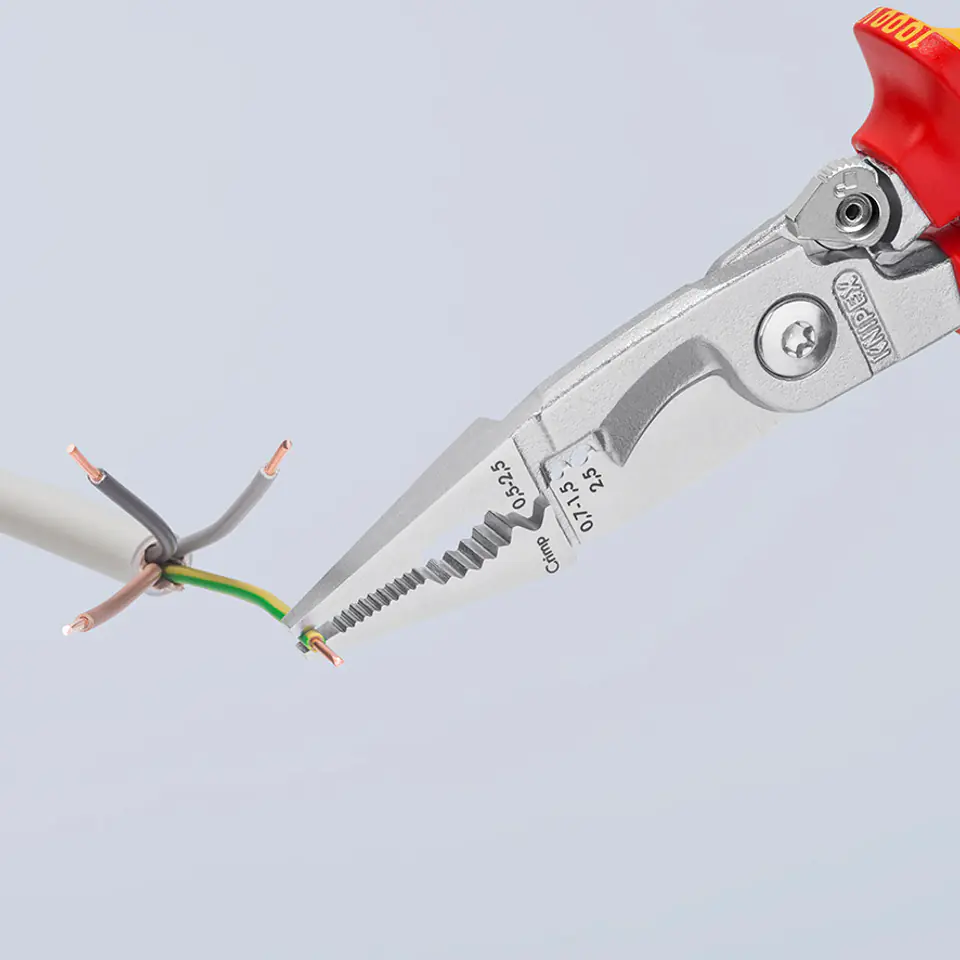

Profiles for stripping insulation from wires with a cross section of 0.75 - 1.5 mm2 and 2.5 mm2

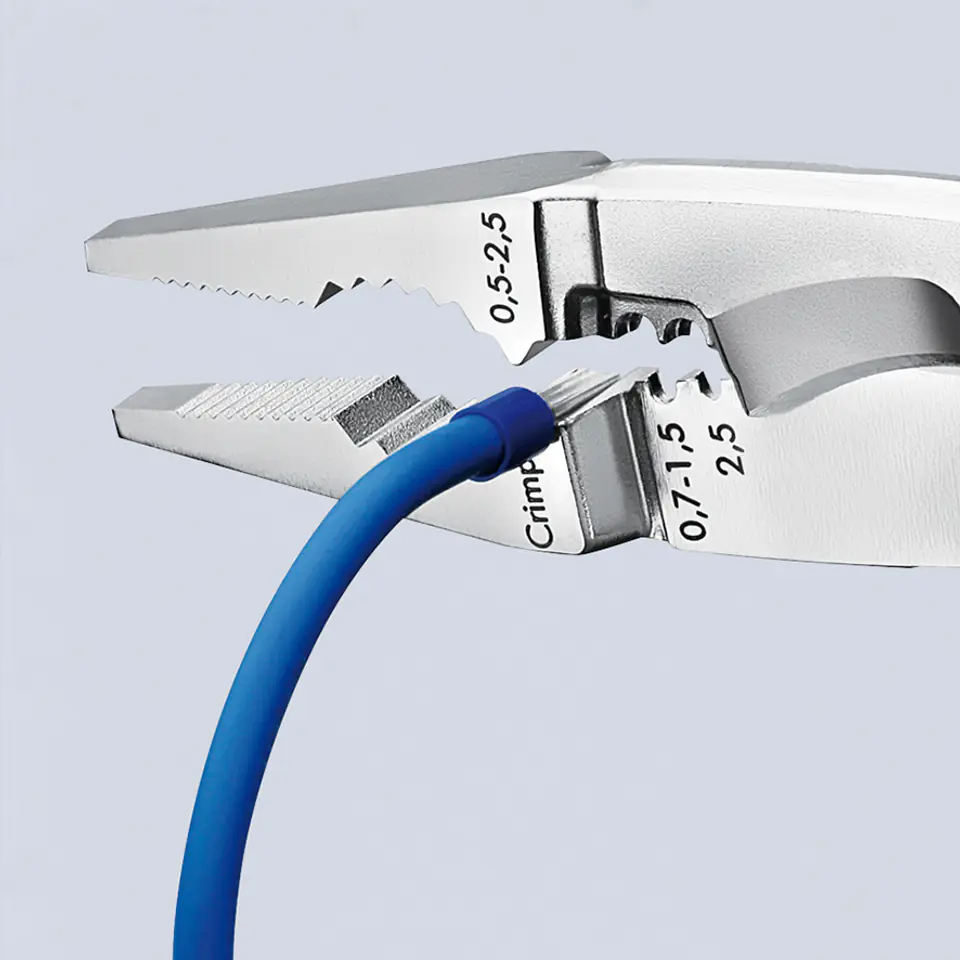

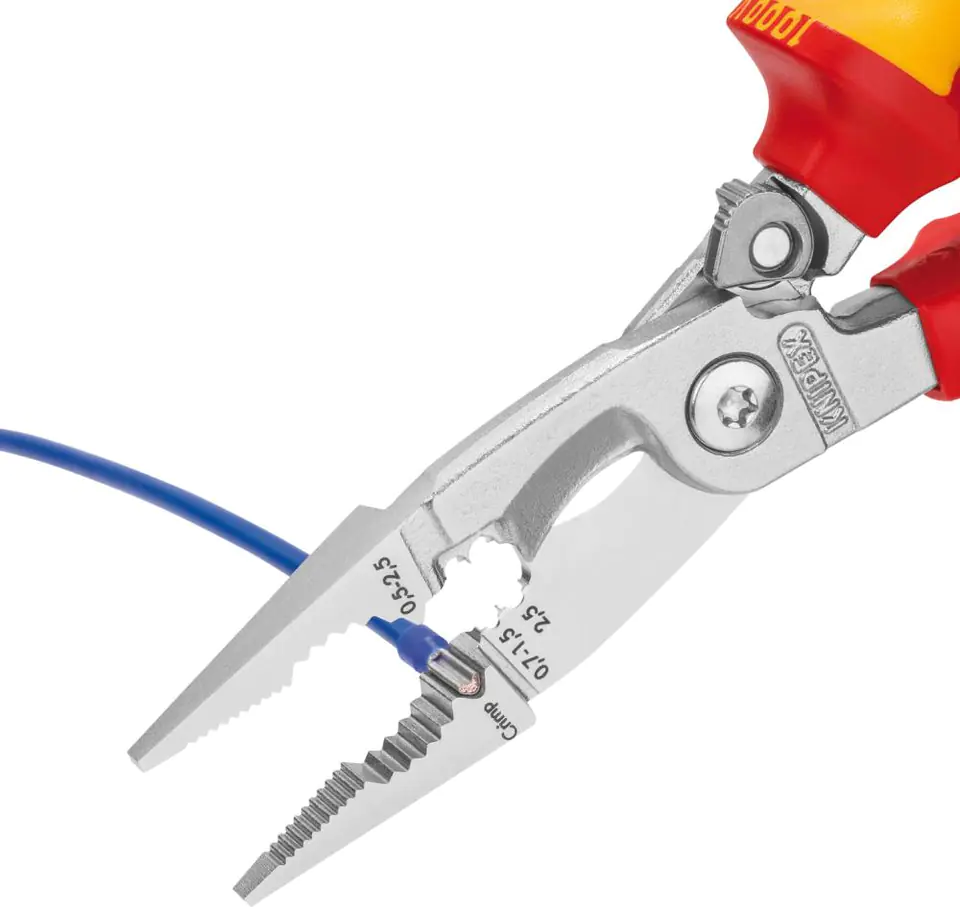

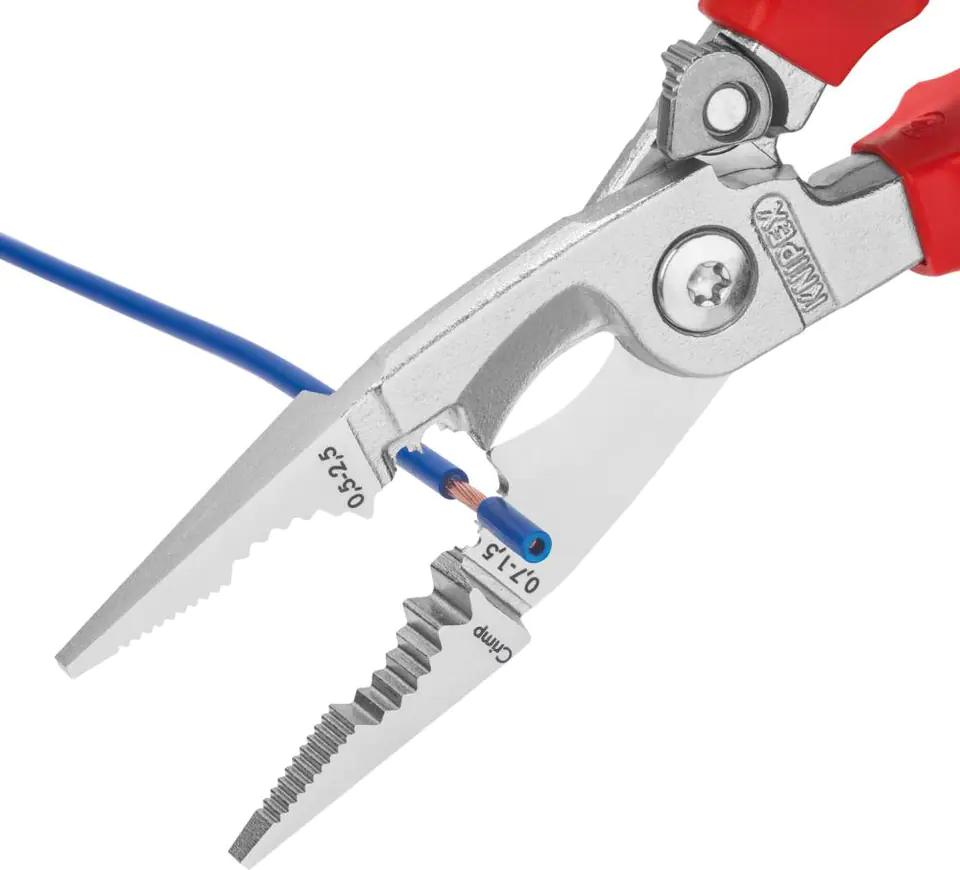

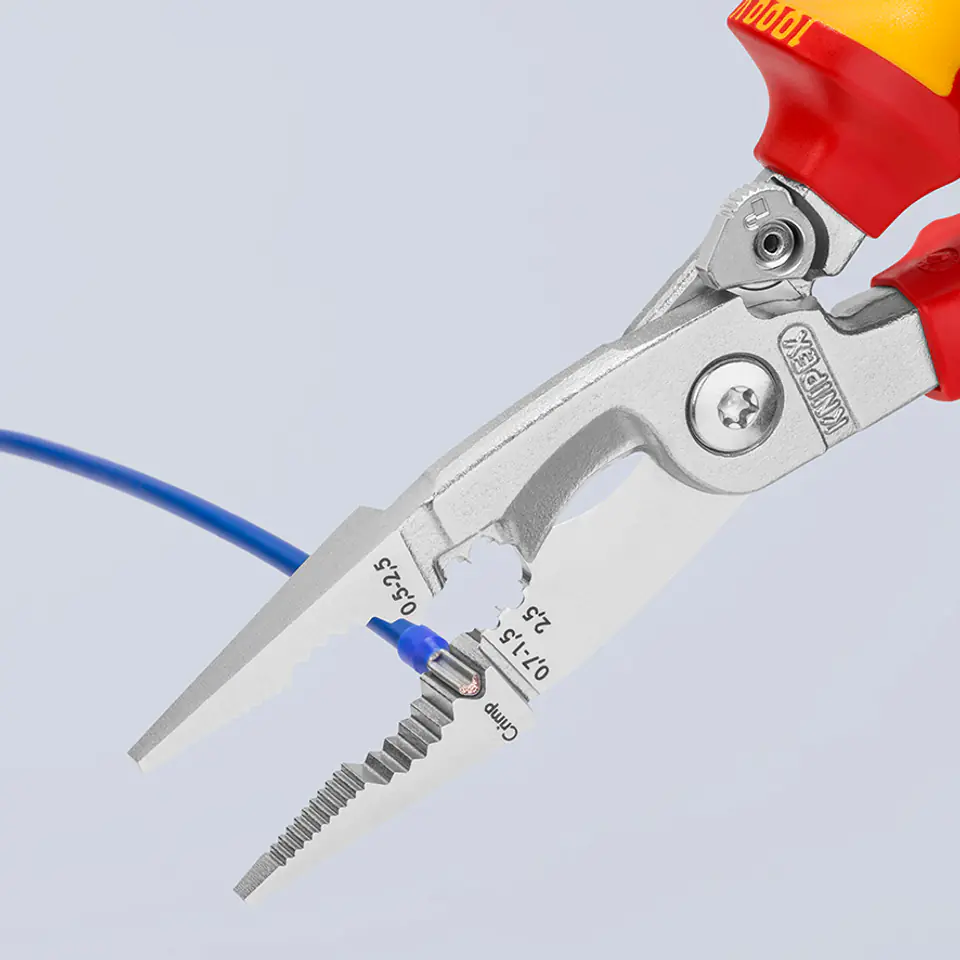

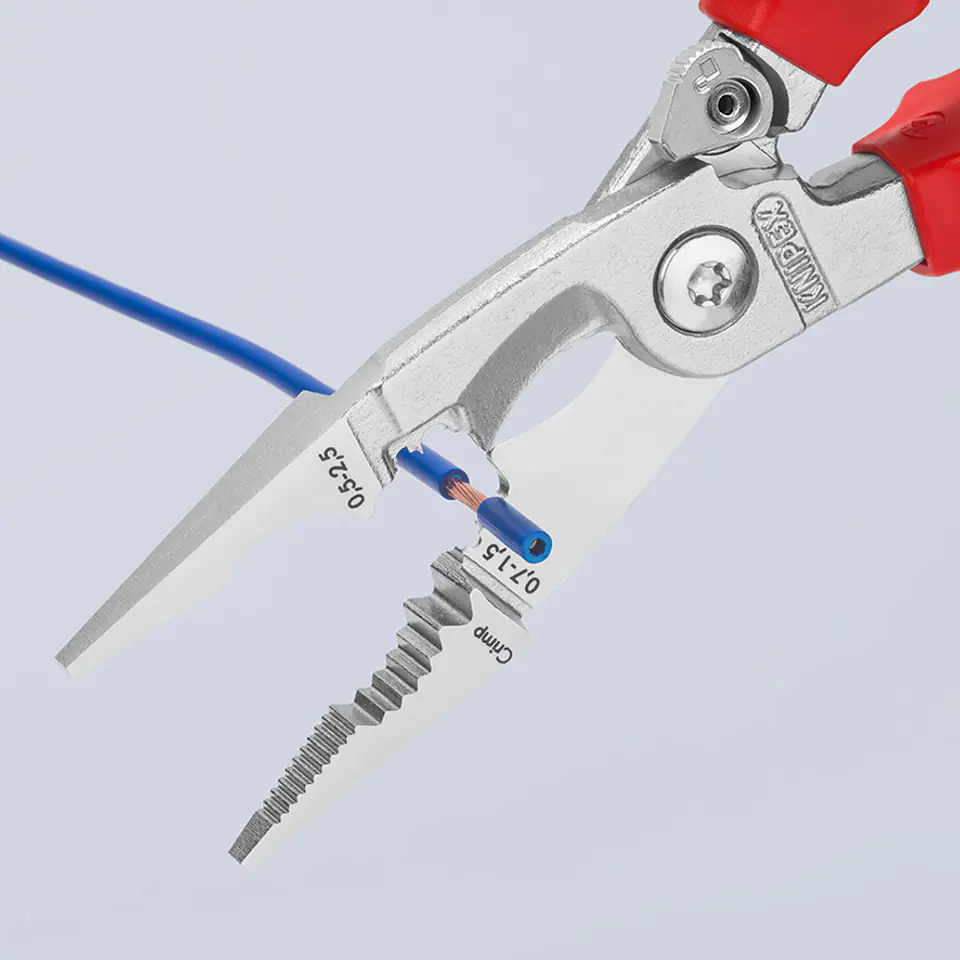

Crimping socket for cable sleeves 0.5 - 2.5 mm2

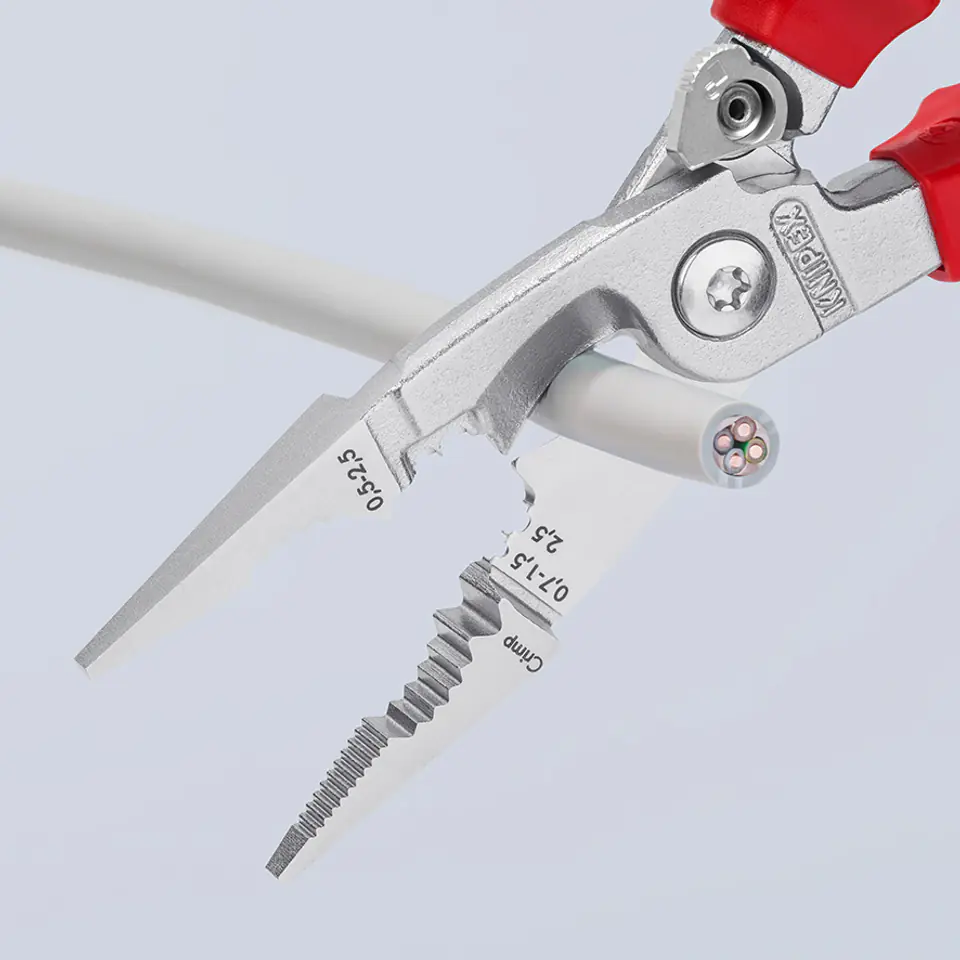

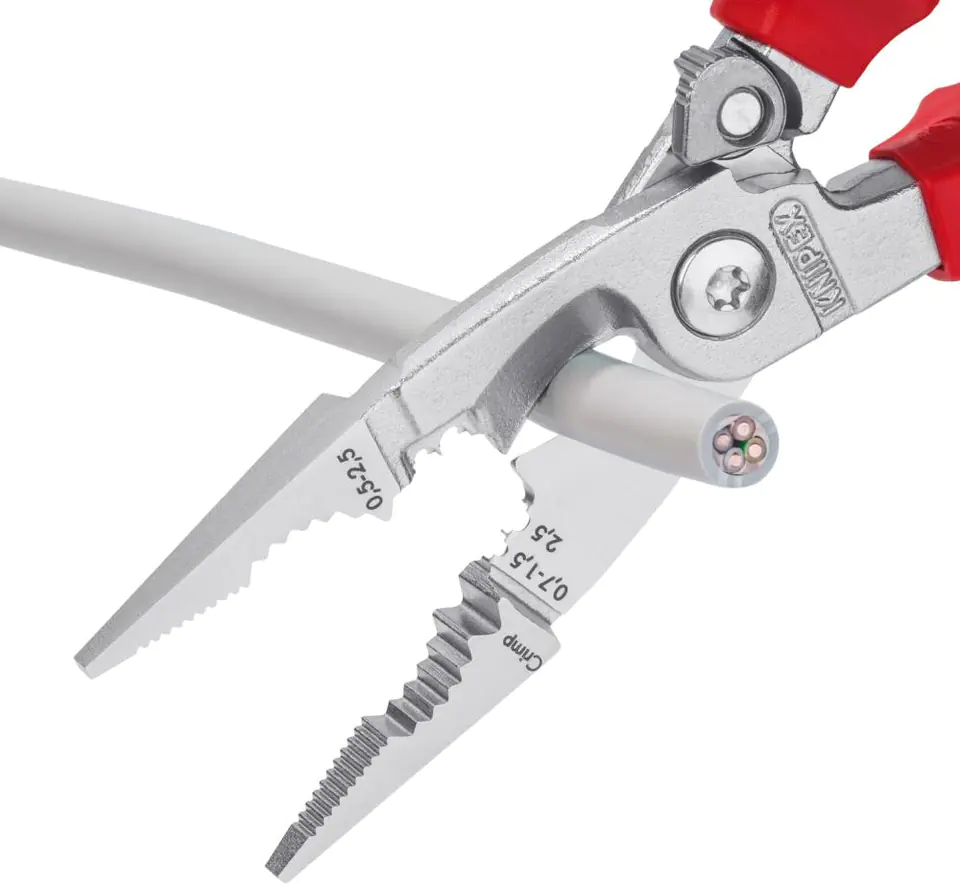

Cable shears with precision blades separately induction hardened for cutting copper and aluminum cables with cross section / diameter up to 5 x 2.5 mm2 / O 15 mm

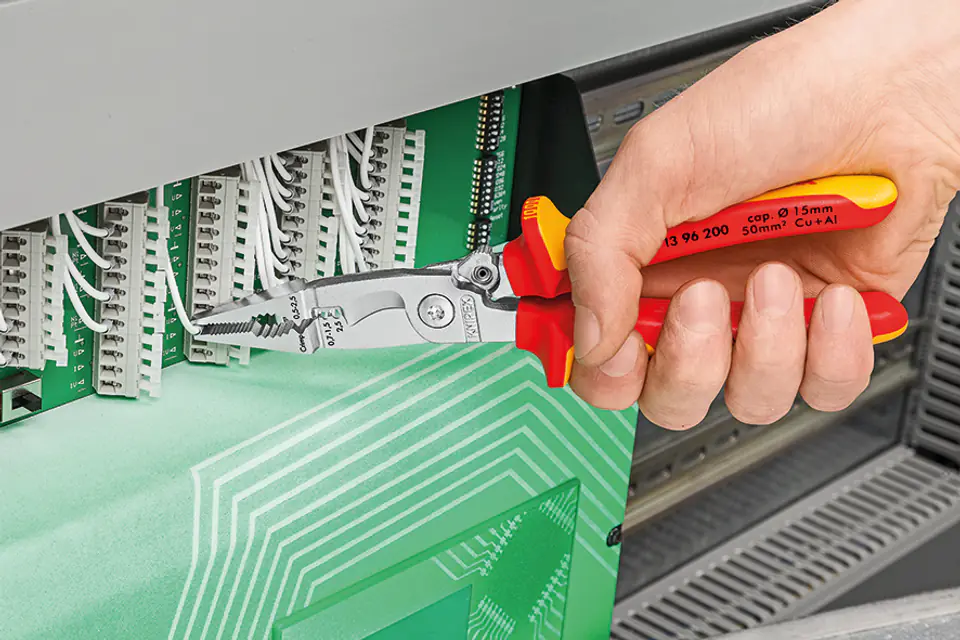

Compact design makes it easy to work in hard-to-reach places
Screwed connector for precise movement of pliers without backlash
Special high quality tool steel, forged, multi-stage oil hardened


**

Illustrative photos.
