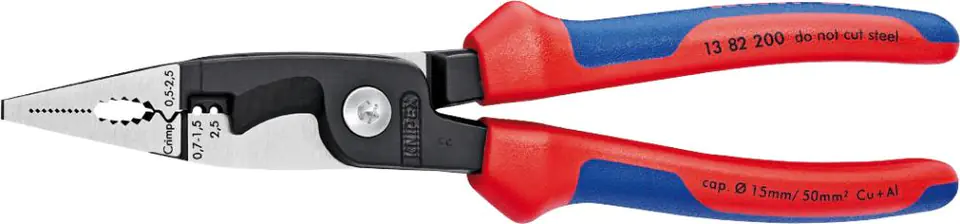

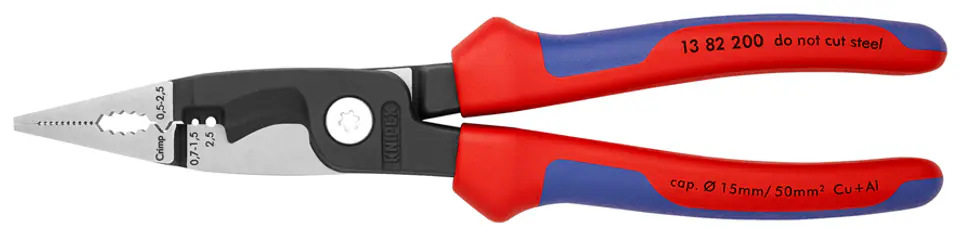

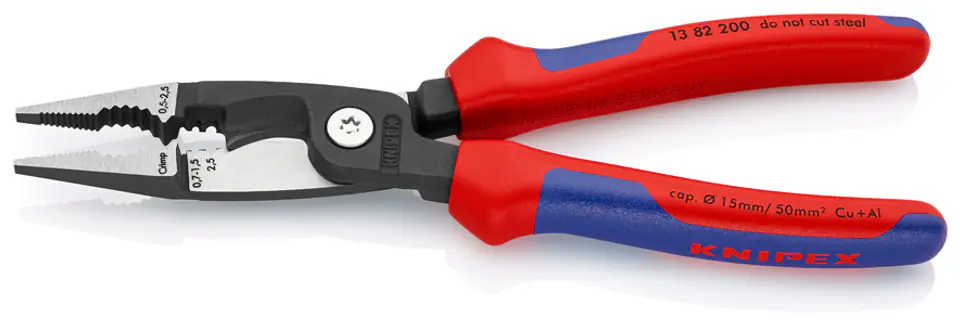

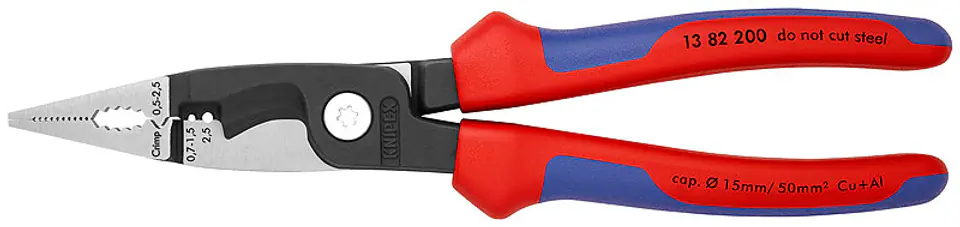

Multifunctional pliers for electrical installation work allow gripping materials with a flat and round cross-section, bending, deburring, cutting and isolating wires and kneading cable sleeves
6 functions in one tool
Smooth gripping surfaces allow safe gripping of individual conductors profiled gripping surfaces and shape gripping surfaces allow gripping materials with flat and round cross
the outer edge of the jaw allows the processing of flush-mounted cans and the removal of burrs in the throughput holes

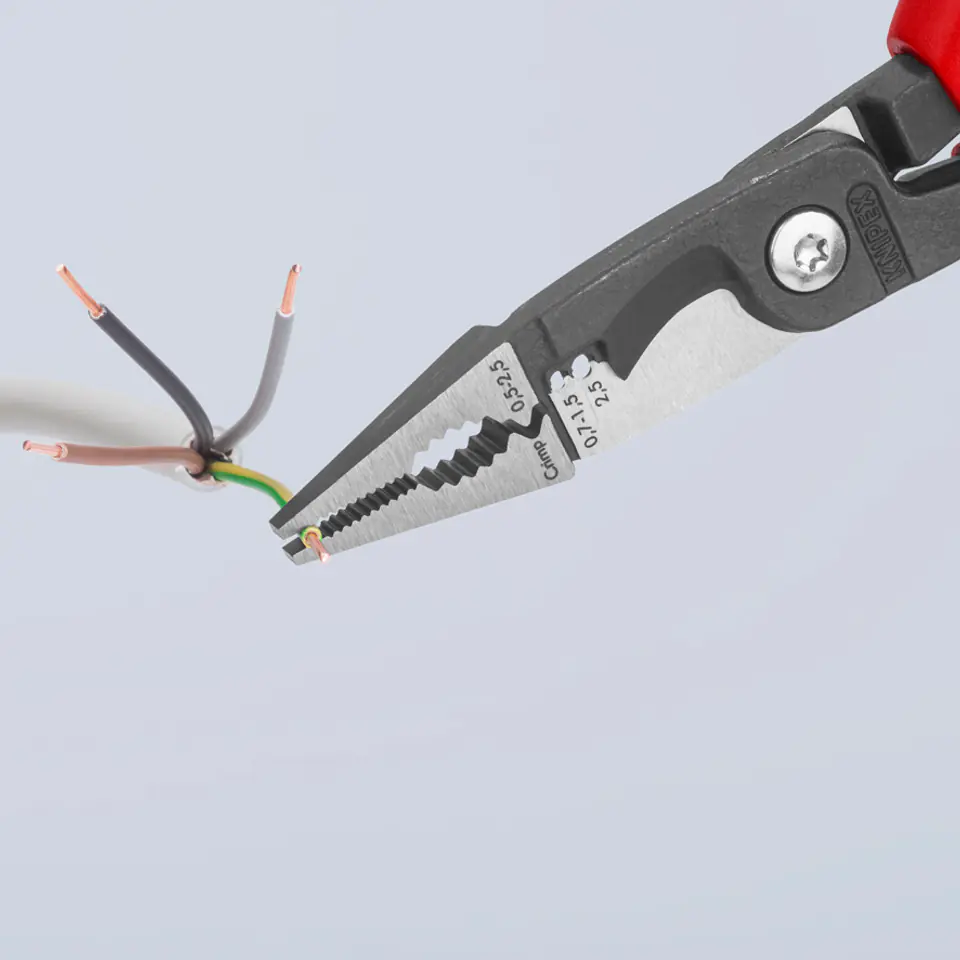

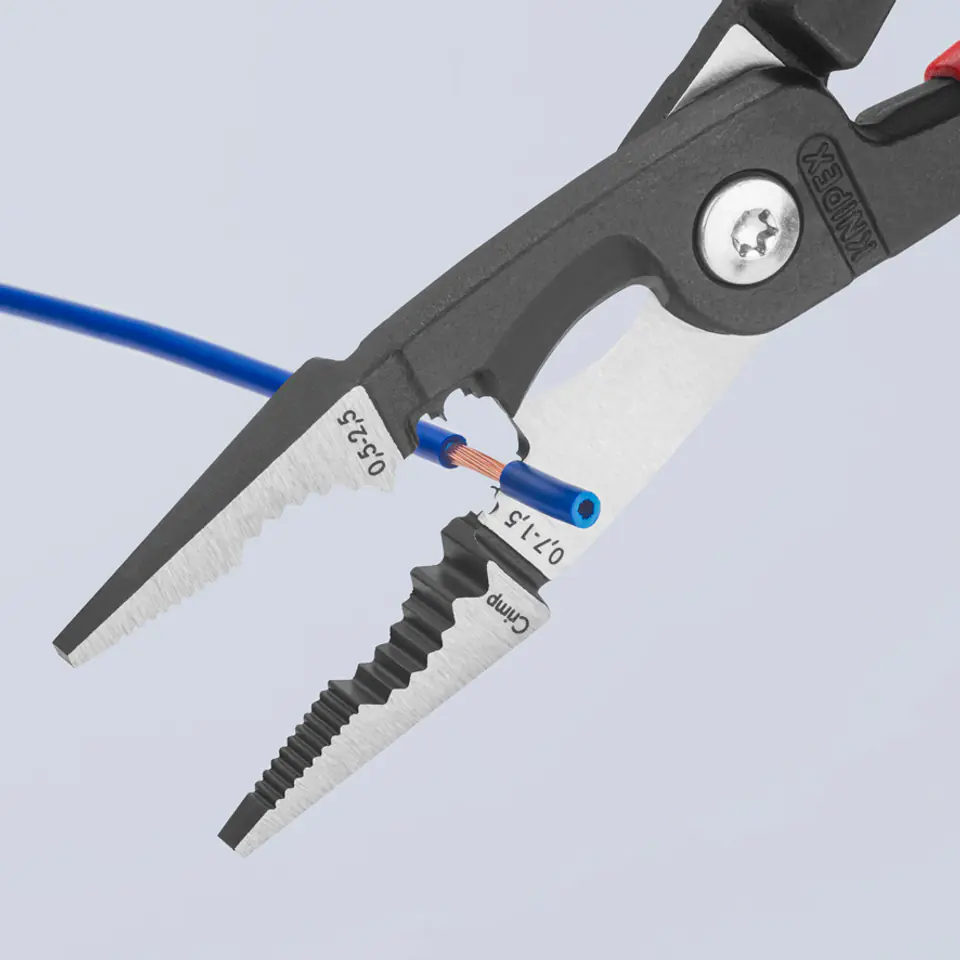

Profiles for stripping insulation from wires with a cross section of 0.75 - 1.5 mm2 and 2.5 mm2

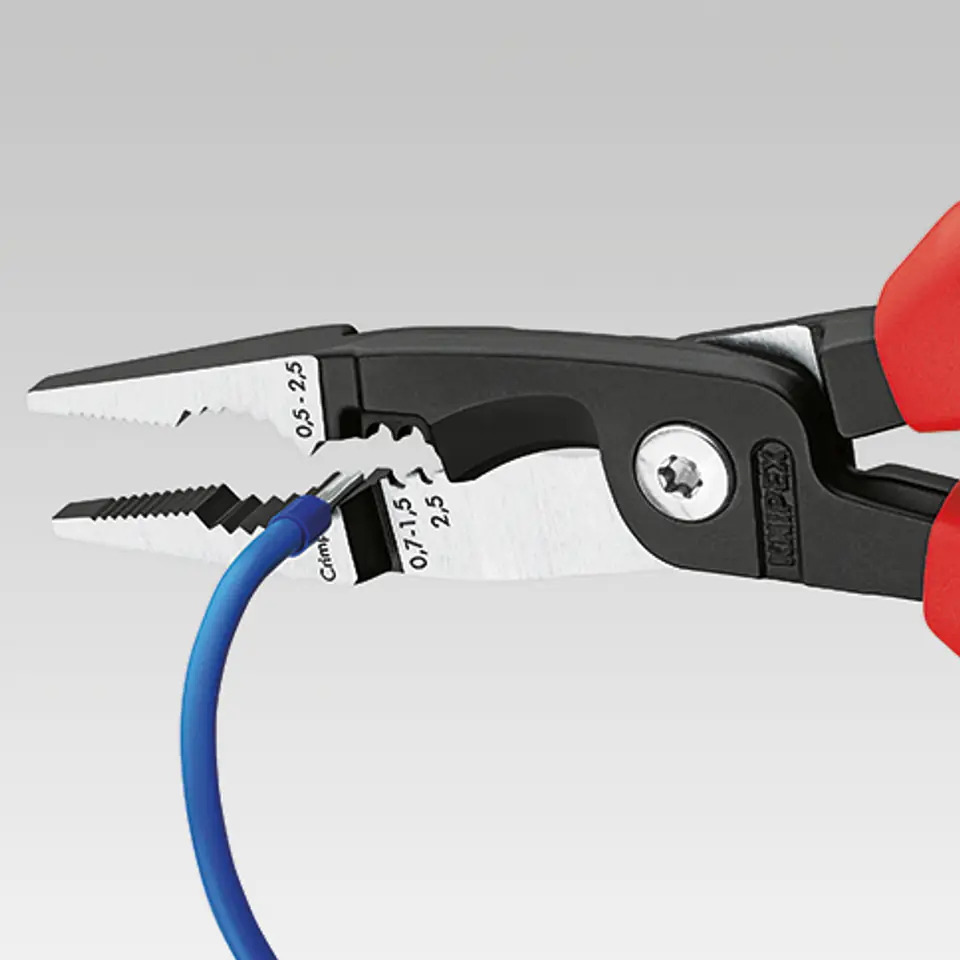

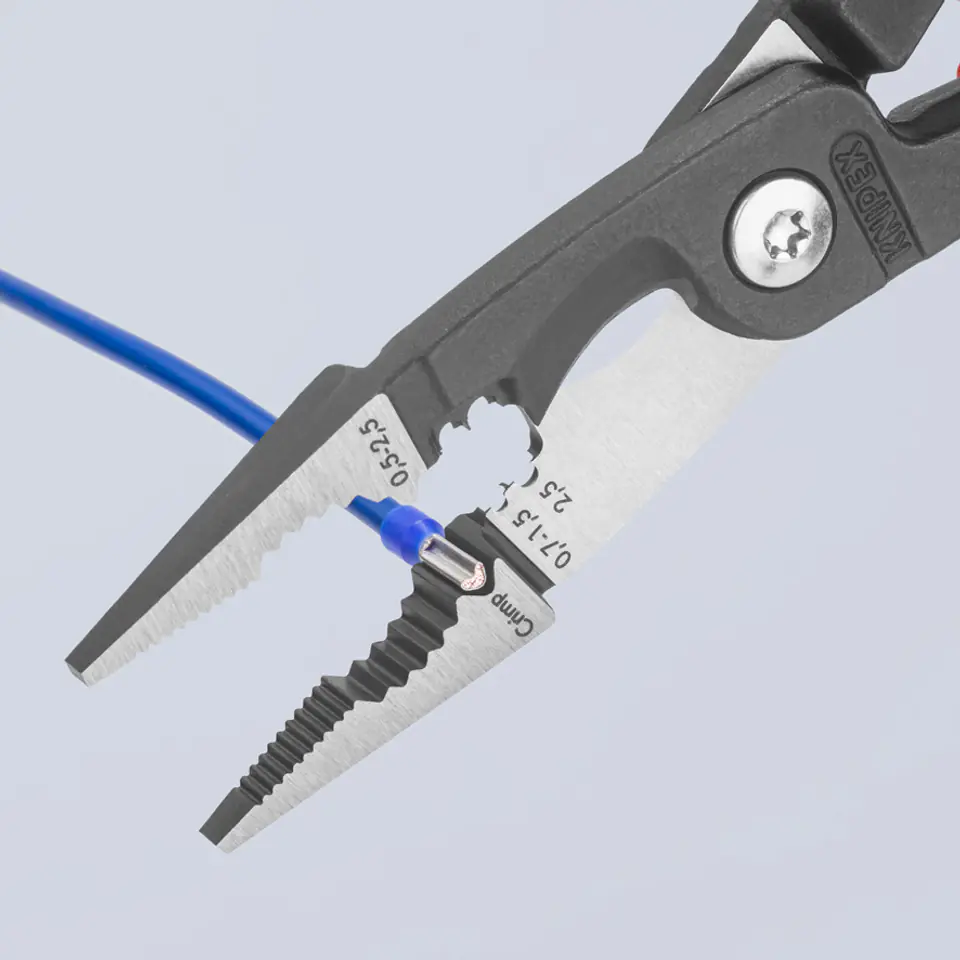

Crimping socket for cable sleeves 0.5 - 2.5 mm2

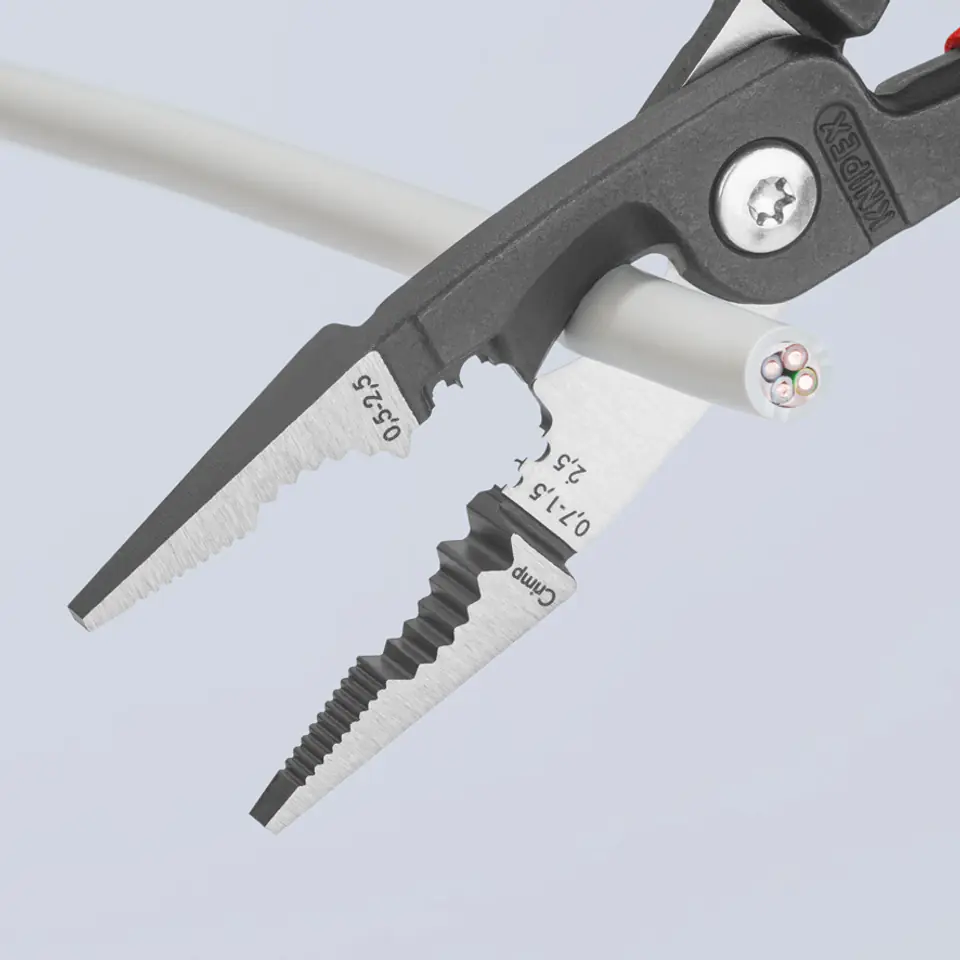

Cable shears with precision blades separately induction hardened for cutting copper and aluminum cables with cross section / diameter up to 5 x 2.5 mm2 / O 15 mm
The intelligent restraint mechanism allows gripping without having to completely open the pliers. The blade remains closed and secured.
Compact design makes it easy to work in hard-to-reach places
Screwed connector for precise movement of pliers without backlash
Special high quality tool steel, forged, multi-stage oil hardened
Pinched phosphated, black
Polished head
Handle with multi-component caps
Cutting range of copper, multicore cable (diameter) 15mm
Cutting range of copper, multicore cable 50mm2
Operating range of single conductors0.75 - 1.5 + 2.5 mm2
Operating range in mm20.5 - 2.5 mm2
AWG1/0
