Specifications:
Item no.: 97 72 180
EAN: 4003773060185
Head: polished
Handles: with multi-component caps
Weight: 242 g
Dimensions: 180 x 51 x 22 mm
REACH: does not contain SVHC
RoHS: not applicable
Application: Sleeves without flange
Operating range in mm2: 0.25 - 16.0 mm2
Number of slots: 9
AWG: 24 — 6
Lightweight and compact design
Also available in VDE version
Optimal lever ratio for easier crimping

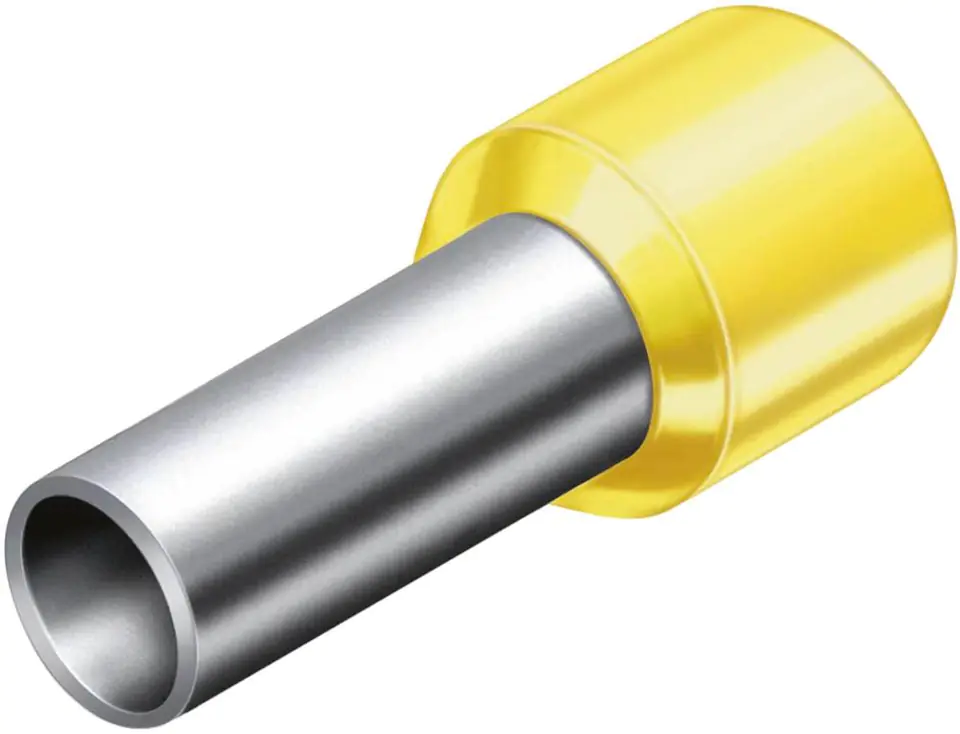

For crimping cable sleeves according to DIN 46228 part 1 + 4 in the range from 0.25 to 16 mm2
Semicircular crimping profile provides a secure connection between sleeve and cable
9 extremely deep crimping profiles with tapered side surfaces
Special tool steel, forged, oil hardened
**

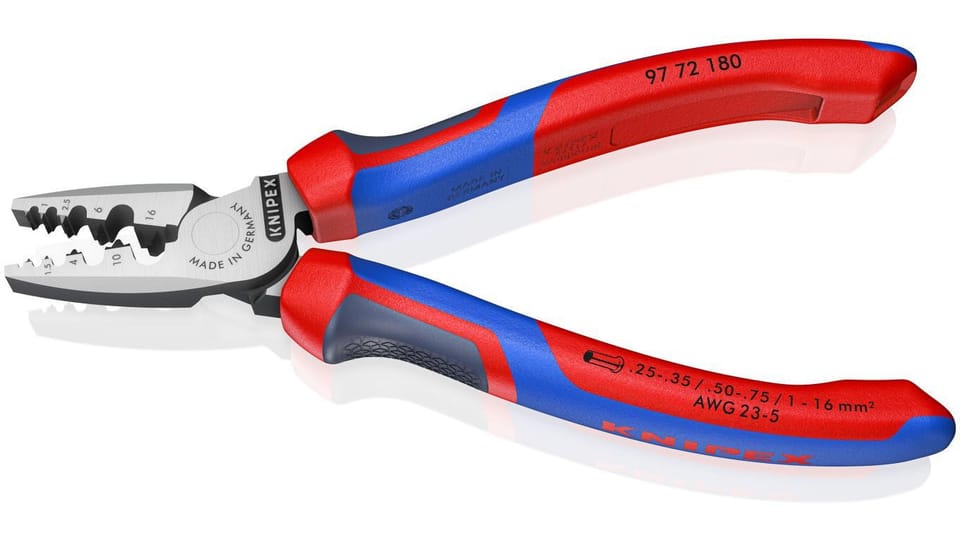

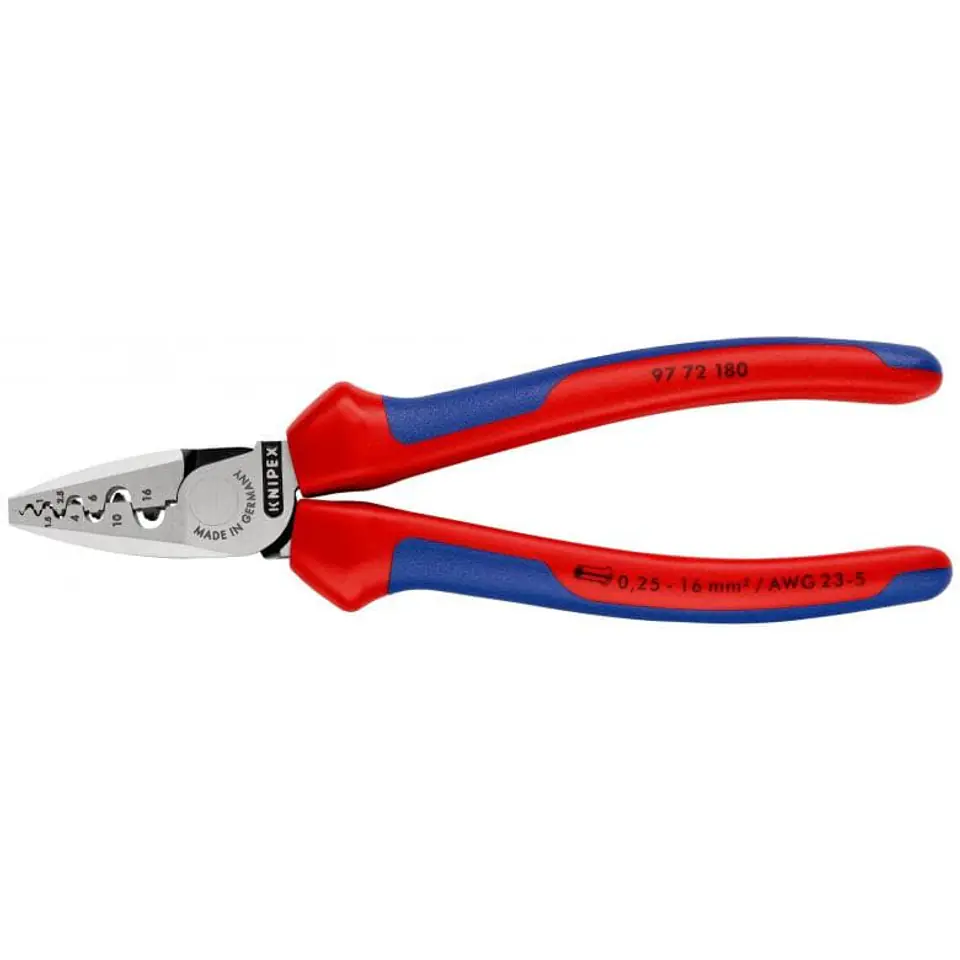

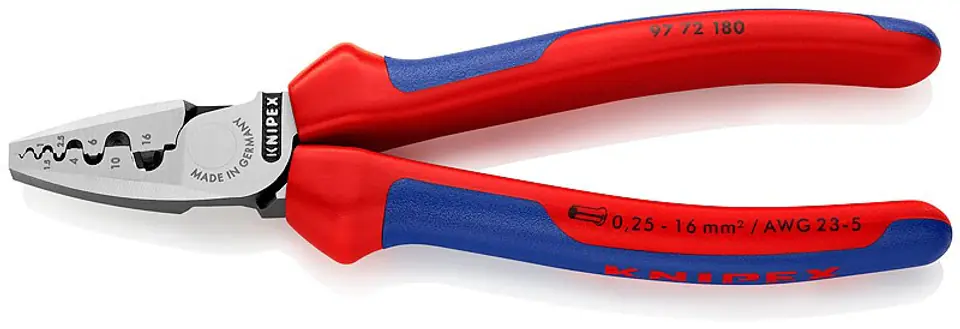

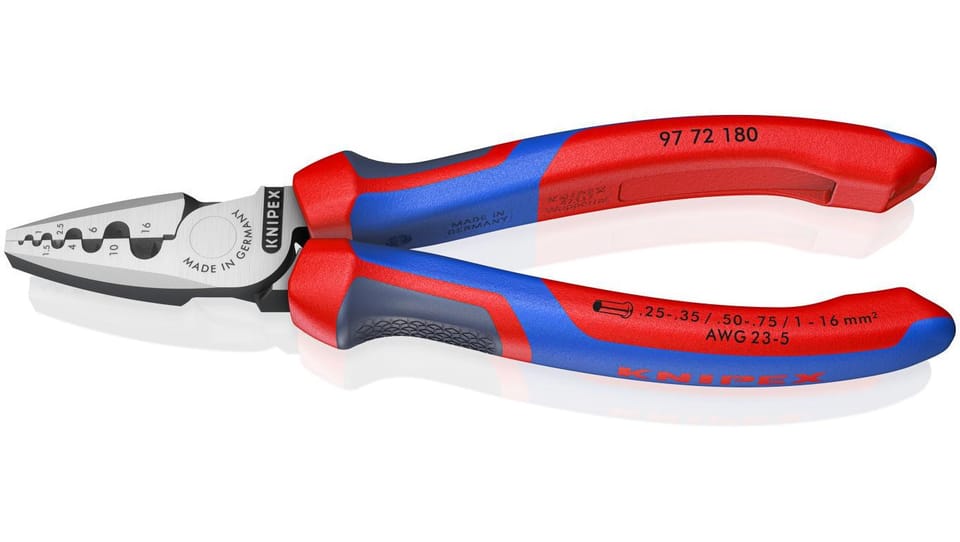

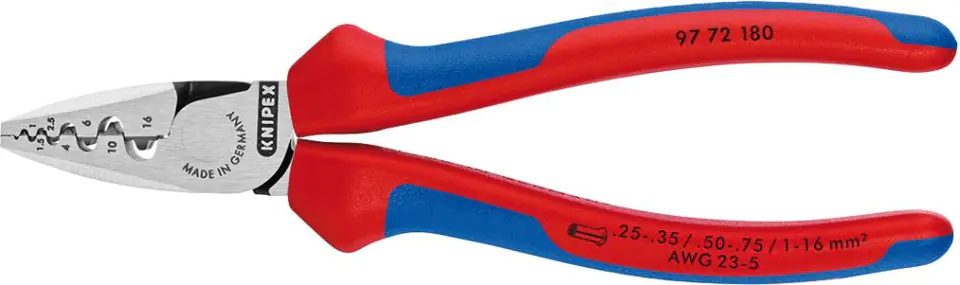

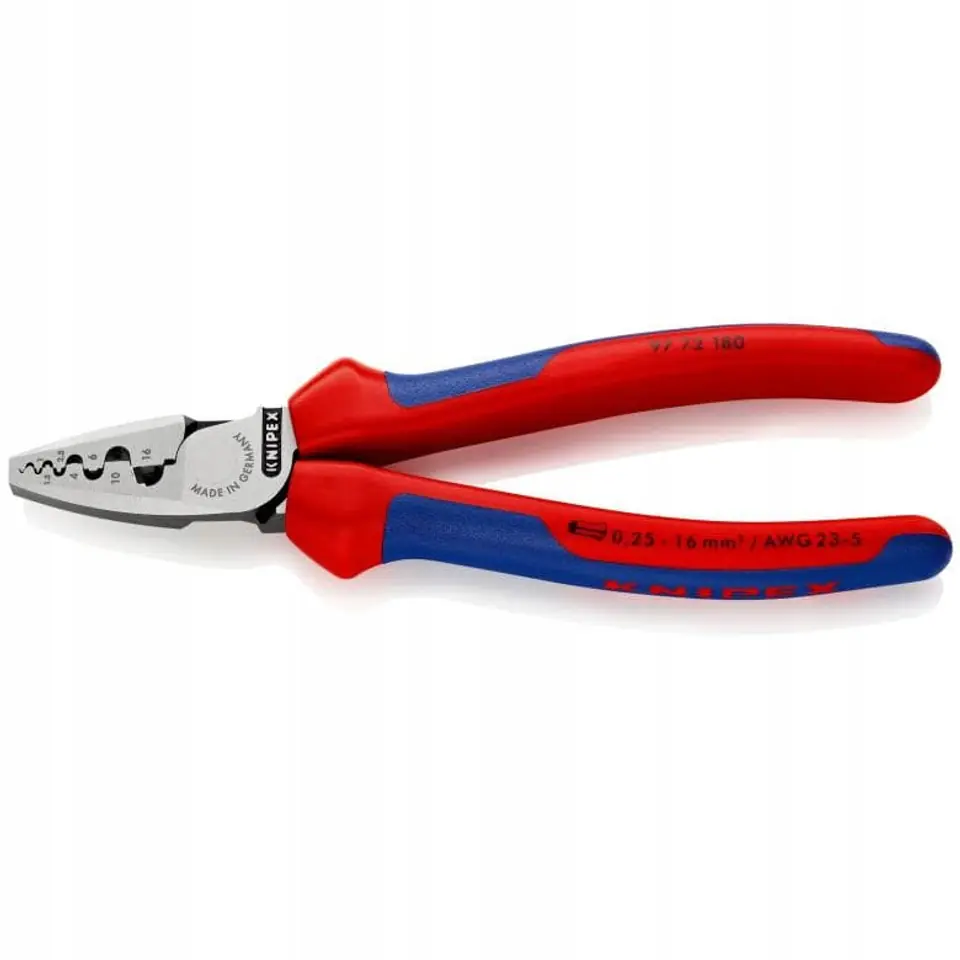

Illustrative photo.
PLIERS FOR CRIMPING CABLE SLEEVES. 0.25-16MM
€41.24
Shipping from warehouse: U1
Estimated shipping: Mon, Nov 4 - Wed, Nov 6
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- KNIPEX
- Product code:
- 8255070006 / 4003773060185
Share this product:
Specification
| Wire cross section: | 0,25 to 16 mm2 |
|---|
