Manufacturer Name: MSW-MHB-450-780.1
The MSW motorcycle lift is designed for use in professional motorcycle services, repair plants and workshops. He will also find himself in the garage of a two-wheeler enthusiast. It is designed to lift (in the range from 180 to 780 mm) and support motorcycles with a total weight of up to 450 kg, i.e. light enduro, cross and scooter machines. The MSW-MHB-450-780.1 model can also be used to increase components from larger vehicles: fuel tanks, control arms and axles. Raising and lowering is carried out using the foot pedal. 4 wheels provide mobility for the elevator.
Lifting the machine is carried out in the range from 180 to 780 mm. This allows for comfortable work and convenient access to all parts of the vehicle being repaired. The mechanic does not have to bend down, and all structural elements are clearly visible.
Solid construction is an advantage of the presented equipment. The motorcycle lift from MSW is made of high quality steel. It has a load capacity adapted to two-wheelers with a total weight of max. 450 kg. It is operated using foot pedals. When lowering the height, a special mechanism ensures smoothness of movement.
The machine is easy to immobilize

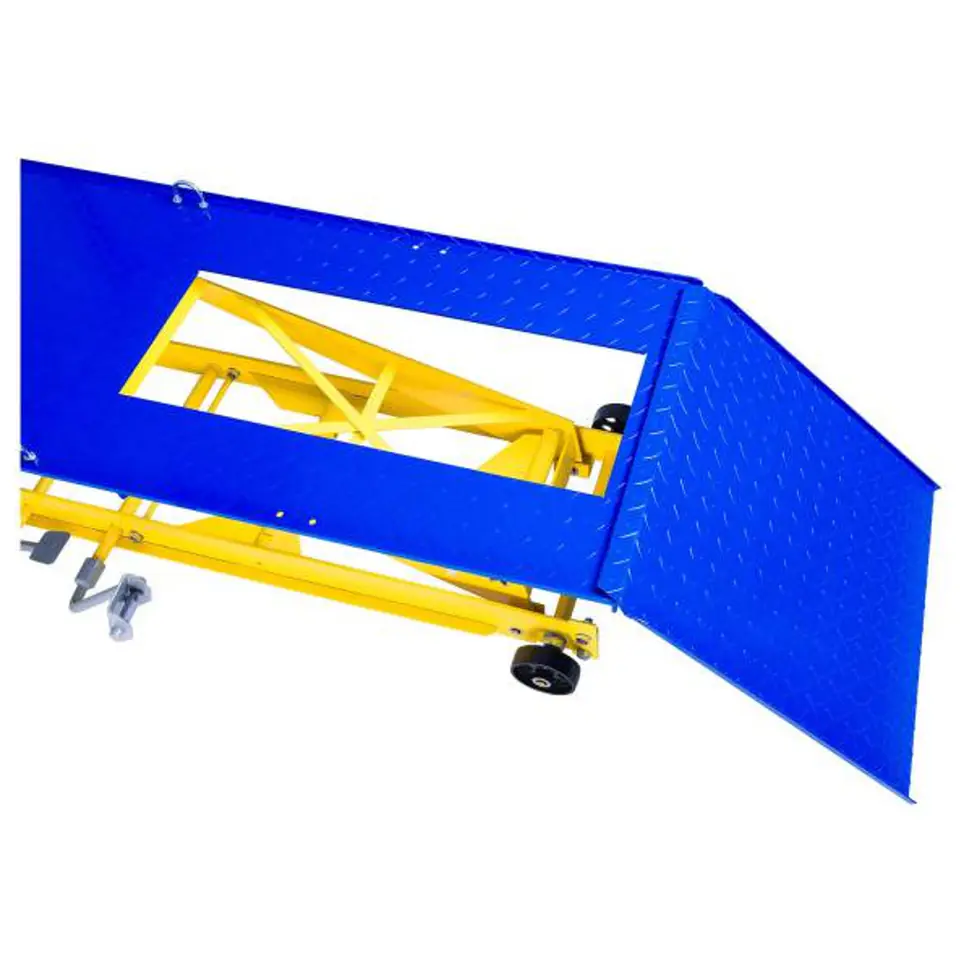

Safe attachment is guaranteed by a vice located at the front and 4 additional buckles located on the sides. It is easy to attach a rope or tape to them, which further stabilize the machine. 2 screws at the base allow you to balance the equipment and set it even on an uneven surface. The MSW-MHB-450-780.1 lift also has a removable panel to facilitate the dismantling of the rear wheel.
The ramp allows for quick introduction and later convenient descent of the machine from the platform. You do not have to lower the motorcycle elevator to the ground.
4 wheels (including 2 swivel wheels) are a convenience that increases mobility. If necessary, it is easy to move the lift along with the repaired motorcycle without having to remove it. This is very practical, e.g. in automotive services.
Product features:
- Max. lifting capacity 450 kg
- 18 - 78 cm
- 4 fastening buckles
- Crank vice
- Foot support
Technical parameters:
- - Model - MSW-MHB-450-780.1
- - Catalogue number - 6318
- - Article status - New
- - Maximum load capacity - 450 kg
- - Number of fastening buckles - 4
- - Lifting height - From 180 to 780 mm
- - Platform dimensions - 2060 x 550 mm
- - Rollover dimensions - 600 x 550 mm
- - Dimensions (LxWxH) - 260 x 67 x 100 cm
- - Weight - 153 kg
- - Shipping dimensions (LxWxH) - 217 x 62 x 27 cm
- - Shipping weight - 172 kg
