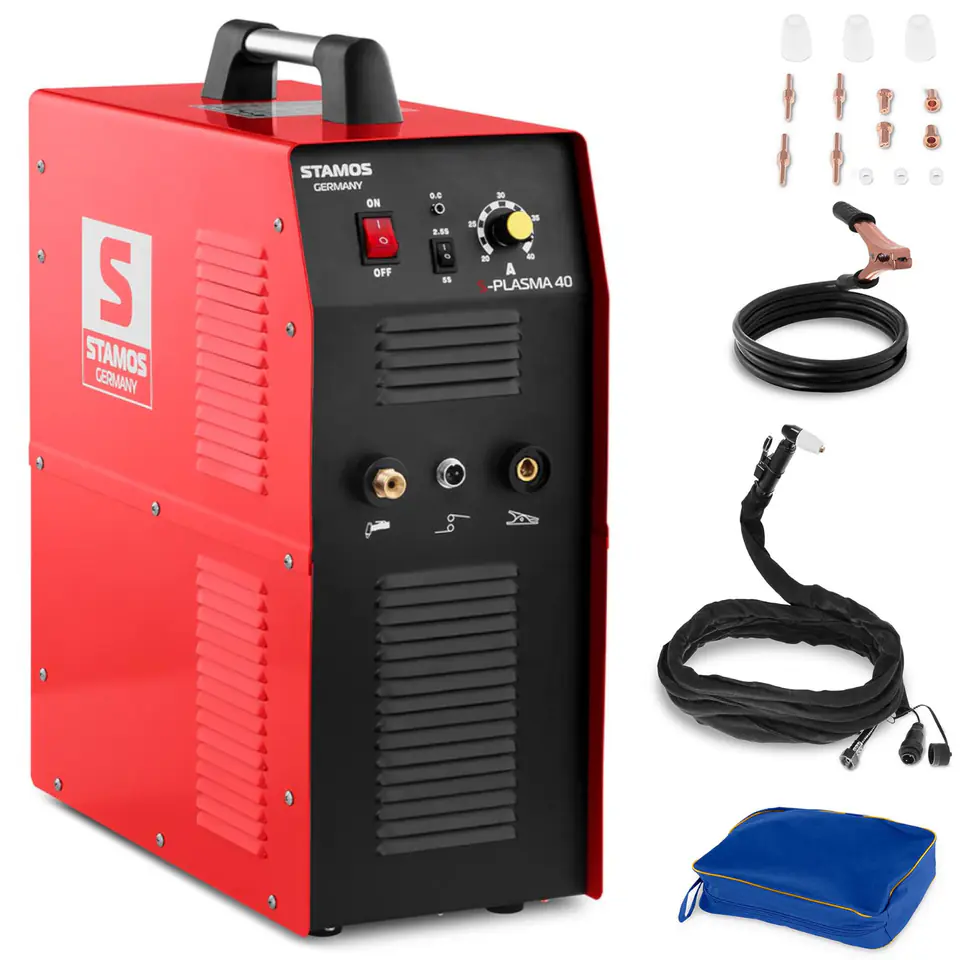

S-PLASMA 40 STAMOS GERMANY maximum cutting current 40 Ao thickness up to 10 mmBuilt-in compressorINVERTER technology MOSFET93% of working efficiencyoptimal electricity consumption low risk of burnoutProduct features:
- - Versatility - for cutting steel and other electrically conductive metals (titanium, copper, brass , etc.)
- - Functionality - built-in compressor providing constant access to compressed air
- - Efficiency - modern MOSFET technology provides a working efficiency of 93% and precise and safe cutting,
- - Simple operation - a large knob allows you to precisely determine the cutting current, without having to remove gloves,
- - Easy transport - convenient handle, small size and weight allow you to easily move the cutter according to your needs,
- - Convenience - long 4-meter wires guarantee freedom of movement during cutting and facilitate work in hard-to-reach places,
- - Model - S-PLASMA 40
- - Catalogue number - 2210
- - Article status - New
- - Rated input voltage - 230 V
- - Mains frequency - 50 Hz
- - Cutting current - 20 – 40 A
- - Rated input current - 16.4 A
- - Maximum input current - 22.1 A
- - Rated input power - 5,08 kVA
- - Idle voltage - 230 V
- - Rated duty cycle - 60%
- - Cutting width - 1 mm
- - Maximum cutting thickness - 10 mm
- - Ground wire with clamp - 1.3 m
- - Power cord - 1.9 m
- - Plasma holder - 3.7 m
- - CNC - No
- - Water cooling - No
- - Manual - Yes
- - Dimensions (LxWxH) - 42.5 x 20.5 x 54.5 cm
- - Weight - 21.6 kg
- - Shipping dimensions (LxWxH) - 55 x 30 x 59 cm
- - Shipping weight - 28,5 kg
- Plasma cutting - thanks to the current up to 40 A, the device will easily cut such metals as iron, stainless steel, cast iron, copper or aluminum. The gas pressure is infinitely adjustable, which allows for precise control of the plasma jet. Non-burning of the material, a small amount of distortion and a smooth cutting gap are some of the advantages of using the Stamos Germany multifunction device.
- - Cutter
- - Tool bag
- - Ground wire with clamp
- - Plasma holder
- - Consumable accessories
- - Manual EN
