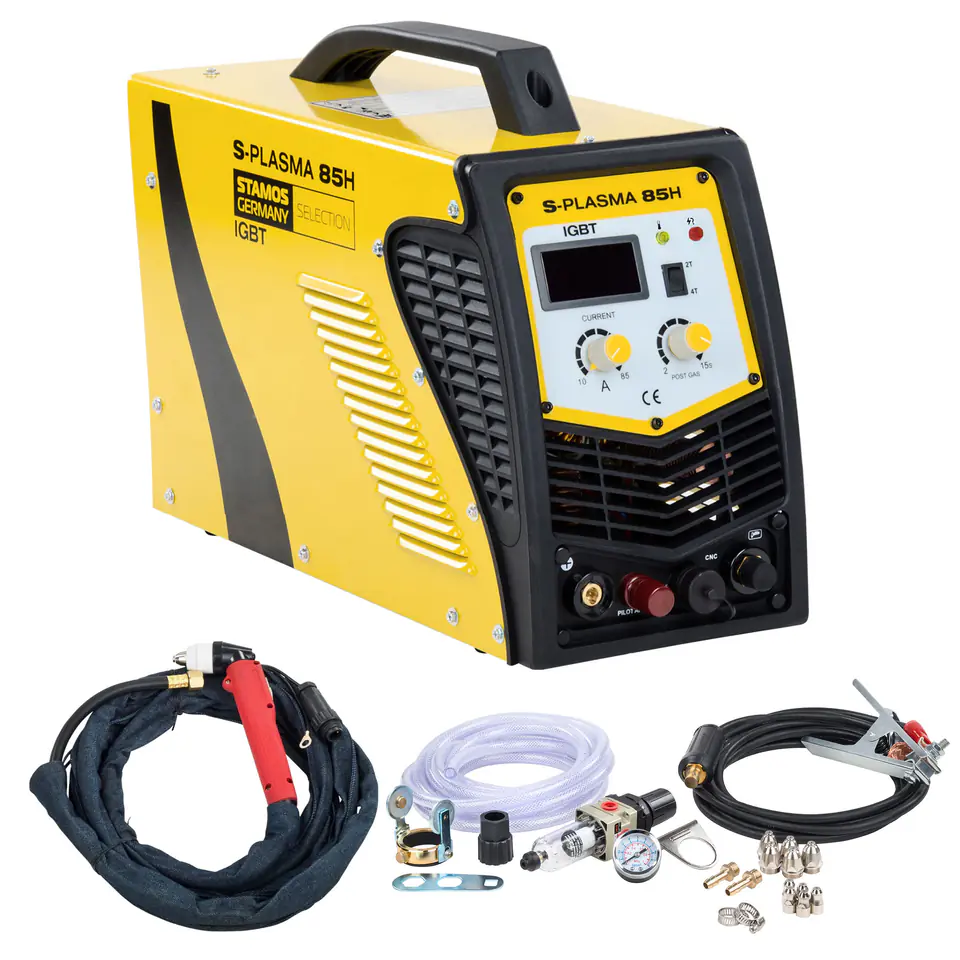

Plasma cutter S-PLASMA 85H SELECTION 85A

€636.79
Shipping from warehouse: ⁨H1⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Stamos Germany
Product code:
10020044 / 4260223024061

Specification

Sku:1000225
S-PLASMA 85HSTAMOS GERMANY maximum cutting current 85 AGBT technologies ensure reliabilityFast parameter switchinglow risk of short circuitProduct features:
  • - Functionality - for cutting steel and other electrically conductive metals (titanium, copper, brass , etc.)
  • Efficiency - modern IGBT technology and non-contact arc ignition ensure smooth and stable operation,
  • Simple operation - large knobs allow you to precisely determine the cutting current, without having to remove gloves,
  • Readability - LED display shows current intensity even in dark rooms,
  • Easy transport - convenient handle, small size and weight allow you to easily move the cutter according to your needs,
  • Convenience - long 5 and 4-meter wires guarantee freedom of movement during cutting and facilitate work in hard-to-reach places,
  • - Safety - a special system of protection against overheating and a built-in fan that guarantees heat dissipation,
STAMOS devices have been made according to strict European standards and have passed tests for compliance with CE and RoHS. This guarantees a long service life and high quality of the device. Technical parameters:
  • - Model - S-PLASMA 85H
  • - Catalogue number - 2044
  • - Article status - New
  • - Rated input voltage - 400 V, 3-Phase
  • - Mains frequency - 50 Hz
  • - Rated input current - 13.2 A
  • - Maximum input current - 18.6 A
  • - Rated input power - 8,6 kVA
  • - Maximum input power - 13.2 kVA
  • - Idle voltage - 280 V
  • - Cutting current - 20 - 85 A
  • - Rated duty cycle - 60%
  • - Cut current in the duty cycle 100% - 65.8 A
  • - Cut current in the duty cycle 60% - 85 A
  • - Gas flow time - 2 – 15 s
  • - Maximum cut thickness - 27 mm
  • - Cutting width - 1.2 mm
  • - Required air flow - 175 l/min
  • - Working air pressure - 5.5 bar
  • - Plasma mount - 5 m
  • - Ground wire with clamp - 4 m
  • - Air nozzle - 4 m
  • - Power cable - 3.8 m
  • - Chassis cooling - Fan
  • - Method of cooling the handle - Air
  • - Power factor - 0.93
  • - Efficiency (at rated conditions) - ≥ 0.85
  • - Insulation class - F
  • - Construction according to - EN 60974-1 / EN 60974-10
  • - EG - CE compliant
  • - Degree of protection - IP20 s
  • - Dimensions (LxWxH) - 55 x 37 x 21 cm
  • - Weight - 20.1 kg
  • - Shipping dimensions (LxWxH) - 65 x 36.5 x 44 cm
  • - Shipping weight - 27.6 kg
Working methods:
  • Plasma cutting - thanks to the current of up to 85 A, the device will easily cut such metals as iron, stainless steel, cast iron, copper or aluminum. The air pressure is infinitely adjustable, which allows for precise control of the plasma jet. Non-burning of the material, a small amount of distortion and a smooth cutting gap are some of the advantages of using the Stamos Germany multifunction device.
Device Features:
  • - 2T/4T, i.e. two-bar and four-bar. When using the first one, pressing the button will initiate the cut, and releasing it interrupts this process. In the case of a four-bar, the user does not have to hold the buttons constantly, because pressing and releasing the button starts or ends the work,
  • - Non-contact ignition of the plasma arc allows you to start cutting without contact with the material being processed, which reduces wear of consumable parts and improves work efficiency,
  • - Gas Post-Flow Time, i.e. regulation of gas outflow. Prevents oxidation of the weld,
Included:
  • - Cutter S-PLASMA 85H
  • - Cutting handle with cable – 5 m
  • - Ground wire with clamp – 4 m
  • - Air nozzle – 4 m
  • - Pressure regulator
  • - Pressure gauge
  • - Components for plasma holder
  • - Manual EN

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
