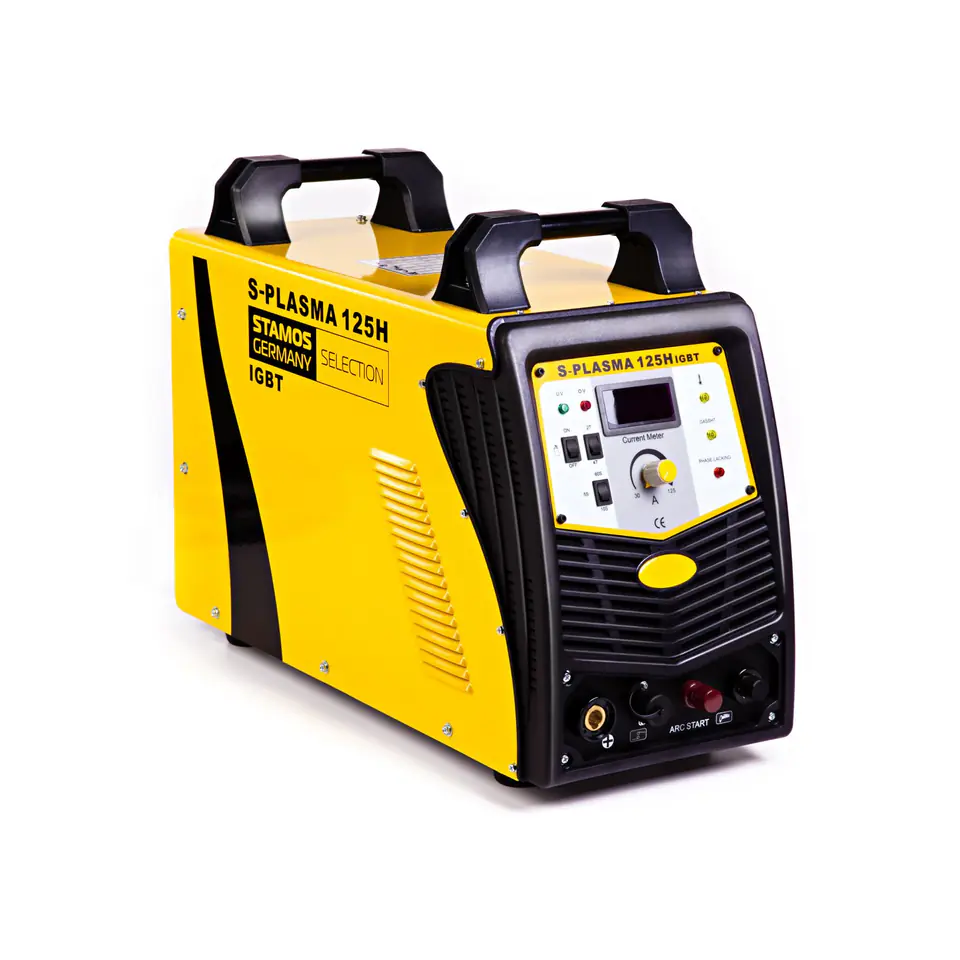

S-PLASMA 125HSTAMOS GERMANY maximum cutting current 125 AGBT technologies ensure reliabilityFast parameter switchinglow risk of short circuitProduct features:
- - Functionality - for cutting steel and other electrically conductive metals (titanium, copper, brass , etc.)
- - Efficiency - modern IGBT technology and non-contact arc ignition ensure smooth and stable operation,

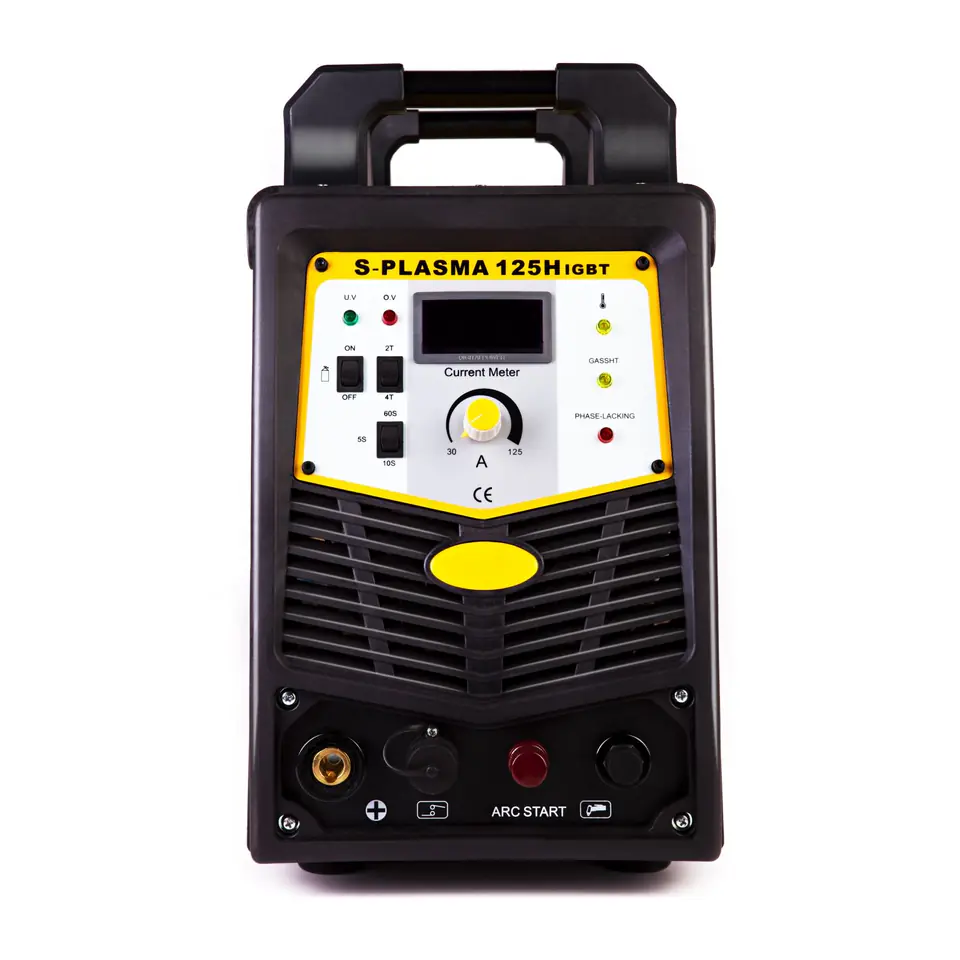

- - Simple operation - a large knob and switches allow you to precisely set the operating parameters without having to remove gloves,
- - Readability - led display shows the current intensity even in dark rooms, and the DIODES inform about too high voltage or drop in air pressure,
- - Easy transport - convenient handle, small size and weight allow you to easily move the cutter according to your needs,
- - Convenience - long 5 and 4-meter wires guarantee freedom of movement during cutting and facilitate work in hard-to-reach places,
- - Safety - a special system of protection against overheating and a built-in fan that guarantees heat dissipation,
- - Model - S-PLASMA 125H
- - Catalogue number - 2067
- - Article status - New
- - Rated input voltage - 400 V, 3-phase
- - Mains frequency - 50 / 60 Hz
- - Rated input current - 22 A
- - Maximum input current - 31 A
- - Rated input power - 15,4 kVA
- - Maximum input power - 21.8 kVA
- - Idle voltage - 300 V
- - Cutting current - 10 - 125 A
- - Rated duty cycle - 60%
- - Cut-cycle cutting current 100% - 96.8 A
- - Cut current in the duty cycle 60% - 125 A
- - Gas Post-Flow Time - 2, 10, 60 s

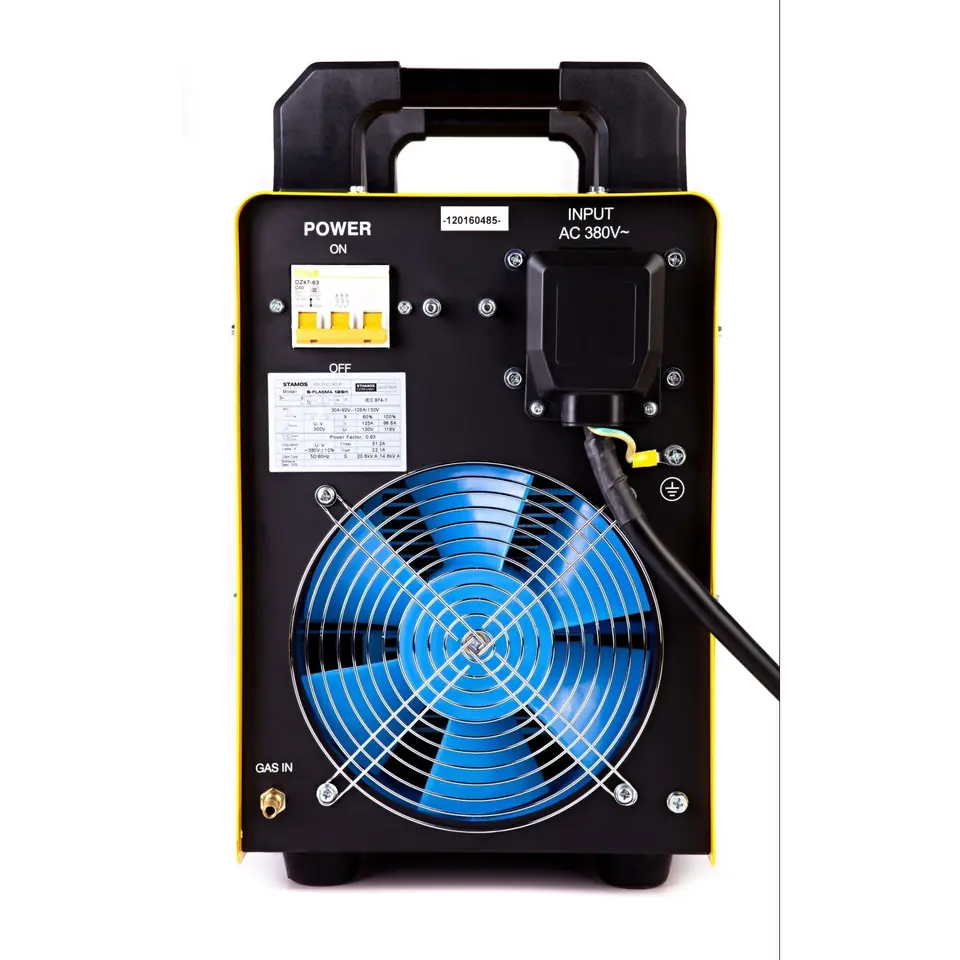

- - Chassis cooling - Fan
- - Method of cooling the handle - Air
- - Mass wire length - 3 m
- - Plasma holder length - 5 m
- - Air hose length - 4 m
- - Power cord length - 3.8 m
- - Maximum thickness of the cut material - 34 mm
- - Cutting width - 1.4 mm
- - Required air flow - 250 l/min
- - Air pressure - 7 bar
- - Insulation class - F
- - Degree of protection - IP21S
- - Construction according to - EN 60974-1; EN 60974-10
- - EG - CE compliant
- - Dimensions (LxWxH) - 63.5 x 27 x 40 cm
- - Weight - 33.9 kg
- - Shipping dimensions (LxWxH) - 74 x 38 x 52 cm
- - Shipping weight - 34.8 kg
- Plasma cutting - thanks to the current of up to 125 A, the device will easily cut such metals as iron, stainless steel, cast iron, copper or aluminum. The air pressure is infinitely adjustable, which allows for precise control of the plasma jet. Non-burning of the material, a small amount of distortion and a smooth cutting gap are some of the advantages of using the Stamos Germany multifunction device.
- - 2T/4T, i.e. two-bar and four-bar. When using the first one, pressing the button will initiate the cut, and releasing it interrupts this process. In the case of a four-bar, the user does not have to hold the buttons constantly, because pressing and releasing the button starts or ends the work,
- - Non-contact ignition of the plasma arc allows you to start cutting without contact with the material being processed, which reduces wear of consumable parts and improves work efficiency,
- - Gas Post-Flow Time, i.e. regulation of gas outflow. Prevents oxidation of the weld,

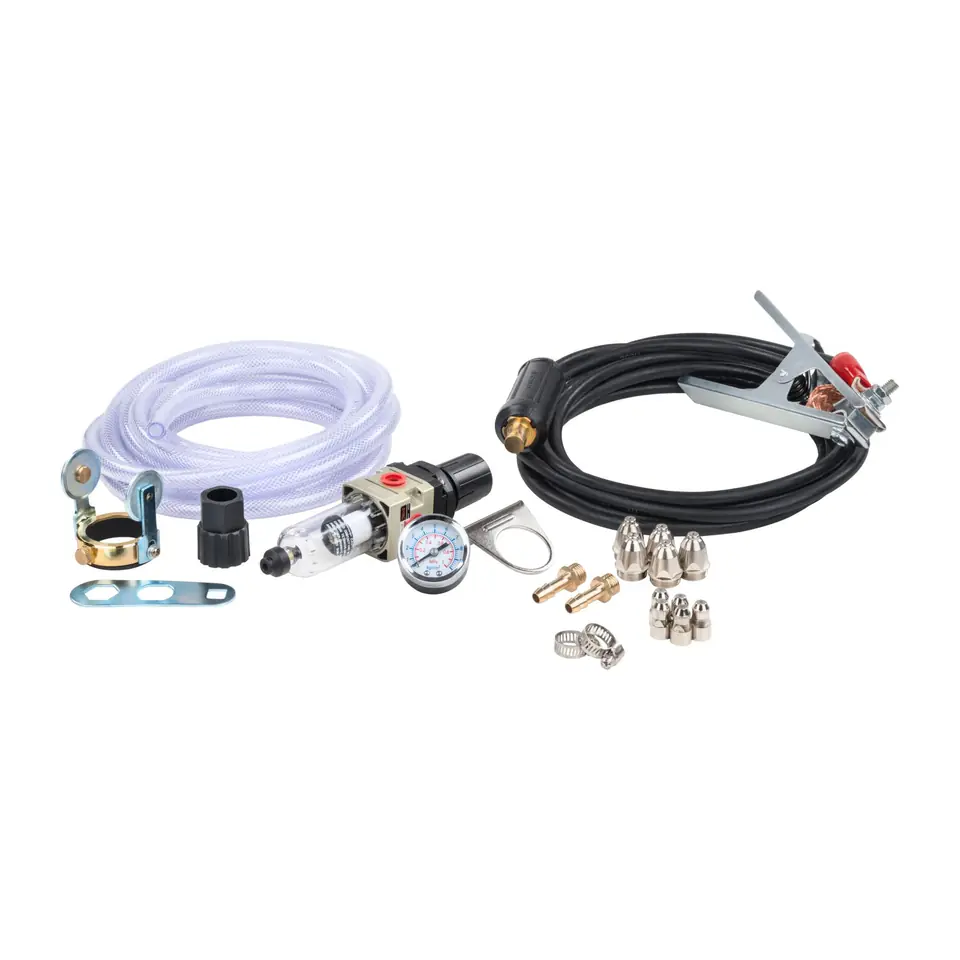

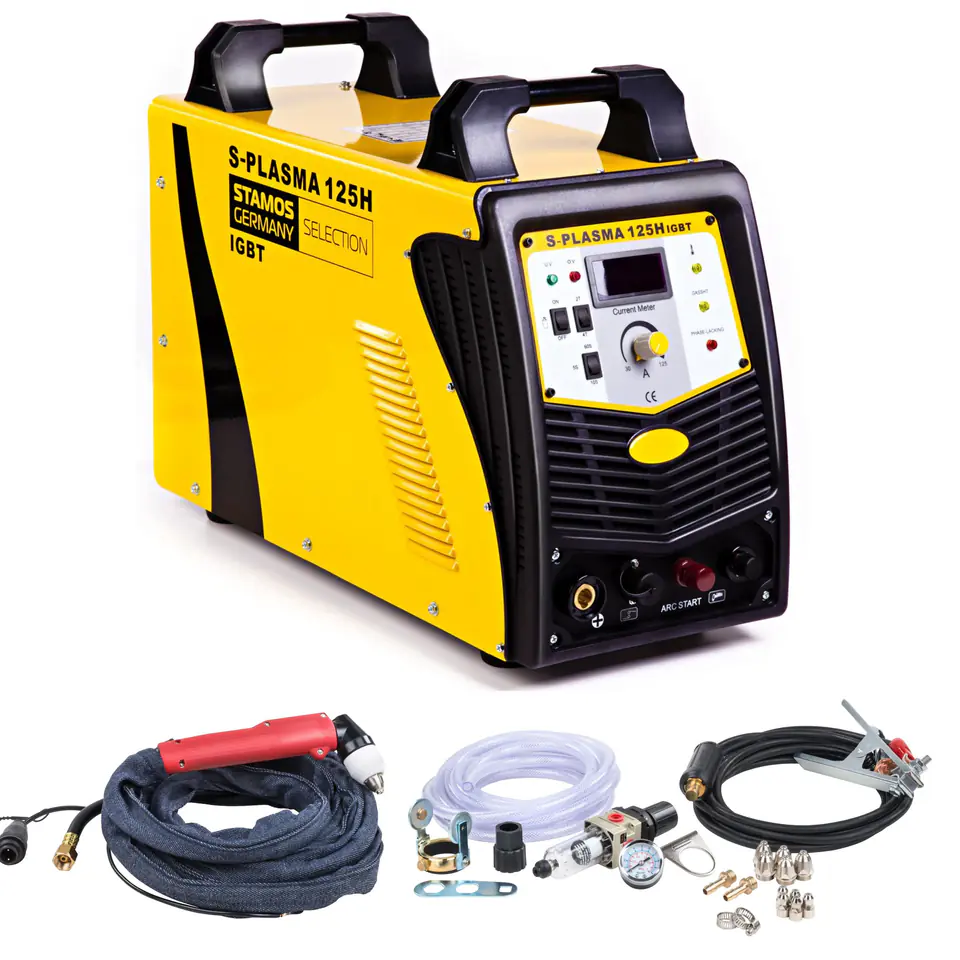

- - Plasma cutter

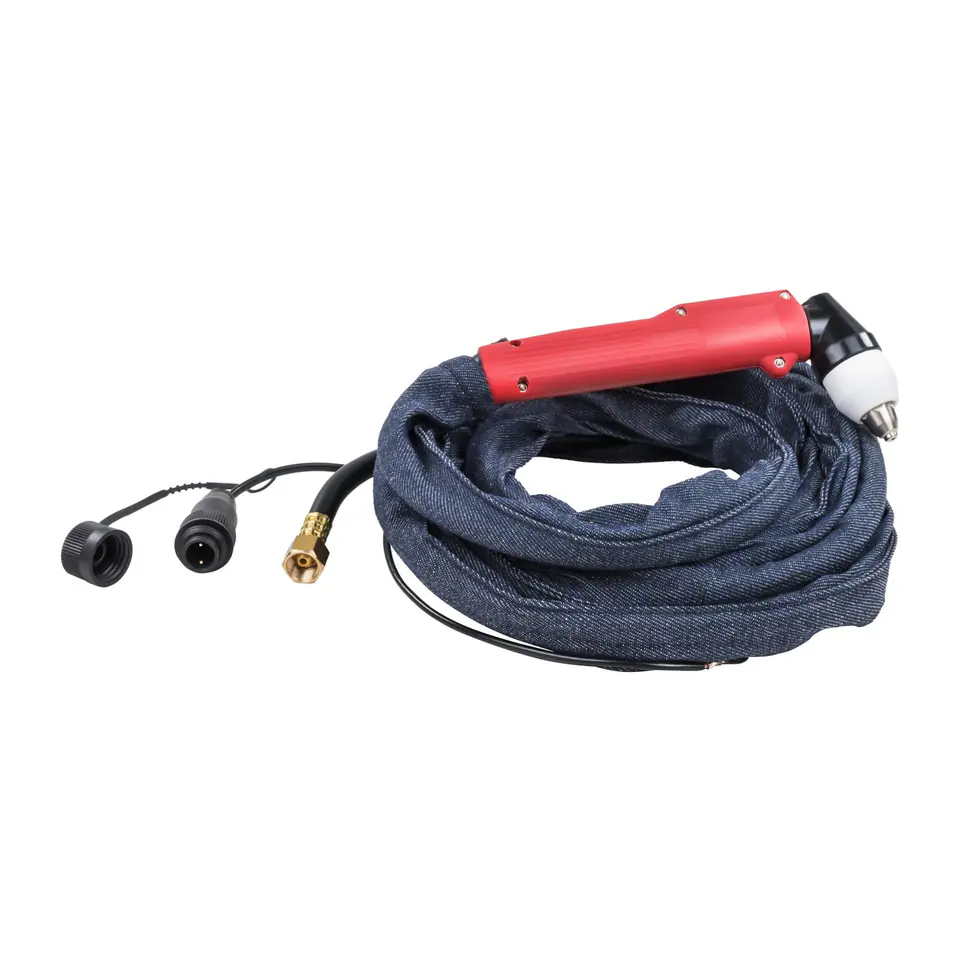

- - Plasma holder with cable – 5 m
- - Plasma holder consumables
- - Ground wire with clamp – 4 m
- - Air hose – 4 m
- - Pressure reducer
- - Pressure gauge
- - Manual EN
