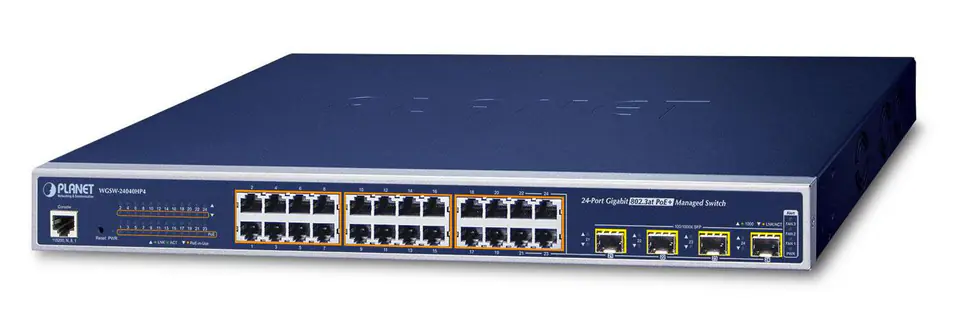

PLANET WGSW-24040HP4 network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue
€690.99
Shipping from warehouse: E12
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- PLANET
- Product code:
- WGSW-24040HP4 / 4711213689475
Share this product:
Specification
| 10g support: | N |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Y |
| Arp inspection: | Y |
| Authentication: | MAC-based authentication, Port-based authentication |
| Auto mdi/mdi-x: | Y |
| Auto-negotiation: | Y |
| Basic switching rj-45 ethernet ports quantity: | 20 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Y |
| Broadcast storm control: | Y |
| Combo sfp ports quantity: | 4 |
| Console port: | RS-232 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-T, 1000BASE-T |
| Fiber ethernet cabling technology: | 100BASE-LX, 1000BASE‑LX, 100BASE-SX, 1000BASE‑SX |
| Fiber optic connector: | SFP, MiniGBIC |
| Firmware upgradeable: | Y |
| Flow control support: | Y |
| Full duplex: | Y |
| Igmp snooping: | Y |
| Input current: | 6 A |
| Ip-mac-port binding: | Y |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Y |
| Led indicators: | Link, PoE, Activity, Fan fail, Power, Power fail |
| Link aggregation: | Y |
| Loop protection: | Y |
| Mac address auto-aging supported: | Y |
| Mac address auto-learning supported: | Y |
| Mac address table: | 8000 entries |
| Mib support: | RFC-1213, RFC-1493, RFC-1643, RFC-2863, RFC-2665, RFC-2819, RFC-2737, RFC-2618, RFC-3411 |
| Multicast mac address table: | 4094 entries |
| Multicast support: | Y |
| Networking standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3u, IEEE 802.3at, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.3af |
| Number of multicast groups filtered: | 255 |
| Number of queues: | 8 |
| Number of trunks: | 160 |
| Number of vlans: | 4094 |
| Packet buffer memory: | 4 MB |
| Port mirroring: | Y |
| Power management: | Y |
| Power over ethernet (poe): | Y |
| Power over ethernet (poe) ports quantity: | 24 |
| Power over ethernet (poe) power per port: | 30.8 W |
| Power protection features: | Short circuit |
| Product colour: | Blue |
| Quality of service (qos) support: | Y |
| Rack mounting: | Y |
| Reset button: | Y |
| Security algorithms: | 802.1x RADIUS, SNMP |
| Spanning tree protocol: | Y |
| Ssh/ssl support: | Y |
| Store-and-forward: | Y |
| Switch layer: | L2/L4 |
| Switch type: | Managed |
| Switching capacity: | 48 Gbit/s |
| Throughput: | 35.7 Mpps |
| Total power over ethernet (poe) budget: | 440 W |
| Traffic classification: | Y |
| Virtual lan features: | Port-based VLAN, Protocol-based VLAN, Private VLAN, Tagged VLAN |
| Vlan support: | Y |
| Web-based management: | Y |
