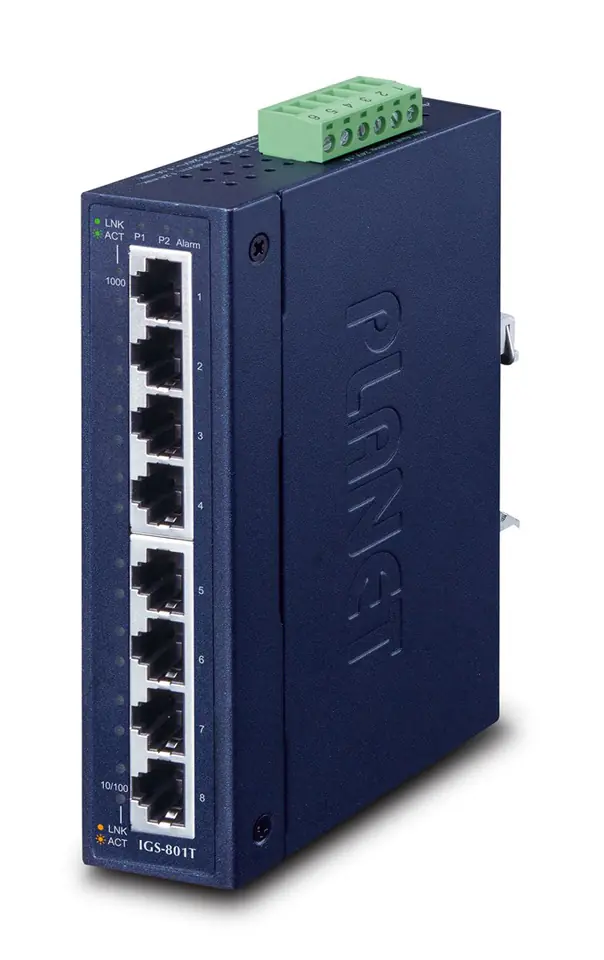

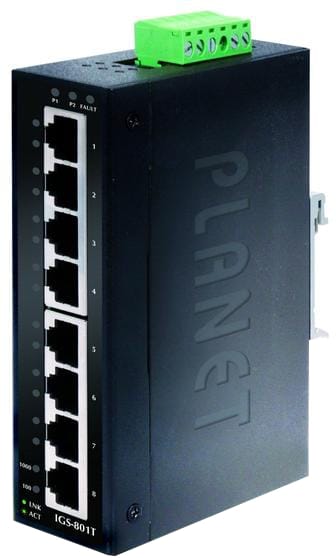

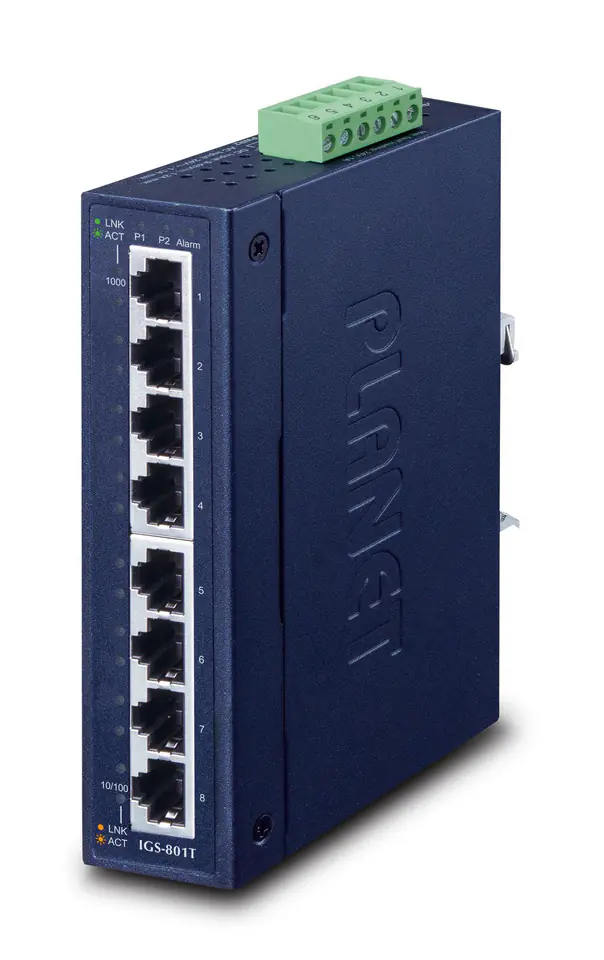

PLANET IGS-801T network switch Unmanaged L2 Gigabit Ethernet 10/100/1000) Blu
€199.26
Shipping from warehouse: E12
Estimated shipping: Wed, Nov 27 - Mon, Dec 2
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-801T / 4711213687792
Share this product:
Specification
| 10g support: | No |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control: | Yes |
| Cable types supported: | Cat5, Cat5e, Cat6, Cat3, Cat4 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth: | 87 mm |
| Din rail mounting: | Yes |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 8 |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 23 BTU/h |
| Height: | 135 mm |
| Housing material: | Metal |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 4000 entries |
| Networking standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ab |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Power consumption (typical): | 6.72 W |
| Power over ethernet (poe): | No |
| Product colour: | Blue |
| Quality of service (qos) support: | Yes |
| Rack mounting: | No |
| Redundant power supply (rps) support: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 75 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2 |
| Switch type: | Unmanaged |
| Switching capacity: | 16 Gbit/s |
| Terminal block port: | Yes |
| Throughput: | 11.9 Mpps |
| Wall mountable: | Yes |
| Weight: | 476 g |
| Width: | 32 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
