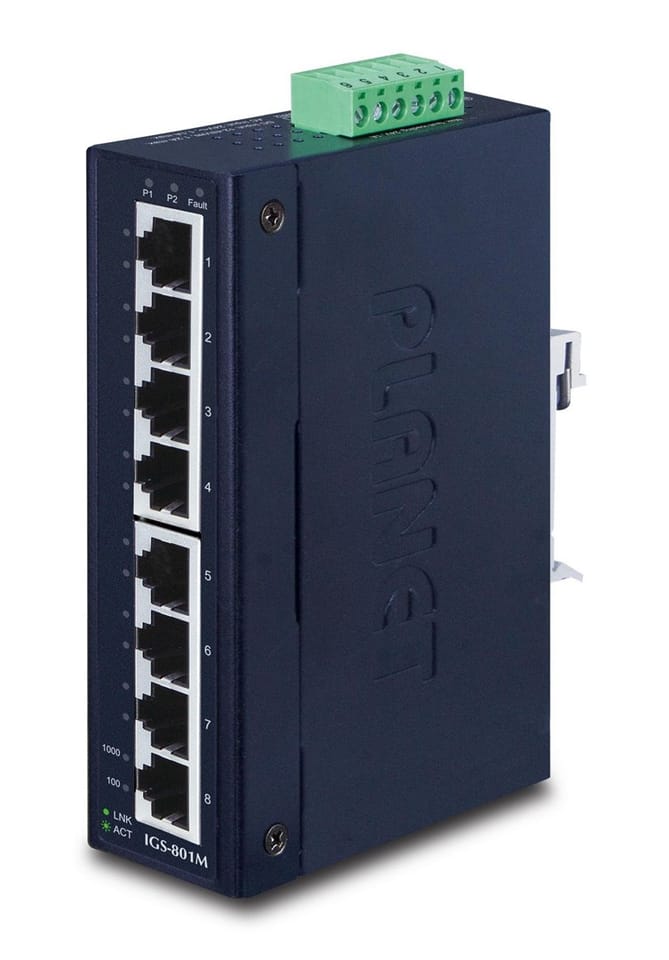

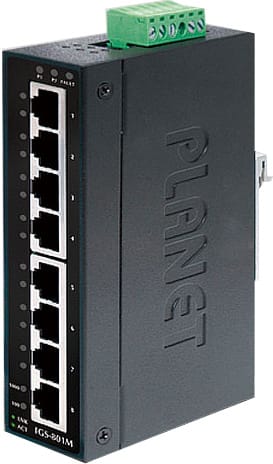

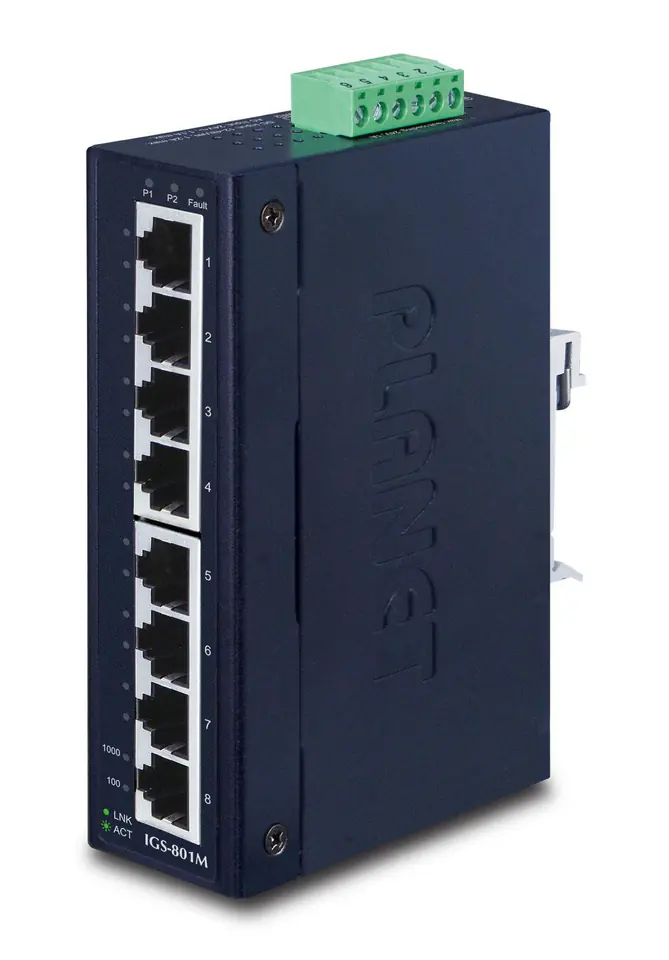

PLANET IGS-801M network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue
€275.94
Shipping from warehouse: E12
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-801M / 4711213687266
Share this product:
Specification
| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication: | Port-based authentication |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Copper ethernet cabling technology: | 100BASE-TX, 1000BASE-T, 10BASE-T |
| Depth: | 87 mm |
| Din rail mounting: | Yes |
| Firmware upgradeable: | Yes |
| Flow control support: | Yes |
| Form factor: | 1U |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 8 |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 15 BTU/h |
| Height: | 135 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | Telnet/SNMP |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab |
| Number of multicast groups filtered: | 256 |
| Number of queues: | 8 |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Port mirroring: | Yes |
| Power consumption (max): | 10 W |
| Power consumption (typical): | 4.5 W |
| Power over ethernet (poe): | No |
| Product colour: | Blue |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Reset button: | Yes |
| Security algorithms: | SSL/TLS, SSH |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 75 °C |
| Store-and-forward: | Yes |
| Supported network protocols: | IPv4 / IPv6 |
| Switch layer: | L2/L4 |
| Switch type: | Managed |
| Switching capacity: | 16 Gbit/s |
| System event log: | Yes |
| Terminal block port: | Yes |
| Throughput: | 11.9 Mpps |
| Traffic classification: | Yes |
| Virtual lan features: | Protocol-based VLAN, Private VLAN, Tagged VLAN, Stacked VLAN |
| Vlan support: | Yes |
| Wall mountable: | Yes |
| Web-based management: | Yes |
| Weight: | 472 g |
| Width: | 32 mm |
