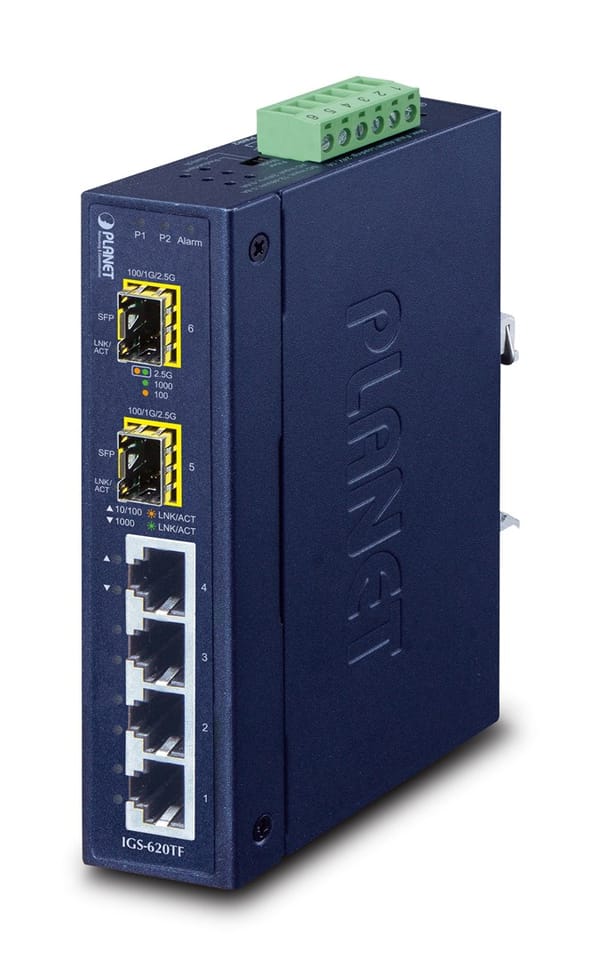

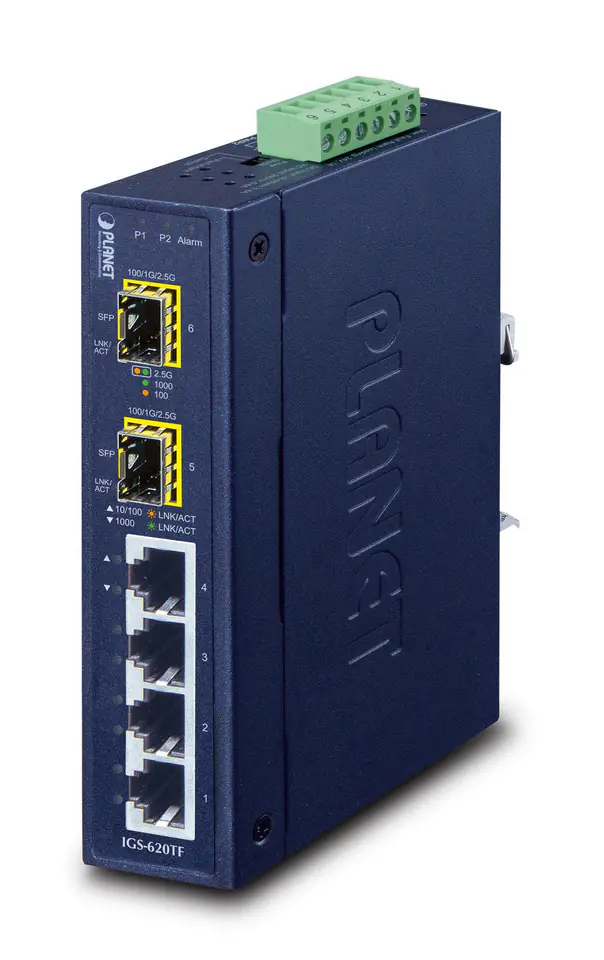

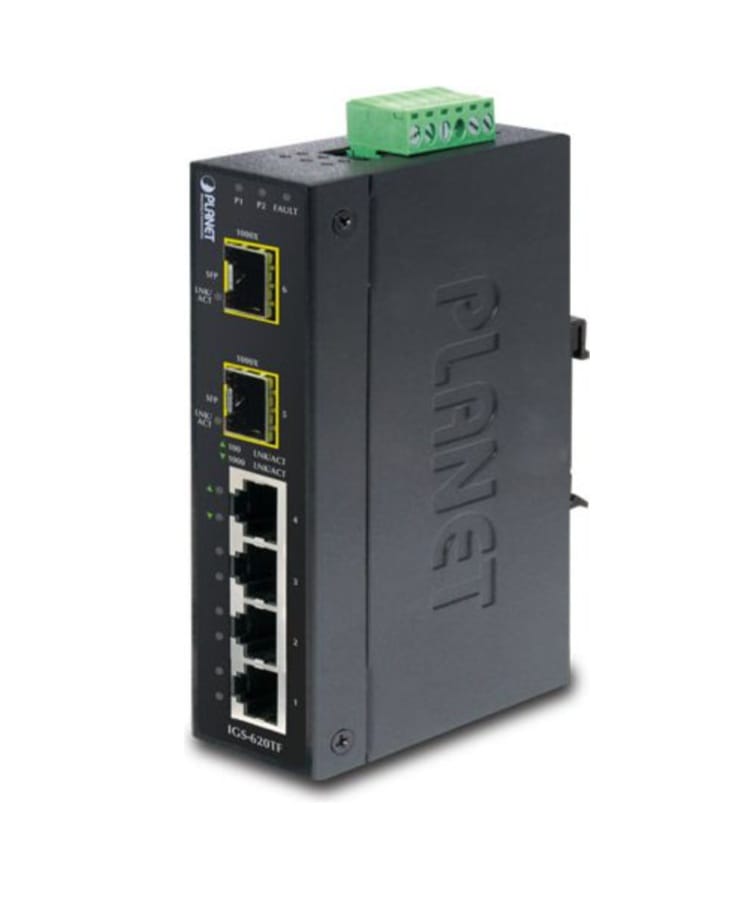

PLANET IGS-620TF network switch Unmanaged Gigabit Ethernet (10/100/1000) Blue
€228.73
Shipping from warehouse: E12
Estimated shipping: Mon, Sep 23 - Wed, Sep 25
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- PLANET
- Product code:
- IGS-620TF / 4711213689536
Share this product:
Specification
| 10g support: | No |
|---|---|
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 4 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Cable types supported: | Cat6, Cat5, Cat5e |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-T, 1000BASE-T |
| Dc input voltage: | 12 - 48 V |
| Depth: | 87 mm |
| Din rail mounting: | Yes |
| Fiber ethernet cabling technology: | 100BASE-FX, 1000BASE‑LX, 1000BASE‑SX |
| Fiber optic connector: | SFP |
| Fiber type: | Multi-mode |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 135 mm |
| Housing material: | Metal |
| Installed sfp modules quantity: | 2 |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9216 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Mac address table: | 4000 entries |
| Networking standards: | IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.1p, IEEE 802.3z |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Power consumption (typical): | 7.5 W |
| Power over ethernet (poe): | No |
| Power supply included: | No |
| Product colour: | Blue |
| Rack mounting: | No |
| Sfp module slots quantity: | 2 |
| Stackable: | No |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 75 °C |
| Store-and-forward: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 18 Gbit/s |
| Throughput: | 13.39 Mpps |
| Transmission distance (max): | 60 km |
| Wall mountable: | Yes |
| Weight: | 425 g |
| Width: | 32 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
