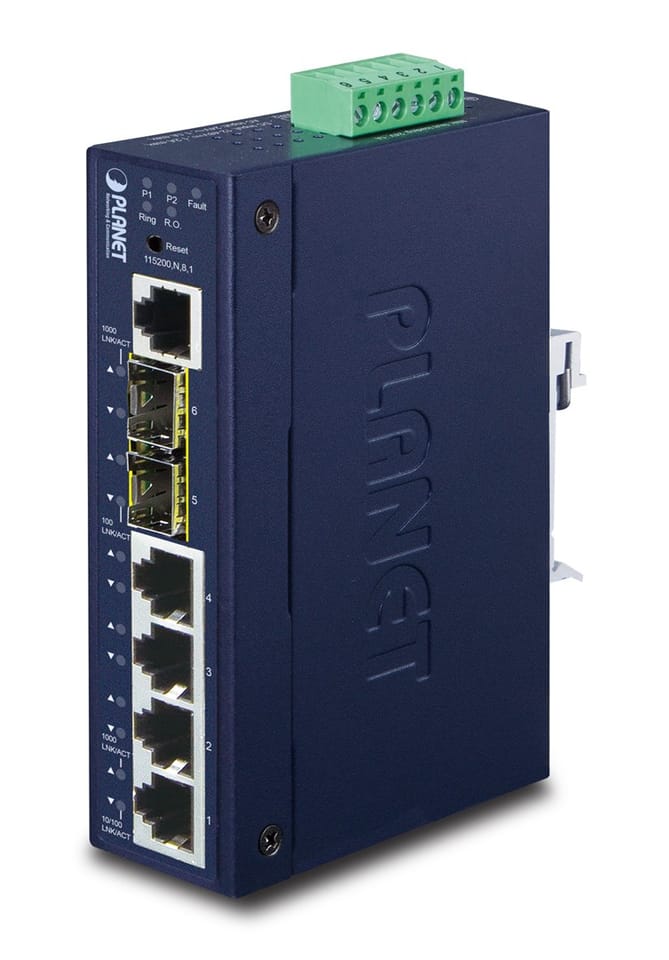

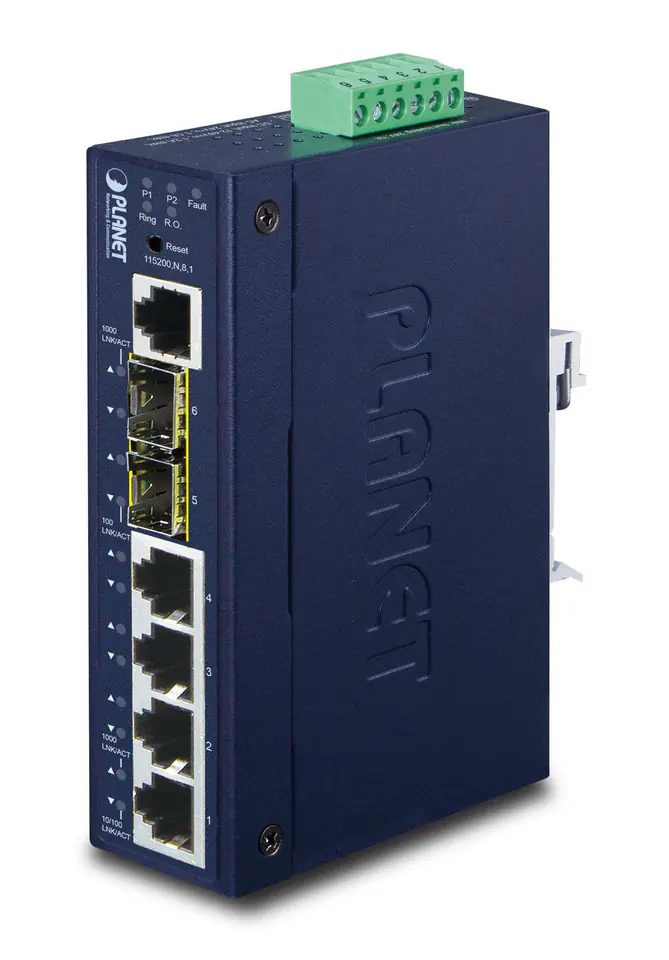

PLANET IGS-5225-4T2S network switch Managed L2+ Gigabit Ethernet 10/100/1000) Blu
€349.49
Shipping from warehouse: A3
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-5225-4T2S / 4711605282406
Share this product:
Specification
| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Authentication: | MAC-based authentication, Port-based authentication |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 4 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 1000BASE-T, 10BASE-T, 100BASE-T |
| Dc input voltage: | 24 V |
| Depth: | 87 mm |
| Din rail mounting: | Yes |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Gigabit ethernet (copper) ports quantity: | 4 |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 29.2 BTU/h |
| Height: | 135 mm |
| Housing material: | Metal |
| Igmp snooping: | Yes |
| International protection (ip) code: | IP30 |
| Ip-mac-port binding: | Yes |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 8000 entries |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1ad, IEEE 1588v2, IEEE 802.1ag, IEEE 802.3u, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ab, IEEE 802.3ah, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x |
| Number of queues: | 8 |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Port mirroring: | Yes |
| Power consumption (max): | 8.5 W |
| Power over ethernet (poe): | No |
| Product colour: | Blue |
| Quality of service (qos) support: | Yes |
| Rate limiting: | Yes |
| Redundant power supply (rps) support: | Yes |
| Reset button: | Yes |
| Security algorithms: | SSH, SNMPv3, SSL/TLS |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 85 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 12 Gbit/s |
| Throughput: | 8.9 Mpps |
| Traffic classification: | Yes |
| Virtual lan features: | Protocol-based VLAN, Private VLAN, Tagged VLAN |
| Vlan support: | Yes |
| Wall mountable: | Yes |
| Web-based management: | Yes |
| Weight: | 456 g |
| Width: | 32 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
