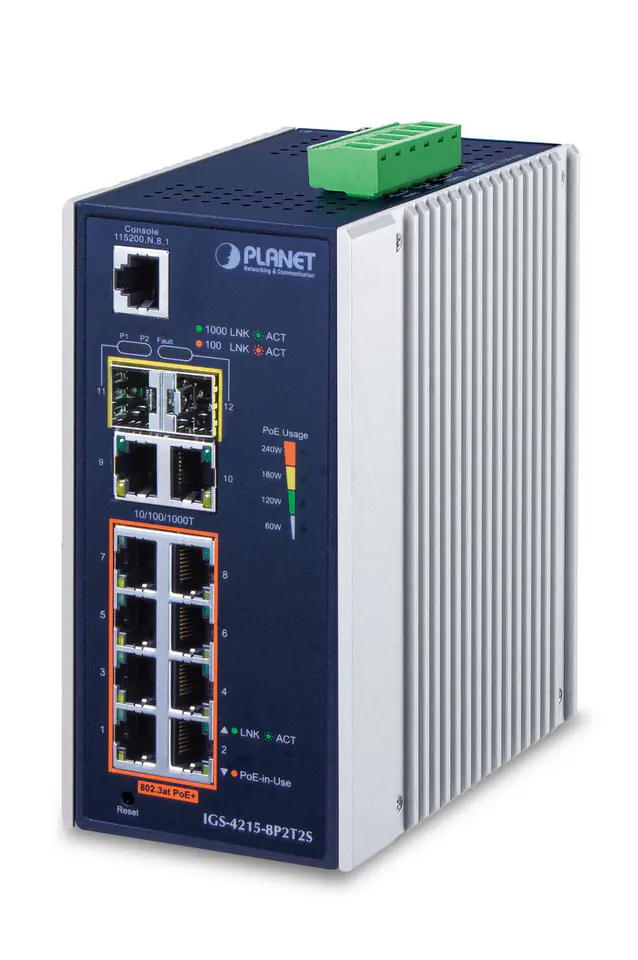

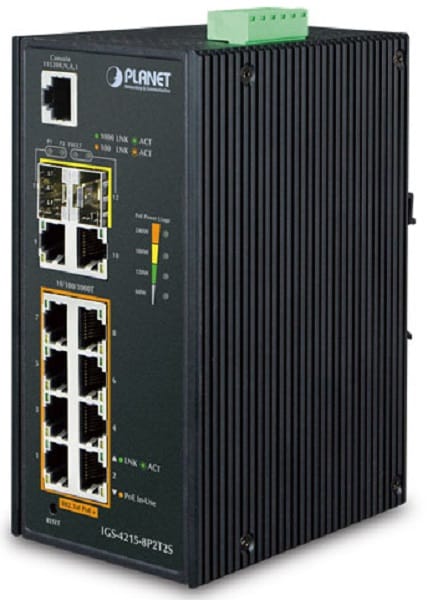

PLANET IGS-4215-8P2T2S network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, Silver
€535.06
Shipping from warehouse: E12
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- IGS-4215-8P2T2S / 4711605282819
Share this product:
Specification
| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Arp inspection: | Yes |
| Authentication type: | IEEE 802.1x, RADIUS |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 10 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Console port: | RJ-45 |
| Copper ethernet cabling technology: | 1000BASE-T, 10BASE-T, 100BASE-TX |
| Dc input voltage: | 48 - 56 V |
| Depth: | 107.3 mm |
| Dhcp features: | DHCP snooping |
| Din rail mounting: | Yes |
| Fiber ethernet cabling technology: | 1000BASE‑SX, 1000BASE‑LX, 1000BASE‑BX |
| Fiber optic connector: | SFP |
| Full duplex: | Yes |
| Half duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Height: | 152 mm |
| Housing material: | Aluminium |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Yes |
| Led indicators: | Link, PoE, Activity, System, Power |
| Link aggregation: | Yes |
| Loop protection: | Yes |
| Mac address table: | 8000 entries |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1x, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.3z, IEEE 802.3af, IEEE 802.3az, IEEE 802.3at, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1w |
| Number of queues: | 8 |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Packet buffer memory: | 4.1 MB |
| Port mirroring: | Yes |
| Power consumption (max): | 242 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 36 W |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Product colour: | Blue, Silver |
| Quality of service (qos) support: | Yes |
| Reset button: | Yes |
| Security algorithms: | SNMP, SSL/TLS, SSH, SNMPv3 |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 85 °C |
| Store-and-forward: | Yes |
| Surge protection: | Yes |
| Surge protection voltage: | 6 kV |
| Switch layer: | L2/L4 |
| Switch type: | Managed |
| Switching capacity: | 24 Gbit/s |
| Terminal block port: | Yes |
| Throughput: | 17.85 Mpps |
| Total power over ethernet (poe) budget: | 240 W |
| Virtual lan features: | Tagged VLAN, Protocol-based VLAN, Private VLAN |
| Vlan support: | Yes |
| Wall mountable: | Yes |
| Web-based management: | Yes |
| Weight: | 1.04 kg |
| Width: | 76.8 mm |
