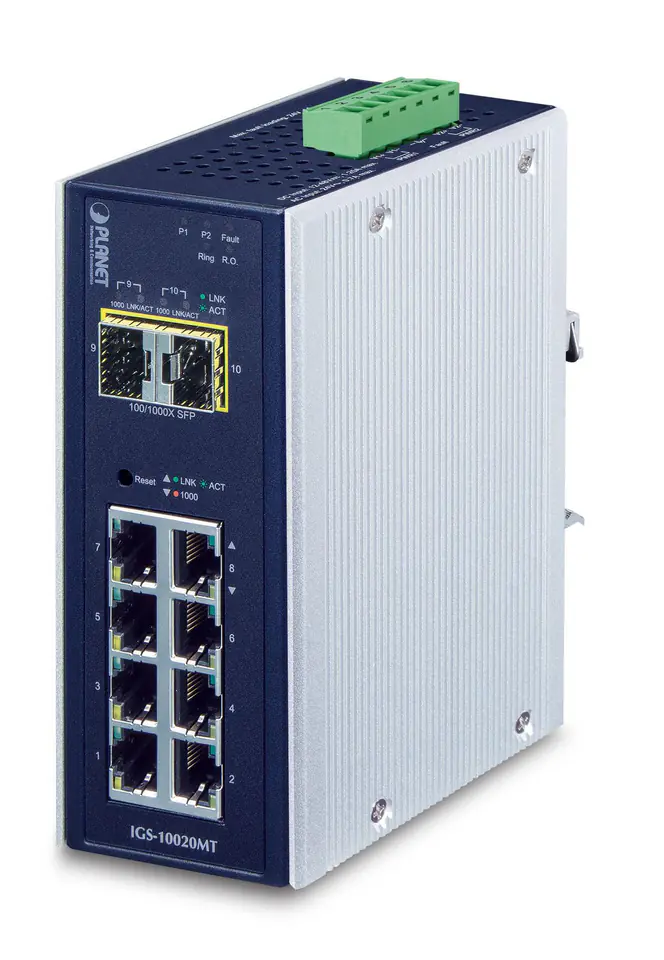

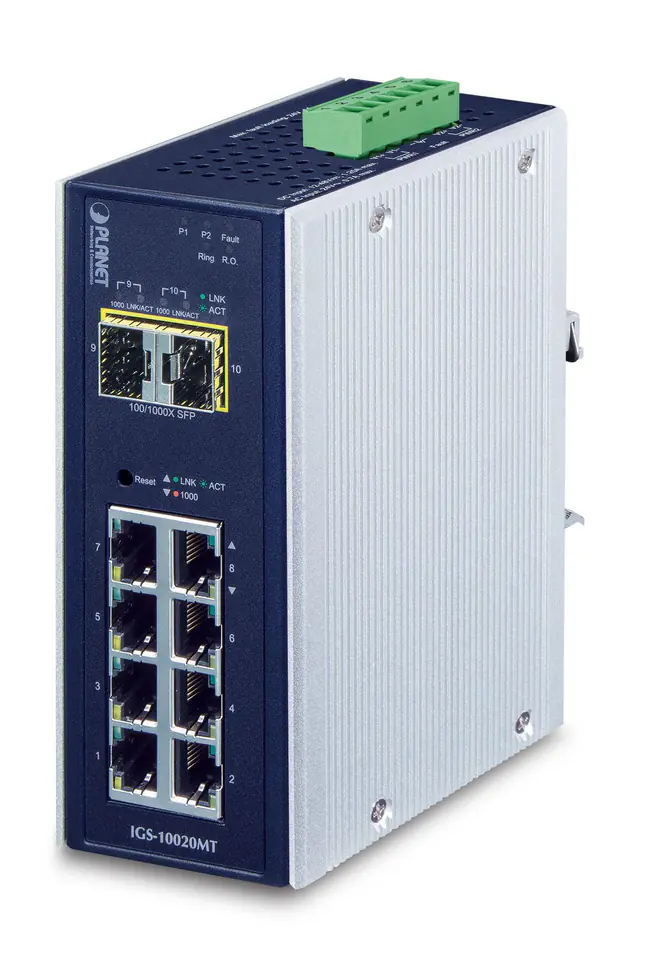

PLANET IGS-10020MT network switch Managed L2+ Gigabit Ethernet (10/100/1000) Black
€439.53
Shipping from warehouse: E12
Estimated shipping: Mon, Sep 23 - Wed, Sep 25
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- PLANET
- Product code:
- IGS-10020MT / 4711213688782
Share this product:
Specification
| 10g support: | No |
|---|---|
| Access control list (acl): | Yes |
| Auto mdi/mdi-x: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Buffer size: | 512 KB |
| Copper ethernet cabling technology: | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Depth: | 87.8 mm |
| Din rail mounting: | Yes |
| Firmware upgradeable: | Yes |
| Flow control support: | Yes |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 34 BTU/h |
| Height: | 135 mm |
| Housing material: | Aluminium |
| Igmp snooping: | Yes |
| International protection (ip) code: | IP30 |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | SSH, SSL, SNMP, Telnet |
| Mib support: | MIB, MIB-II |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3ad, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1D, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.3bz, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1s, IEEE 802.3ah, IEEE 1588, IEEE 802.1ag, IEEE 802.1w, IEEE 802.1ad |
| Number of queues: | 8 |
| Number of vlans: | 255 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -40 - 75 °C |
| Port mirroring: | Yes |
| Power consumption (typical): | 10 W |
| Power over ethernet (poe): | No |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mounting: | No |
| Security algorithms: | SSL/TLS, SSH, 802.1x RADIUS |
| Sfp module slots quantity: | 2 |
| Spanning tree protocol: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 75 °C |
| Store-and-forward: | Yes |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 26 Gbit/s |
| Throughput: | 14.8 Mpps |
| Vlan support: | Yes |
| Wall mountable: | Yes |
| Web-based management: | Yes |
| Weight: | 720 g |
| Width: | 56 mm |
