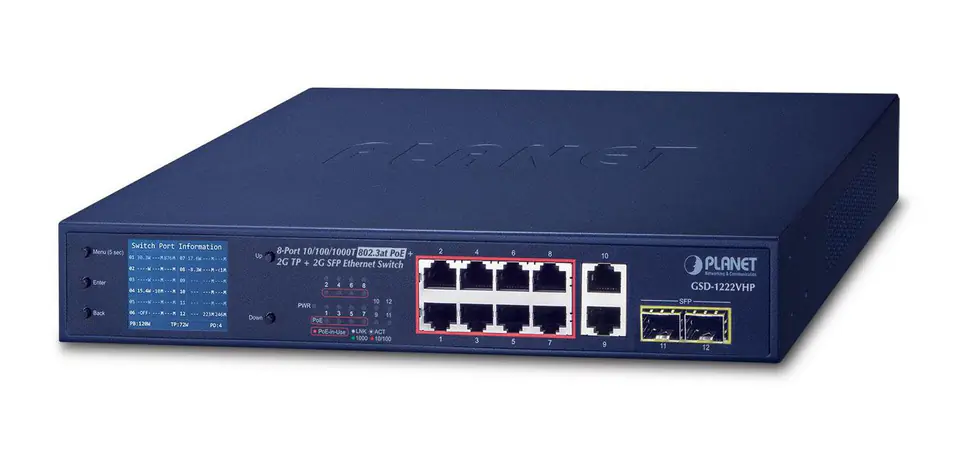

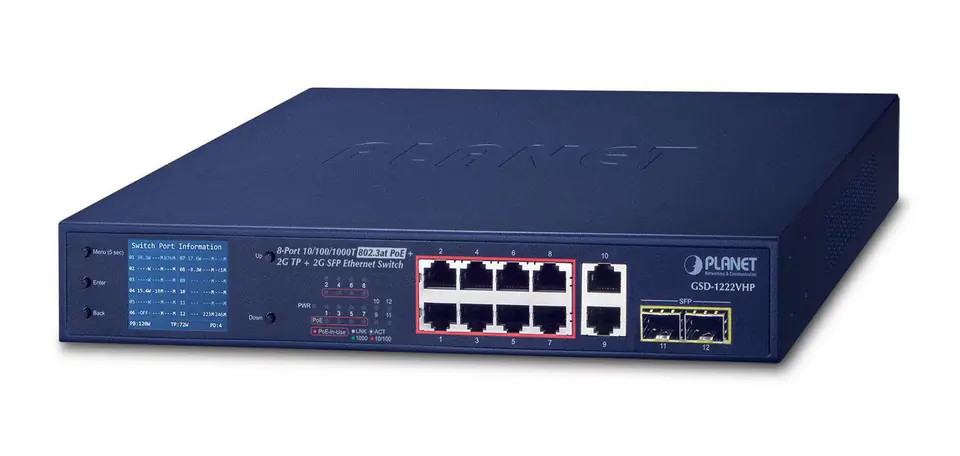

PLANET GSD-1222VHP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Blue
€231.40
Shipping from warehouse: E12
Estimated shipping: Wed, Nov 13 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- GSD-1222VHP / 4711605283564
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Auto mdi/mdi-x: | Yes |
| Auto-negotiation: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 10 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-T, 1000BASE-T |
| Depth: | 280 mm |
| Flow control support: | Yes |
| Form factor: | 1U |
| Full duplex: | Yes |
| Harmonized system (hs) code: | 85176990 |
| Heat dissipation: | 446 BTU/h |
| Height: | 44 mm |
| Housing material: | Metal |
| Input current: | 2.5 A |
| Jumbo frames: | 9000 |
| Jumbo frames support: | Yes |
| Led indicators: | Link, Power, Speed, PoE |
| Mac address auto-aging supported: | Yes |
| Mac address auto-learning supported: | Yes |
| Mac address table: | 8000 entries |
| Networking standards: | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3u, IEEE 802.3z, IEEE 802.3at |
| Number of fans: | 1 fan(s) |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -10 - 60 °C |
| Power consumption (max): | 130 W |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Power protection features: | Short circuit |
| Product colour: | Blue |
| Rack mounting: | Yes |
| Sfp module slots quantity: | 2 |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -10 - 70 °C |
| Store-and-forward: | Yes |
| Switch type: | Unmanaged |
| Switching capacity: | 24 Gbit/s |
| Throughput: | 18 Mpps |
| Total power over ethernet (poe) budget: | 120 W |
| Vlan support: | Yes |
| Weight: | 1.8 kg |
| Width: | 180 mm |
