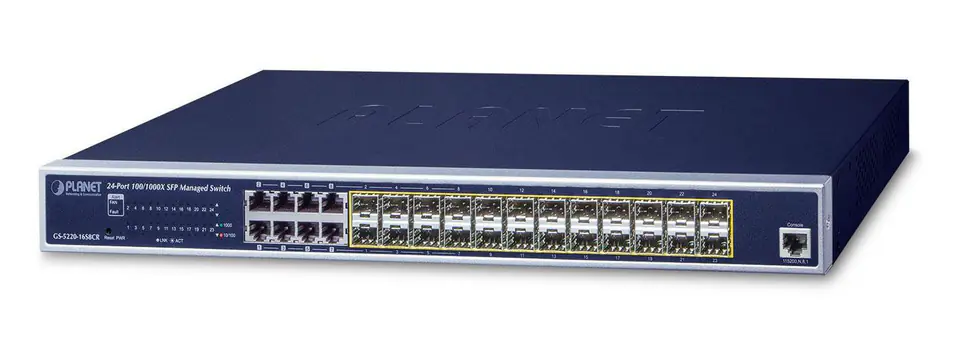

PLANET GS-5220-16S8CR network switch Managed L2+ Gigabit Ethernet 10/100/1000) 1U Blu
€670.73
Shipping from warehouse: E12
Estimated shipping: Mon, Oct 7 - Thu, Oct 10
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- PLANET
- Product code:
- GS-5220-16S8CR / 4711605280334
Share this product:
Specification
| 10g support: | N |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Y |
| Arp inspection: | Y |
| Authentication: | MAC-based authentication, Port-based authentication |
| Authentication type: | RADIUS, TACACS+ |
| Auto mdi/mdi-x: | Y |
| Auto-negotiation: | Y |
| Basic switching rj-45 ethernet ports quantity: | 8 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Y |
| Console port: | RS-232 |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-T, 1000BASE-T |
| Dc input voltage: | 36 - 60 V |
| Depth: | 200 mm |
| Dhcp features: | DHCP snooping, DHCP relay |
| Ethernet lan data rates: | 10,100,1000 Mbit/s |
| Fiber ethernet cabling technology: | 1000Base-X, 100BASE-X |
| Fiber optic connector: | SFP |
| Fiber ports quantity: | 24 |
| Flow control support: | Y |
| Form factor: | 1U |
| Full duplex: | Y |
| Half duplex: | Y |
| Heat dissipation: | 153 BTU/h |
| Height: | 44.5 mm |
| Igmp snooping: | Y |
| Input current: | 0.6 A |
| Jumbo frames: | 10000 |
| Jumbo frames support: | Y |
| Led indicators: | Y |
| Link aggregation: | Y |
| Loop protection: | Y |
| Mac address filtering: | Y |
| Mac address table: | 16000 entries |
| Multicast support: | Y |
| Networking standards: | IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D, IEEE 802.3z, IEEE 802.1x, IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3x |
| Number of multicast groups filtered: | 255 |
| Number of static routes: | 128 |
| Number of vlans: | 4094 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | 0 - 50 °C |
| Packet buffer memory: | 16 MB |
| Port mirroring: | Y |
| Power consumption (typical): | 45 W |
| Power over ethernet (poe): | N |
| Power supply included: | Y |
| Product colour: | Blue |
| Quality of service (qos) support: | Y |
| Queue scheduling algorithms: | SP, Weighted Round Robin (WRR) |
| Rack mounting: | Y |
| Redundant power supply (rps) support: | Y |
| Reset button: | Y |
| Security algorithms: | SNMPv3, SSH, SSL/TLS |
| Spanning tree protocol: | Y |
| Ssh/ssl support: | Y |
| Stackable: | N |
| Static route: | Y |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -10 - 70 °C |
| Store-and-forward: | Y |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 48 Gbit/s |
| System event log: | Y |
| Throughput: | 35.7 Mpps |
| Traffic shaping: | Y |
| Virtual lan features: | MAC address-based VLAN, Protocol-based VLAN, Multicast VLAN, IP subnet–based VLAN, Tagged VLAN, Voice VLAN, Private VLAN |
| Vlan support: | Y |
| Web-based management: | Y |
| Weight: | 2.75 kg |
| Width: | 440 mm |
