Technical data:
Category: Sensors
Color: White
Power supply: 230 V ~50 Hz
Maximum load: 500 W
Current consumption: approx. 0.5 W
Motion detection speed: 0.6 - 1.5 m/s
Detection angle: 160°
Sensitivity range of detected light: <3 - 2000 LUX (regulowane)
Lighting time range: Min 10 s ± 3 s Max 7 min ± 2 min
Detection range: max 9 m < 24°C
Protection class: IP20
Operating temperature: -20 to +40° C
Installation height: 1.8 - 2.5 m
Sensor Mounting Type: Flush-mounted
Signal Type: Infrared (Infrared)

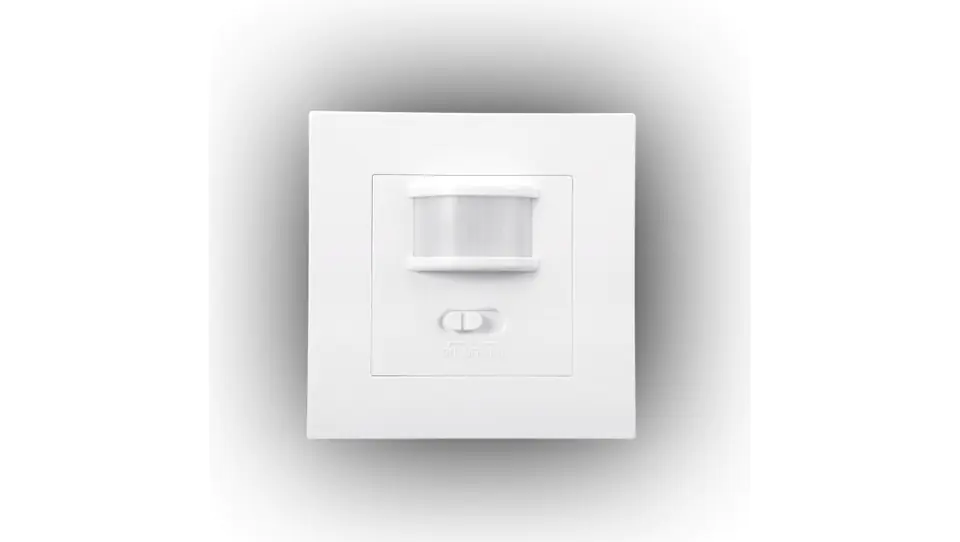

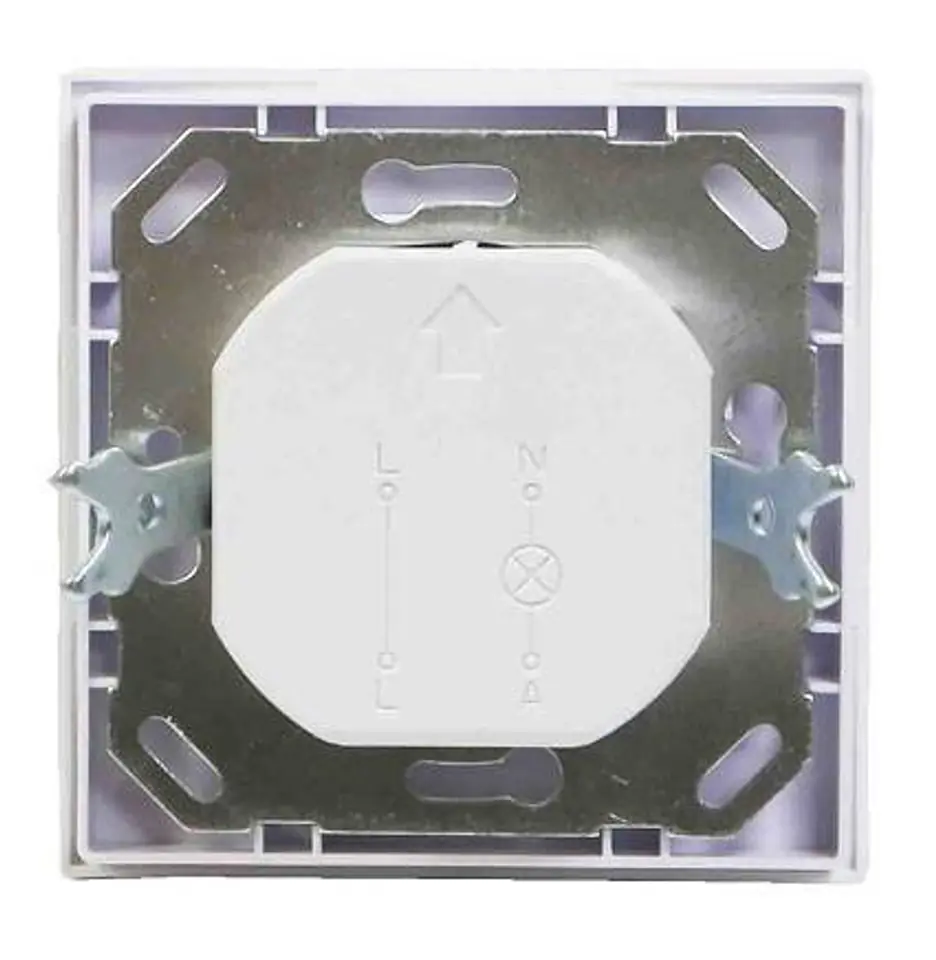

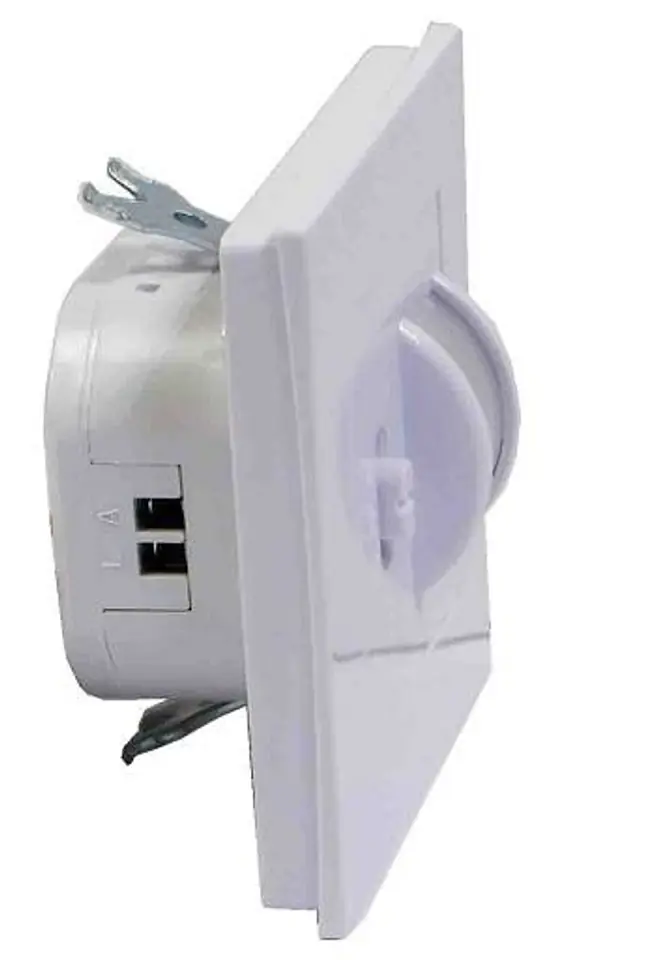

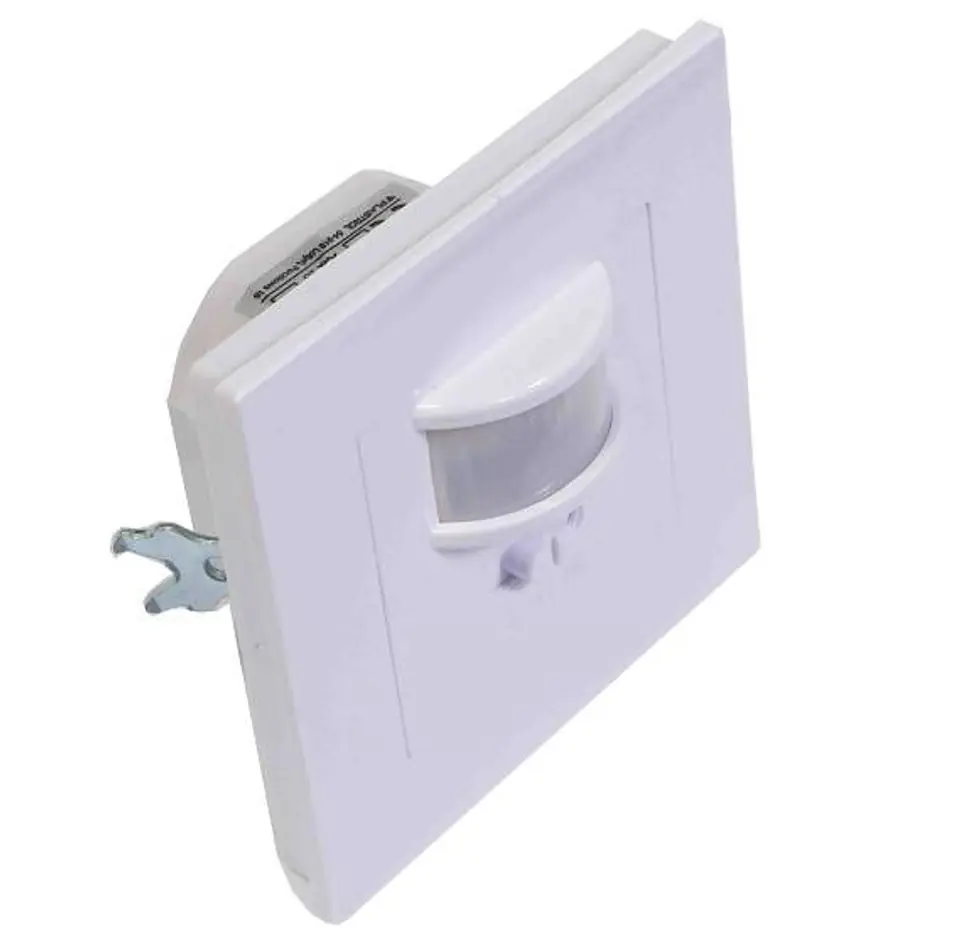

Flush-mounted entry motion sensor CR-IR1 KP WHITE W-99289 Plast-rol - works with LED lighting
**
Photos have an illustrative function.
Category: Sensors
Color: White
Power supply: 230 V ~50 Hz
Maximum load: 500 W
Current consumption: approx. 0.5 W
Motion detection speed: 0.6 - 1.5 m/s
Detection angle: 160°
Sensitivity range of detected light: <3 - 2000 LUX (regulowane)
Lighting time range: Min 10 s ± 3 s Max 7 min ± 2 min
Detection range: max 9 m < 24°C
Protection class: IP20
Operating temperature: -20 to +40° C
Installation height: 1.8 - 2.5 m
Sensor Mounting Type: Flush-mounted
Signal Type: Infrared (Infrared)
Flush-mounted entry motion sensor CR-IR1 KP WHITE W-99289 Plast-rol - works with LED lighting
**
Photos have an illustrative function.
