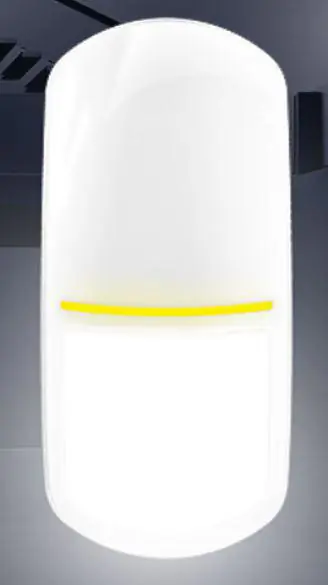

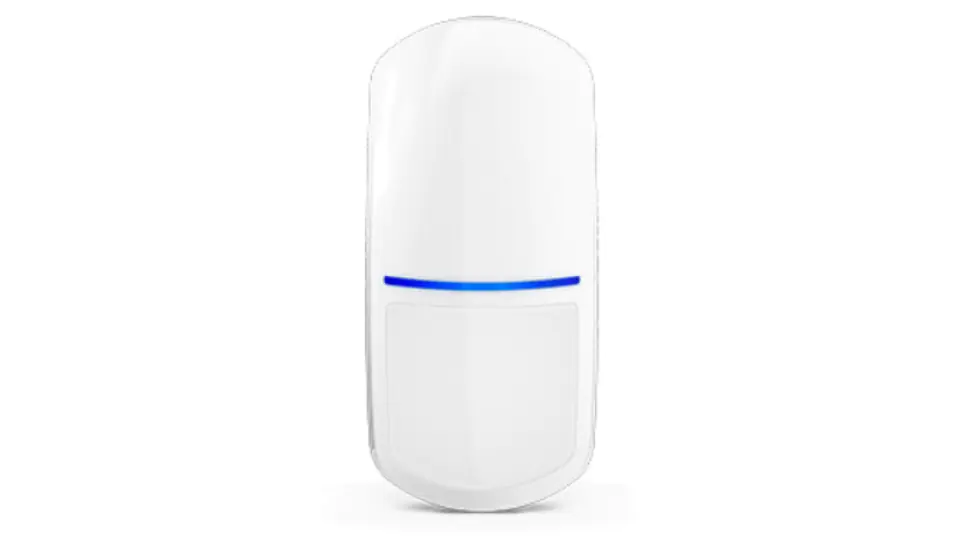

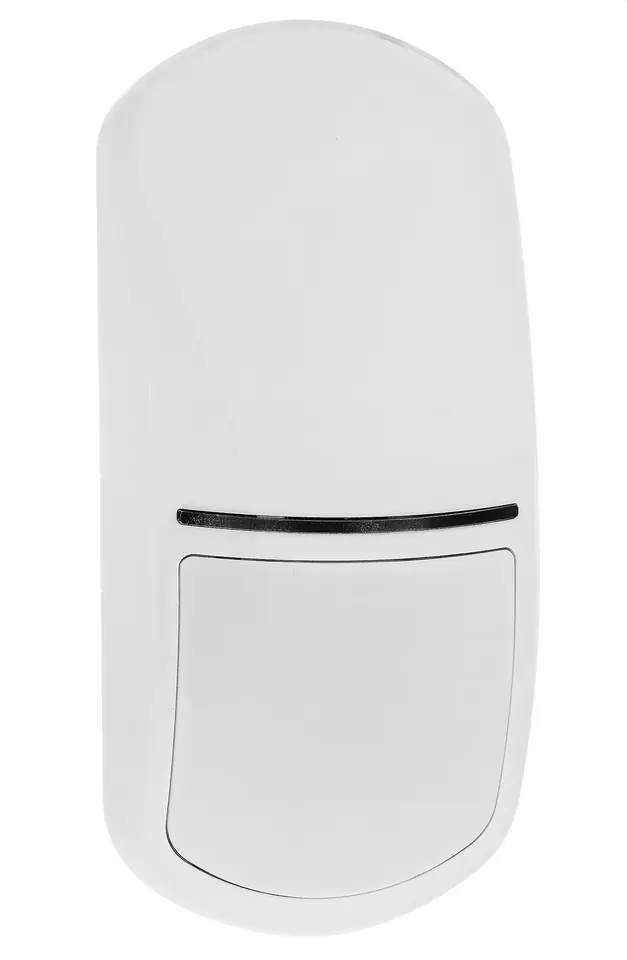

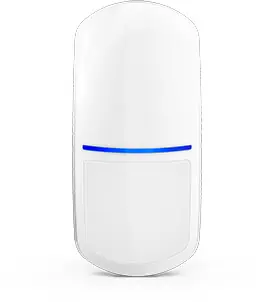

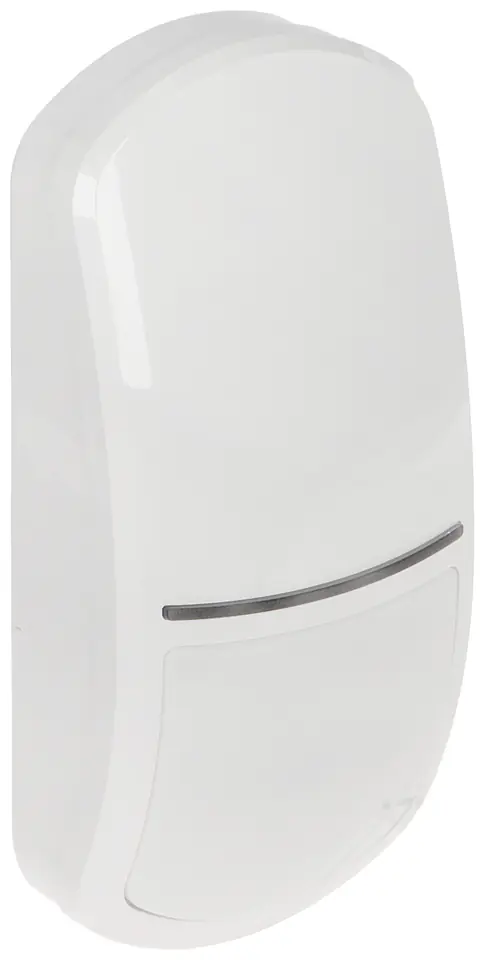

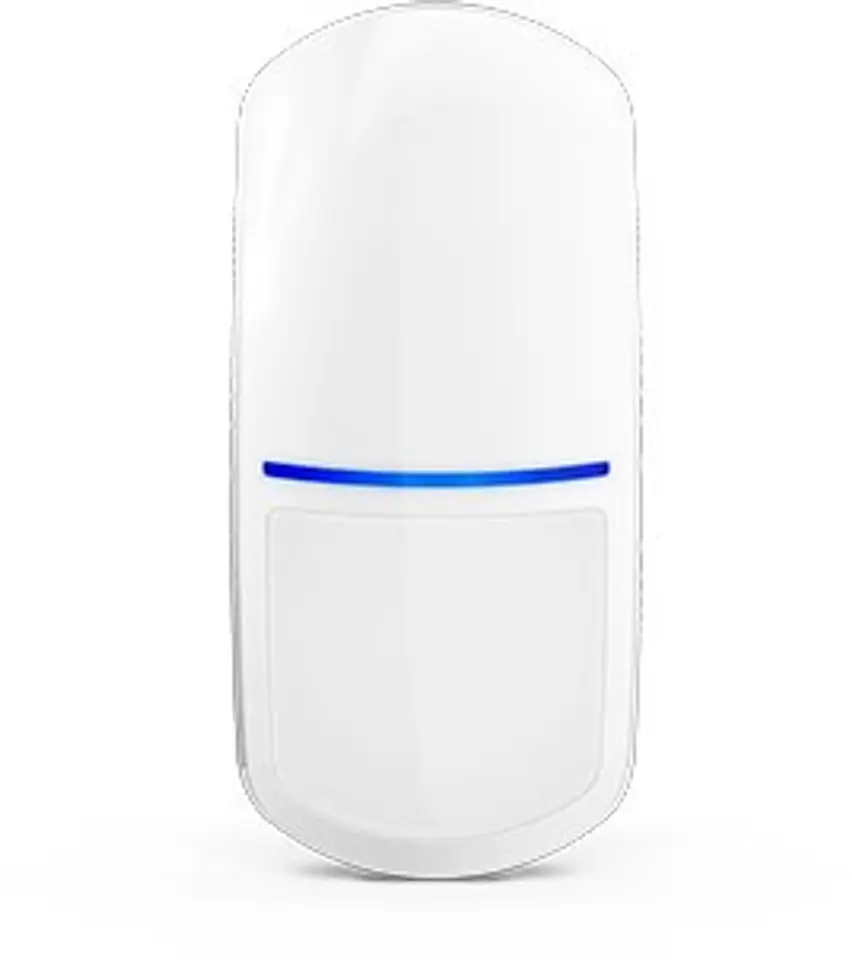

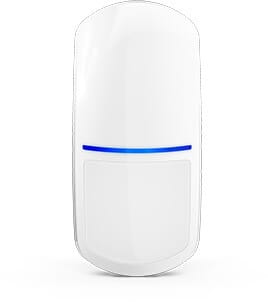

Digital Passive Infrared Detector with LED Lighting Function
PIR DETECTOR SLIM-PIR-LUNA SATEL
€24.44
Shipping from warehouse: H7
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- SLIM-PIR-LUNA / 5905033334359
Share this product:
Specification
| Depth: | 137 mm |
|---|---|
| Detectable movement speed:: | 0.3 ... 3 m/s |
| Detection angle: | 90° |
| Detection distance: | 24 m |
| Dimensions:: | 62 x 137 x 42 mm |
| Height: | 42 mm |
| Input voltage: | 12 V |
| Installation height (max): | 2.4 m |
| Manufacturer / brand:: | SATEL |
| Maximum load on outputs:: | 40 mA / 24 VDC |
| Operating relative humidity (h-h): | 0 - 93% |
| Operating temperature (t-t): | -10 - 55 °C |
| Operating temperature:: | -10 °C ... 55 °C |
| Power consumption: | 97 mA |
| Power source type: | DC |
| Power:: | 12 V DC / 97 mA (max) |
| Product colour: | White |
| Pyroelement:: | Double |

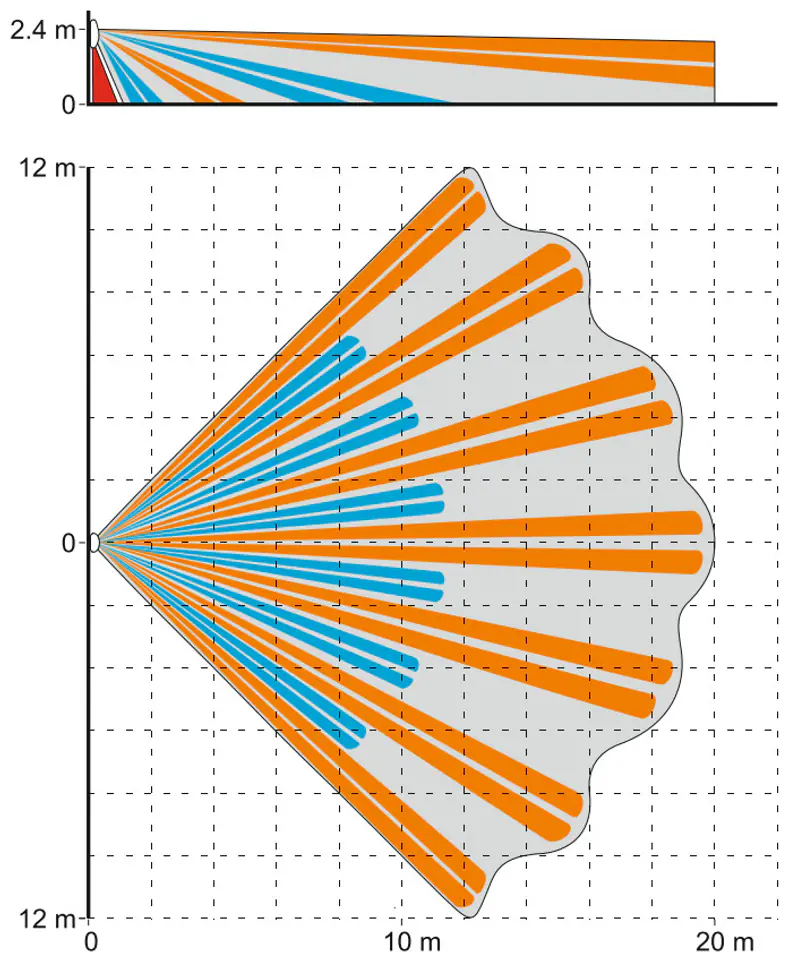

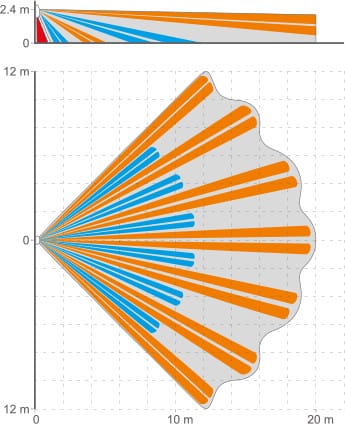

| Range:: | 20 x 24 m, 90 ° |
| Scales:: | 0.11 kg |

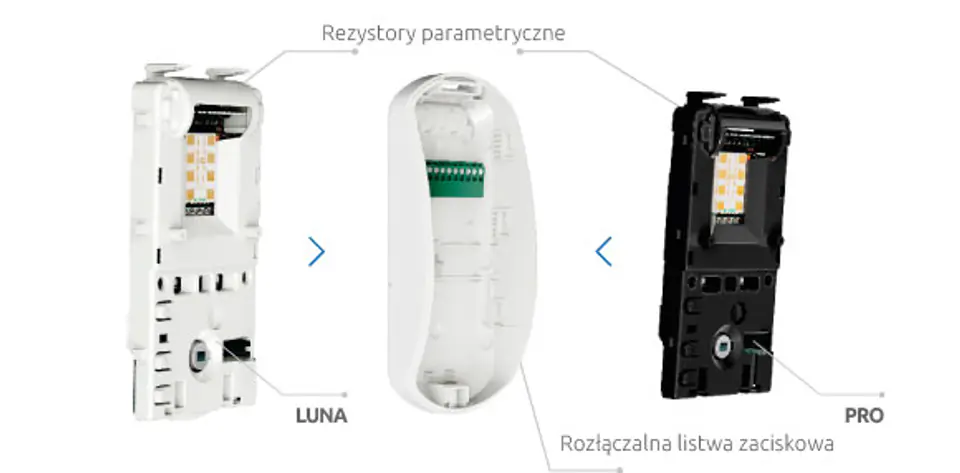

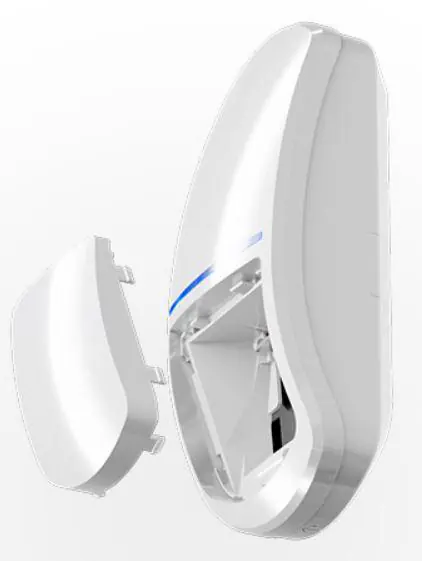

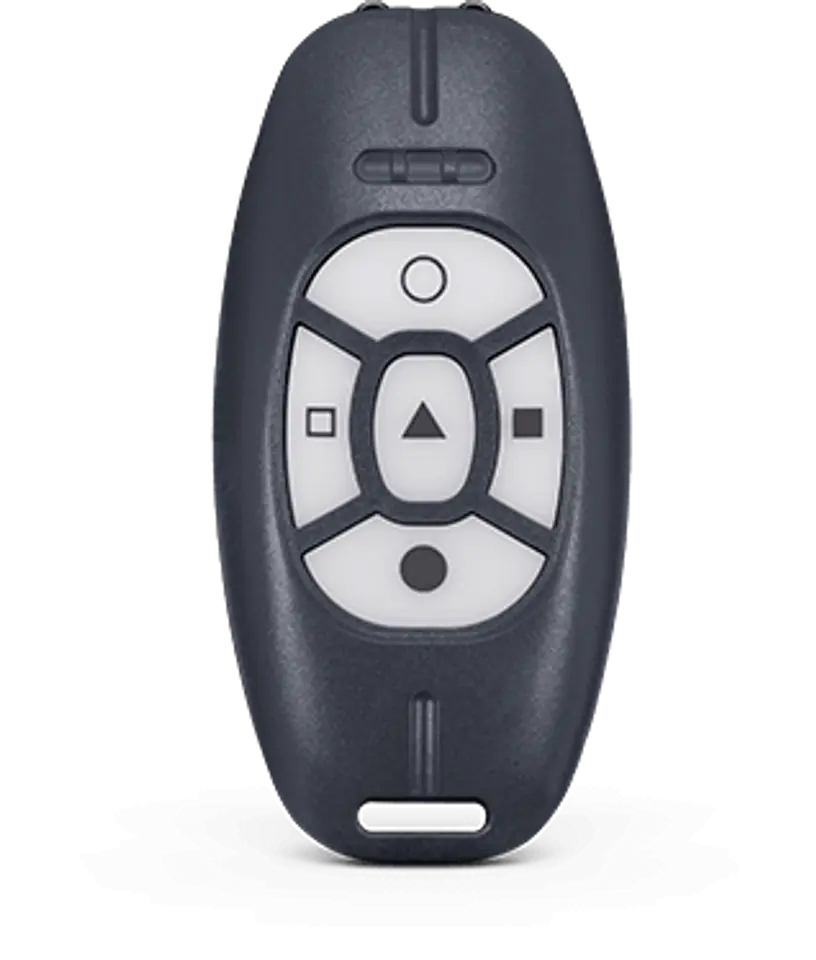

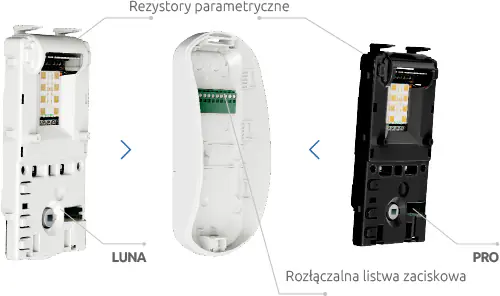

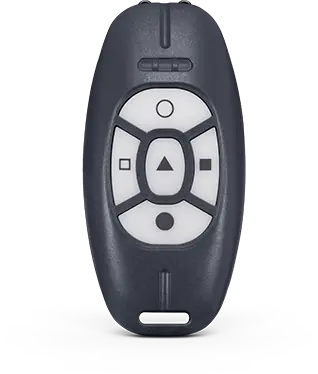

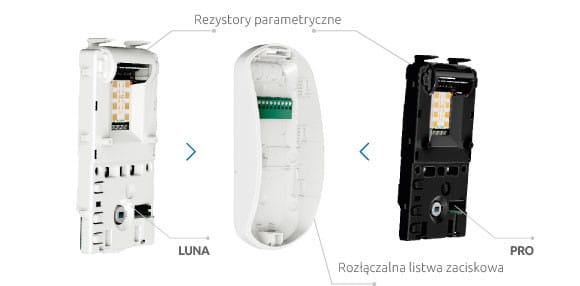

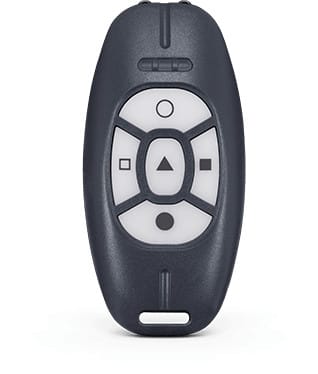

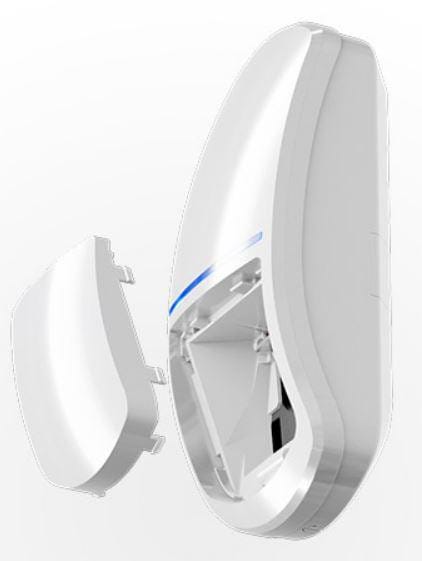

| Selected features:: | LED lighting function Compliant with EN 50131-2-2 @ Grade 2 Optical tamper protection reacting to opening the case and detaching from the wall Remote on/off the LED indicator and selecting the light color from 7 colors Built-in parametric resistors 2EOL: 2 x 1.1kΩ, 2 x 4.7 kΩ, 2 x 5.6 kΩ Remote control (not included) |
| Sensitivity adjustment:: | Can be set to 1 of 16 sensitivity levels |
| Sensor type: | Passive infrared (PIR) sensor/Microwave sensor |
| Sensor type:: | Passive infrared (PIR) |
| Standby current: | 13 mA |
| Use:: | Internal |
| Violation signaling time:: | 2 sec |
| Warranty:: | 5 years |
| Weight: | 142 g |
| Width: | 62 mm |
