Digital passive IR detector
The dual mirror optics used in the device ensure homogeneous coverage and sensitivity in all areas in the detection fieldHigh immunity to false alarms
Alarm output: | NC |
---|---|
Colour: | white |
Detectable movement speed: | 0.2 ... 3 m/s |
Dimensions: | 64 x 147 x 35 mm |
Environmental class: | EN 50131-2-2 Grade 2 |
Maximum output load: | 100 mA / 30 V DC |
Mechanical resistance class: | IK02 |
Operating temperature: | -10 °C ... 55 °C |
Permissible relative ambient humidity: | < 95 % RH (bez kondensacji) |
Power: | 9 volts ... 16 V DC / 4.7 mA (max) |
Producer / brand: | Vanderbilt |

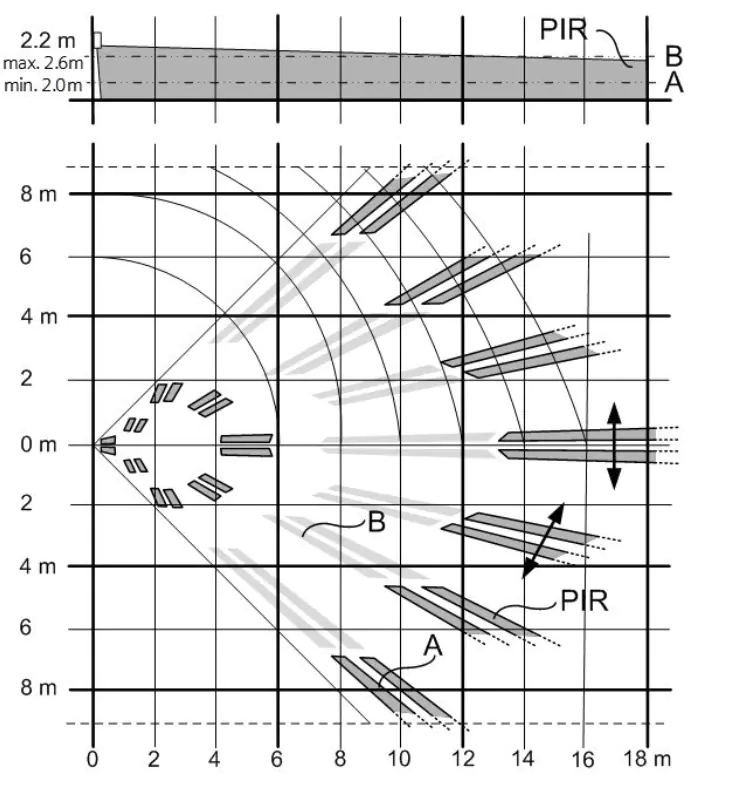

Range: | 16 x 18 m |
Recommended mounting height: | 2.0 m ... 2.6 m |
Scales: | 0.114 kg |
Sealing: | IP41 |
Selected features: | MAGIC Mirror Technology Reliable Intrusion Detection High immunity to false alarms Built-in EOL EOL EOL resistors: 4.7kΩ 250mW Low power consumption Very easy installation |

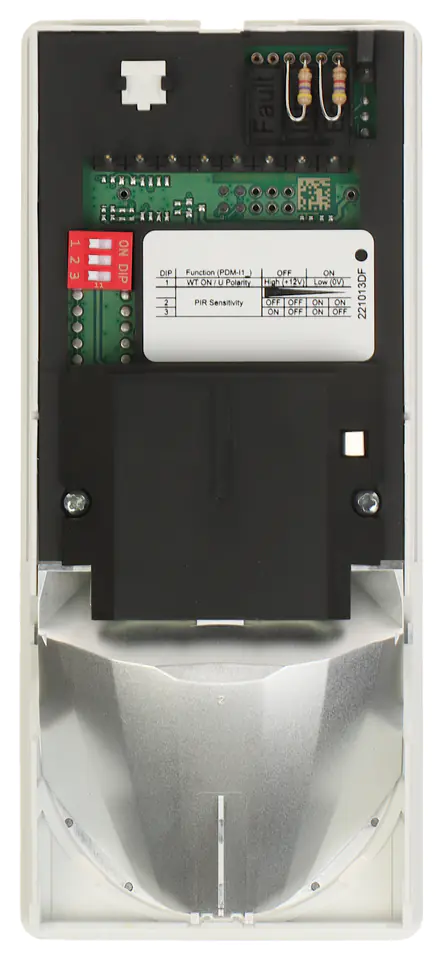

Sensitivity adjustment: | 4-step |
Sensor type: | Passive infrared (PIR) |
Use: | Internal / External |
Warranty: | 2 years |
Digital passive IR detector
The dual mirror optics used in the device ensure homogeneous coverage and sensitivity in all areas in the detection fieldHigh immunity to false alarms
