Digital passive IR detector
The dual mirror optics used in the device ensure homogeneous coverage and sensitivity in all areas in the detection fieldHigh immunity to false alarms
PIR DETECTOR PDM-I12 Vanderbilt
€43.13
Shipping from warehouse: D4
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Vanderbilt
- Product code:
- PDM-I12 / 4025515470403
Share this product:
Specification
| Alarm output: | NC |
|---|---|
| Colour: | white |
| Detectable movement speed: | 0.2 ... 3 m/s |
| Dimensions: | 57 x 128 x 32 mm |
| Environmental class: | EN 50131-2-2 Grade 2 |
| Maximum output load: | 100 mA / 30 V DC |
| Mechanical resistance class: | IK02 |
| Operating temperature: | -10 °C ... 55 °C |
| Permissible relative ambient humidity: | < 95 % RH (bez kondensacji) |
| Power: | 9 volts ... 16 V DC / 4.7 mA (max) |
| Producer / brand: | Vanderbilt |

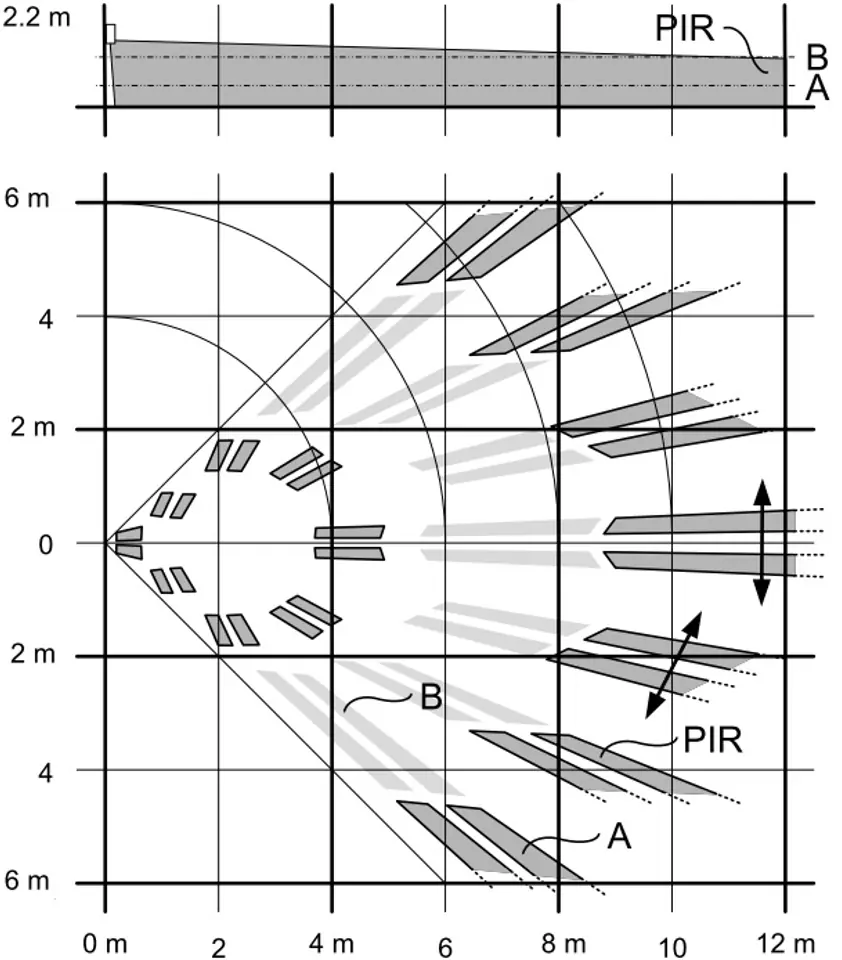

| Range: | 12 x 12 m |
| Recommended mounting height: | 2.0 m ... 2.6 m |
| Scales: | 0.09 kg |
| Sealing: | IP41 |
| Selected features: | MAGIC Mirror Technology Reliable Intrusion Detection High immunity to false alarms Built-in EOL EOL EOL resistors: 4.7kΩ 250mW Low power consumption Very easy installation |

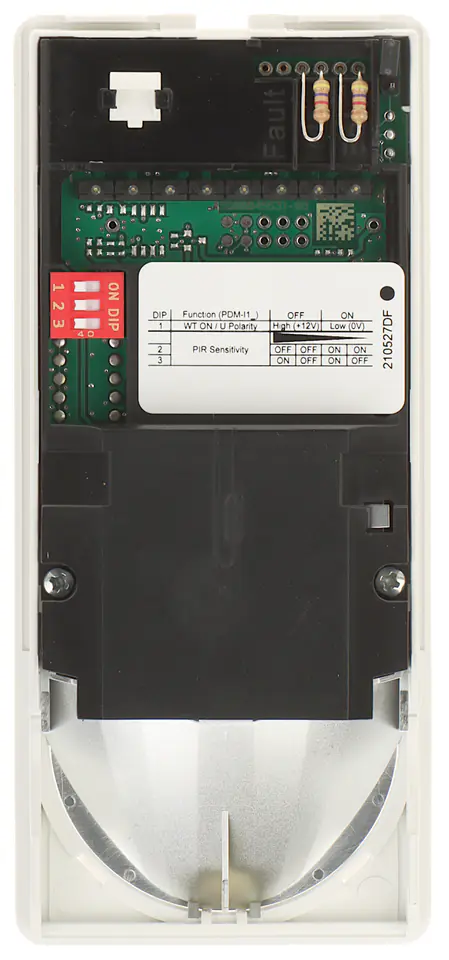

| Sensitivity adjustment: | 4-step |
| Sensor type: | Passive infrared (PIR) |
| Use: | Internal / External |
| Warranty: | 2 years |
