| Alarm outputs:: | NO/NC |
|---|---|
| Colour:: | white |
| Country of origin:: | Canada |
| Detectable movement speed:: | 0.2 ... 3.5 m/s |
| Detection angle:: | 40 ° |
| Dimensions:: | 92 x 114 x 33 mm |
| Manufacturer / brand:: | PARADOX |
| Maximum current consumption:: | 18 mA |
| Maximum load on outputs:: | 28 VDC / 150 mA |
| Operating temperature:: | -10 °C ... 50 °C |
| Power:: | 9 ... 16 VDC / 20 ... 27 VDC |
| Pyroelement:: | Double |

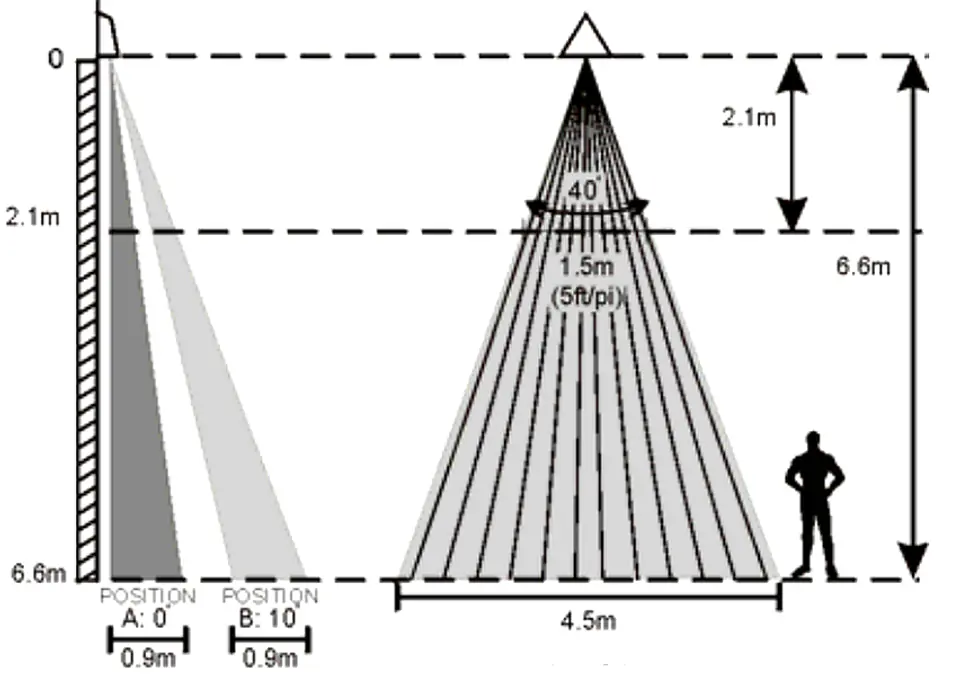

| Range:: | 2.1 x 1.5 m - detection of palm-sized objects6.6 x 4.5 m - detection of movement of objects the size of man |
| Recommended mounting height:: | 2 ... 2.7 m |
| Scales:: | 0.076 kg |
| Selected features:: | Adjustable Fresnel lens position: 0° ... 10° Vertical Curtain Tamper Detection - Enclosure Opening Test Mode EN 50130-4, EN 55022 |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Violation signaling time:: | 0.5 ... 25 sec |
| Warranty:: | 2 years |
Passive infrared sensor PARADOOR-460 is designed for indoor operationThanks to advanced signal analysis algorithms, it is distinguished by very stable operation and low false alarm rate
PARADOOR-460 is a vertical curtain, dedicated to secure one strip of the room, e.g. protection of a wall with windows
