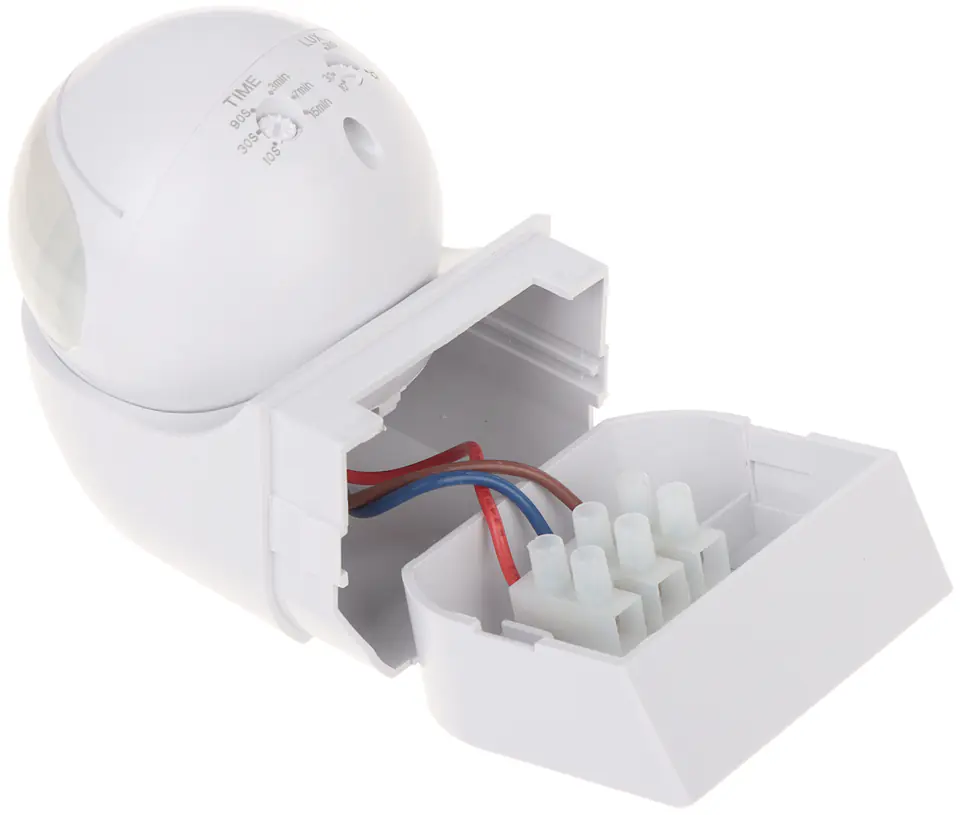

PIR DETECTOR MD-17B7 AC 230V FOR EL HOME LIGHTING CONTROL

€13.57
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Wed, Dec 25 - Mon, Dec 30
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
EL HOME
Product code:
MD-17B7 / 5905548277127

Specification

Colour:white
Detection angle:220 °
Dimensions:115 x 80 x 66 mm

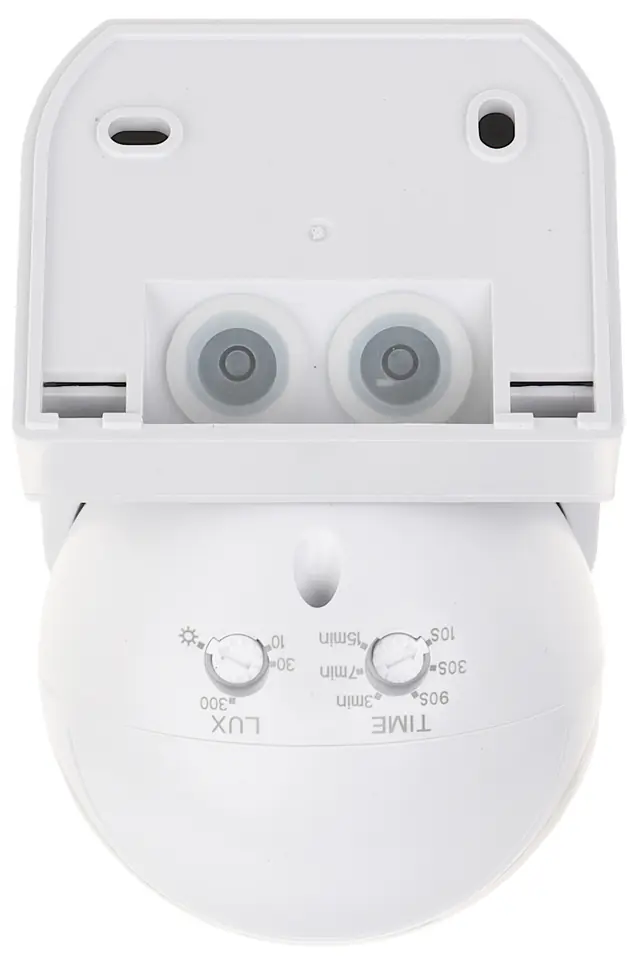

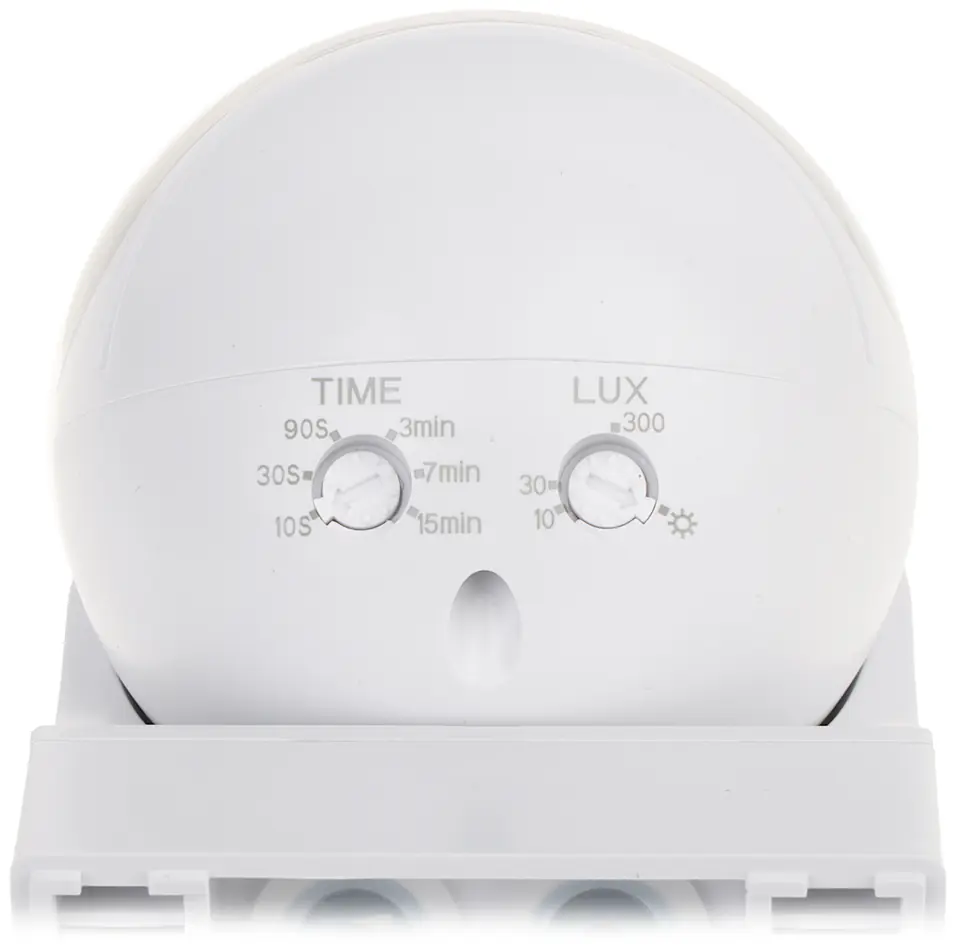

Lighting switching time adjustment:10 sec ... 15 minutes
Maximum output load:1200 W (resistive load)500 W (inductive load)
Operating temperature:-20 °C ... 40 °C
Power:220 volts ... 240 V AC @ 50Hz
Producer / brand:EL HOME
Range:12 m
Recommended mounting height:1.8  ... 2.5 m above the floor (wall mounting)
Scales:0.16 kg
Sealing:IP44
Sensitivity adjustment:3  ... 2000 Lux (manual adjustment)
Sensor type:Passive infrared (PIR)
Use:For outdoor use
Warranty:2 years

The MD-17B7 motion detector is designed to control lighting or other electrical devices powered by 230V AC inside and outside buildingsDetection of motion in the field of view of the sensor supplies power to the receiver for a period specified by setting the built-in time delay In addition, the device has been equipped with a light intensity sensor and a regulator of the highest illuminance, at which the detector will work

The maximum load of the relay used in the detector is 1200W for resistive load or 500W for inductive load
