Digital Passive Infrared Detector
PIR DETECTOR FPKX15DQ PYRONIX
€19.18
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- PYRONIX
- Product code:
- FPKX15DQ / 5056105614418
Share this product:
Specification
| Alarm output:: | NC / EOL-NC / 2EOL-NC |
|---|---|
| Detectable movement speed:: | 0.3 ... 3 m/s |
| Dimensions:: | 68 x 116 x 51 mm |
| Grade:: | Grade 2 |
| Manufacturer / brand:: | PYRONIX |
| Manufacturer's code:: | KX15DQ |
| Maximum load on outputs:: | 50 mA / 60 V DC, 42 V AC RMS |
| Operating temperature:: | -30 °C ... 70 °C |
| Power:: | 9 ... 16 V DC / 16 mA (max) @ 12 V |
| Pyroelement:: | quadruple |

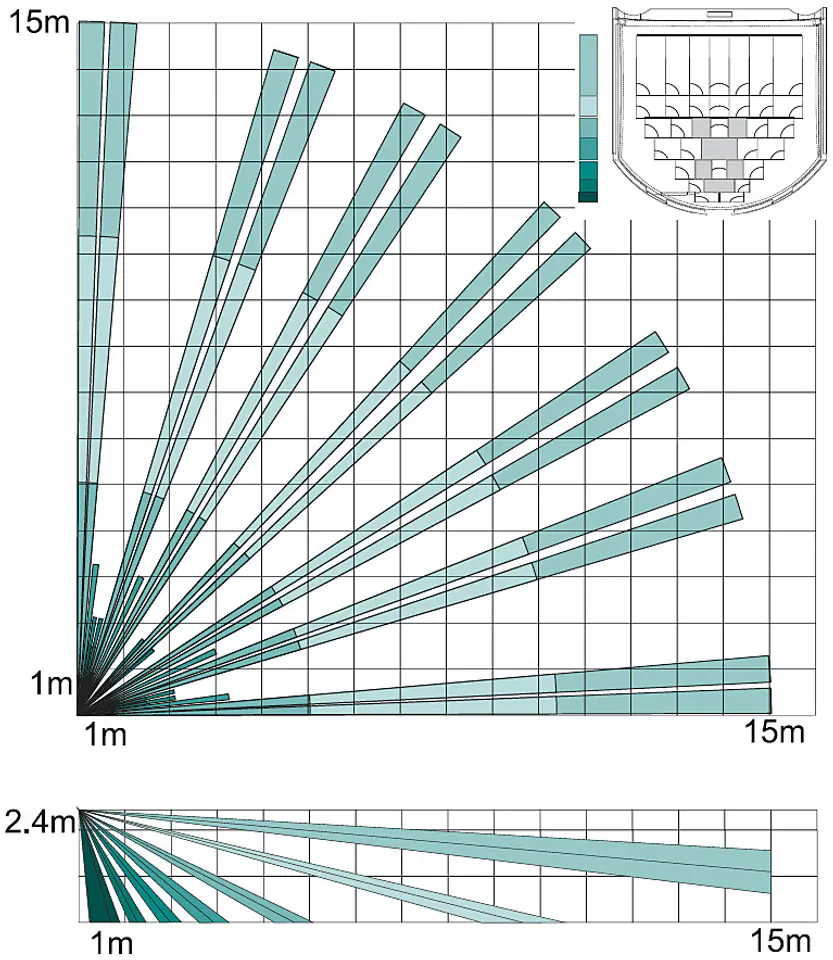

| Range:: | 15 m / 85 ° |
| Sap code:: | 361300084 |
| Scales:: | 0.1 kg |
| Sensitivity adjustment:: | Automatic / Manual - 2 - stage |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Warranty:: | 5 years |
