Digital passive infrared detector, resistant to animals up to 24 kg
PIR DETECTOR FPKX10DP PYRONIX
This product is not available
- Availability:
- expected delivery
- Brand:
- PYRONIX
- Product code:
- FPKX10DP / 5056105614432
Share this product:
Specification
| Alarm output:: | NC / EOL-NC / 2EOL-NC |
|---|---|
| Animal resistance:: | ≤ 24 kg |
| Detectable movement speed:: | 0.3 ... 3 m/s |
| Dimensions:: | 68 x 116 x 51 mm |
| Grade:: | Grade 2 |
| Manufacturer / brand:: | PYRONIX |
| Manufacturer's code:: | KX10DP |
| Maximum load on outputs:: | 50 mA / 60 V DC, 42 V AC RMS |
| Operating temperature:: | -30 °C ... 70 °C |
| Power:: | 9 ... 16 V DC / 16 mA at 12 V (max) |
| Pyroelement:: | Double |

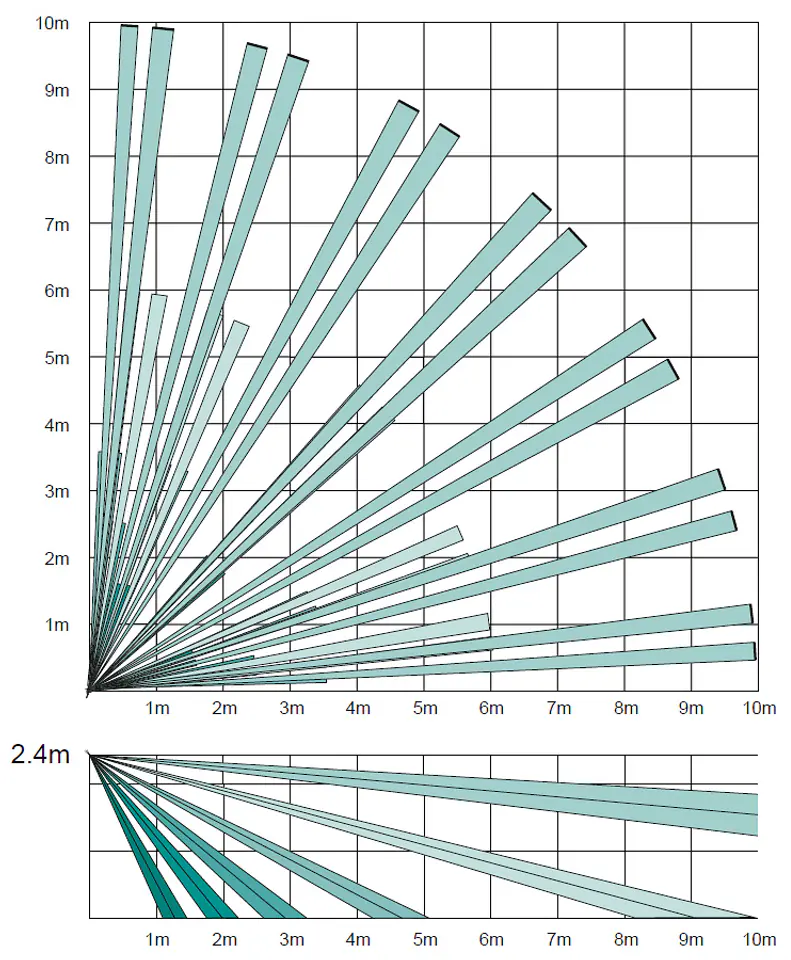

| Range:: | 10 m / 85 ° |
| Sap code:: | 361300082 |
| Scales:: | 0.1 kg |
| Sensitivity adjustment:: | Automatic |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | Internal |
| Warranty:: | 5 years |
