Digital passive infrared detector, resistant to animals weighing up to 40 kgThanks to advanced signal analysis algorithms, it is distinguished by very stable operation and low false alarm rate

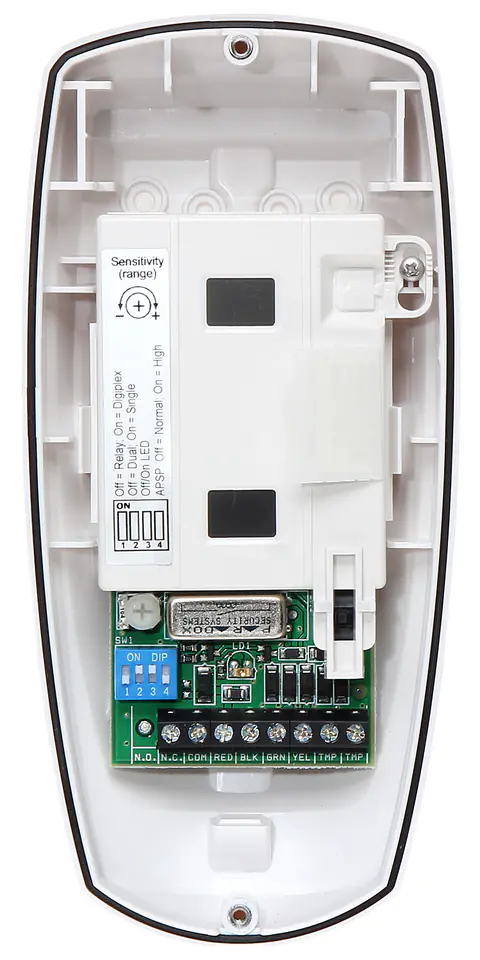

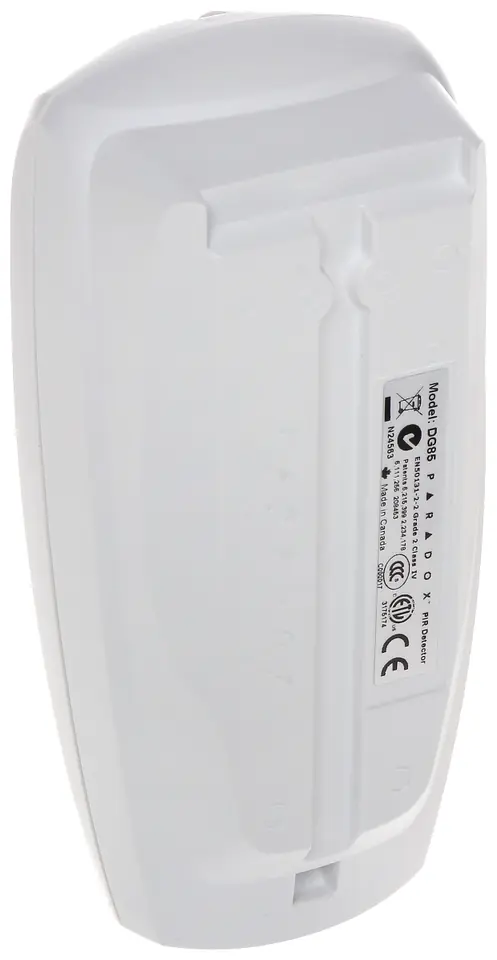

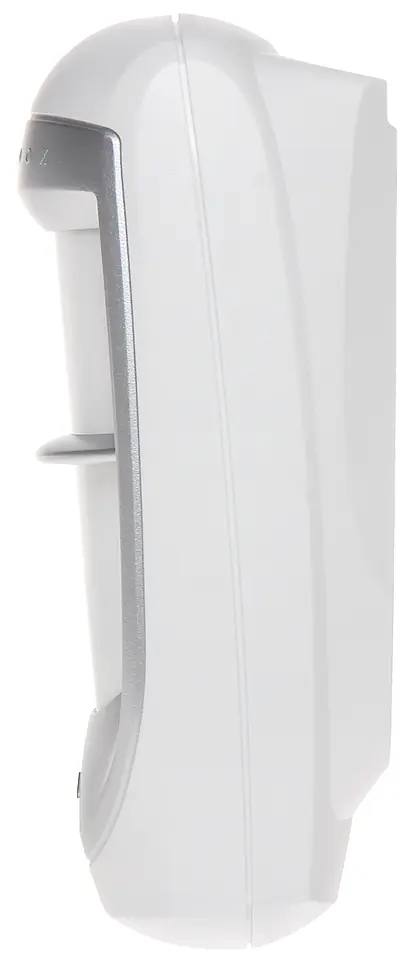

PIR DETECTOR DG-85 PARADOX
€69.33
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DG-85 / 5902887018794
Share this product:
Specification

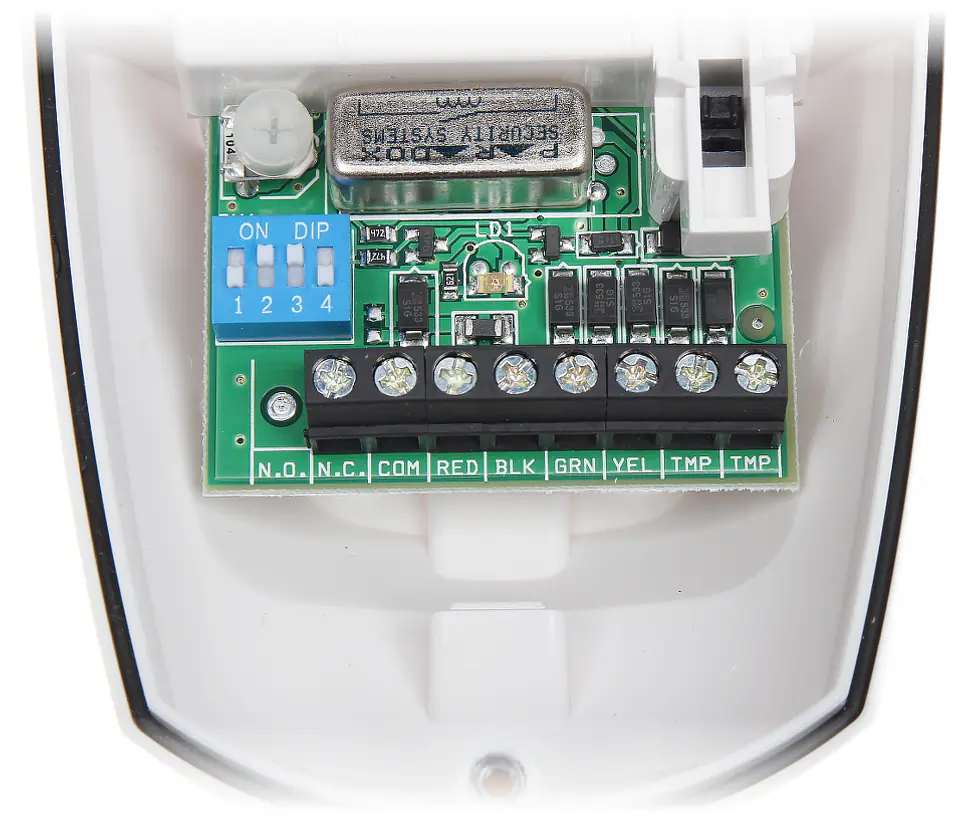

| Alarm outputs:: | NC |
|---|---|
| Animal resistance:: | < 40 kg |
| Colour:: | White / Silver |
| Country of origin:: | Canada |
| Detectable movement speed:: | 0.2 ... 3.5 m/s |

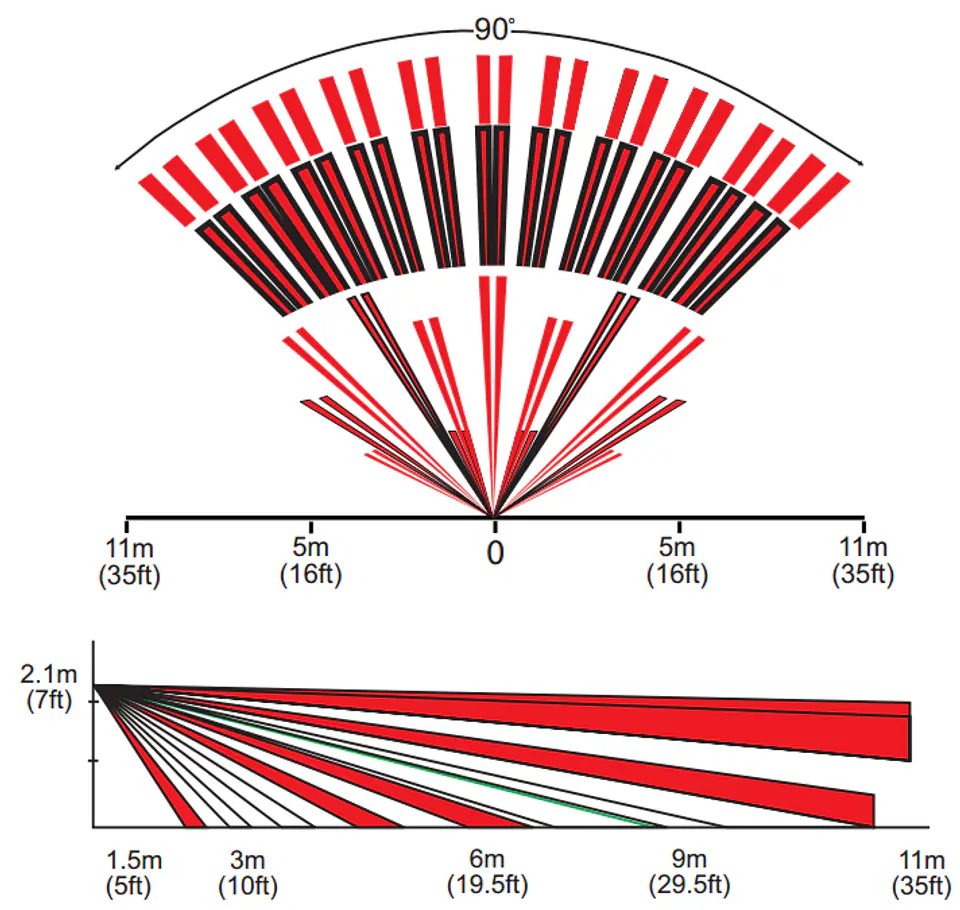

| Detection angle:: | 90 ° |
| Dimensions:: | 82 x 177 x 72 mm |
| Environmental class:: | Class IV |
| Manufacturer / brand:: | PARADOX |
| Maximum current consumption:: | 40 mA |
| Maximum load on outputs:: | 28 VDC / 100 mA |
| Operating temperature:: | -35 °C ... 50 °C |
| Power:: | 9 ... 16 VDC |
| Pyroelement:: | 2 x Double |
| Range:: | 11 x 11 m |
| Recommended mounting height:: | 2.1 m |
| Scales:: | 0.218 kg |
| Selected features:: | Fresnel Lenses with UV Filter Tamper Protection Patented Motion Analysis (Without Analog Signal Processing) Digital Pulse Signal Processing Technology Digital Shield Algorithm Reducing False Alarms Test Mode EN 50131-2-2 II Security Class |
| Sensor type:: | Passive infrared (PIR) |
| Use:: | External |
| Violation signaling time:: | 5 sec |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
