Passive infrared sensor DG-65 / PLUS is designed for indoor useThanks to advanced signal analysis algorithms, it is distinguished by very stable operation and low false alarm rate
PIR DETECTOR DG-65/PLUS PARADOX
€30.20
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- DG-65/PLUS / 5902887015366
Share this product:
Specification
| Alarm outputs: | NC |
|---|---|
| Colour: | white |
| Country of origin: | Canada |
| Detectable movement speed: | 0.2 ... 3.5 m/s |
| Detection angle: | 110 ° |
| Dimensions: | 74 x 101 x 56 mm |
| Environmental class: | class I |
| Infringement signalling time: | 3 sec |
| Maximum current consumption: | 15 mA |
| Maximum output load: | 28 V DC / 100 mA |
| Operating temperature: | -20 °C ... 50 °C |
| Power: | 9 ... 16 VDC |
| Producer / brand: | PARADOX |
| Pyroelement: | quadruple |

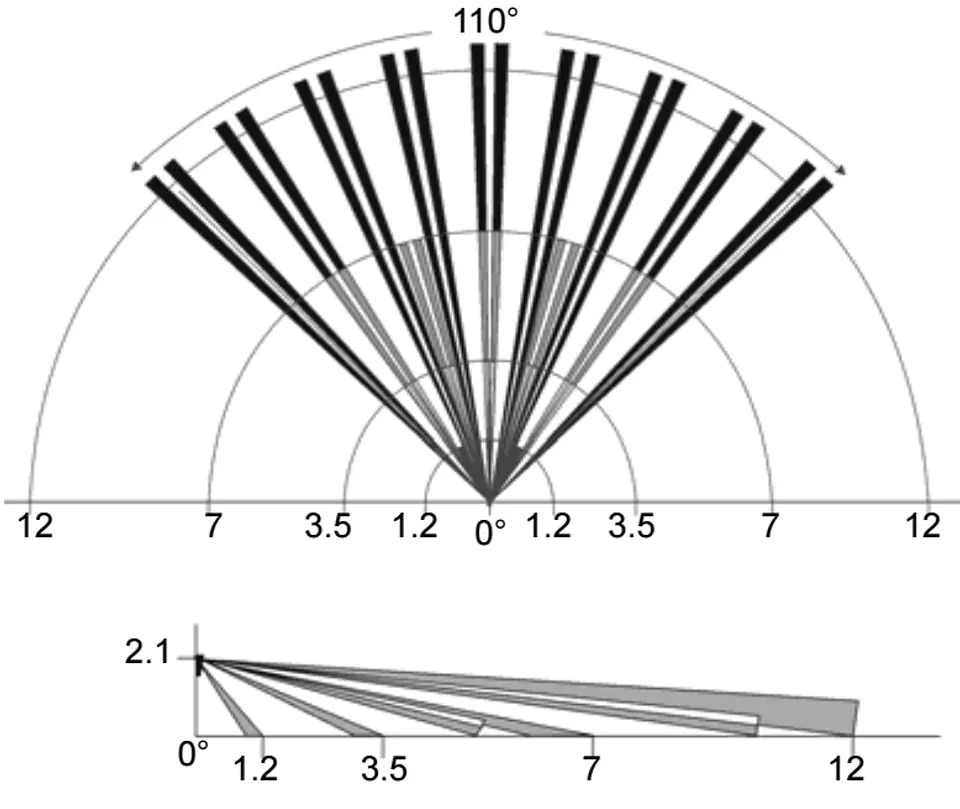

| Range: | 12 x 12 m |
| Recommended mounting height: | 2.1 ... 2.7 m |
| Scales: | 0.096 kg |
| Selected features: | Replaceable Fresnel lenses Tamper alarm protection Interlock Sensor Geometry (ISG) technology Patented motion analysis (no analog signal processing) Digital pulse signal processing technology Digital Shield algorithm reduces false alarms Metal anti-interference screen EMI, RFI Test mode EN 50131 Security class II |
| Sensor type: | Passive infrared (PIR) |
| Use: | Internal |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
