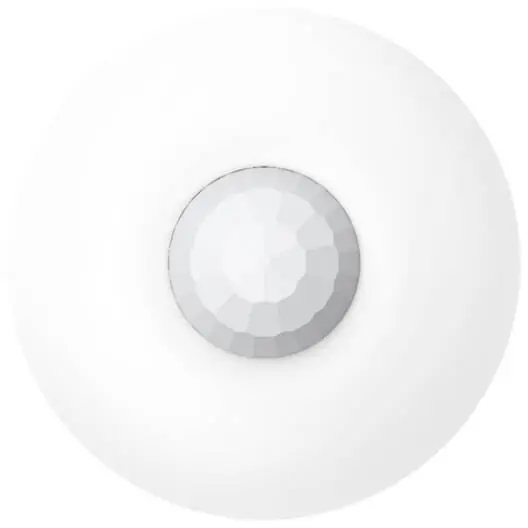

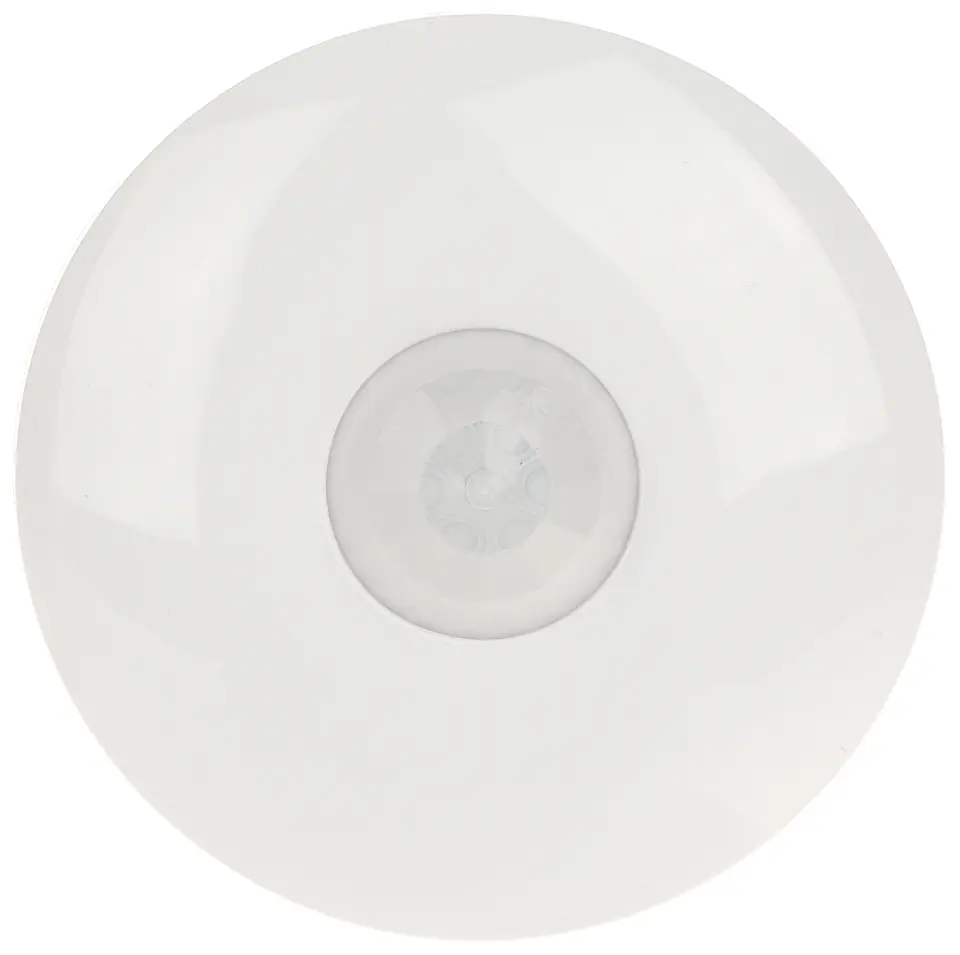

Digital Passive Infrared Sensor For Ceiling Mounting
DS-PDCL12-EG2-WE works with other devices compatible with the HIKVISION AX PRO wireless system
Alarm signaling:: | LED : Color - blue, Signal for alarm control panel |
---|---|
Battery life:: | ~ 5 years |
Cooperation:: | HIKVISION AX PRO |
Current consumption:: | Max. 81 mA |
Detectable movement speed:: | 0.3 ... 2 m/s |
Dimensions:: | Ø 101 x 33 mm |
Frequency range:: | 868 MHz - Tri-X Wireless |
Manufacturer / brand:: | Hikvision |
Operating temperature:: | -10 °C ... 55 °C |

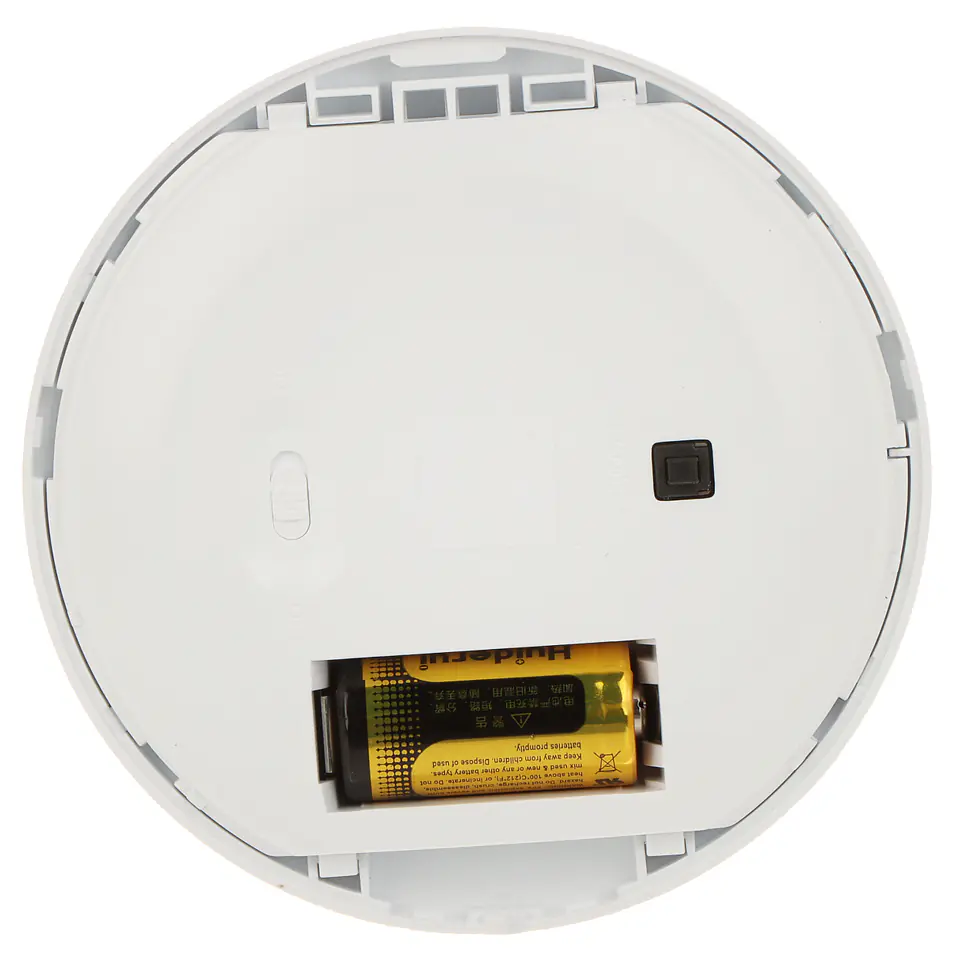

Power:: | 1 x CR123A 3V battery (included) |
Pyroelement:: | quadruple |
Radio communication range (in open area):: | Max. 1600 m |

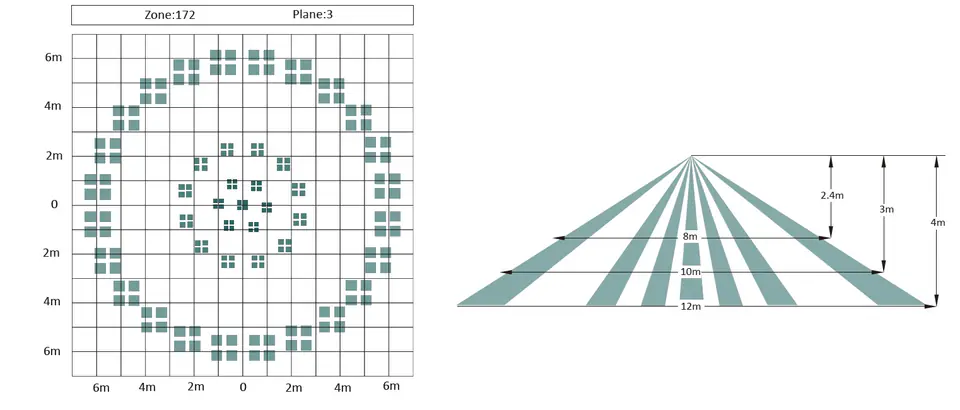

Range:: | Max. 12 m / 360 °from a height of 2.4 m area Ø 8 mz height 4 m area Ø 12 m |
Recommended mounting height:: | 2.4 m ... 4 m |
Sap code:: | 314300159 |
Scales:: | 0.108 kg |
Selected features:: | SEC (Smart Environmental Control) - Advanced Digital Signal Processing and 3D Optics Signal Indicator Bidirectional Communication AES Data Encryption 128-bit Jamming Protection by Frequency Switching Ensures Reliable Transmission Tamper Detection - Enclosure Opening, Ground Detachment Remote Management |
Sensitivity adjustment:: | Auto, low level |
Sensor type:: | Passive infrared (PIR) |
Use:: | Internal |
Warranty:: | 2 years |
Digital Passive Infrared Sensor For Ceiling Mounting
DS-PDCL12-EG2-WE works with other devices compatible with the HIKVISION AX PRO wireless system
