| Contact load capacity:: | Max. 0.5 A / 30 V AC/DC |
|---|---|
| Current consumption:: | 17.3 mA Transmitter 27.3 mA Receiver |
| Dimensions:: | 94 x 60 x 46 mm Transmitter / Receiver |
| Egress:: | 1 x NO/NC |
| Manufacturer / brand:: | VIDOS |
| Number of relay outputs:: | 1 |
| Operating temperature:: | -20 °C ... 50 °C |
| Power:: | 10.5 ... 24 VDC / 0.5 A |
| Radiation angle:: | 0 ° ... 40 ° |
| Range of operation:: | 1 ... 20 m |
| Response time:: | 50 ms |
| Scales:: | 0.072 kg Transmitter 0.075 kg Receiver |
| Selected features:: | Passive Infrared (PIR) 940nm Beam Angle Adjustment Resistance to Changes in Environmental Conditions |
| Warranty:: | 3 years |

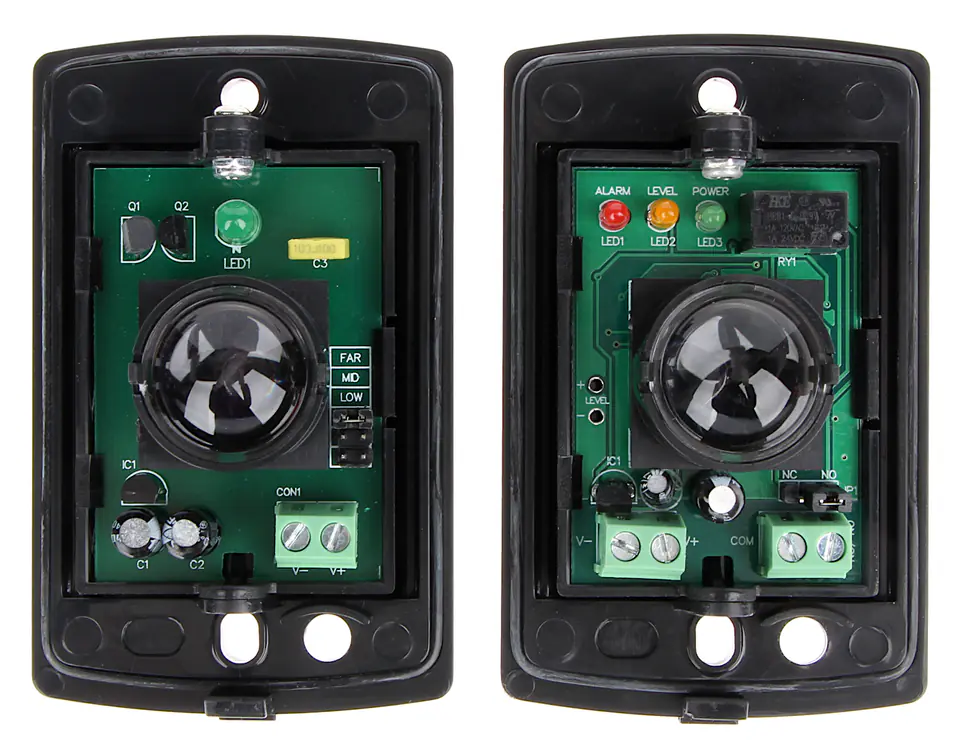

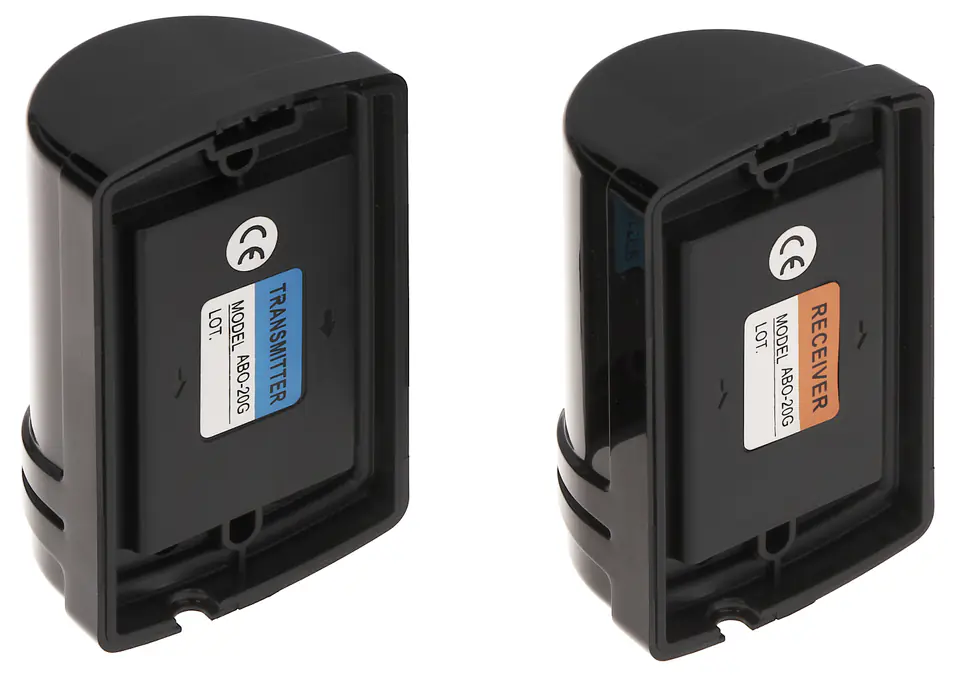

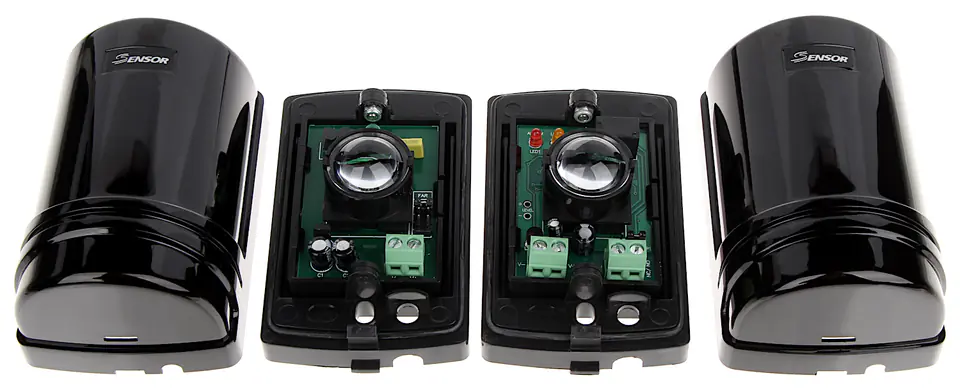

Photocells are designed to work with gate automation systemsThe set consists of a transmitter and a receiver
An infrared beam is sent from the transmitter to the receiverIf an object (e.g. a car or a human) appears in the field of the created barrier, the photocell will react by sending a signal to change the state at the input of the control panel
The devices are resistant to moisture penetration, equipped with a housing that protects against unwanted sunlight
